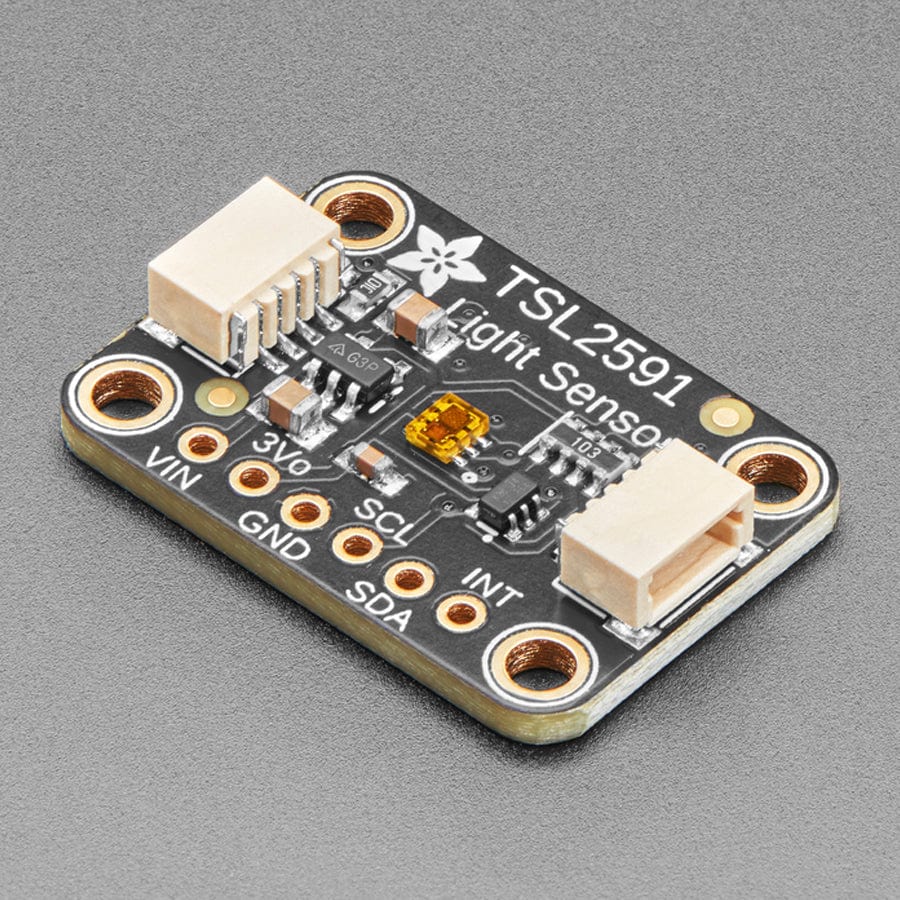

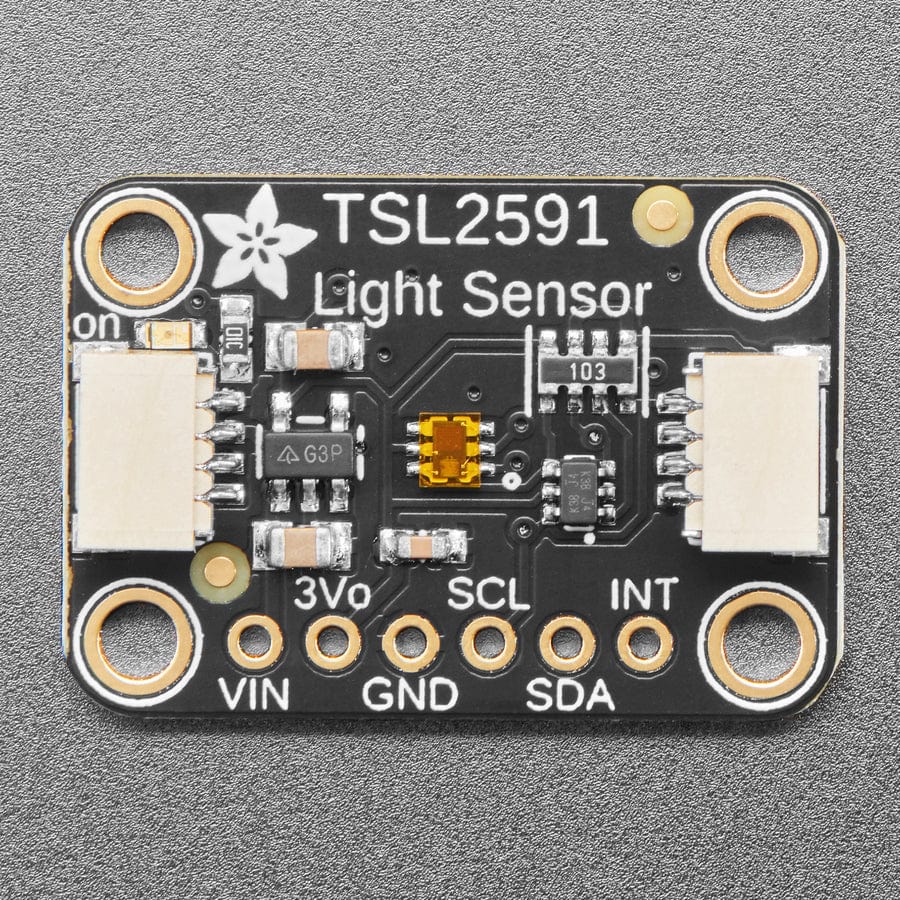

When the future is dazzlingly bright, this ultra-high-range luminosity sensor will help you measure it. The TSL2591 luminosity sensor is an advanced digital light sensor, ideal for use in a wide range of light situations. Compared to low-cost CdS cells, this sensor is more precise, allowing for exact lux calculations and can be configured for different gain/timing ranges to detect light ranges from 188 uLux up to 88,000 Lux on the fly.

The best part of this sensor is that it contains both infrared and full-spectrum diodes! That means you can separately measure infrared, full-spectrum or human-visible light. Most sensors can only detect one or the other, which does not accurately represent what human eyes see (since we cannot perceive the IR light that is detected by most photo diodes) This sensor is much like the TSL2561 but with a wider range (and the interface code is different). This sensor has a massive 600,000,000:1 dynamic range! Unlike the TSL2561 you cannot change the I2C address, so keep that in mind.

The built-in ADC means you can use this with any microcontroller, even if it doesn't have analogue inputs. The current draw is extremely low, so it's great for low-power data-logging systems. about 0.4mA when actively sensing, and less than 5 uA when in power-down mode.

As if that weren't enough, we've also added SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder. Just wire up to your favourite micro with a plug-and-play cable to get data ASAP. For a no-solder experience, just wire up to your favourite micro using a STEMMA QT adapter cable. The Stemma QT connectors also mean the TSL2591 can be used with our various associated accessories. QT Cable is NOT included, but we have a variety in the shop.

Of course, we wouldn't leave you with a datasheet and a "good luck!" - we wrote a detailed tutorial showing how to wire up the sensor, use it with an Arduino and example code that gets readings and calculates lux.

Revision History:

As of September 18, 2024 - We've added a jumper to the LED and updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen
As of Sept 16, 2020 - We've updated this sensor to our 0.7" x 1.0" STEMMA QT standard for sensors. There are now four mounting holes and two STEMMA QT connectors for plug-and-play connectivity! The pinout has changed slightly to be standardized.
As of Nov 25, 2020 - We've updated this sensor to include a cuttable jumper to disable the onboard green LED

Specifications

Chip specifications

Approximates Human eye Response
Extremely wide dynamic range 1 to 600,000,000 Counts
Lux Range: 188 uLux sensitivity, up to 88,000 Lux input measurements.
Temperature range: -30 to 80 *C
Voltage range: 3.3-5V into onboard regulator
Interface: I2C
This board/chip uses I2C 7-bit address 0x29 and 0x28 (yes BOTH!)
Dimensions: 19mm x 16mm x 1mm
Weight: 1.1g

Resources

Tutorial and Downloads

Light & Colour Sensors

Price

Collections

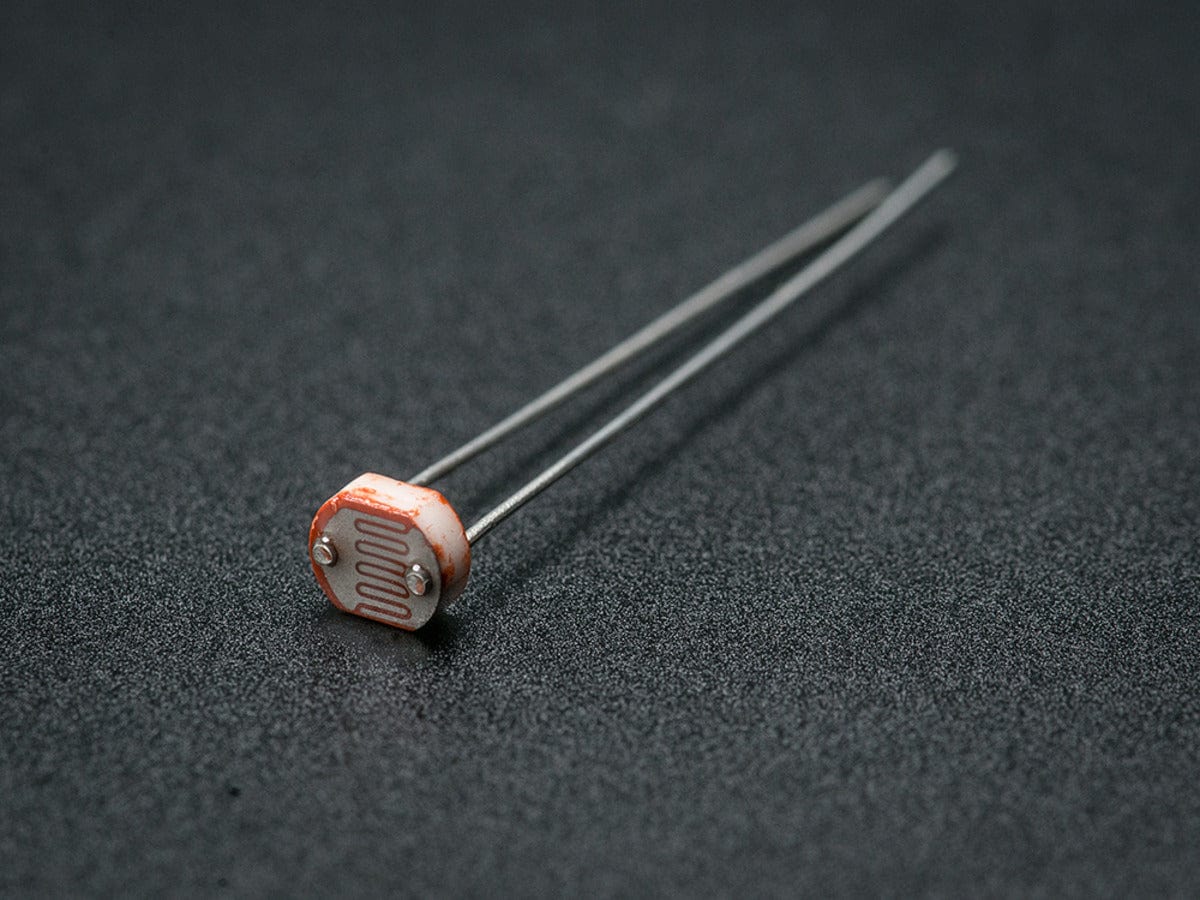

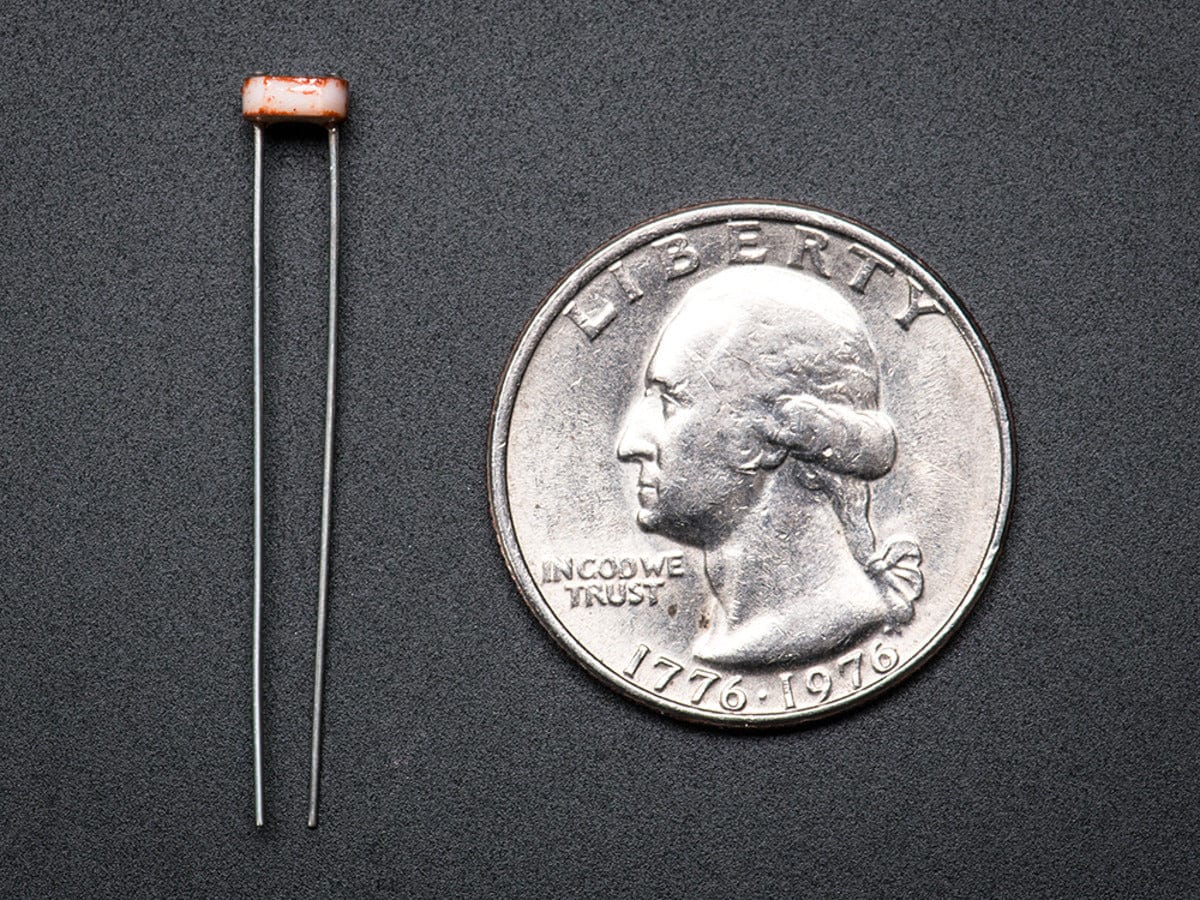

Photo cell (CdS photoresistor)

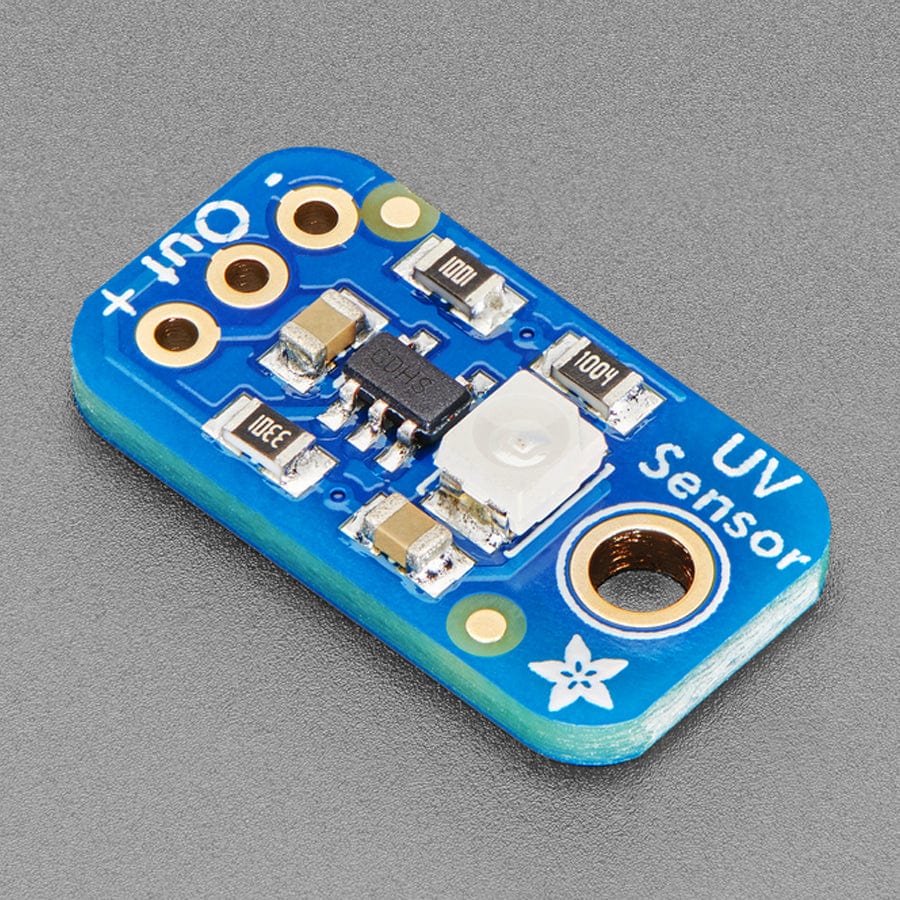

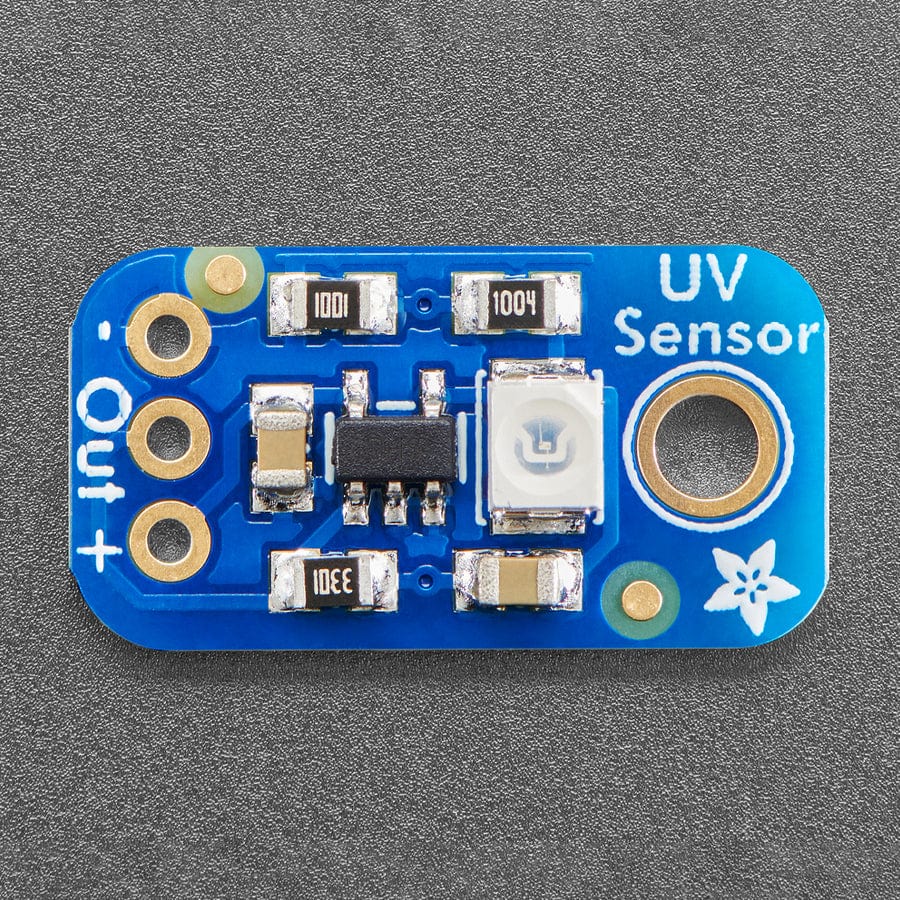

Analog UV Light Sensor Breakout - GUVA-S12SD

Adafruit TSL2591 High Dynamic Range Digital Light Sensor (STEMMA QT)

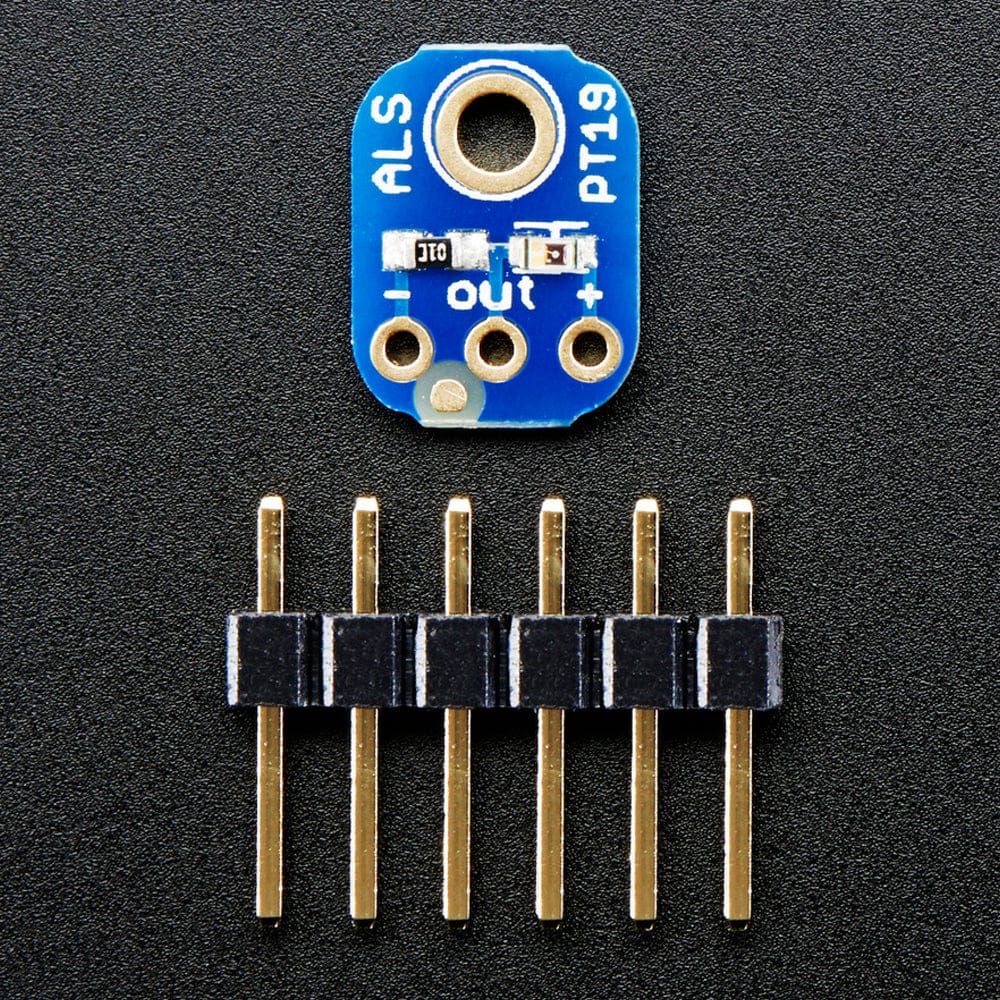

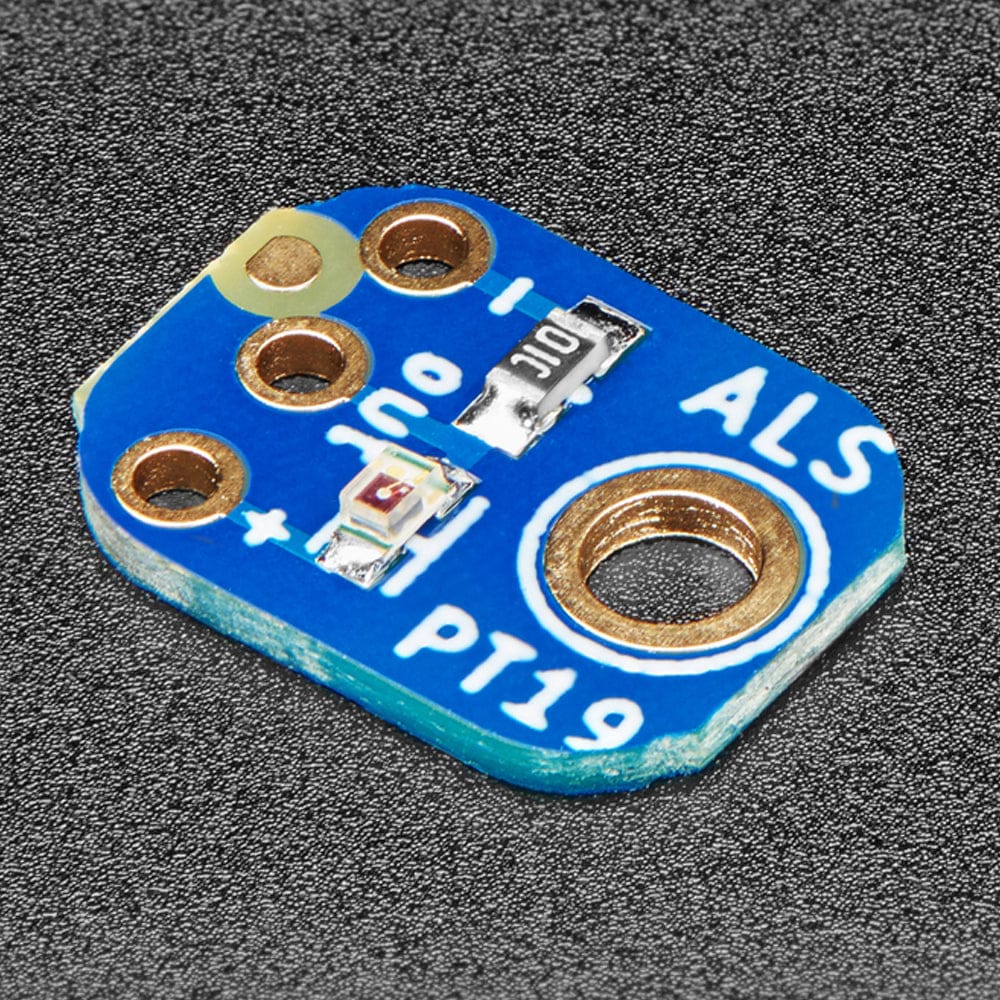

Adafruit ALS-PT19 Analog Light Sensor Breakout

Photo Transistor Light Sensor

VCNL4010 Proximity/Light sensor

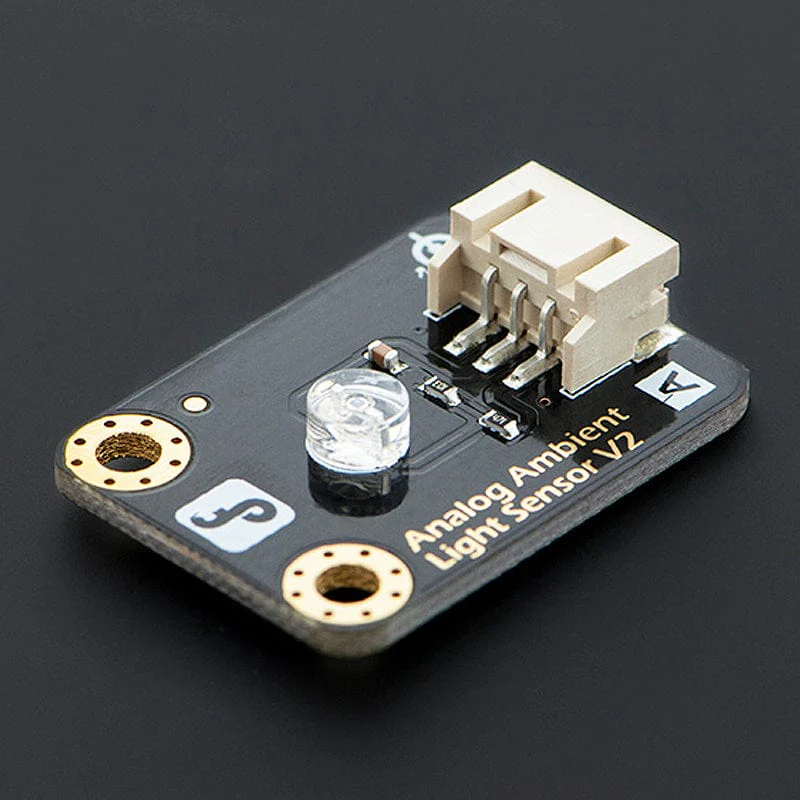

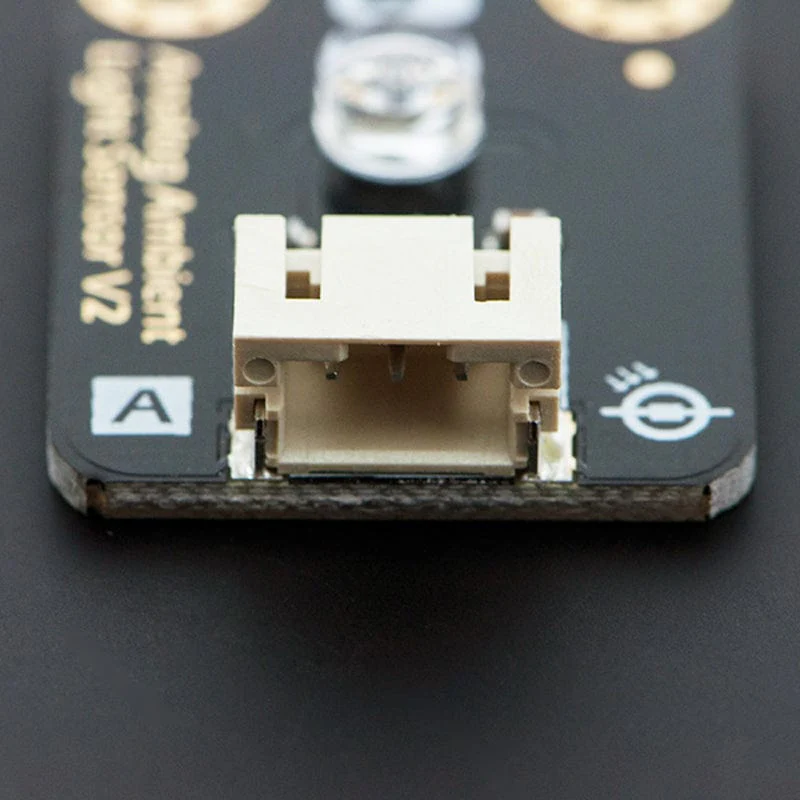

Gravity: Analog Ambient Light Sensor

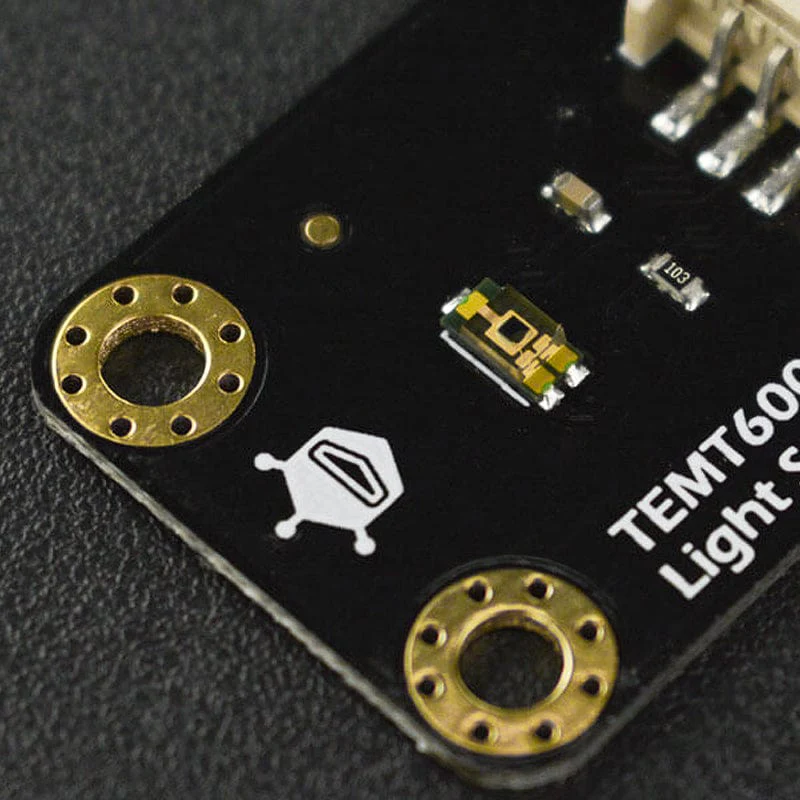

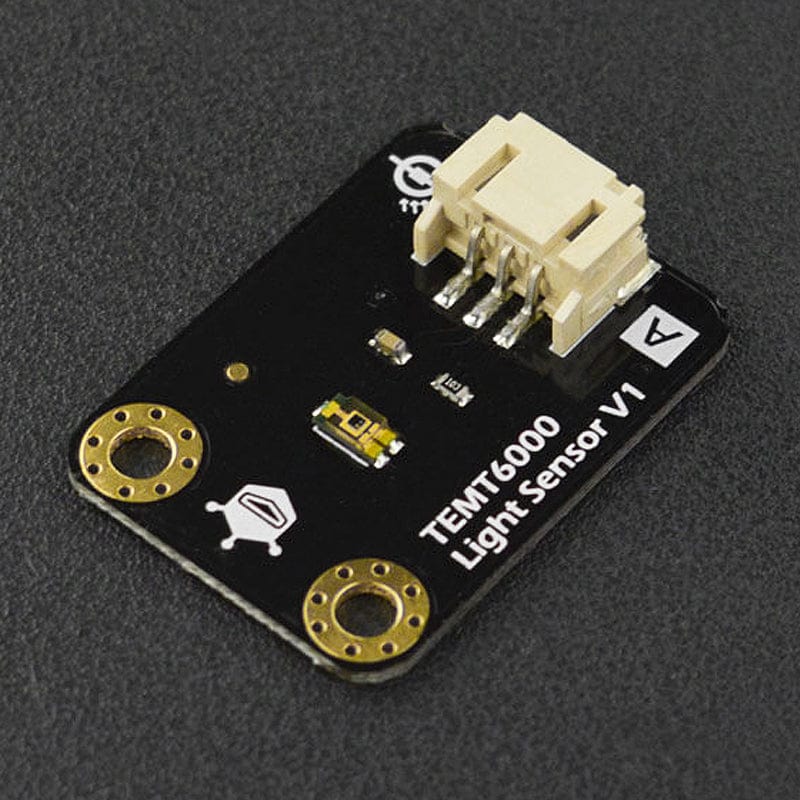

Gravity: Analog Ambient Light Sensor TEMT6000

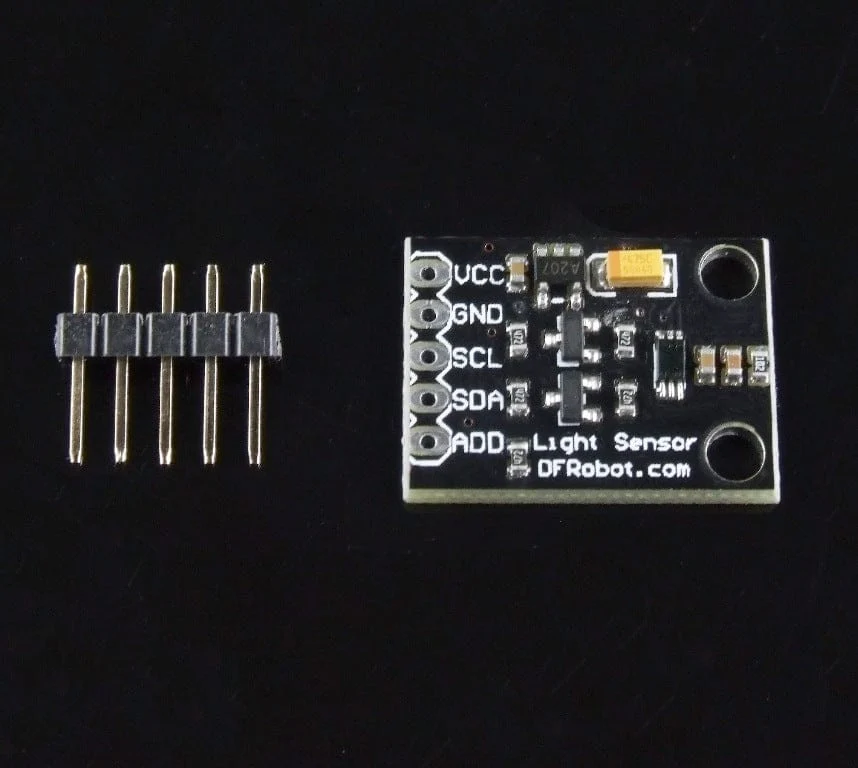

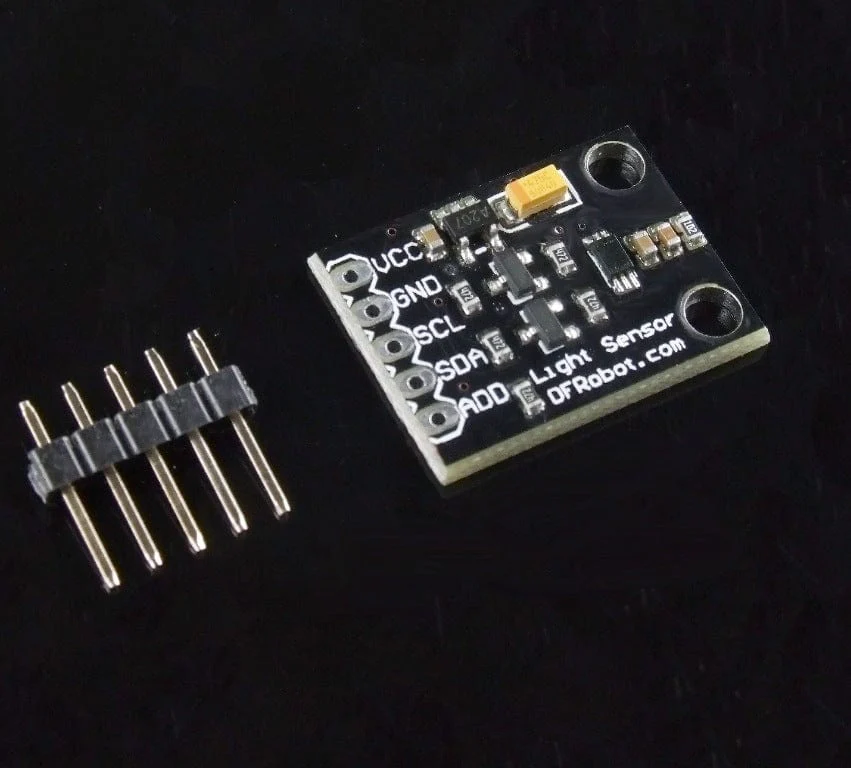

Fermion: BH1750 Light Sensor (Breakout)

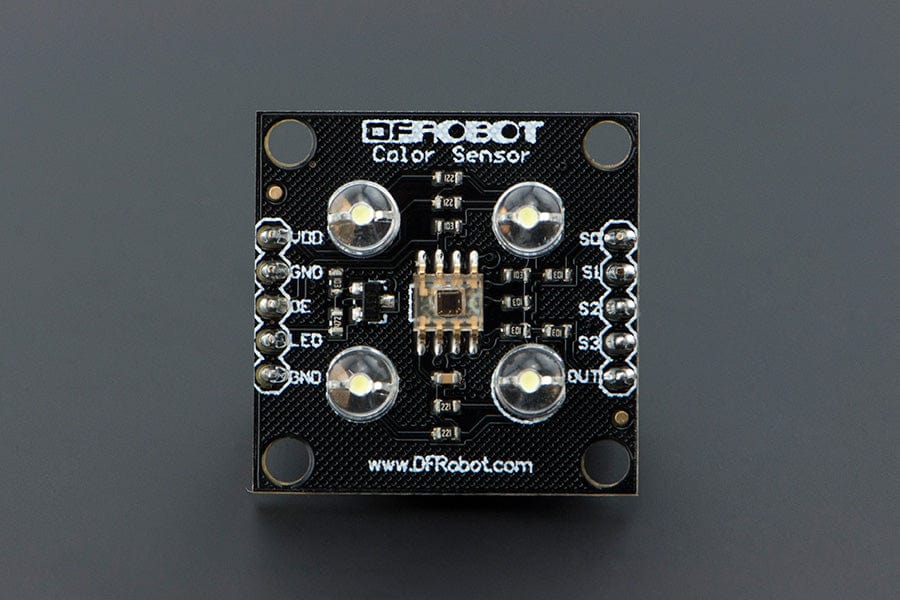

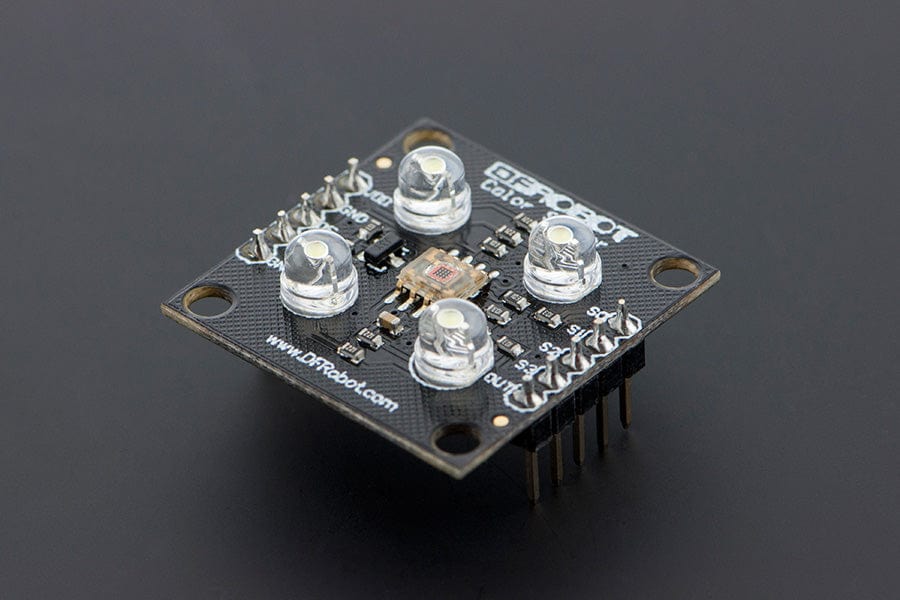

Fermion: TCS3200 RGB Color Sensor (Breakout)

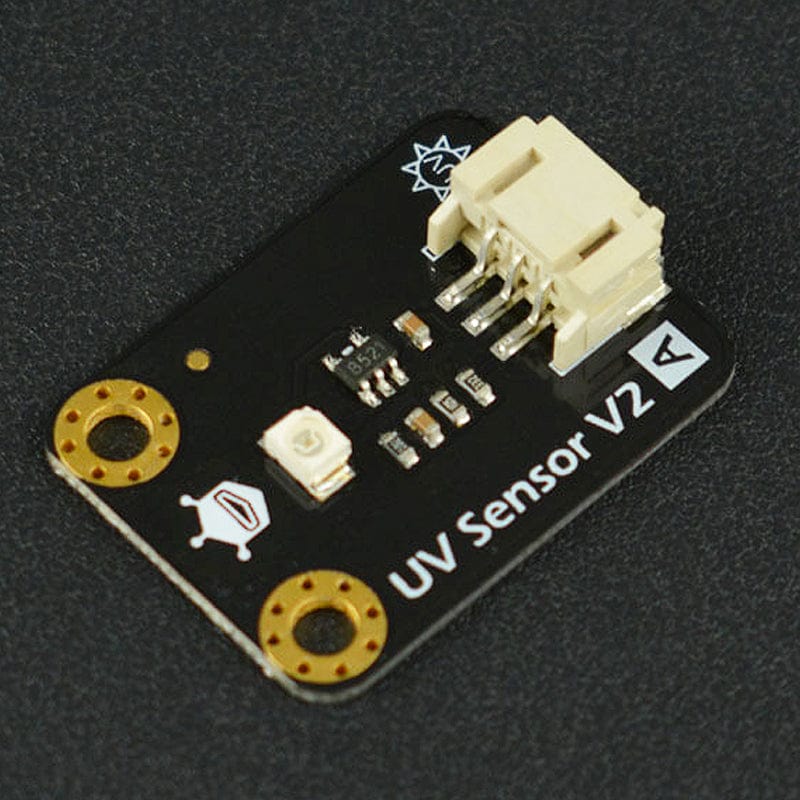

Gravity: Analog UV Sensor V2

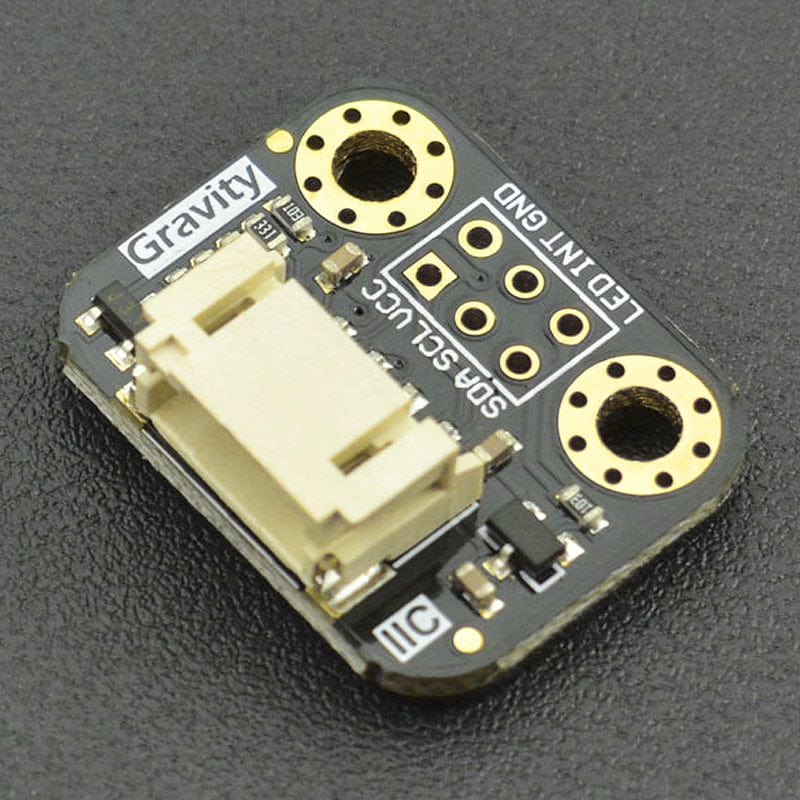

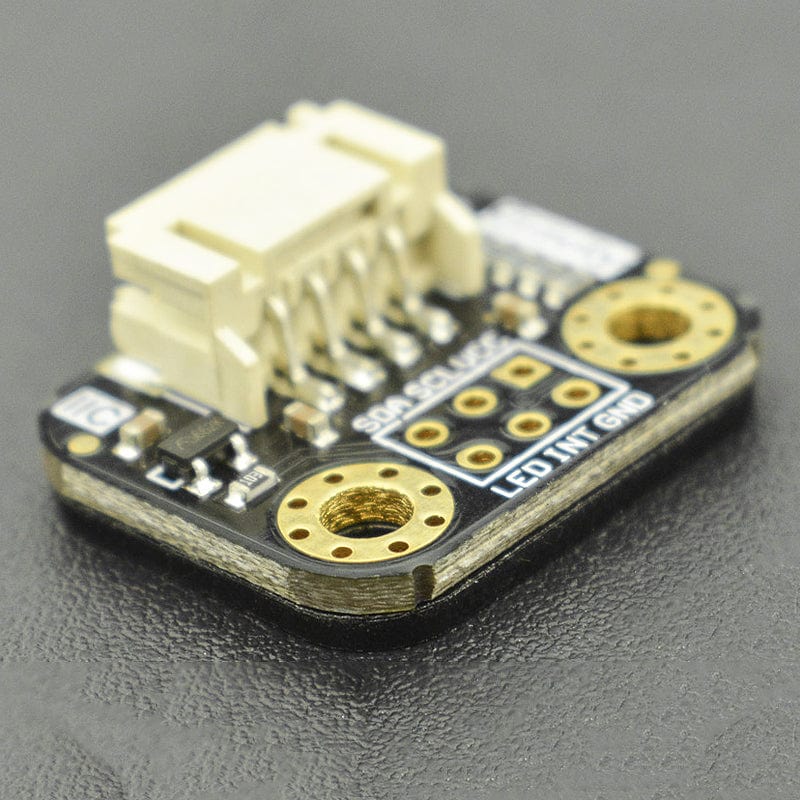

Gravity: TCS34725 RGB Colour Sensor
