$2.78The Story

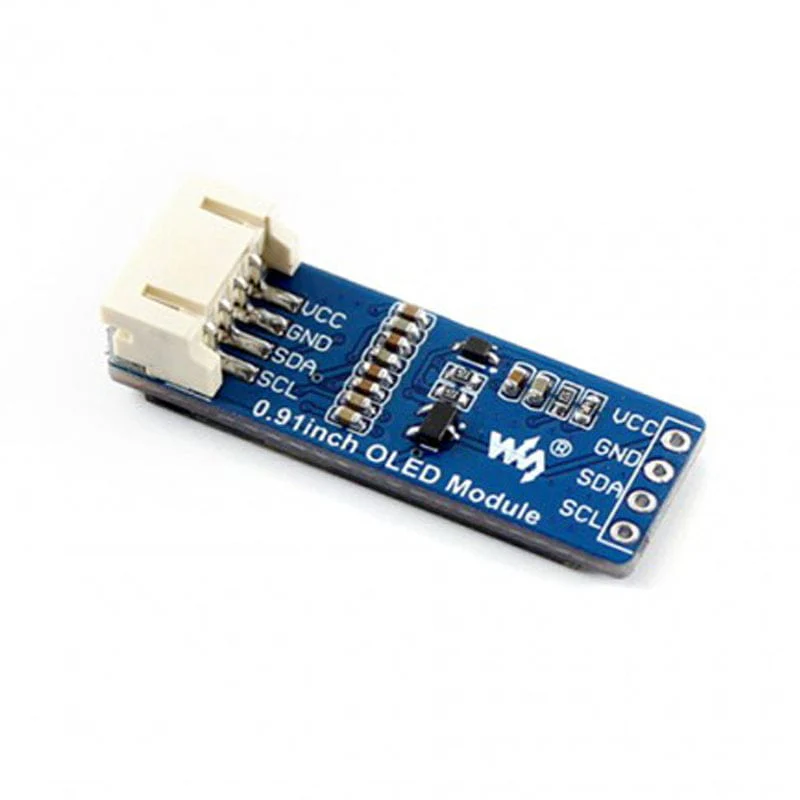

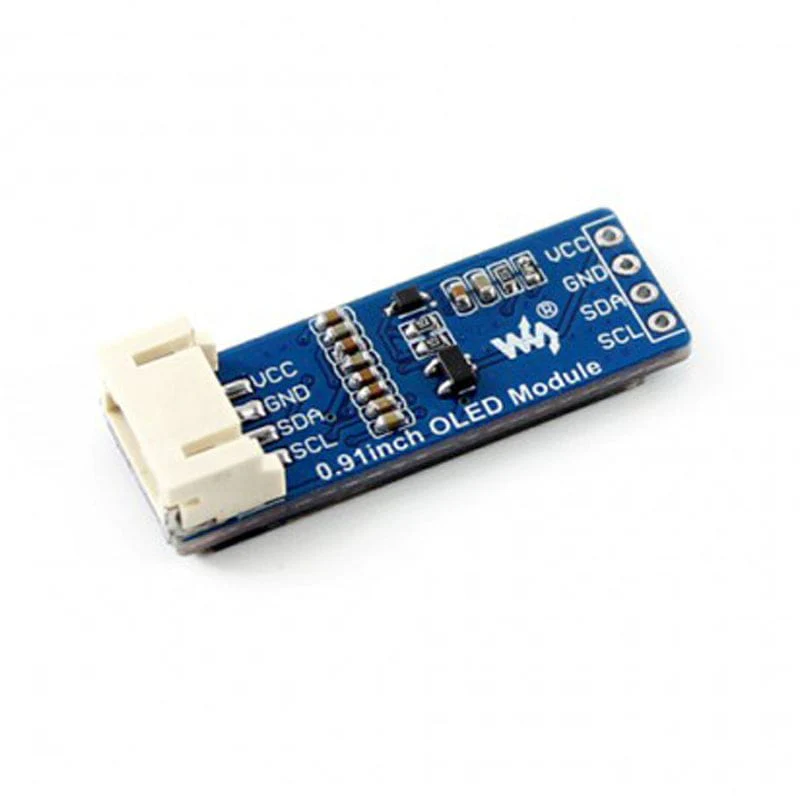

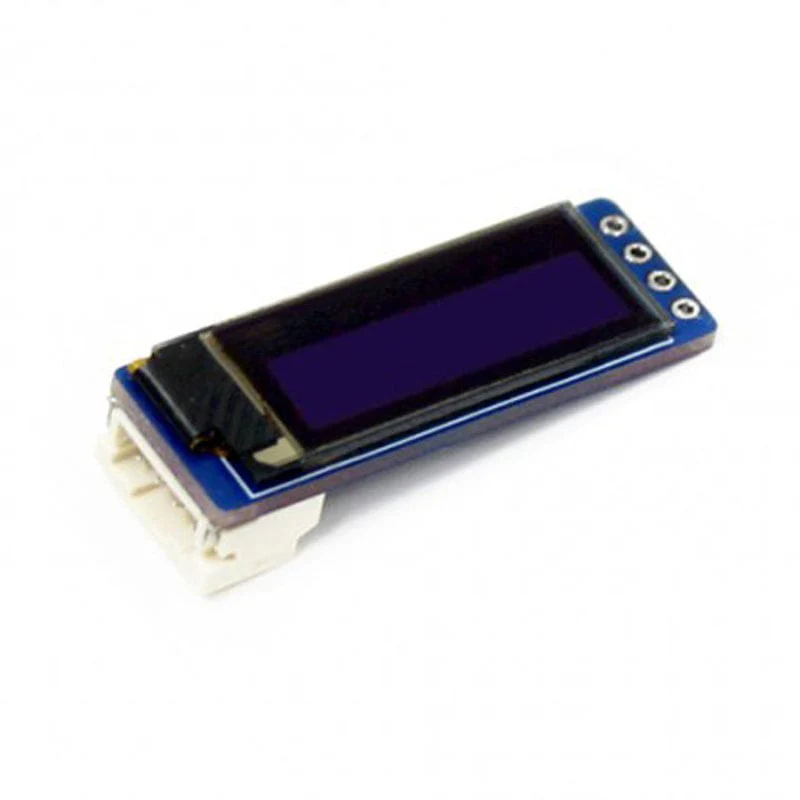

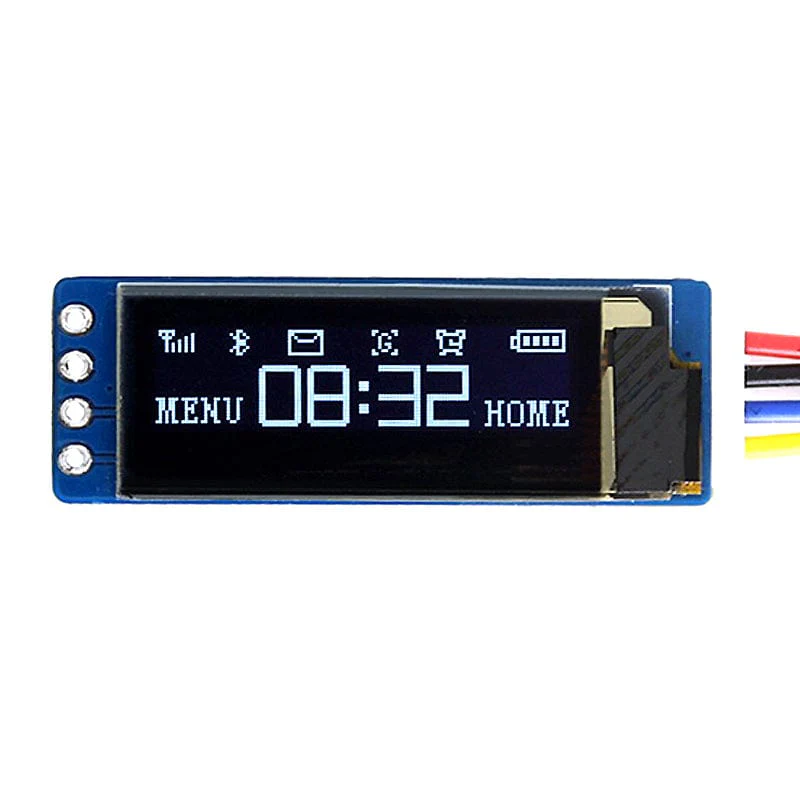

This is a general OLED module for adding a small display to your project - great for robots, data monitors and more! The module is 0.91" diagonal, 128x32 pixels, with an embedded controller communicating via I2C interface.
Features
- 0.91" small form factor
- 128x32 high resolution
- I2C interface requires only two signal pins
- Comes with development resources and manual (examples for Raspberry Pi)
Resources
- Product Wiki
Specifications
- Driver: SSD1306
- Interface: I2C
- Display colour: White
- Resolution: 128x32
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 36 x 12.5 (mm)
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| SDA | Data input |
| SCL | Clock input |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a general OLED module for adding a small display to your project - great for robots, data monitors and more! The module is 0.91" diagonal, 128x32 pixels, with an embedded controller communicating via I2C interface.
Features
- 0.91" small form factor
- 128x32 high resolution
- I2C interface requires only two signal pins
- Comes with development resources and manual (examples for Raspberry Pi)
Resources
- Product Wiki
Specifications
- Driver: SSD1306
- Interface: I2C
- Display colour: White
- Resolution: 128x32
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 36 x 12.5 (mm)
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| SDA | Data input |
| SCL | Clock input |
