1.14" IPS LCD Display Module (240x135)

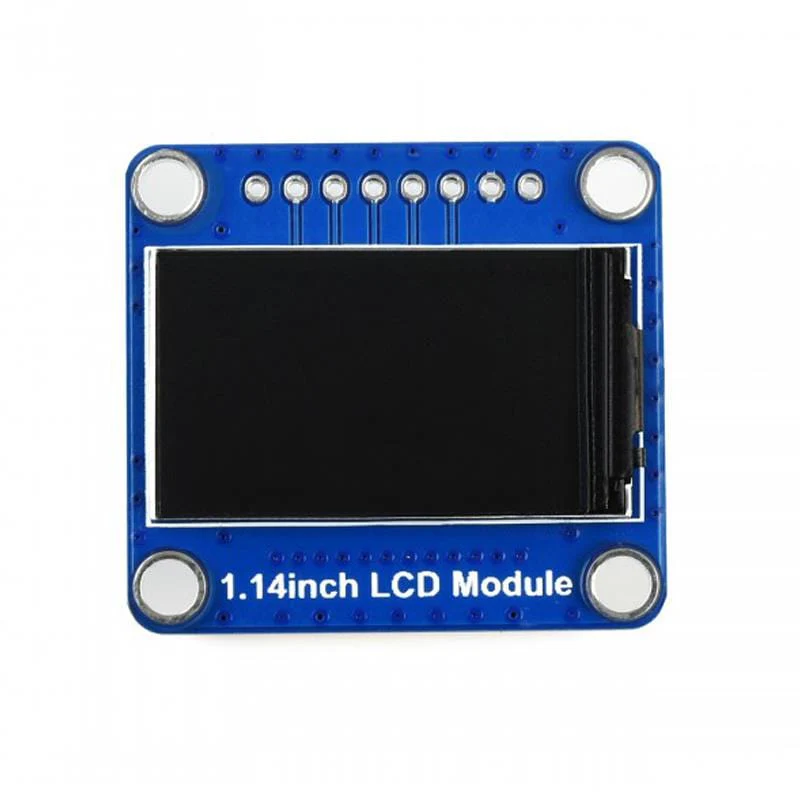

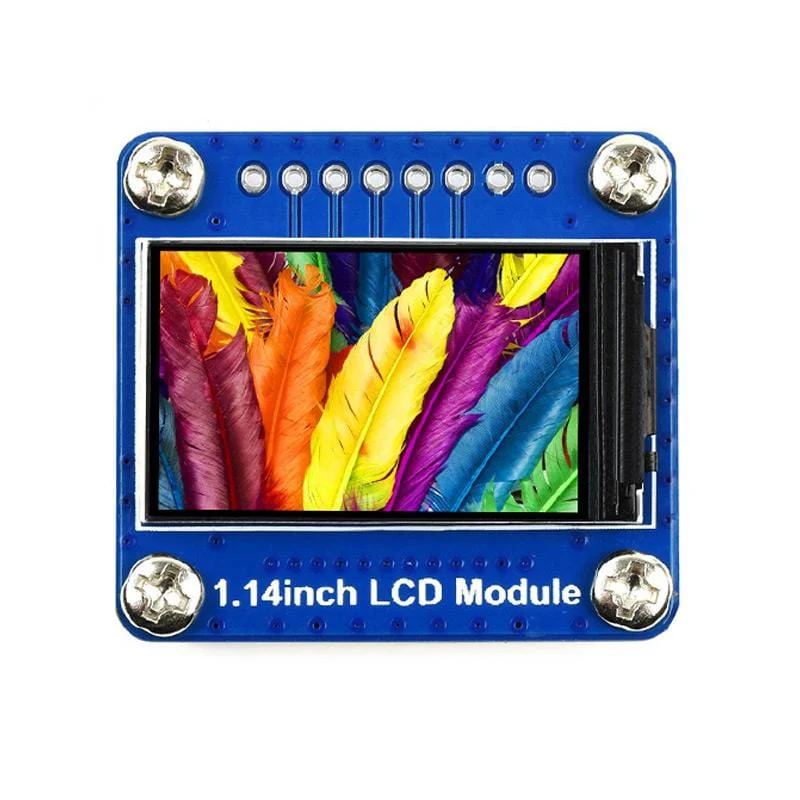

This 1.14" IPS LCD module from Waveshare is a great way to add a mini high-quality display to your project.

The display has a 240x135 resolution and offers 65K RGB colours via its IPS display. The module is controlled via a simple 4-wire SPI thanks to the embedded ST7789 driver.

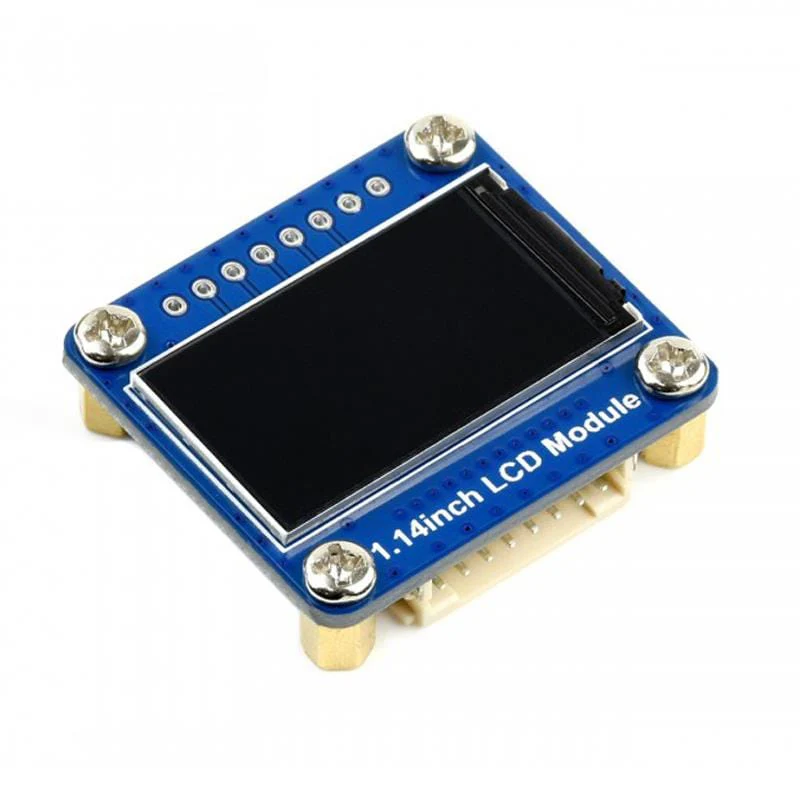

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

Features

• 1.14" LCD Display
• 240×135 resolution
• 65K RGB colours
• Clear and colourful display
• SPI interface minimizes required IO pins
• Supports controller boards such as Raspberry Pi and Arduino
• Comes with online development resources (examples for Raspberry Pi/Arduino)

Wiring Examples

Package Contents

• 1x 1.14" LCD Module
• 1x PH2.0 8-pin 20cm cable

Resources

• Product Wiki including wiring and code examples

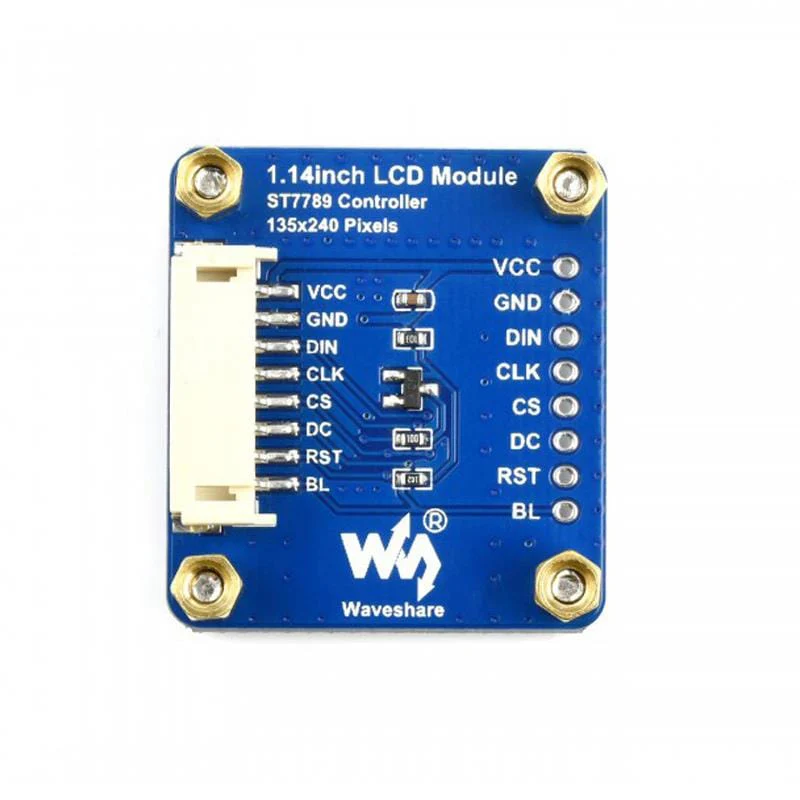

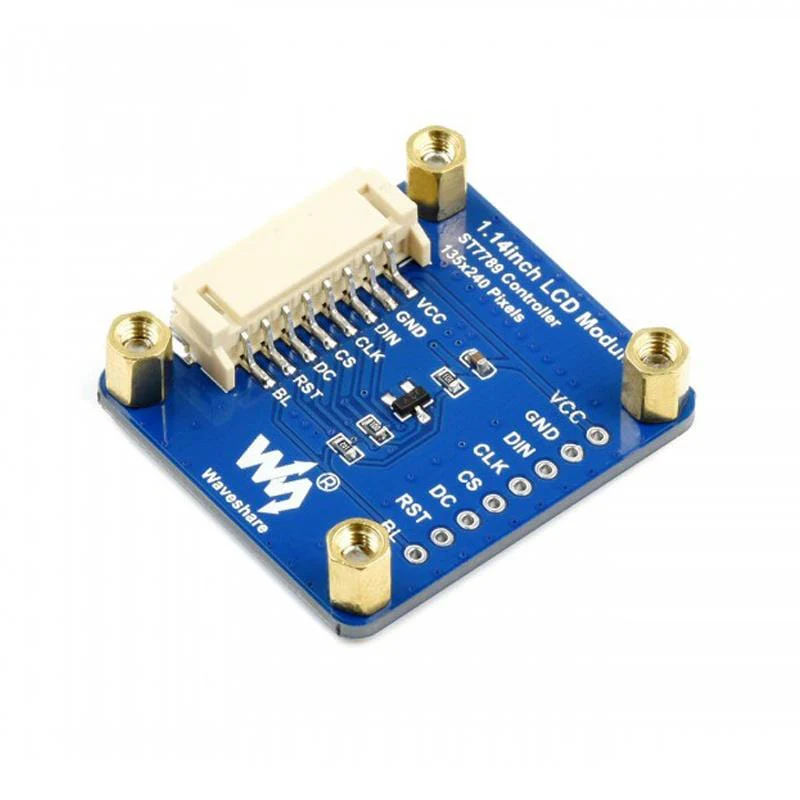

Pinout

VCC	Power (3.3V/5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Specifications

• Operating voltage: 3.3V/5V
• Interface: 4-wire SPI
• LCD type: IPS
• Controller: ST7789
• Resolution: 240(H)RGB x 135(V)

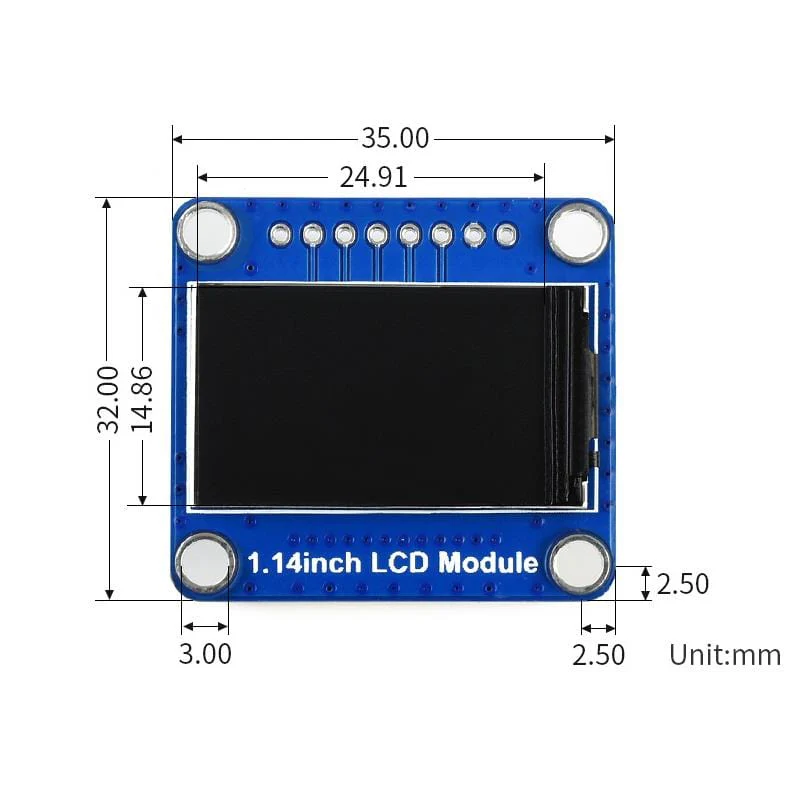

• Display size: 24.91 × 14.86mm
• Pixel size: 0.1101 × 0.1035mm
• Dimension: 35.00 × 32.00mm
