1.3" IPS 240x240 LCD Display HAT for Raspberry Pi

Important - kernel support! This HAT will not work currently work correctly on Raspberry Pi kernel 5.4 or later. Customers are advised to use an older version of Raspberry Pi OS (2020-05-27-raspios-buster-full-armhf).

---

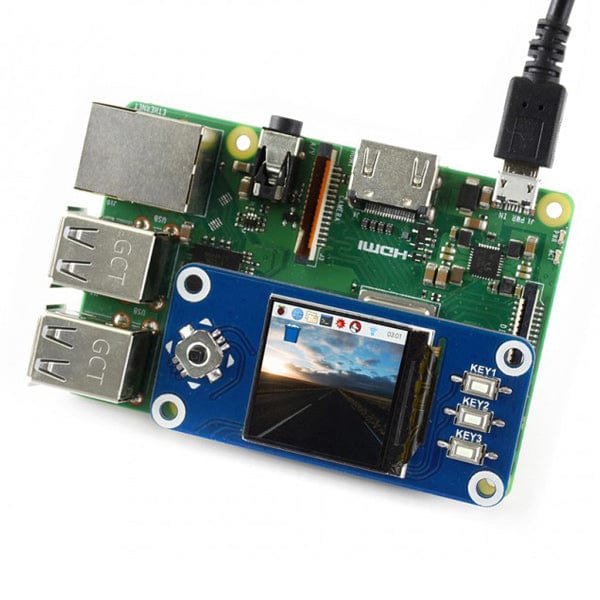

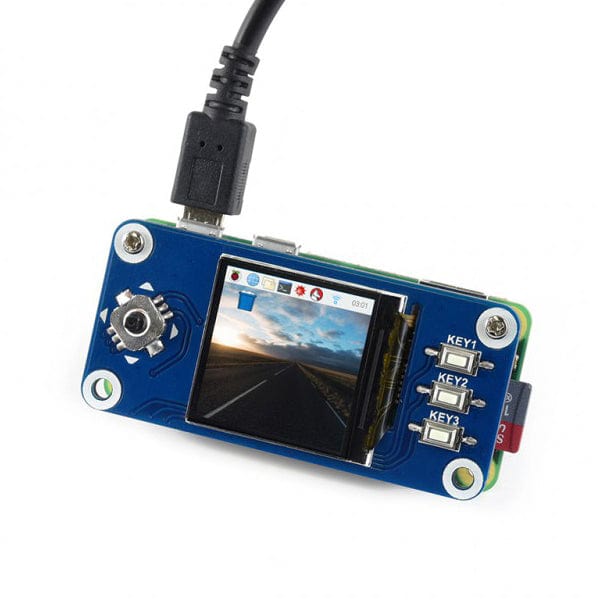

This is an IPS LCD display HAT for the Raspberry Pi. It features a 1.3" diagonal display with 240x240 pixels and includes an embedded controller. The HAT communicates via the SPI interface.

Trying to add a control interface for your Pi? This compact display has everything you need for a neat and tidy solution.

Features

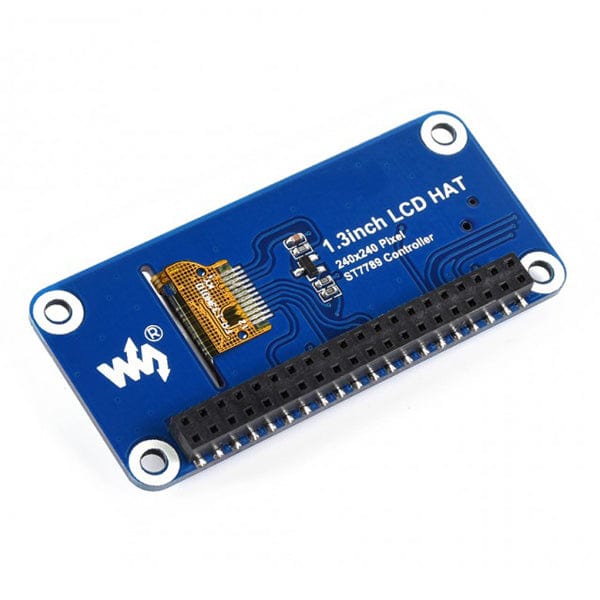

• Standard Raspberry Pi 40-pin GPIO extension header
• IPS screen - wide viewing angles
• High definition in small size

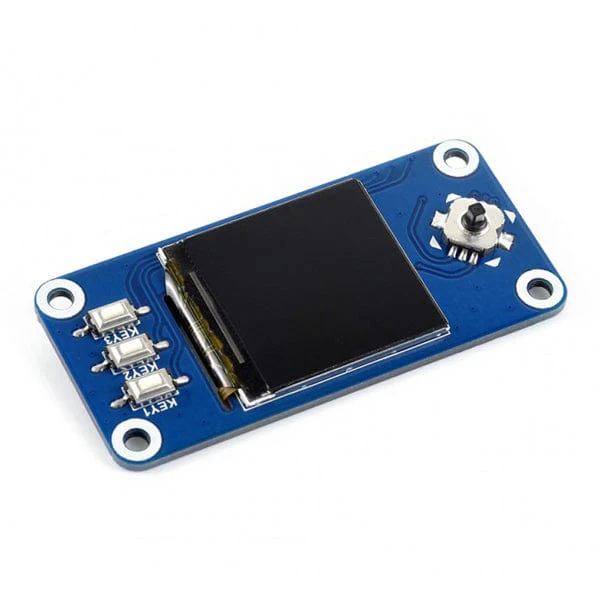

• 1x joystick, 3x pushbuttons
• Comes with development resources and manual (examples for Raspberry Pi)

Specifications

• Driver: ST7789
• Interface: SPI
• Display colour: RGB, 65K colour
• Resolution: 240x240
• Backlight: LED
• Operating voltage: 3.3V

Resources

• Product Wiki

Interface

SYMBOL	RASPBERRY PI PIN (BCM)	DESCRIPTION
KEY1	P21	Button 1/GPIO
KEY2	P20	Button 2/GPIO
KEY3	P16	Button 3/GPIO
Joystick Up	P6	Joystick Up
Joystick Down	P19	Joystick Down
Joystick Left	P5	Joystick Left
Joystick Right	P26	Joystick Right
Joystick Press	P13	Joystick Press
SCLK	P11/SCLK	SPI clock input
MOSI	P10/MOSI	SPI data input
DC	P25	Data/Command selection (high for data, low for command)
CS	P8/CE0	Chip selection, low active
RST	P27	Reset, low active
BL	P24	Backlight
