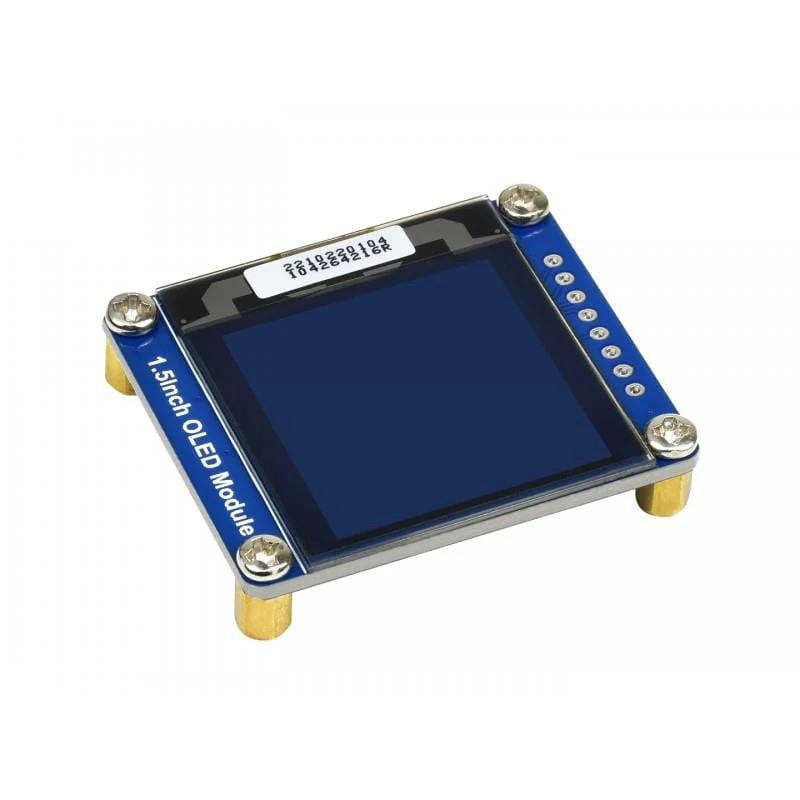

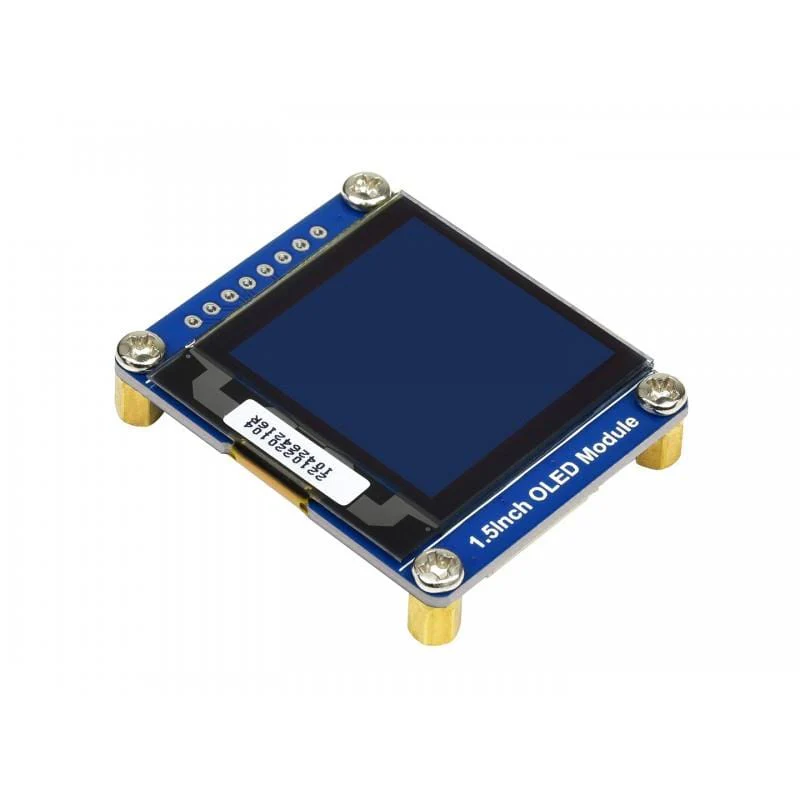

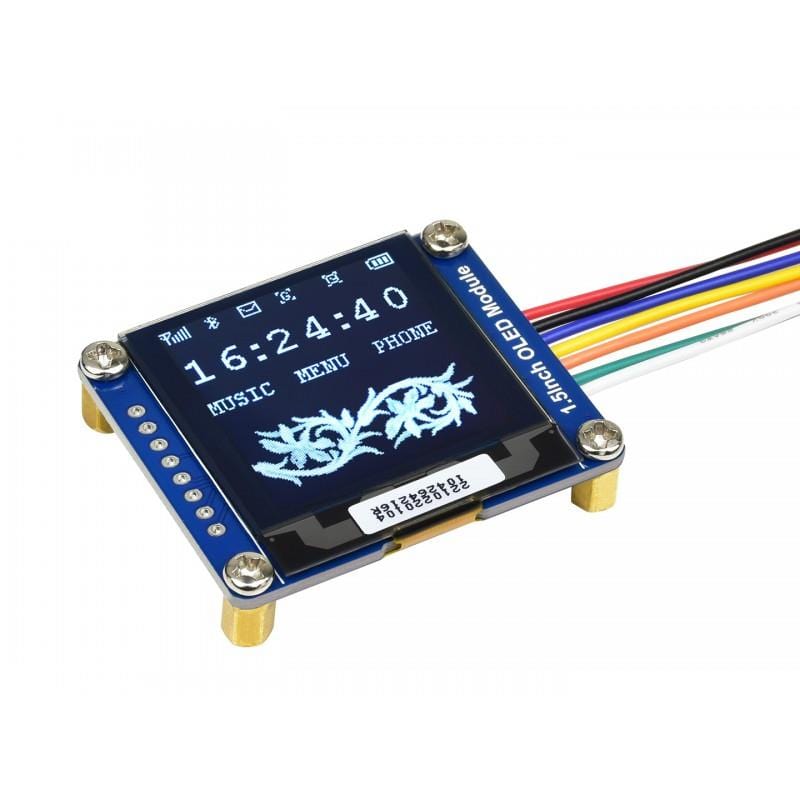

1.5" OLED Display Module (128x128)

This is a 1.5" OLED Display Module, with 128x128 pixels, 16 gray scale and an embedded controller.

The module communicates via an SPI interface, making it great for a number of different development boards such as the Raspberry Pi.

Features

• 128x128 high resolution
• 16 gray scale - better display effect
• Supports SPI or I2C interface, configured via onboard resistor
• Comes with development resources and manual (examples for Raspberry Pi/Arduino)

Resources

• Product Wiki
• User manual

• Demo code

Package Contents

• 1x 1.5" OLED Module
• 1x PH2.0 7-pin

Specifications

• Driver: SSD1327
• Interface: SPI / I2C
• Display colour: White
• Gray scale: 16
• Resolution: 128x128 (most other competitive products are typically 128x64)
• Viewing angle: >160°
• Operating voltage: 3.3V / 5V
• Dimension: 44.5 x 37 (mm)

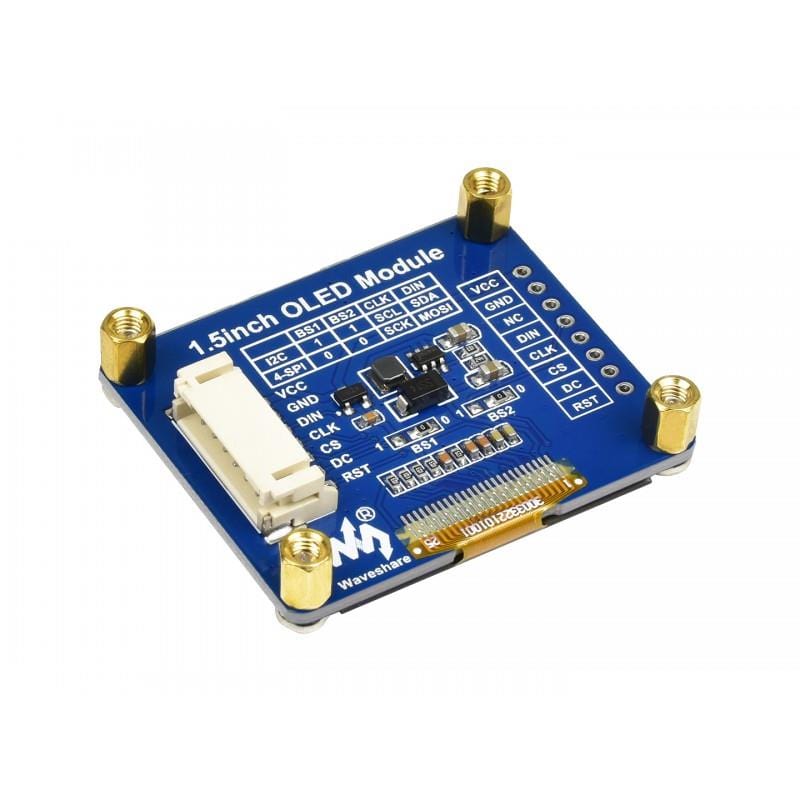

Interface

SYMBOL	DESCRIPTION
VCC	Power (3.3~5V input)
GND	Ground
DIN	Data input
CLK	Clock data input
CS	Chip selection, low active
DC	Data/Command select (high for data, low for command)
RST	Reset, low active

There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

	SPI	I2C
BS1	0	1
BS2	0	1
CS	Chip select	NC
DC	Data/Command	I2C address selection
DIN	MOSI	SDA
CLK	SCK	SCL
