10 Segment LED Bar Graph - Red [discontinued]
HomeStore

10 Segment LED Bar Graph - Red [discontinued]

10 Segment LED Bar Graph - Red [discontinued]

$0.57

Original: $1.91

-70%
10 Segment LED Bar Graph - Red [discontinued]—

$1.91

$0.57

The Story

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.

Applications

  • Audio equipment
  • Instrument panels
  • Digital readout display
  • Signal strength display
  • Power status display
  • Art display

Specification

  • Forward Current (Per Segment): 25mA
  • Max Reverse Voltage: 5v
  • 10 segment bar
  • Color: Super Bright Red
  • Industrial standard size
  • Low power consumption
  • Categorized for luminous intensity

Documents

  • Wiki Doc
  • Arduino Sample code
  • Datasheet
  • Arduino Project

Shipping List

  • 10 segment led bar graph - Red x1

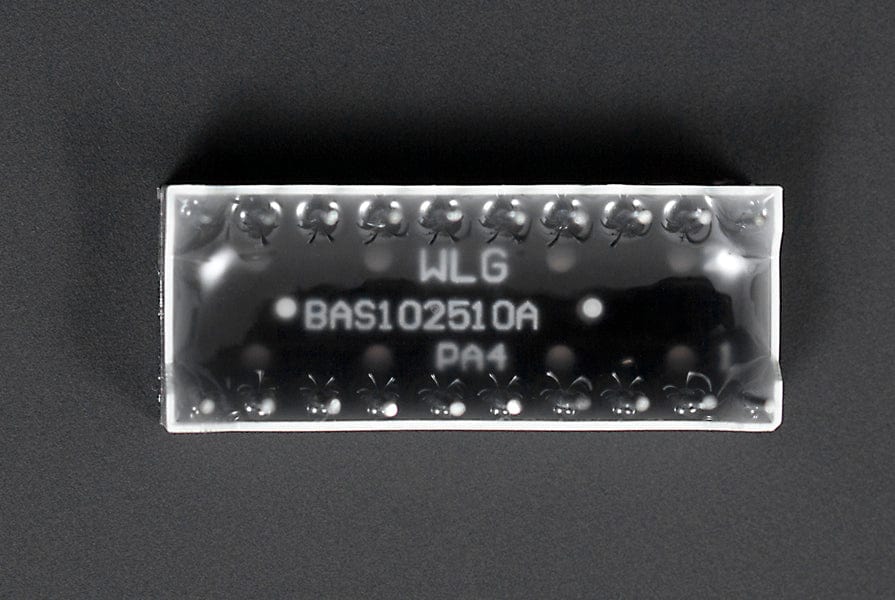

10 Segment LED Bar Graph - Red [discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

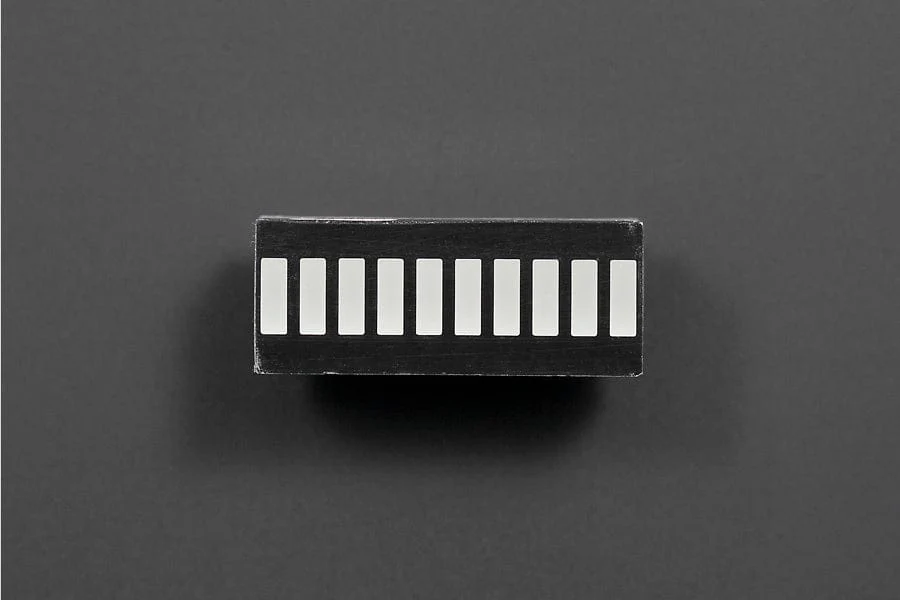

10 Segment LED Bar Graph - Red [discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.

Applications

  • Audio equipment
  • Instrument panels
  • Digital readout display
  • Signal strength display
  • Power status display
  • Art display

Specification

  • Forward Current (Per Segment): 25mA
  • Max Reverse Voltage: 5v
  • 10 segment bar
  • Color: Super Bright Red
  • Industrial standard size
  • Low power consumption
  • Categorized for luminous intensity

Documents

  • Wiki Doc
  • Arduino Sample code
  • Datasheet
  • Arduino Project

Shipping List

  • 10 segment led bar graph - Red x1
