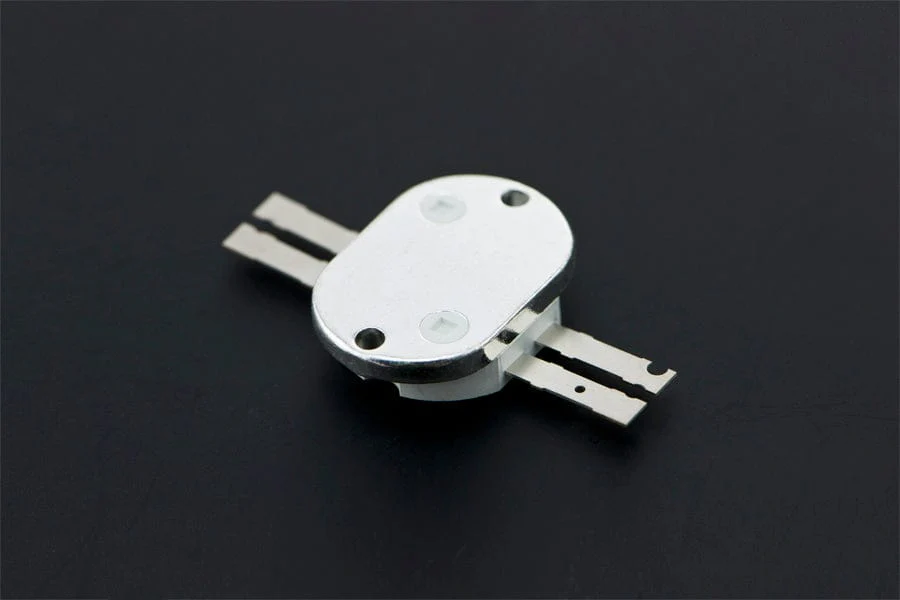

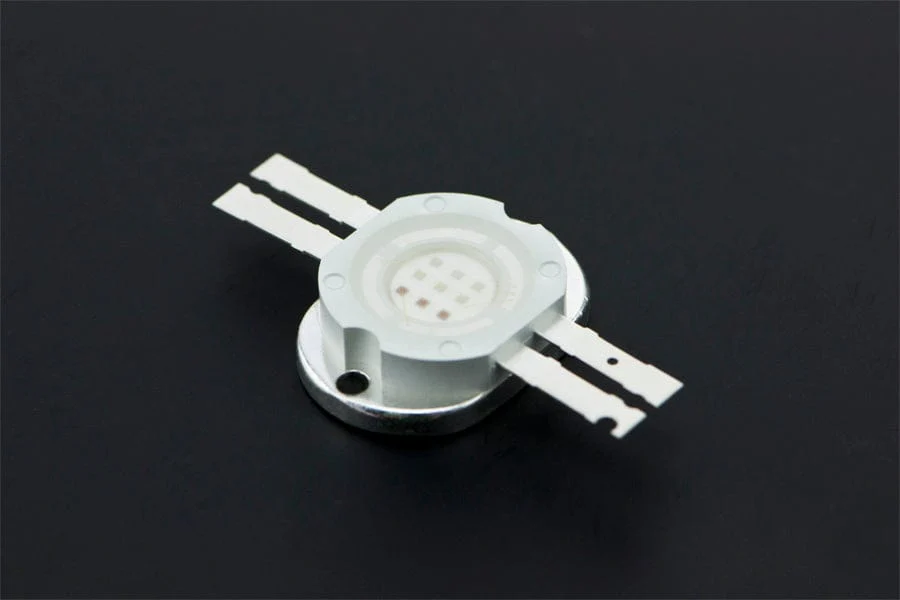

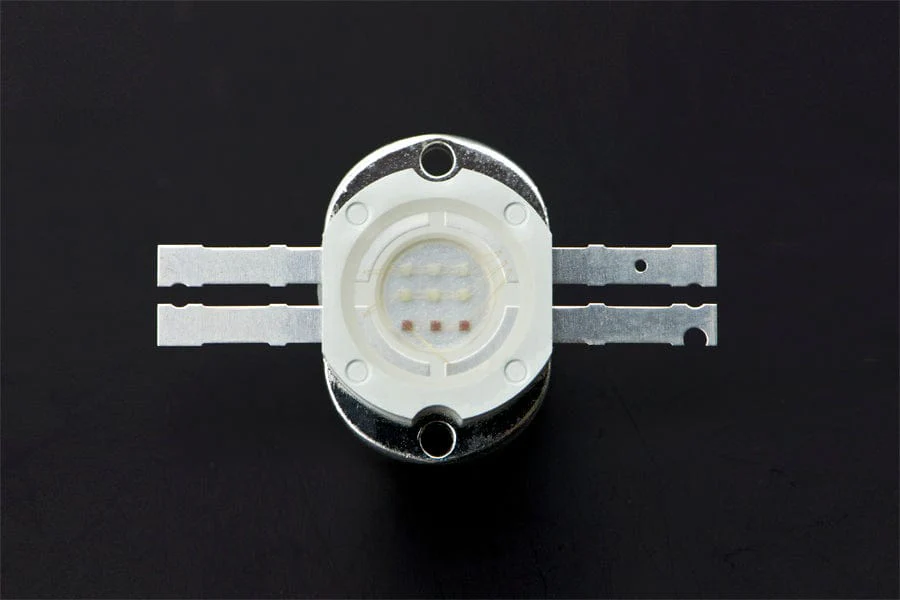

10W Super Bright LED - RGB

This 10W super bright LED can be used as a flash searchlight for your robot projects. It consists of 9 separate LEDs and has a luminance of 500LM. Comes in various colors.

Warning : If you use the full power, LED will be very hot. Please use Heat Sink to cool it down.

• Rated Power: 10W
• Luminance: Red: 110, Green: 165, Blue: 45
• Working Voltage: Red: 6V-7V, Green: 9V-11V, Blue: 9V-11V（With Heat Sink) Red: 5V-5.5V, Green:7.5V-8.5V, Blue:7.5V-8.5V（Without Heat Sink)
• Rated Current: Red: 400mA, Green: 350mA, Blue: 350mA
• Color Temperature: 3000K-4000K
• Angle: 105°
• Working Temperature: -20°C ~ 60°C
• Reserving Temperature: -20°C ~ 60°C
• Size: 38mm*23mm(1.50"*0.91")
• Weight: 10g

• Datasheet

• Super Bright LED - RGB x1
