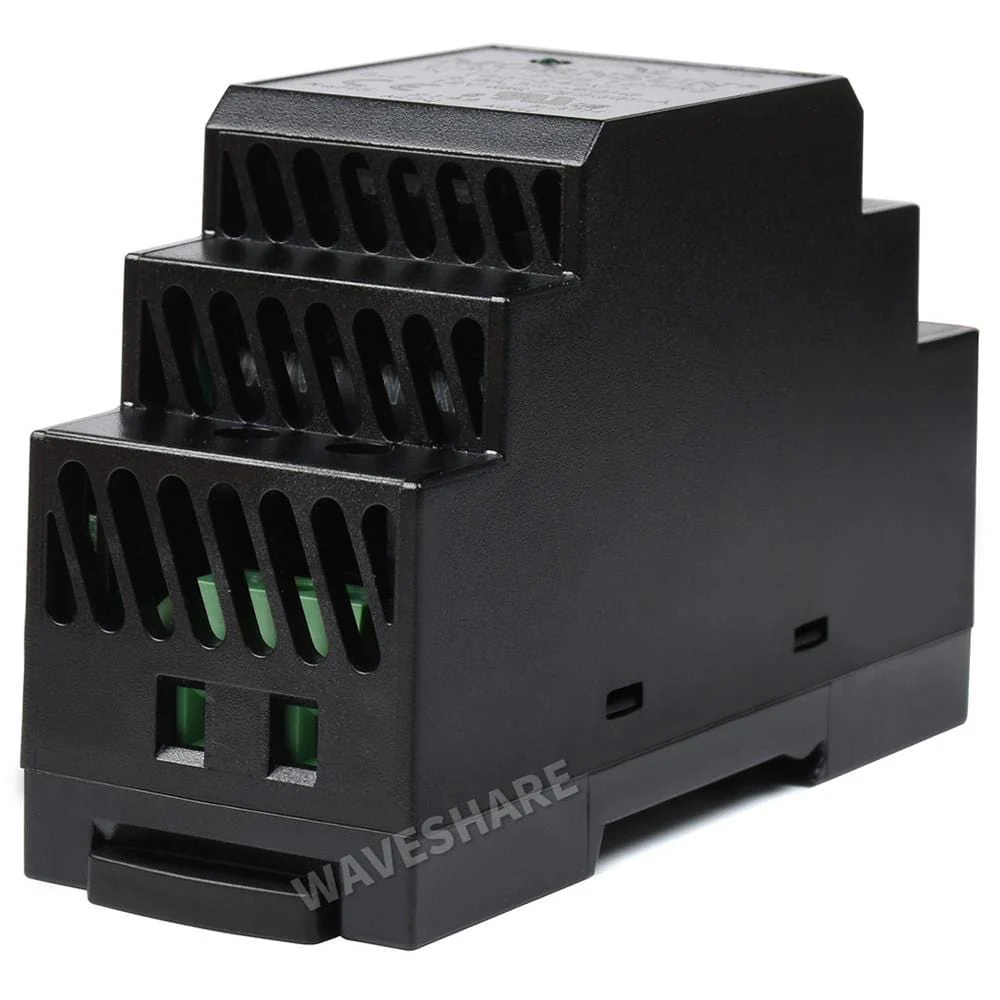

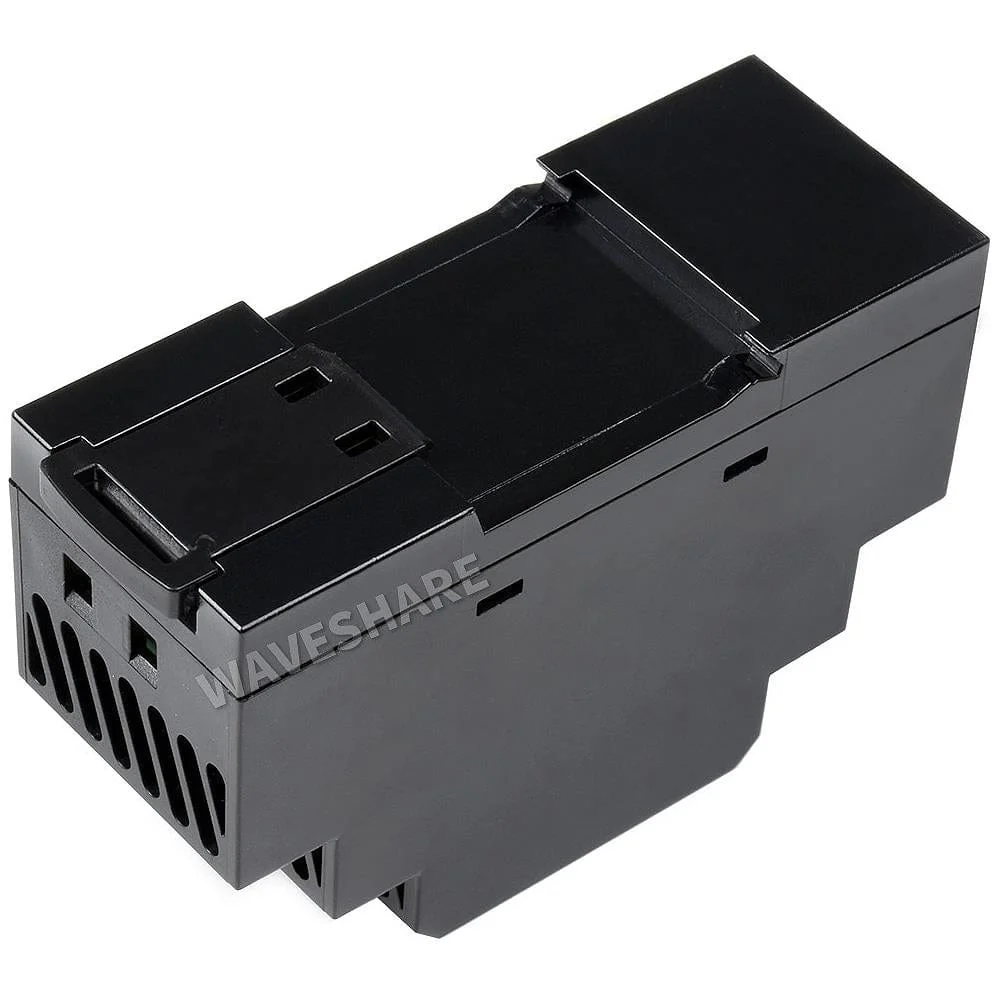

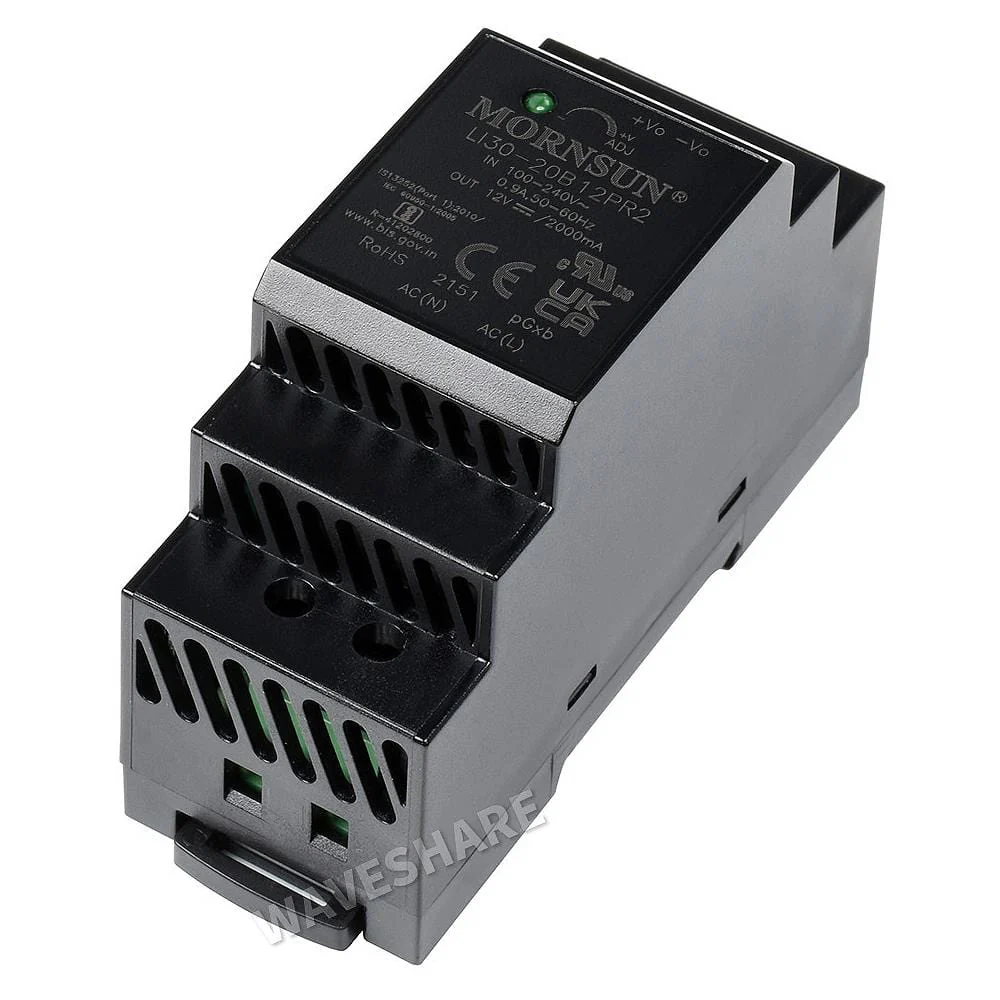

12V 2A Industrial DIN-Rail Power Supply [Discontinued]

This DIN rail power supply will provide a solid 12V 2A (24W) for your projects and other devices. It's a cost-effective, energy-efficient solution for standard DIN-rail mounting.

The power supply offers a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitions (IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368). See the datasheet for more info.

These lightweight AC-DC converters also have an extremely compact design for space-saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in harsh environments (or just makers with fancy racks!).

Features

• Universal 85-264VAC or 120-370VDC input voltage
• Accepts AC or DC input (dual-use of the same terminal)
• Operating ambient temperature range -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• Industrial product technology design
• Over-voltage class III (Designed to meet EN61558-1safety standards)
• Low standby power consumption, high efficiency, low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Withstands 300VAC surge input for 5s
• DIN rail TS35X7.5/ TS35X15 mountable

Specification

Item	Conditions	Min	Typ	Max	Unit
Input Voltage	AC Input	85	-	264	VAC
	DC Input	120	-	370	VDC
Input Frequency		47	-	63	Hz
Input Current	115VAC	-	-	0.9	-
	230VAC	-	-	0.5	A
Output Voltage	-	-	12	-	VDC
Output current	-	-	2	-	A
Output Power	-	-	24	-	W
Efficiency at 230VAC	-	-	82	-	%

Package Contents

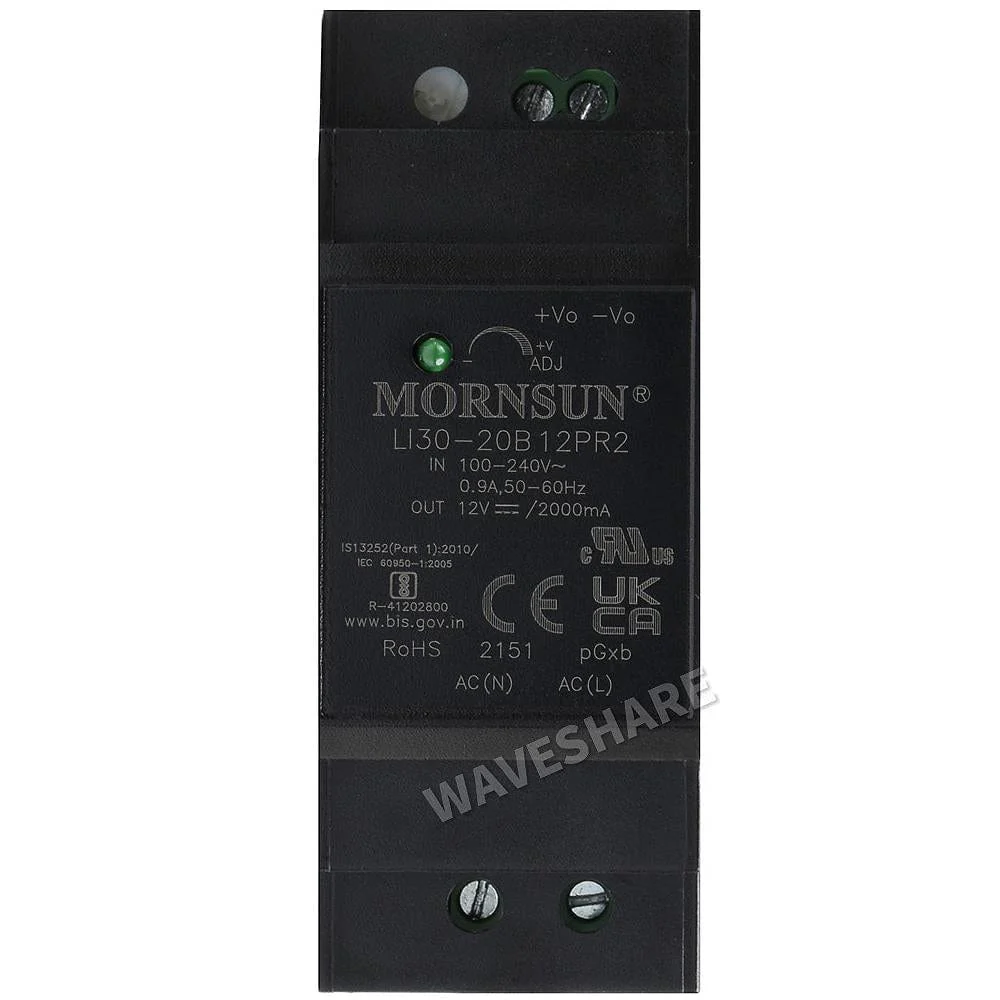

• 1x 12V 2A Industrial DIN power supply (LI30-20B12PR2)

Resources

• Datasheet
