The Story

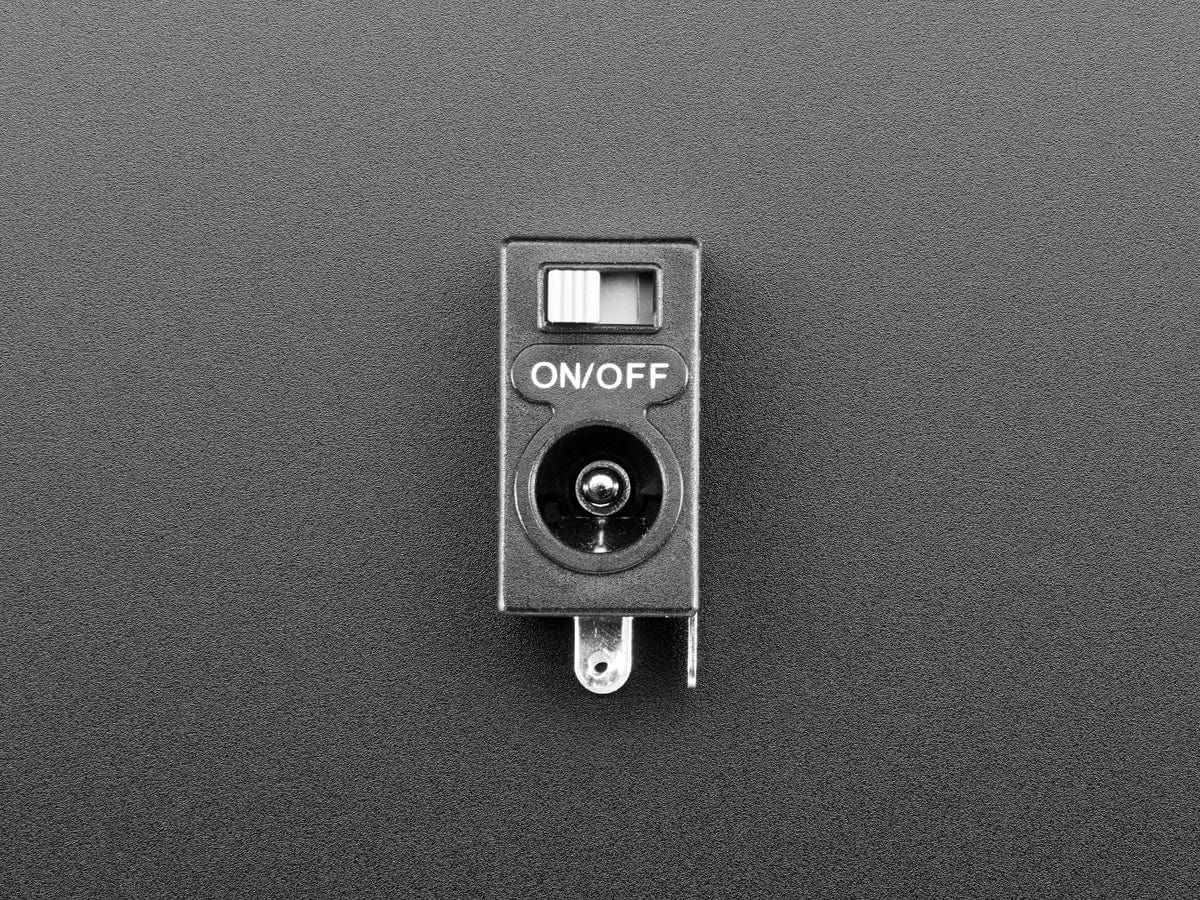

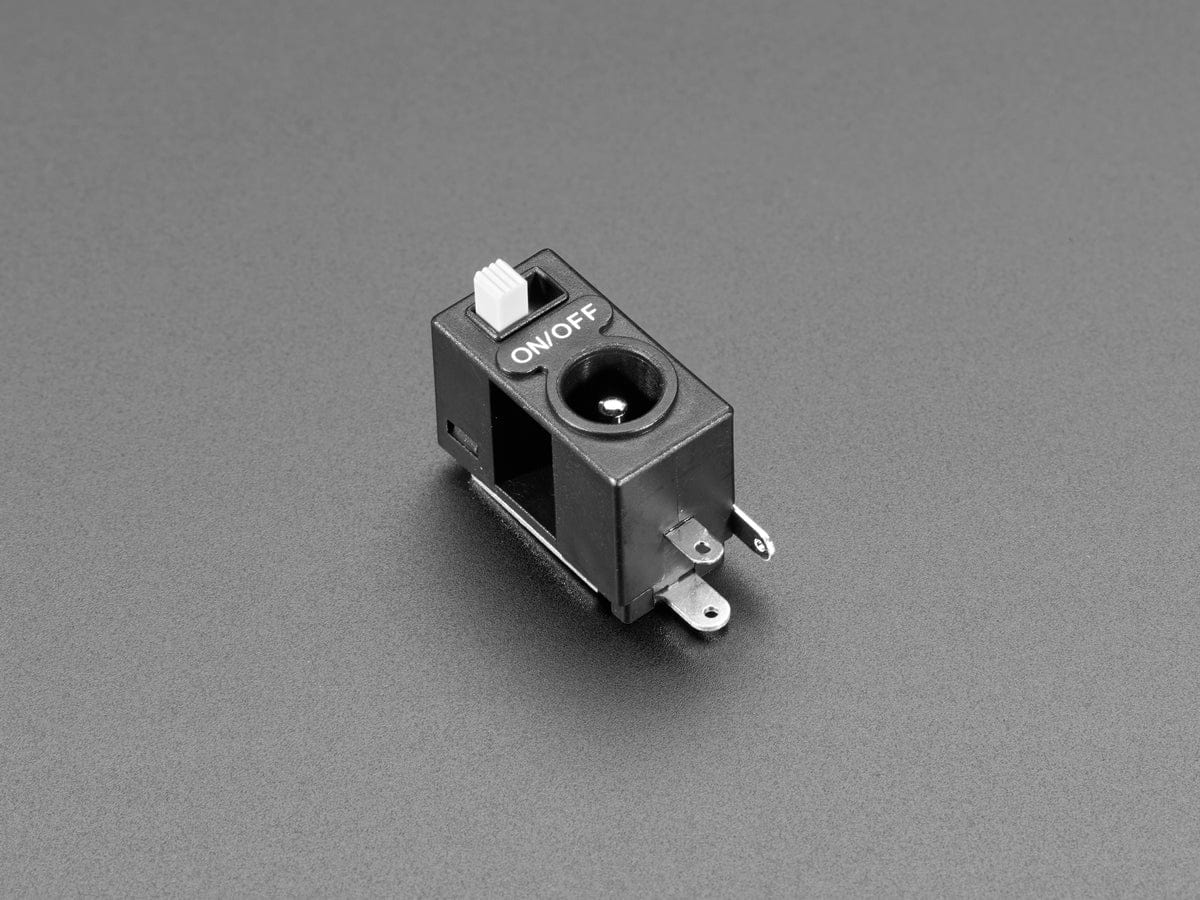

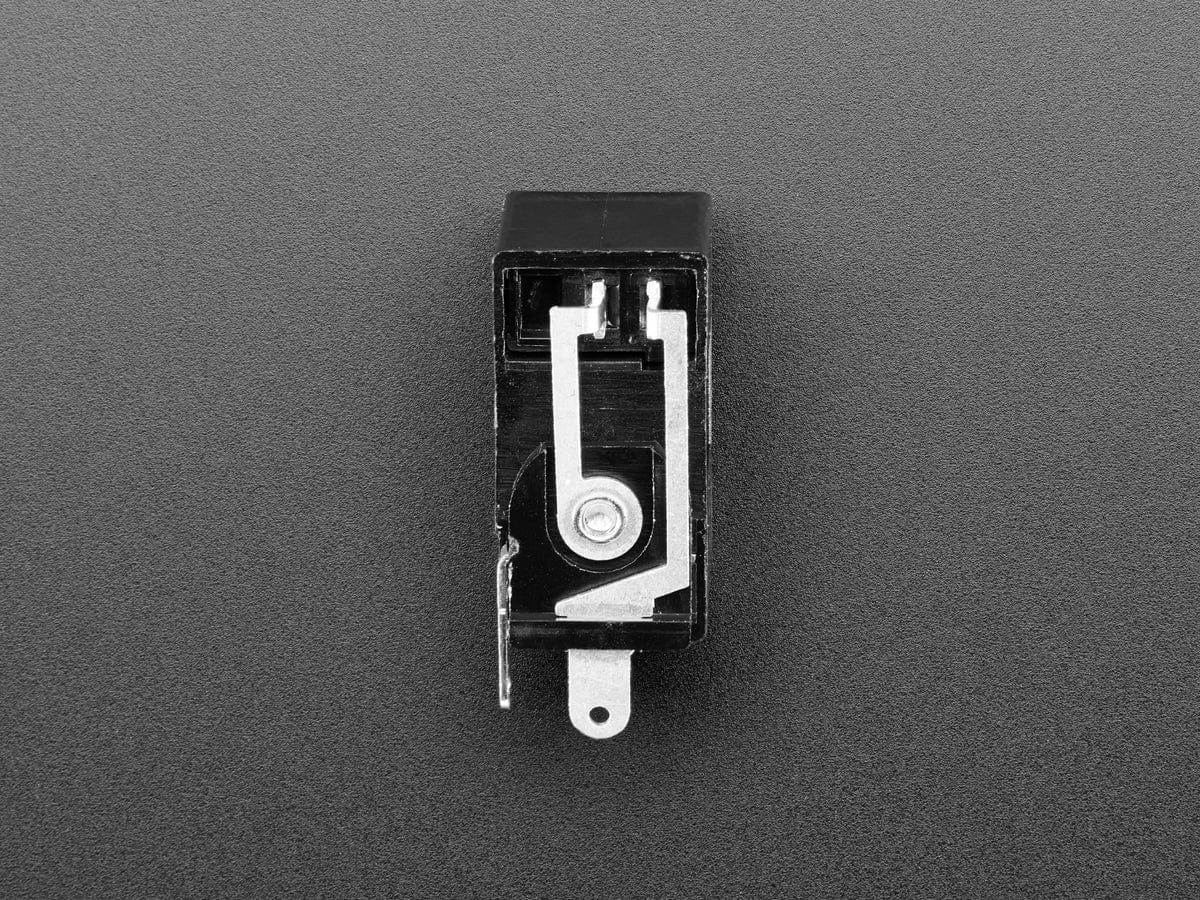

This brilliant invention is a blessing for makers designing or using boards with standard 2.1mm DC barrel jacks. Many devices opt against a proper power switch, for size or cost or other design reasons. So, you're expected to unplug when not in use. But you want something a little fancier! This 2.1mm DC Power Jack with Slide Switch has the same PCB layout as classic non-switched jacks but has a li'l extra on top - a labeled slide switch!
The slide switch does exactly what you'd expect: plug in your power supply (up to 16 VDC, 3A) and switch power on and off. On and off! On and off all daayyy-o. You can clicky-clack to your maker heart's delight! We swear we're not pulling your lead--I mean, leg, this has a seriously satisfying clack.
We also have a version with a rocker switch here
Technical Details
- Electrical Rating: 16VDC 3A
- Contact Resistance: 30 mĪ© max.
- Insulation Resistance: 100 MĪ© min.
- Life: 30,000 cycles
- Contact material: Copper alloy with silver plating
- Switch Circuit: SPDT
- RoHS compliant: Yes

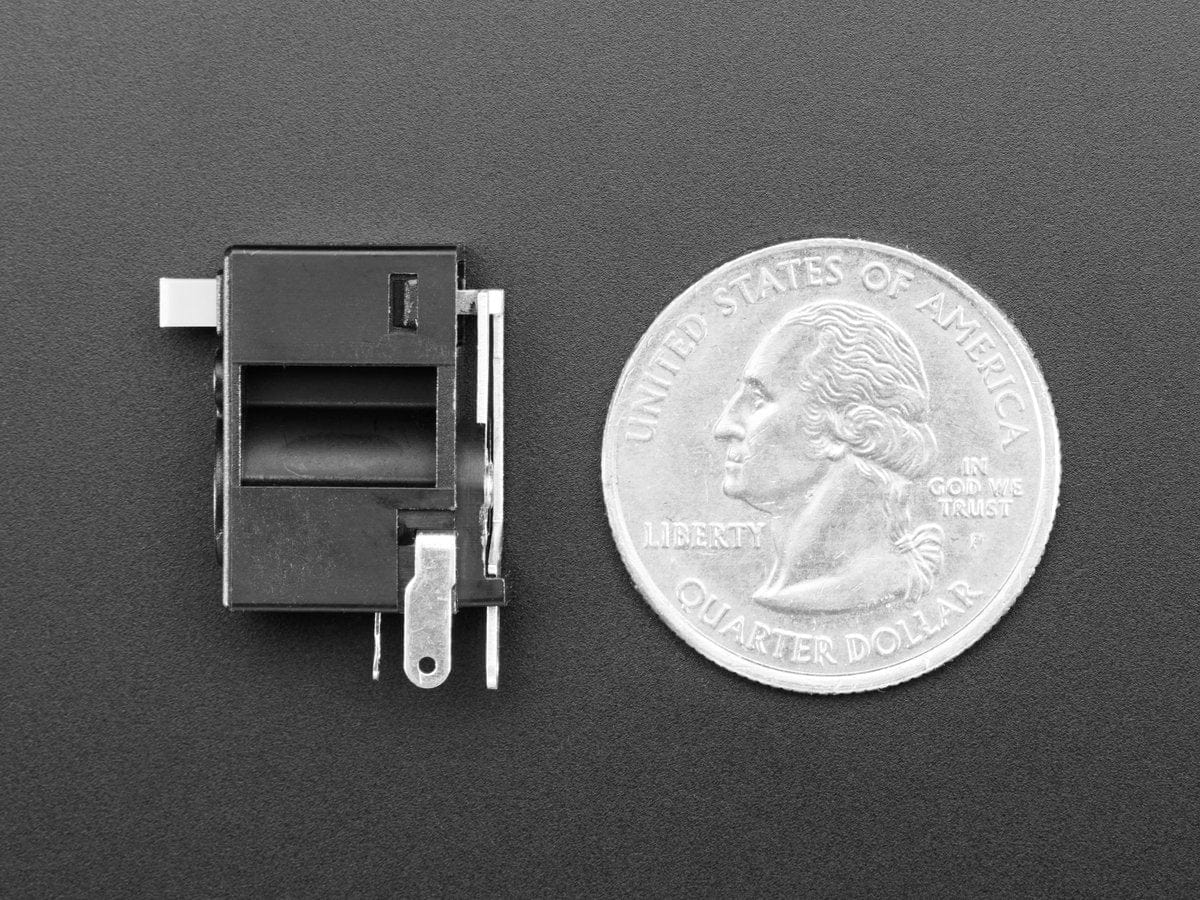

- Product Dimensions: 23.3mm x 17.8mm x 9.9mm
- Product Weight: 2.8g
- Diagram
