The Story

This 2.4" LCD TFT module from Waveshare is a great way to add a small display to your project.

The display has a 240x320 resolution and offers 65K RGB colours. The module is controlled via a simple 4-wire SPI interface thanks to the embedded ILI9341 driver.

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

A 20cm PH2.0 8-pin cable is included, ready to connect to your favourite microcontroller.

Features

  • 240×320 resolution
  • 65K RGB colours - clear and colourful
  • SPI interface - minimizes required IO pins
  • Online development resources (examples for Raspberry Pi/Arduino)
  • Mounting holes
  • 70.50mm x 43.30mm

Specifications

  • Operating Voltage: 3.3V/5V
  • Resolution: 240x320 pixels
  • Communication Interface: 4-wire SPI
  • Display Size: 36.72 × 48.96mm
  • Display Panel: TFT
  • Pixel Size: 0.153 × 0.153mm
  • Driver: ILI9341
  • Dimensions: 70.50 × 43.30mm

Resources

  • Product Wiki & User Guide

Wiring Examples

2.4" LCD Wiring Example for Raspberry Pi

2.4" LCD Wiring Example for Arduino

Package Contents

  • 1x 2.4" LCD Module
  • 1x PH2.0 8-pin 20cm cable

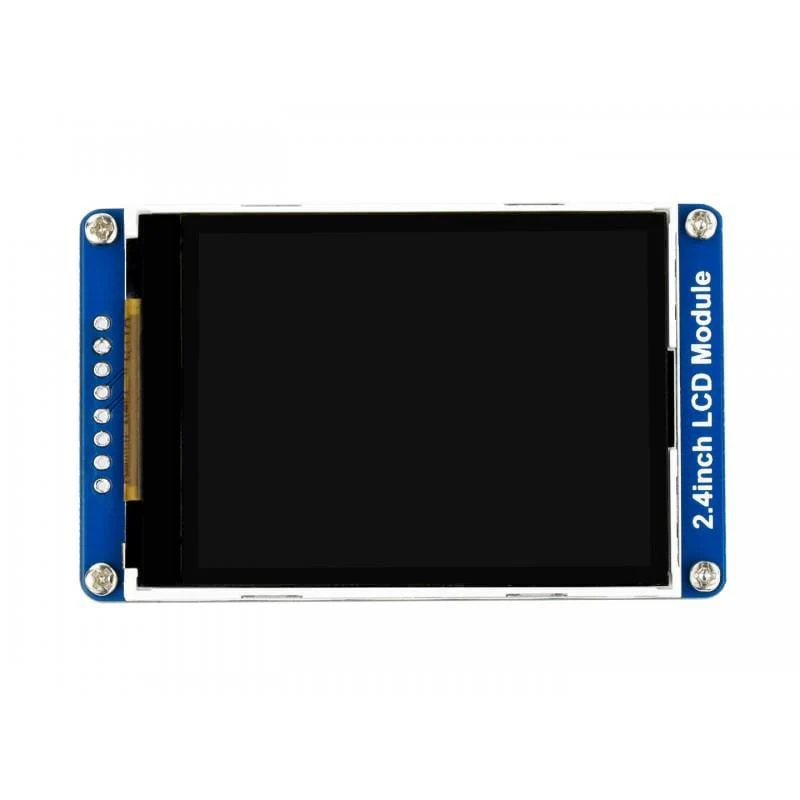

    2.4" LCD Display Module (240x320) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

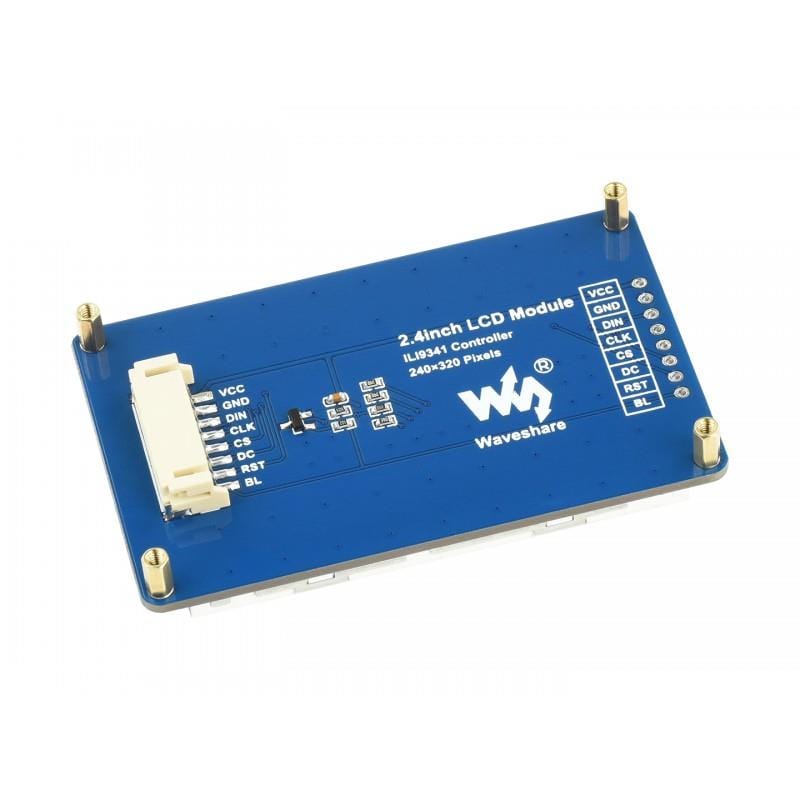

    2.4" LCD Display Module (240x320) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

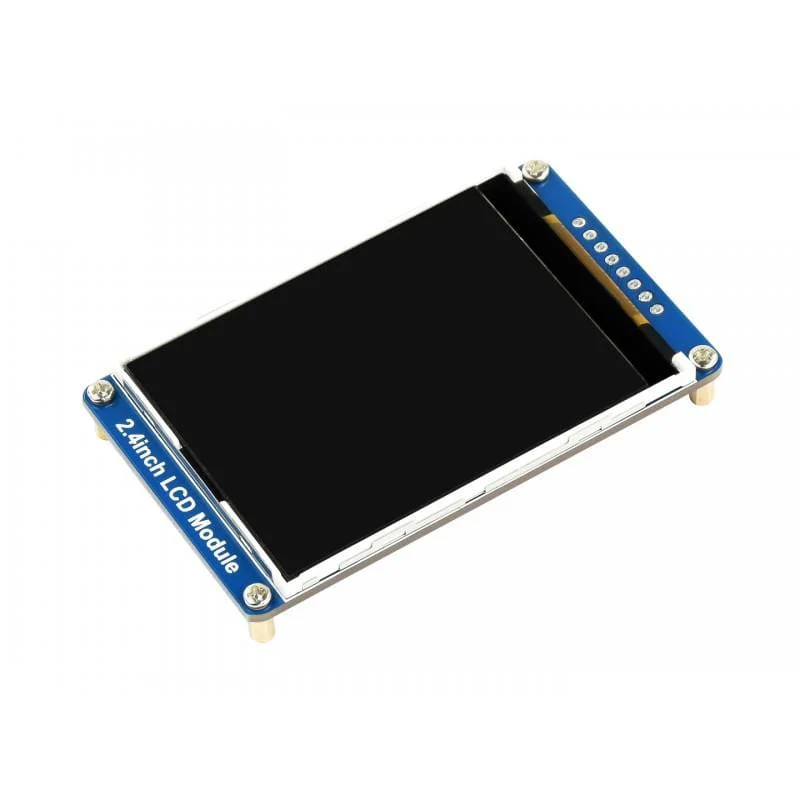

    2.4" LCD Display Module (240x320) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

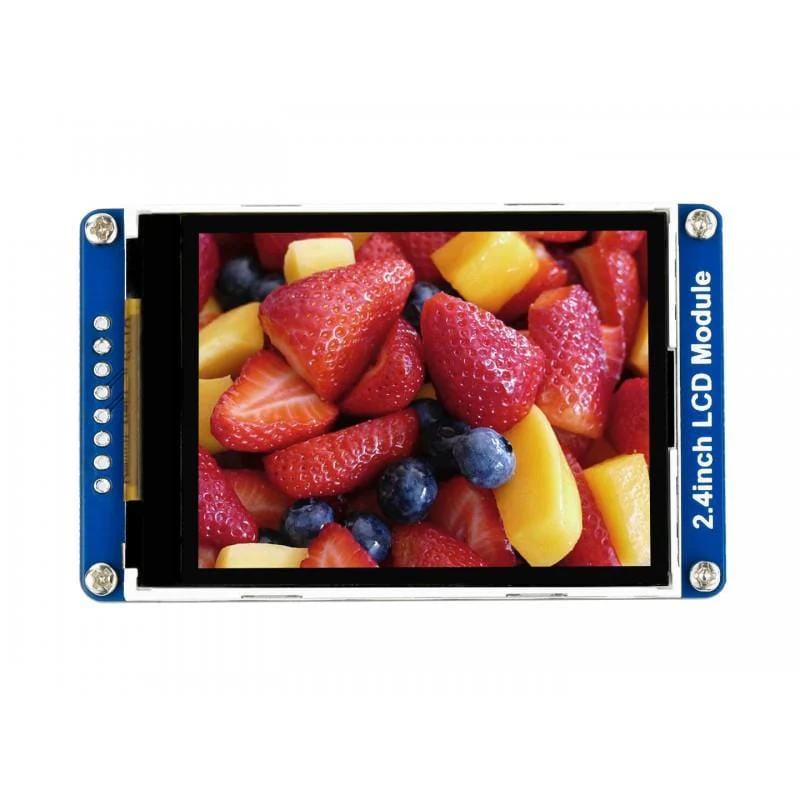

    2.4" LCD Display Module (240x320) - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

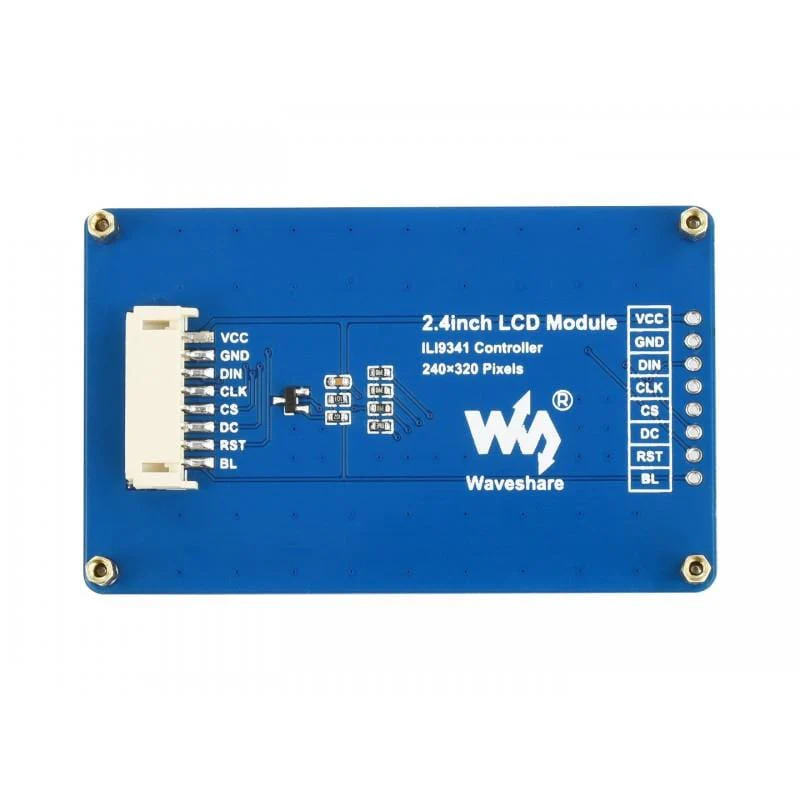

    2.4" LCD Display Module (240x320) - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

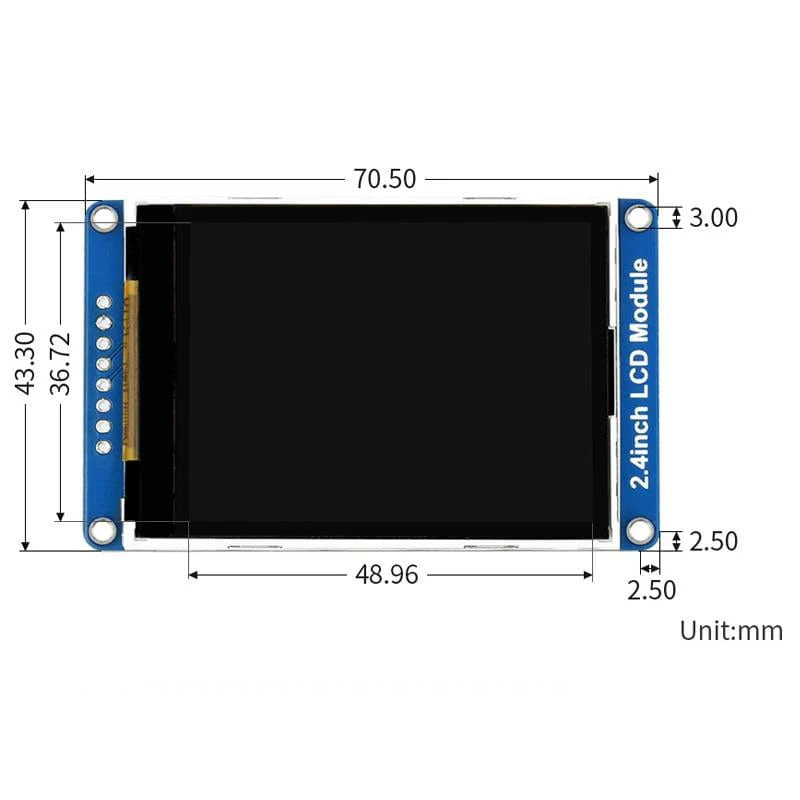

    2.4" LCD Display Module (240x320) - Image 7
