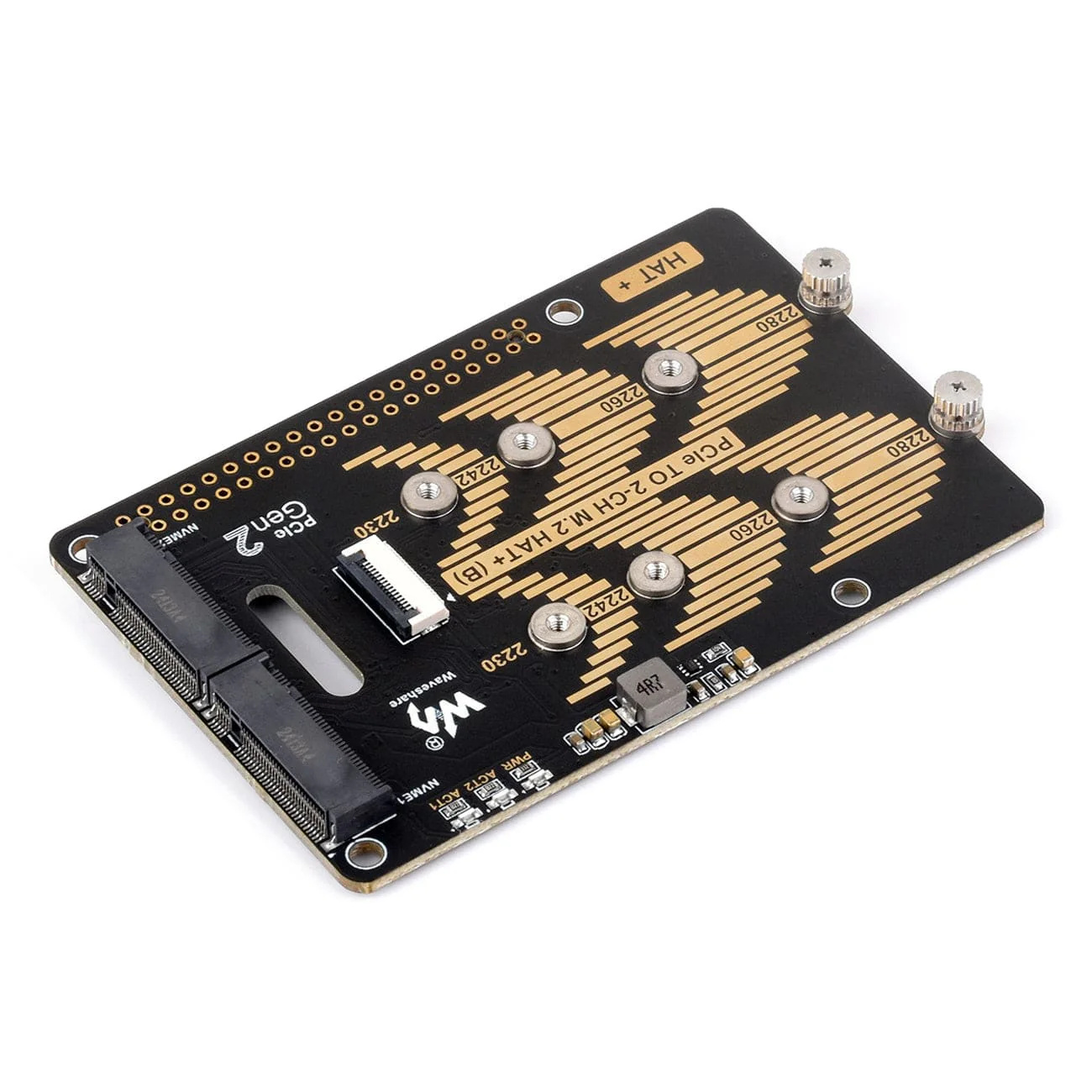

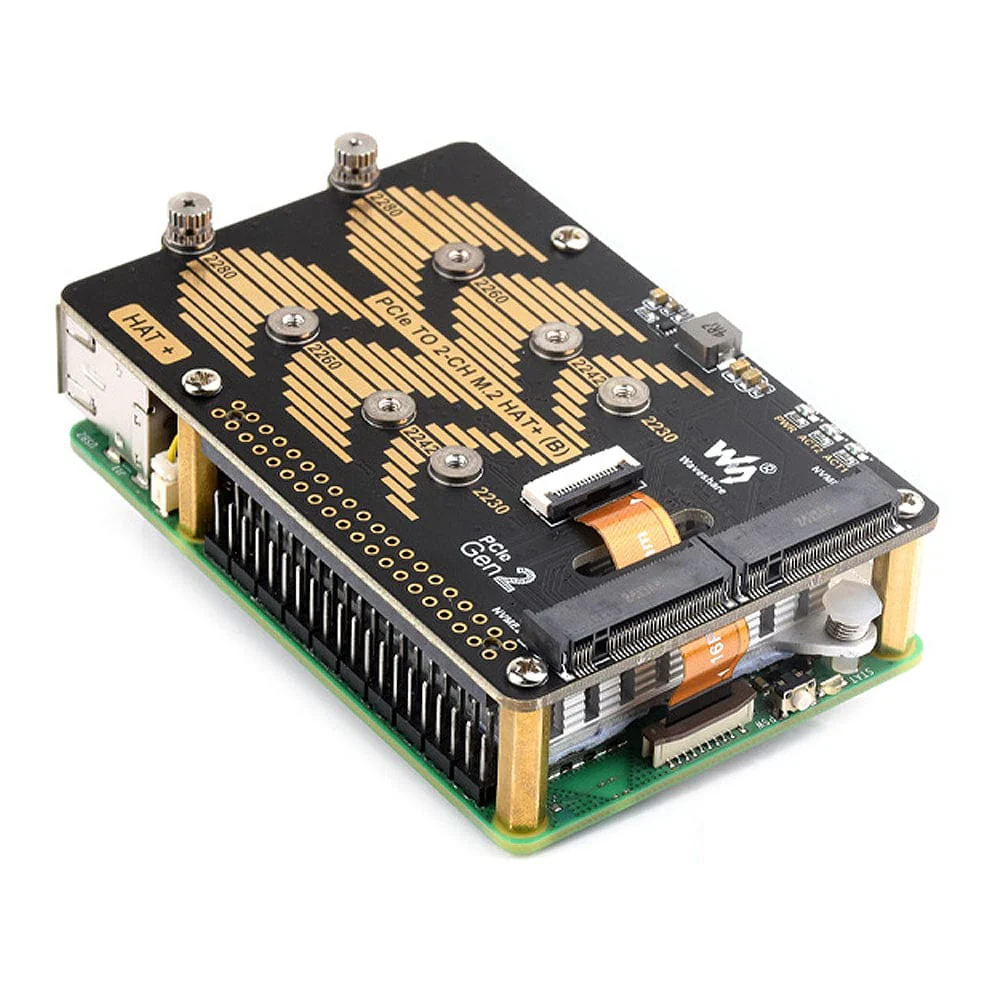

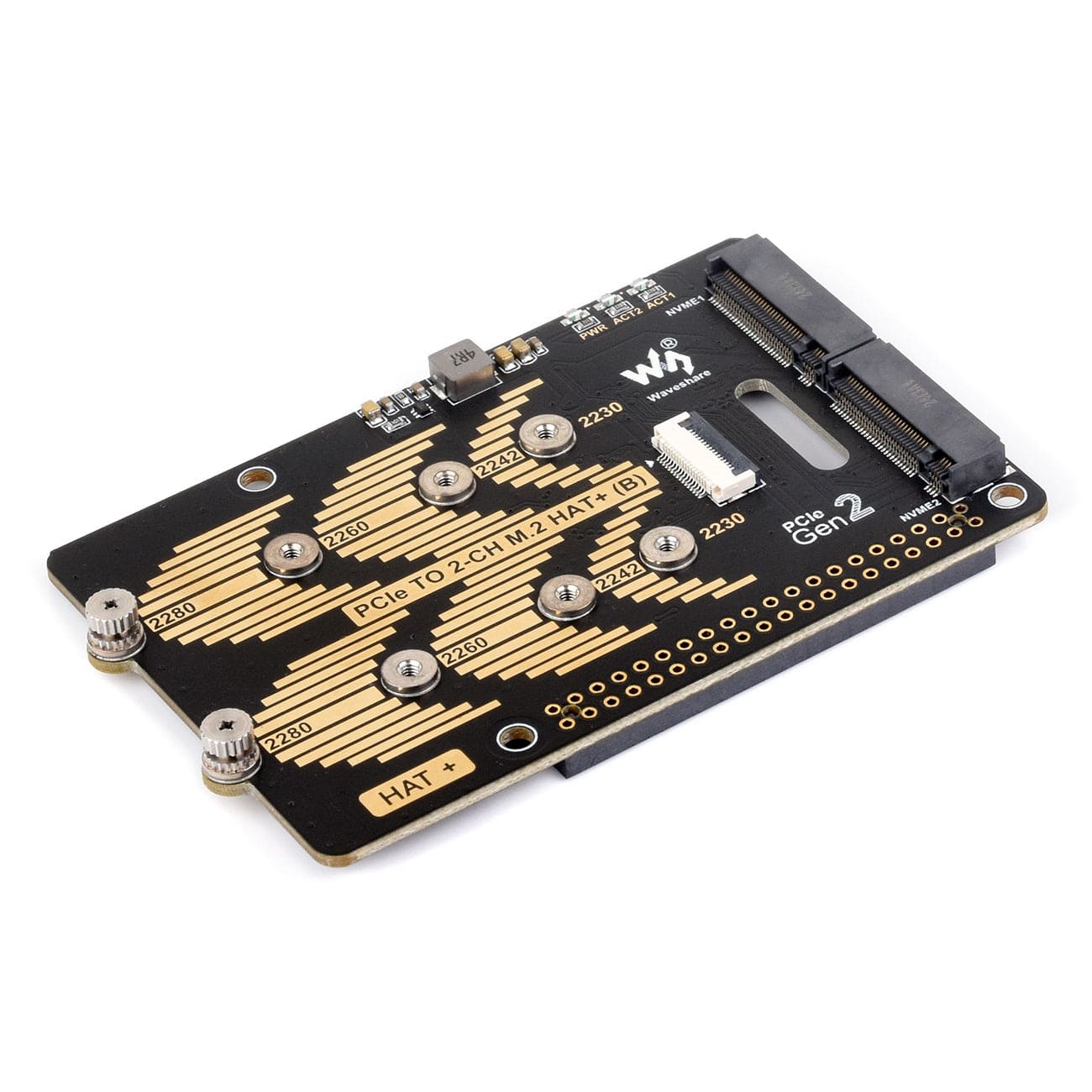

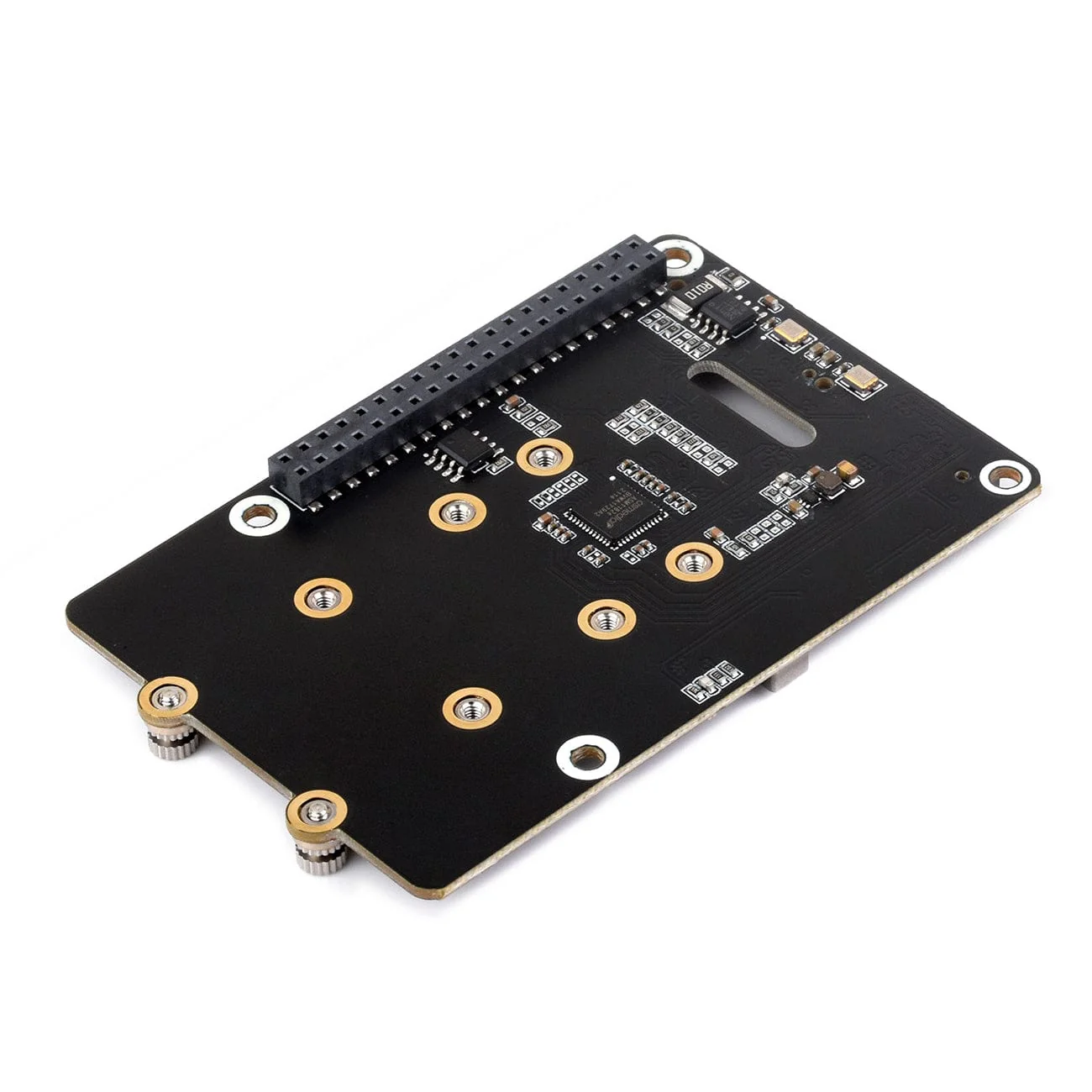

2-Channel M.2 HAT+ for Raspberry Pi 5

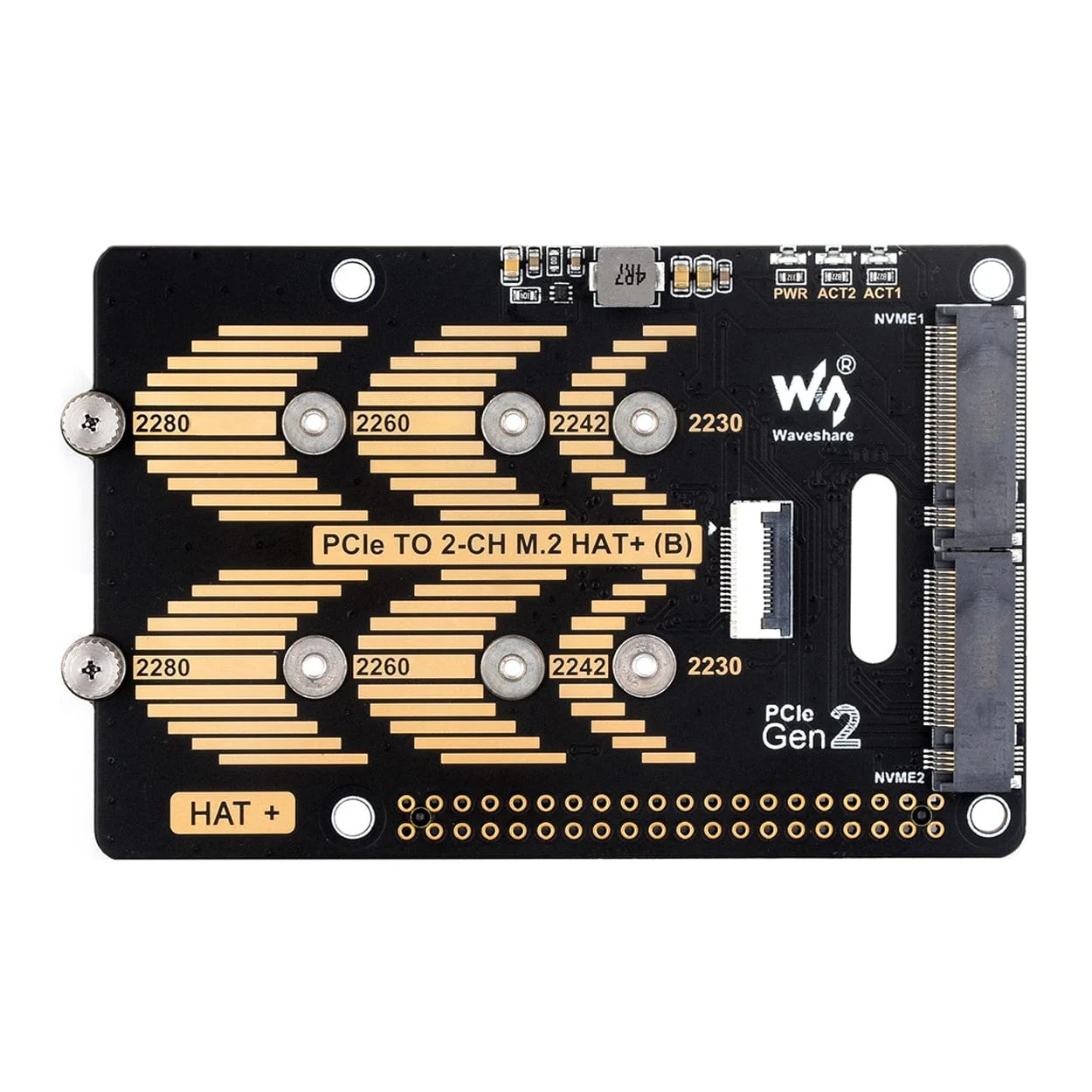

This top-mounted dual-channel PCIe M.2 HAT+ is designed for Raspberry Pi 5, supporting two NVMe M.2 SSDs in 2230, 2242, 2260, and 2280 sizes. It connects via the Pi 5’s PCIe interface using a 16-pin cable, and supports PCIe x1 Gen2 mode.

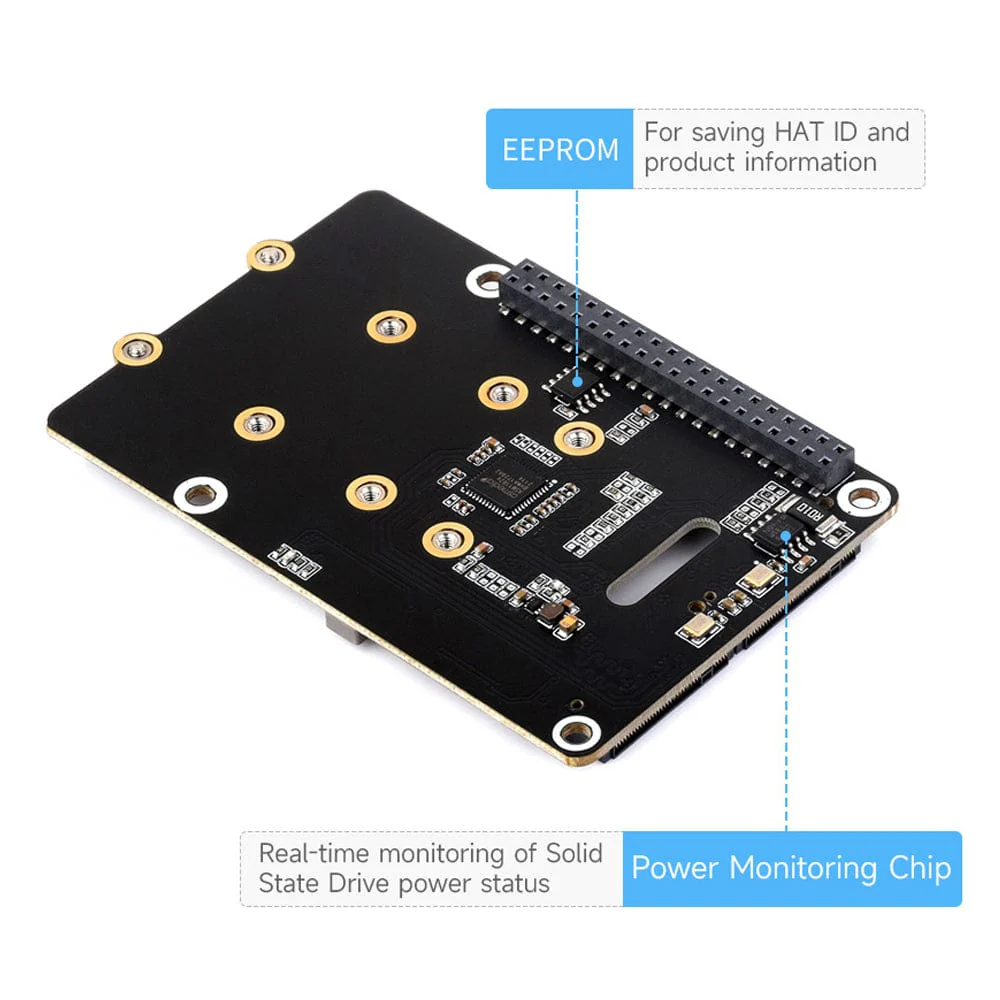

The adapter enables significantly faster read/write speeds compared to the Raspberry Pi’s MicroSD card slot and supports booting directly from SSD. It includes onboard power monitoring and EEPROM, allowing real-time monitoring of SSD power status for improved stability. Onboard status LEDs indicate power and activity.

The board comes with standoffs, fixings and a 40mm PCIe flex cable. Compatible only with NVMe protocol drives and is intended for use with the Raspberry Pi 5 only.

Raspberry Pi and SSDs not included.

Features

• Dual-channel M.2 NVMe HAT+
• Designed for Raspberry Pi 5

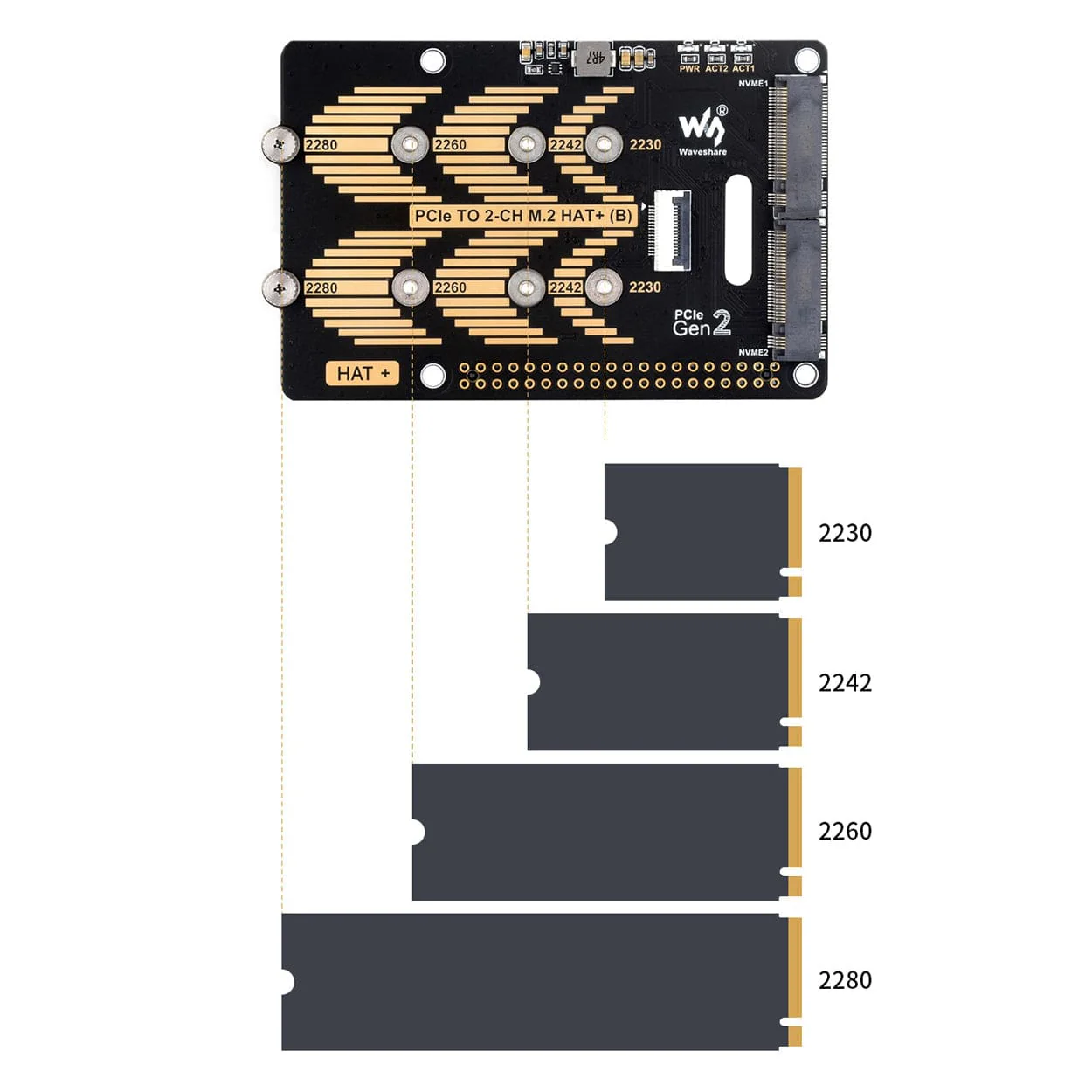

• Compatible with 2230 / 2242 / 2260 / 2280 size M.2 drives
• Connects via 16-pin PCIe interface
• Supports PCIe x1 Gen2 mode
• Boot support from NVMe SSD

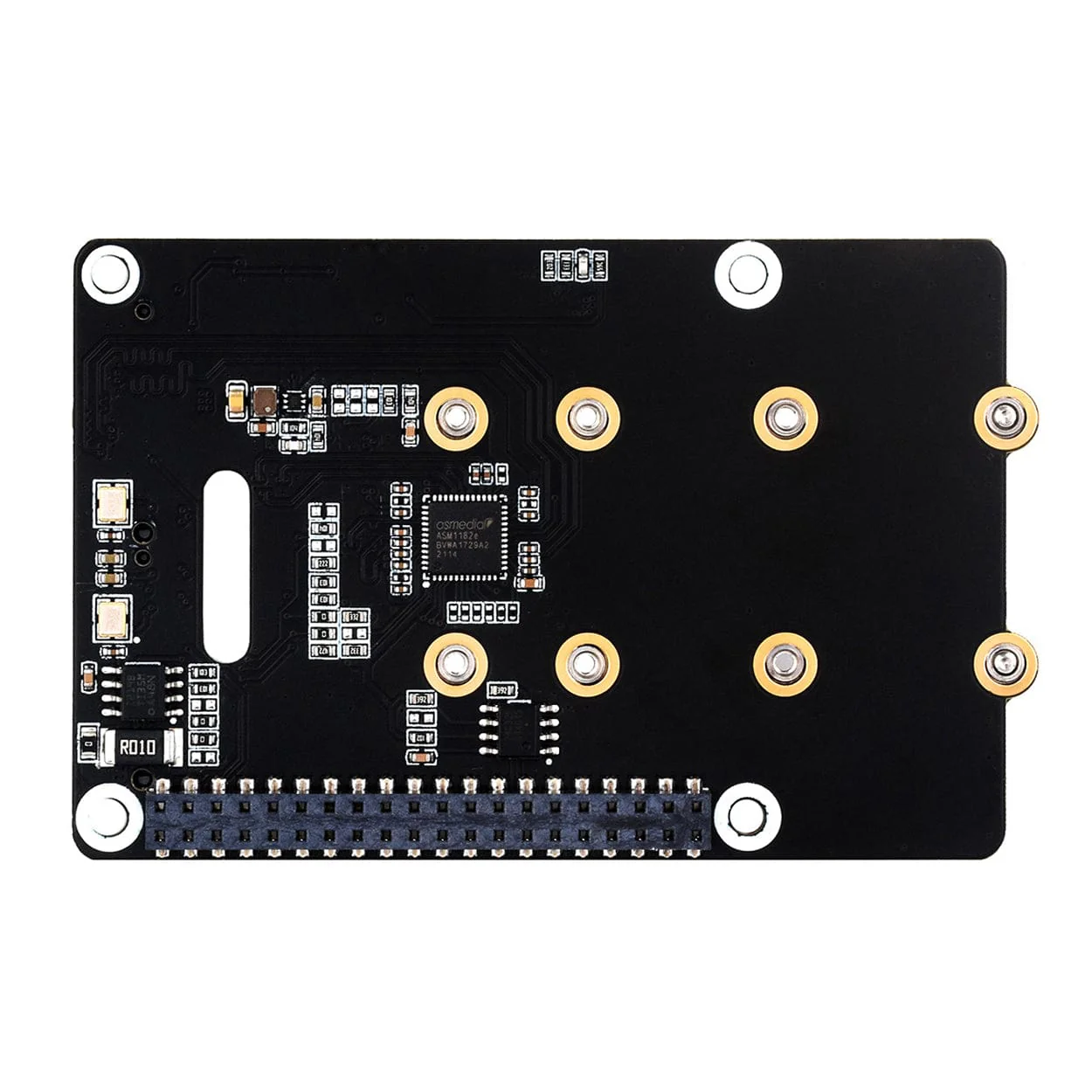

• Onboard power monitoring chip
• Onboard EEPROM

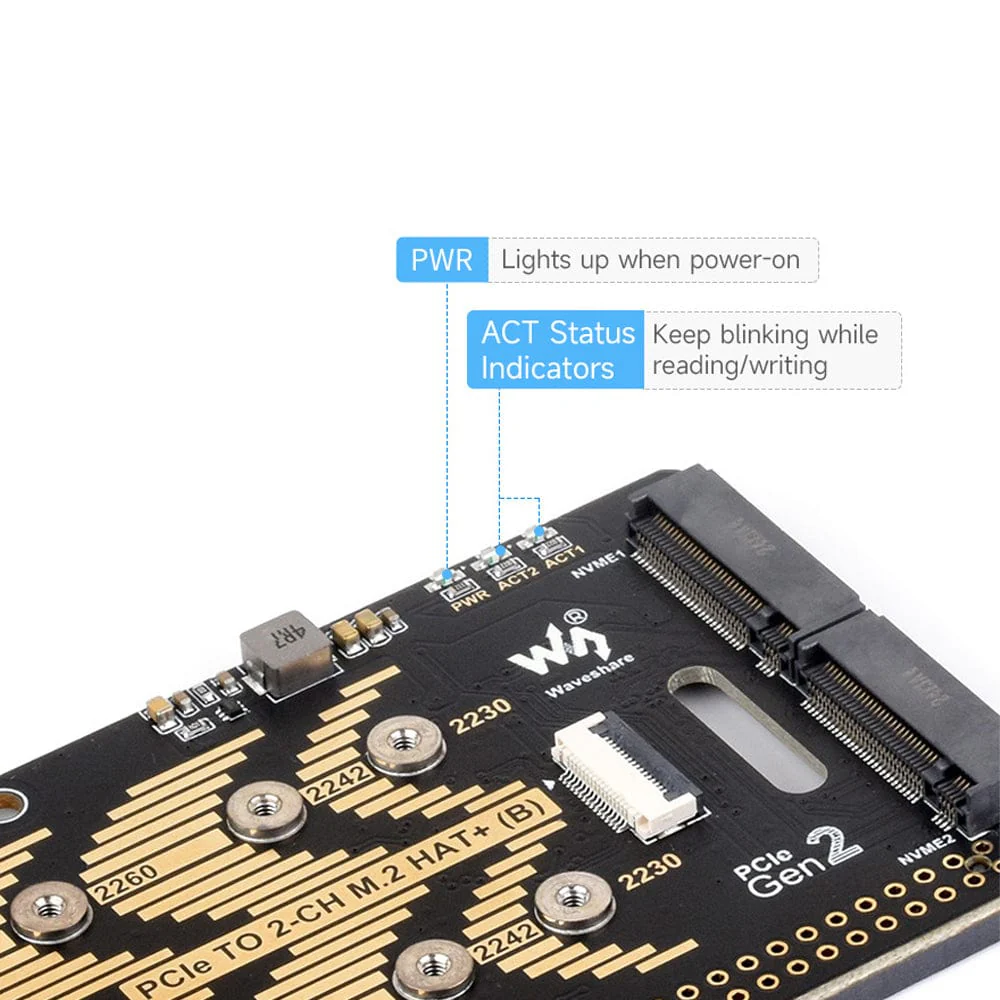

• Power and activity status LEDs
• Supports only NVMe protocol SSDs

Resources

• Product Wiki
  • Assembly
  • Booting from NVMe SSD
  • NVMe power monitoring

Package Contents

• 1x 2-Channel M.2 HAT+ for Raspberry Pi 5
• 1x GPIO header
• 1x 40mm PCIe flex cable
• 1x Standoff pack

Raspberry Pi and SSDs not included.
