3.4" HDMI Round Touch Display for Raspberry Pi (800x800)

This 3.4" HDMI Round Touch Display has an 800 x 800 resolution, an IPS panel for vibrant colours, and a wide 170° viewing angle for a great image in most places you're looking at it from. It has a 10-point capacitive touch screen with a toughened glass panel for durability.

The display supports various devices including Raspberry Pi, Jetson Nano, and PCs, and is driver-free for an easy setup. Its optical bonding technology provides a clear and responsive touch experience. This display is ideal for improving your next visual project with a compact, high-quality touch display.

Features

• 3.4" IPS touch display with a hardware resolution of 800 x 800.
• 10-point capacitive touch control, toughened glass panel with up to 6H hardness.
• Optical bonding technique for better display.
• Supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems.
• Supports Windows 11/10/8.1/8/7.

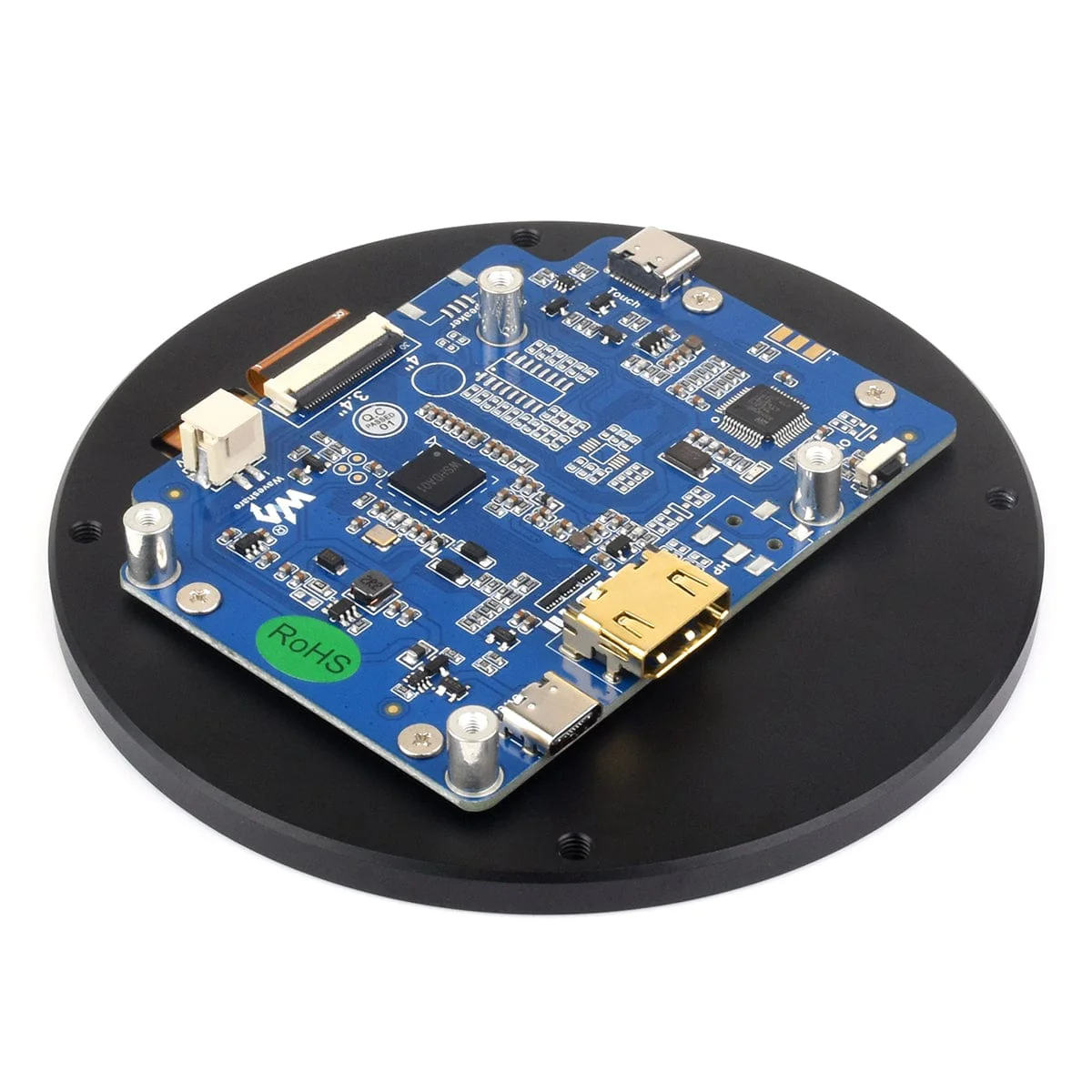

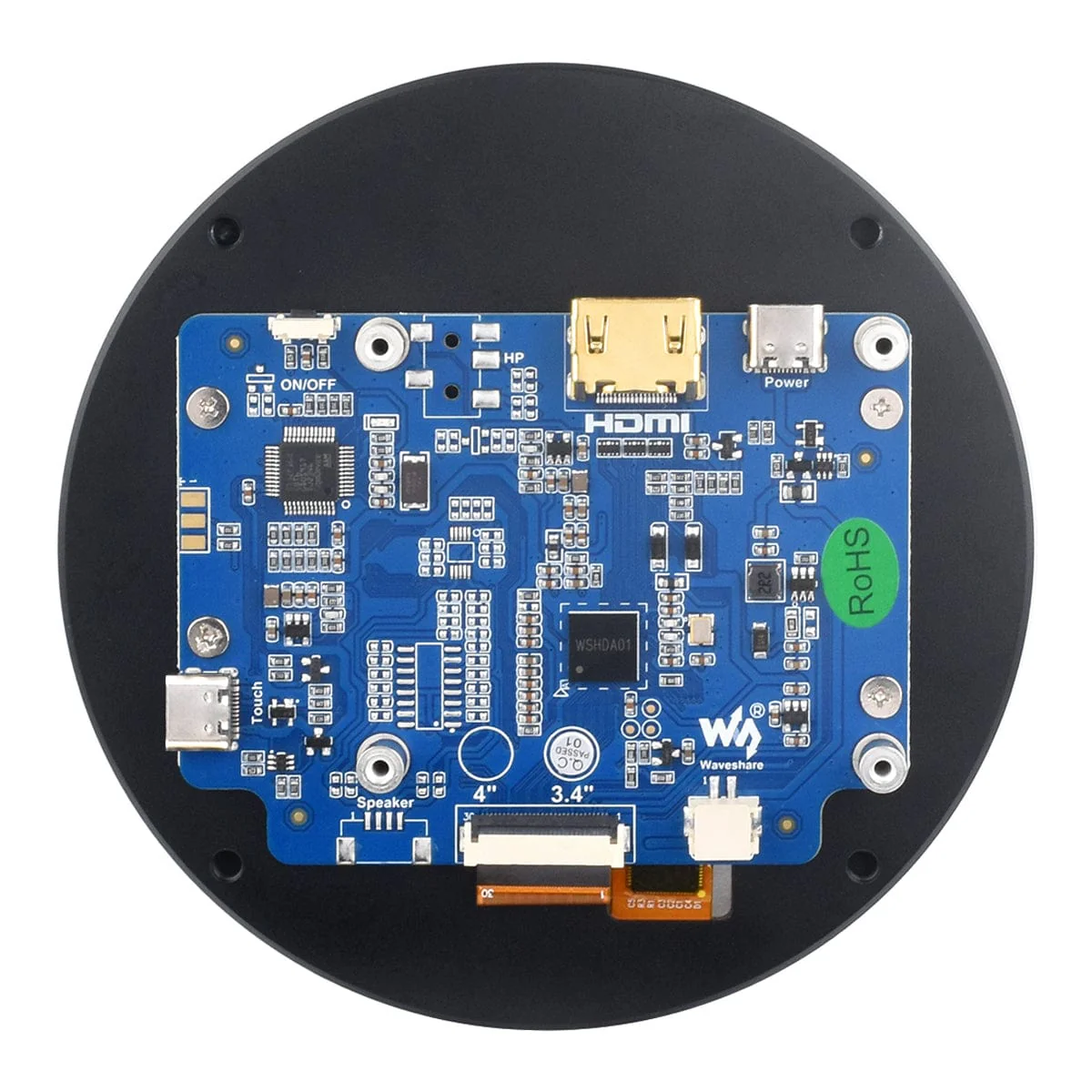

What's on Board

Specifications

Dimensions	3.4	"
Viewing Angle	170	Deg
Resolution	800 x 800	Pixels

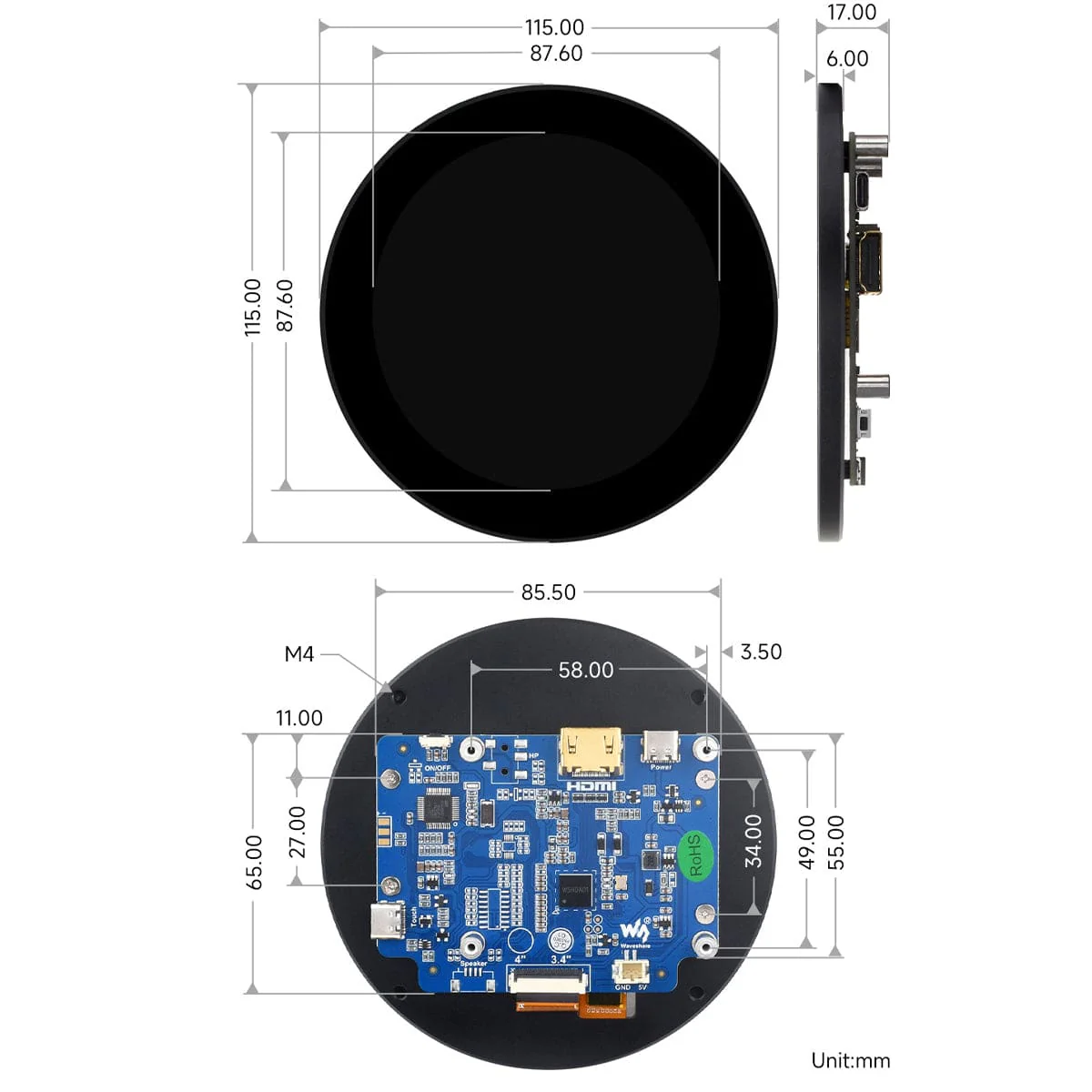

Overall Dimensions	115.00(H) x 115.00(V) x 17.00(D)	mm
Display Area	87.60(H) x 87.60(V)	mm
Colour Gamut	0.7	NTSC
Max. Brightness	300	cd/m²
Contrast	50.00069444	/
Backlight Adjustment	Key Dimming	/
Refreshing Rate	60	Hz
Display Interface	Standard HDMI Interface	/
Power Port	5V Type-C	/
Power Consumption	1.5	Watt

Electrical Parameters

Parameter	Min. Value	Standard Value	Max. Value	Unit	Note
Input Voltage	4.75	5	5.25	V	Note 1
Input Current	300	300	TBD	mA	Note 2
Operating Temperature	0	25	60	℃	Note 3
Storage Temperature	0	25	70	℃	Note 3

Connection Example - Raspberry Pi 5

Resources

• Product Wiki

Package Contents

1. 1x 3.4" 800 x 800 LCD
2. 1x Silver capacitive touch pen
3. 1x USB-A to USB-C cable -1m
4. 1x HDMI flat cable -1m
5. 1x USB to Type-C adapter (C)
6. 1x USB to Type-C adapter (B)
7. 1x HDMI to Micro HDMI adapter
8. 1x HDMI adapter
9. 1x Screwspack
