3.5" Resistive Touch Display (G) for Raspberry Pi (320x480)

Resistive?! Yep - you don't see many resistive touch displays for the Raspberry Pi these days, however they have a place in certain projects/scenarios, and they cost less than their more-common capacitive counterparts - so this might be ideal for your project!

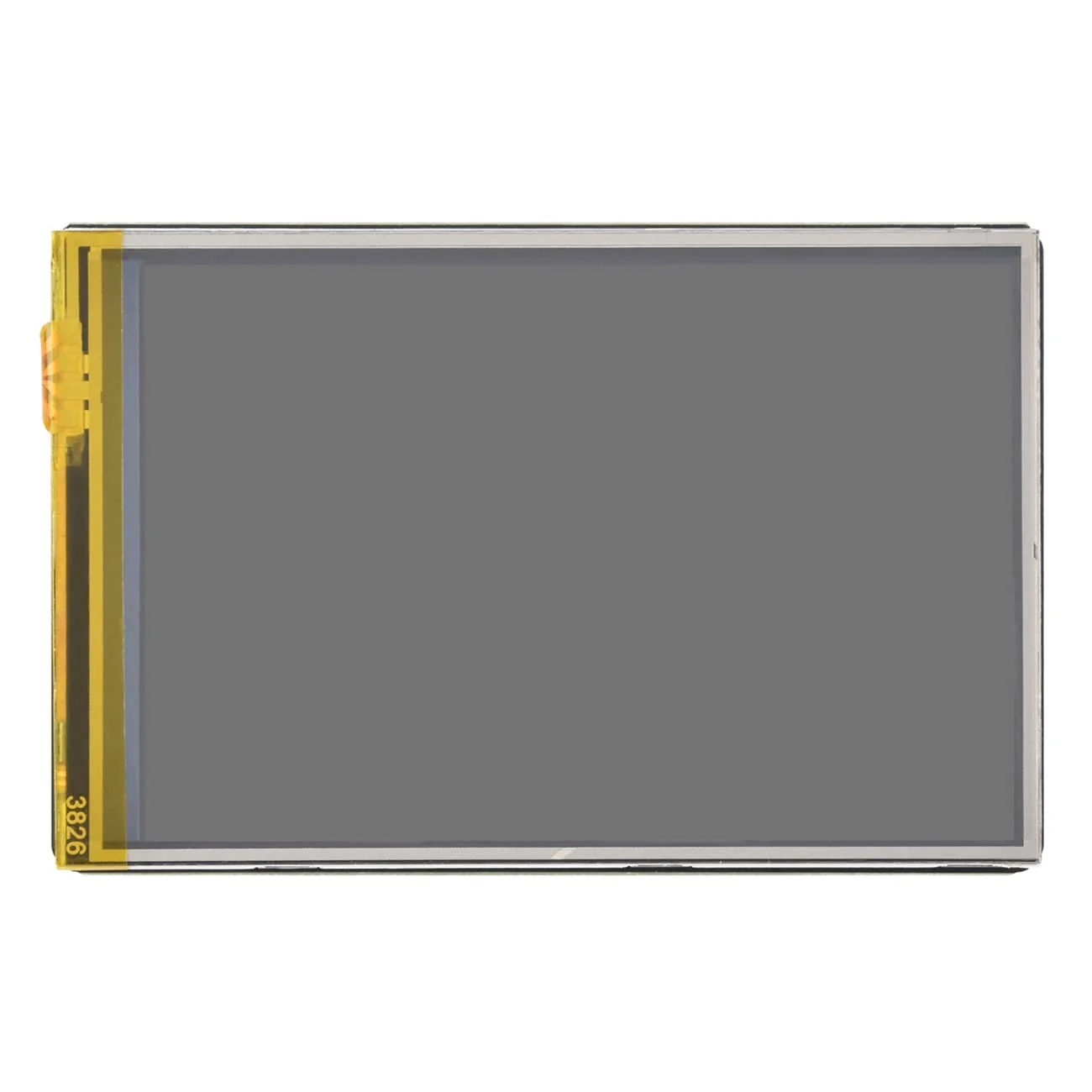

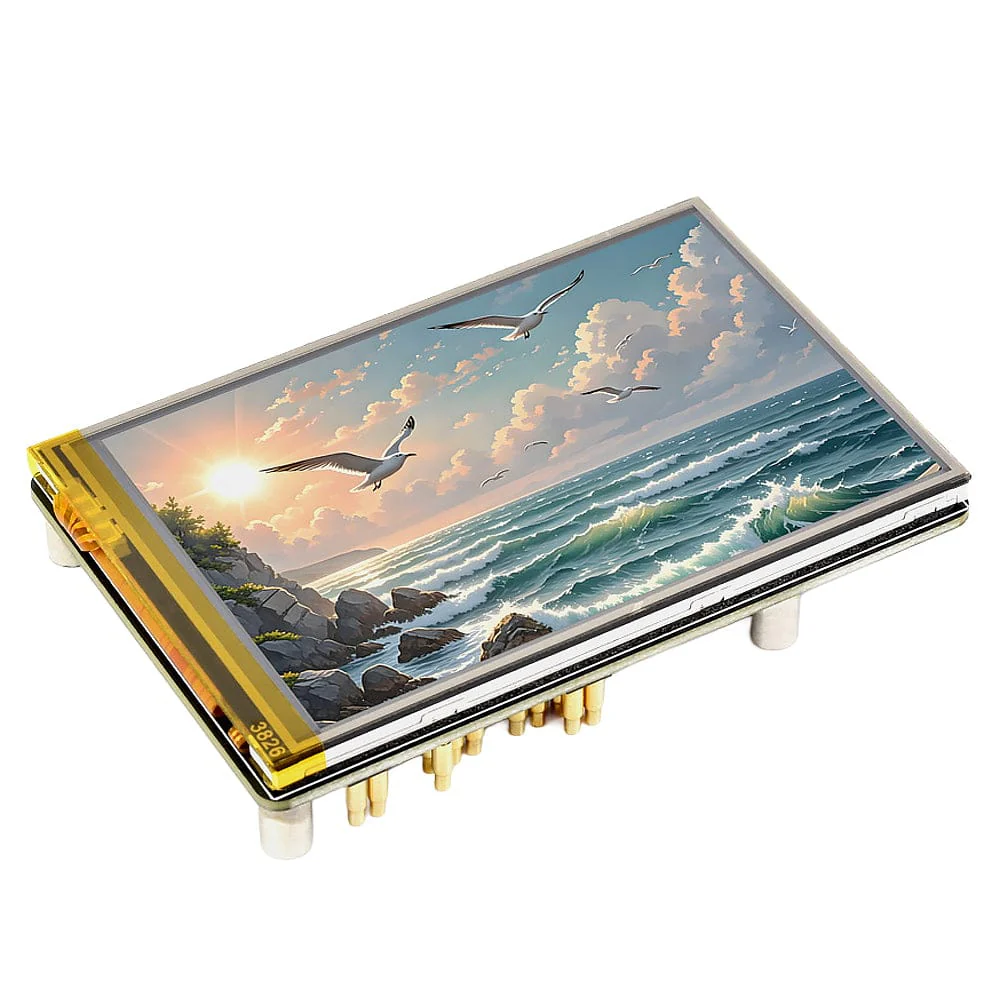

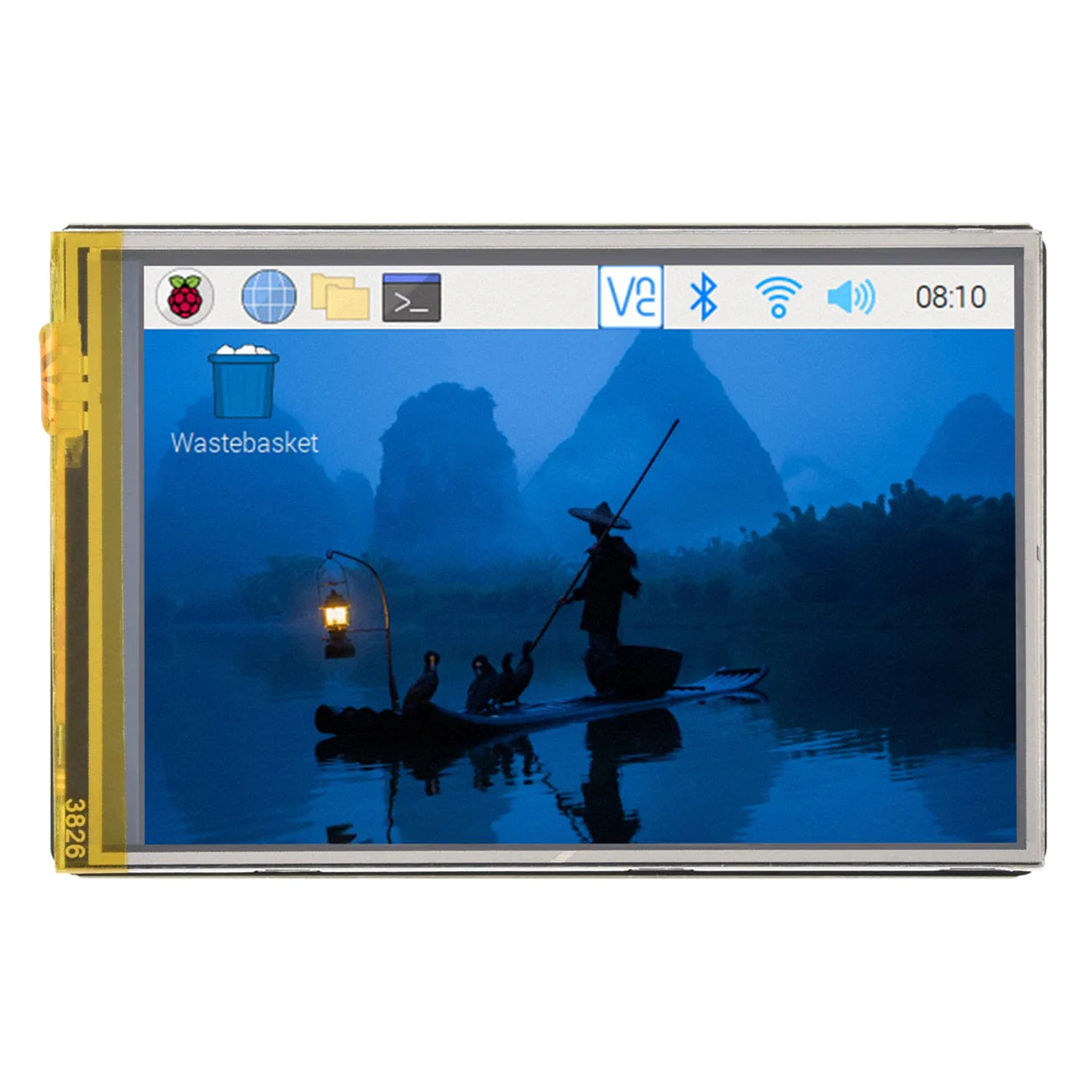

It's a 3.5" IPS panel with a 320x480 resolution offering 262K colours, 170° viewing angles and 60Hz refresh rate - all controlled via SPI. It features resistive single-point touch and mounts to the rear of your Raspberry Pi using pogo pins, which keeps your GPIO header and top of the board completely free for HATs and coolers.

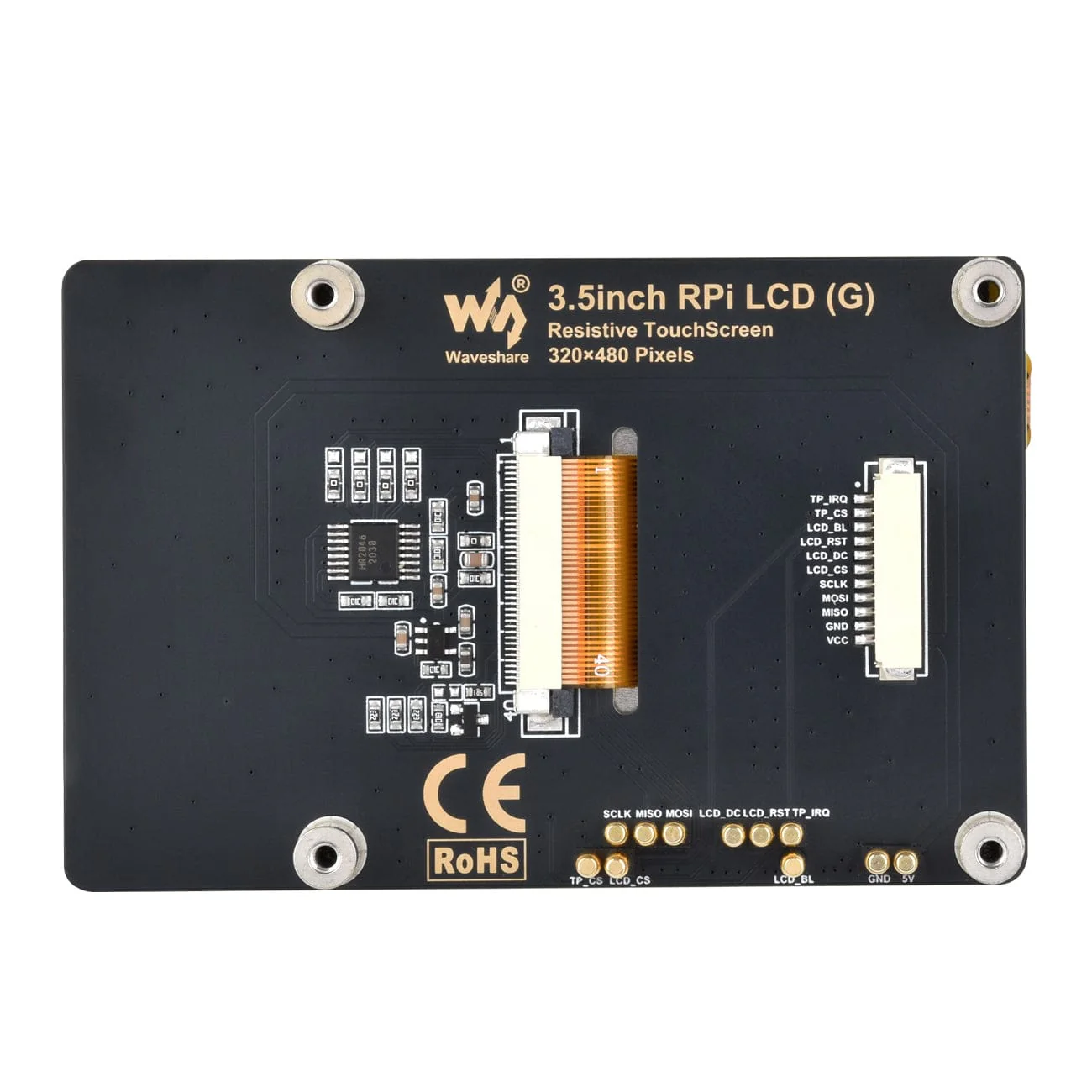

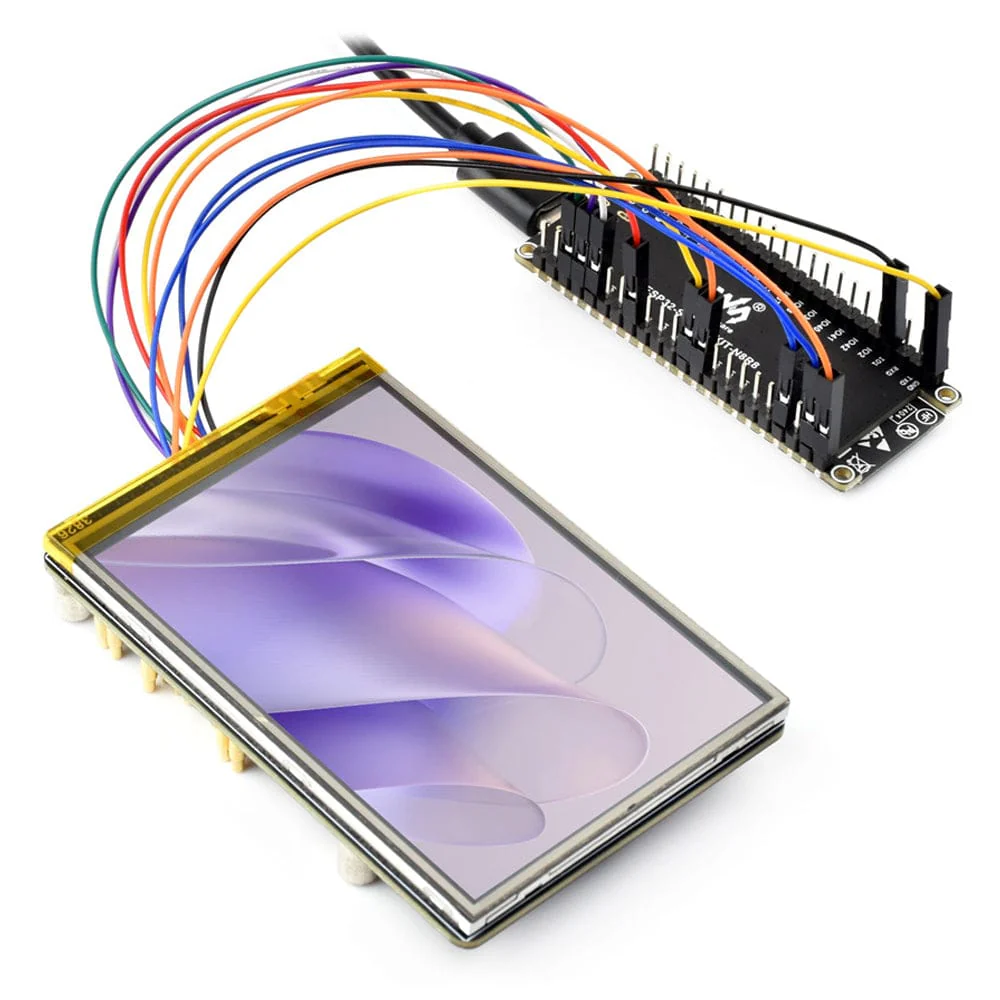

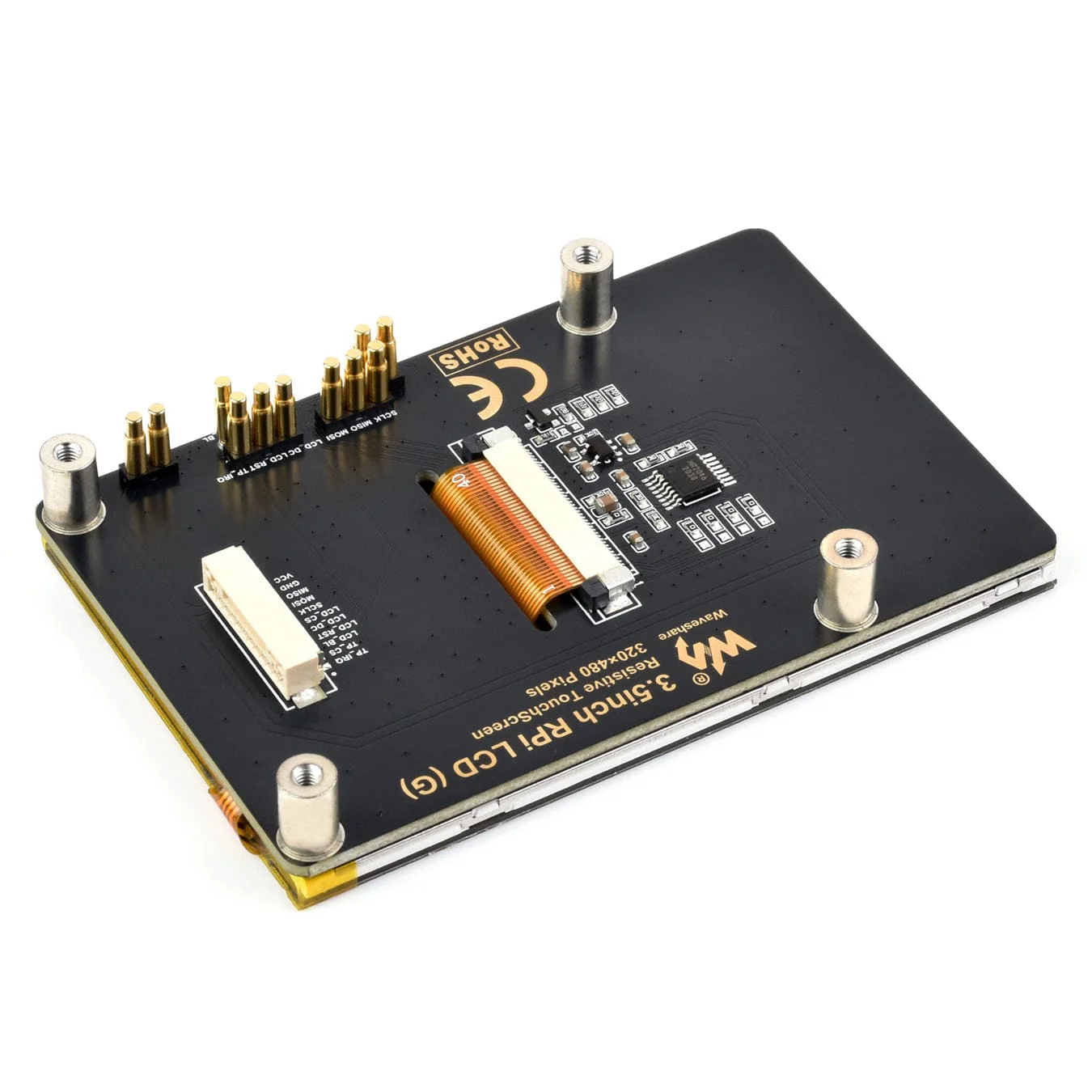

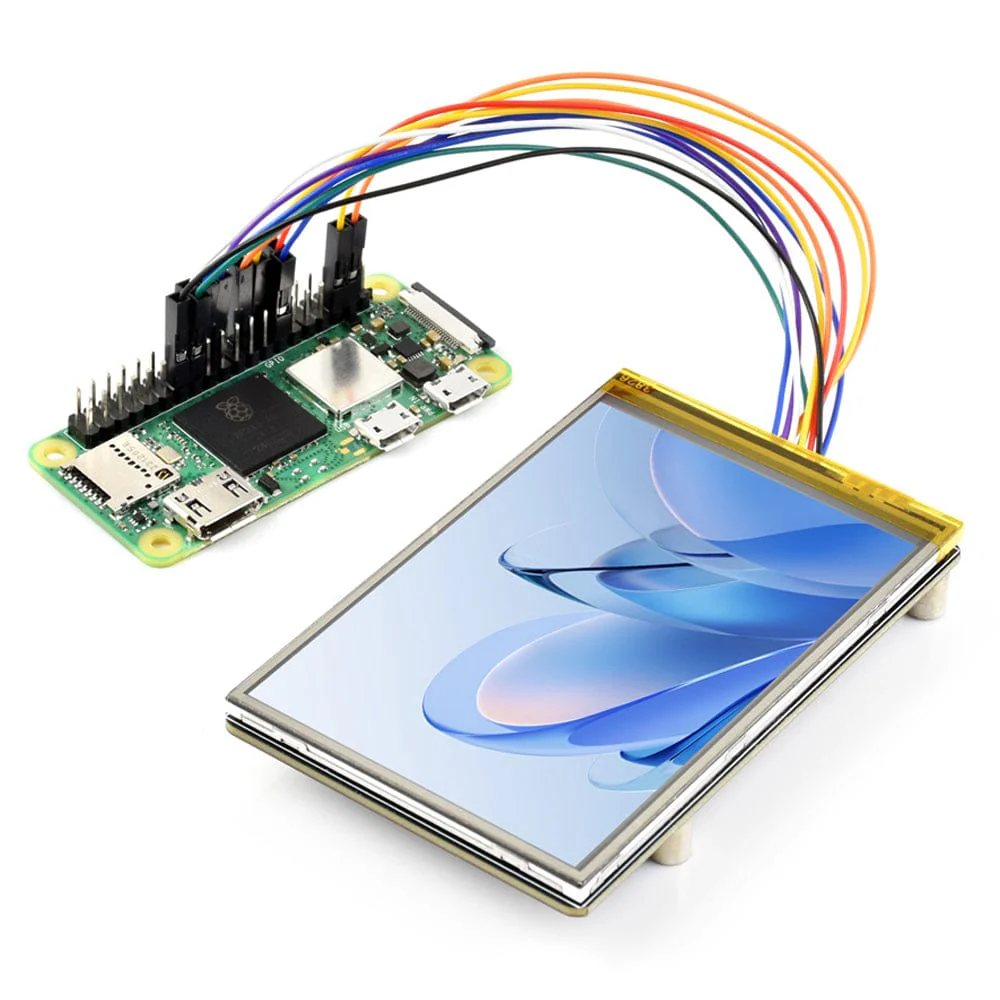

A connector on the rear of the display can be used with the included GH1.25 11-pin cable to use this display with other development boards, with ESP32-S3 examples provided in the product wiki.

It's an interesting combo of OG resistive touch technology combined with a modern 60Hz IPS panel, SPI communication and pogo in mounting.

Note: The display orientation is portrait by default, 320x480 resolution (H×V). Change the software config for landscape display.

Raspberry Pi not included.

Features

• 3.5" IPS display compatible with Raspberry Pi
• 320x480 resolution, 262K colours and 170° viewing angles
• 60Hz refresh rate for smooth display performance
• Single-point resistive touch using XPT2046 controller
• ST7796S display driver with SPI interface to minimise GPIO usage

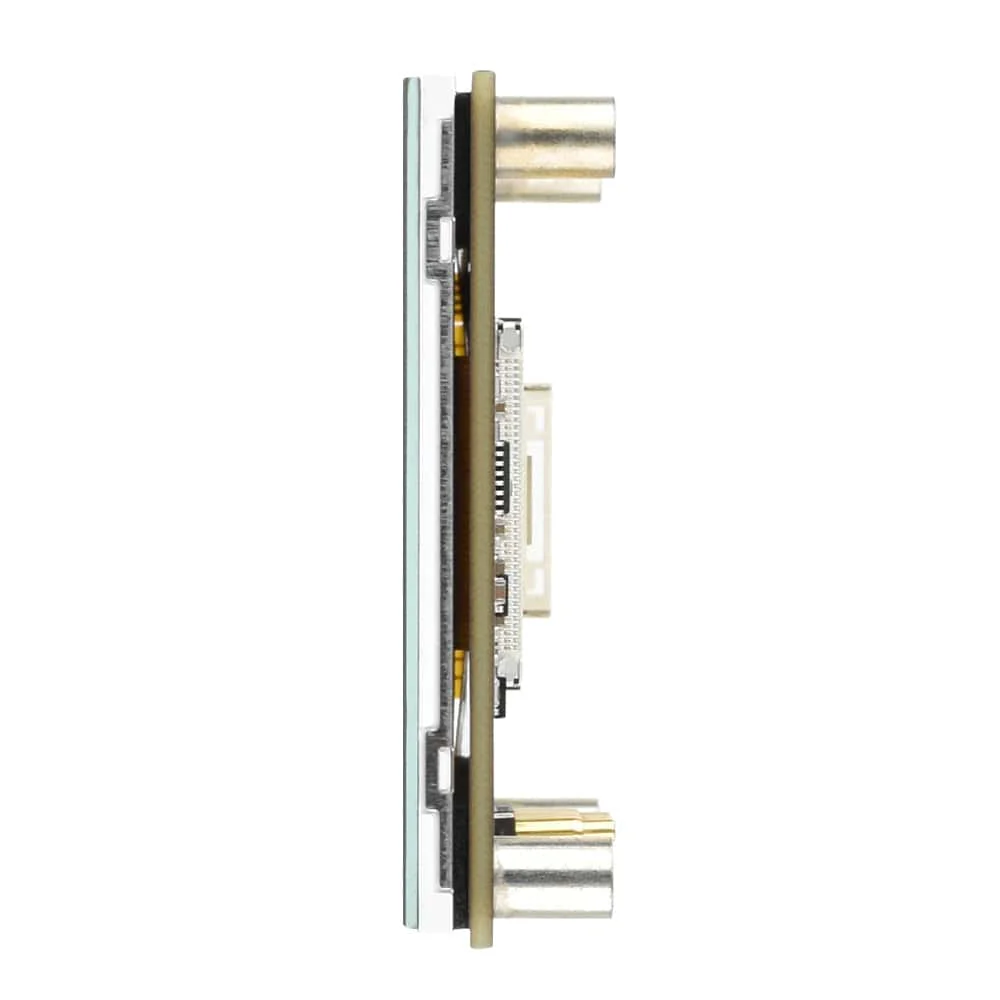

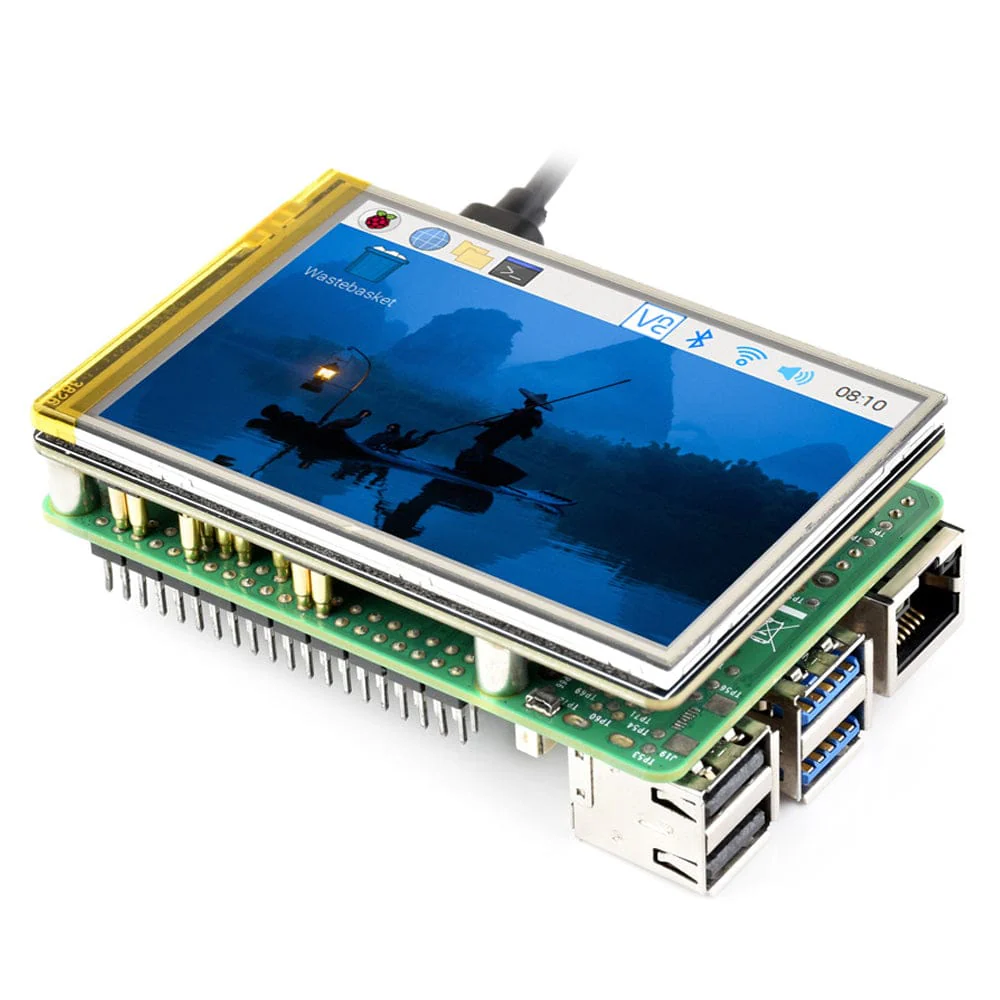

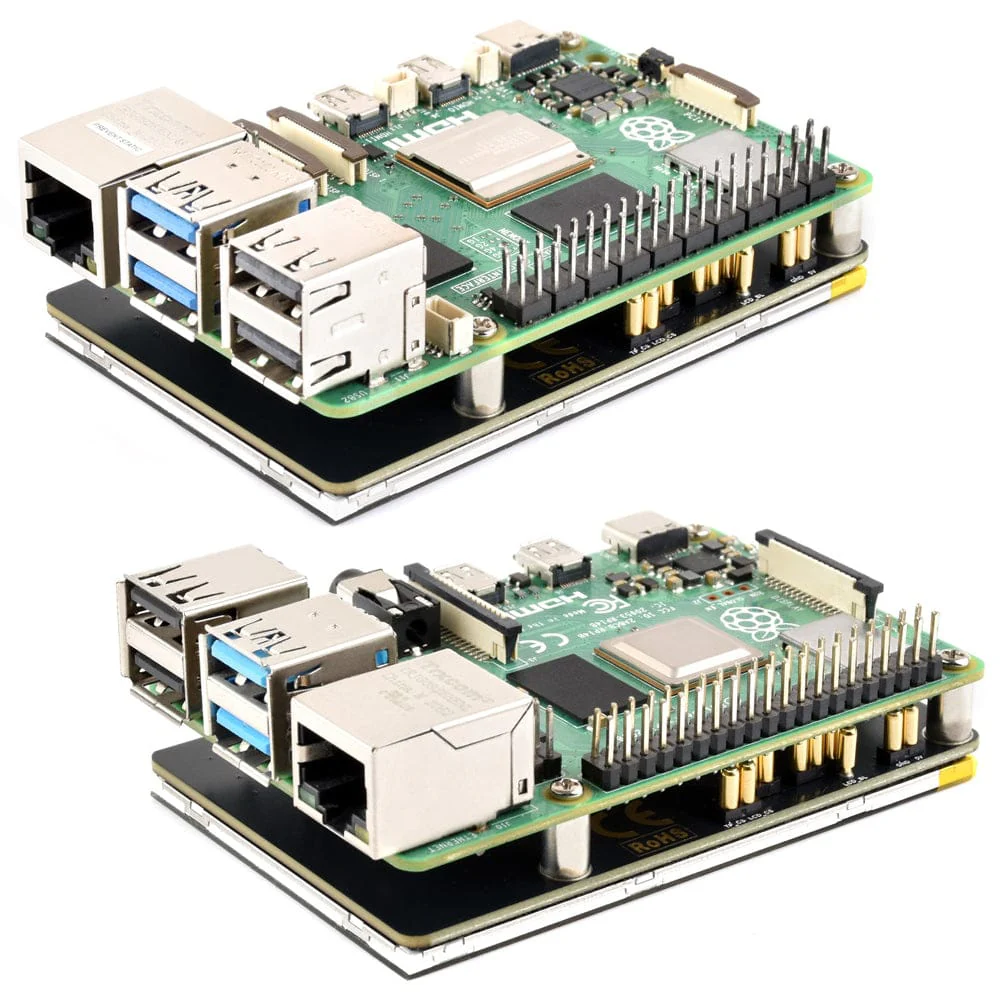

• Pogo pin mounting connects underneath the Raspberry Pi, keeping the GPIO header free
• Additional GH1.25 11-pin connector for use with other development boards
• Portrait orientation by default (320x480); software configurable for landscape
• Immersion gold PCB finish for improved durability

Specifications

Operating voltage	5V
Logic level	3.3V
Display driver	ST7796S
Touch driver	XPT2046
Display interface	4-wire SPI
Touch interface	SPI
Display panel	IPS
Display size	3.5"
Touch type	Resistive
Touch points	Single-point touch

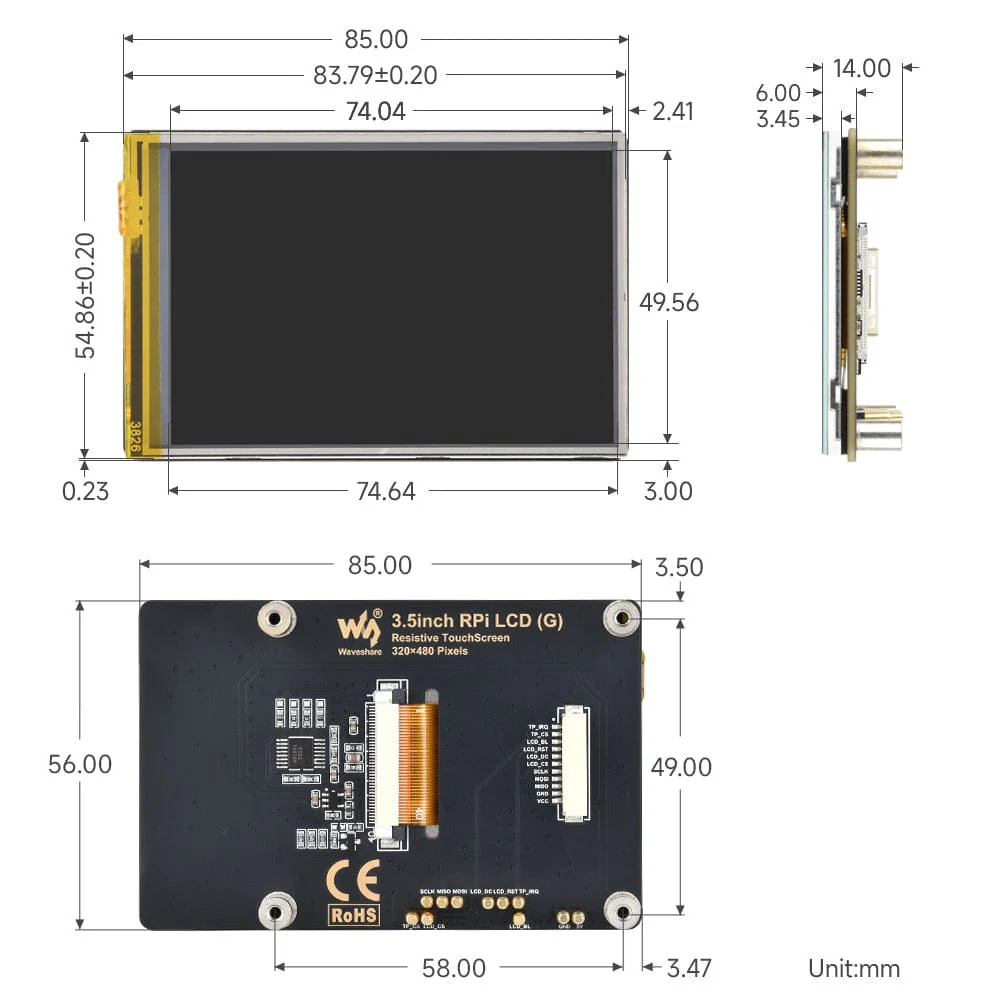

Display active area	49.56 × 74.04 mm
Touch panel size	54.86 × 83.79 mm

Resources

• Product wiki
• Schematic
• STEP File
• DXF Drawing
• Dimensions PDF
• ST7796S Datasheet
• XPT2046 Datasheet

Pinout

Pin	Description	Connector
TP_IRQ	Touch panel interrupt pin	1
TP_CS	Touch panel chip select	2
LCD_BL	LCD backlight pin	3
LCD_RST	LCD reset pin (active low)	4
LCD_DC	LCD data/command select (high = data, low = command)	5
LCD_CS	LCD chip select (active low)	6
SCLK	SPI clock pin	7
MOSI	SPI MOSI pin	8
MISO	SPI MISO pin	9
GND	Ground	10
VCC	5V power input	11

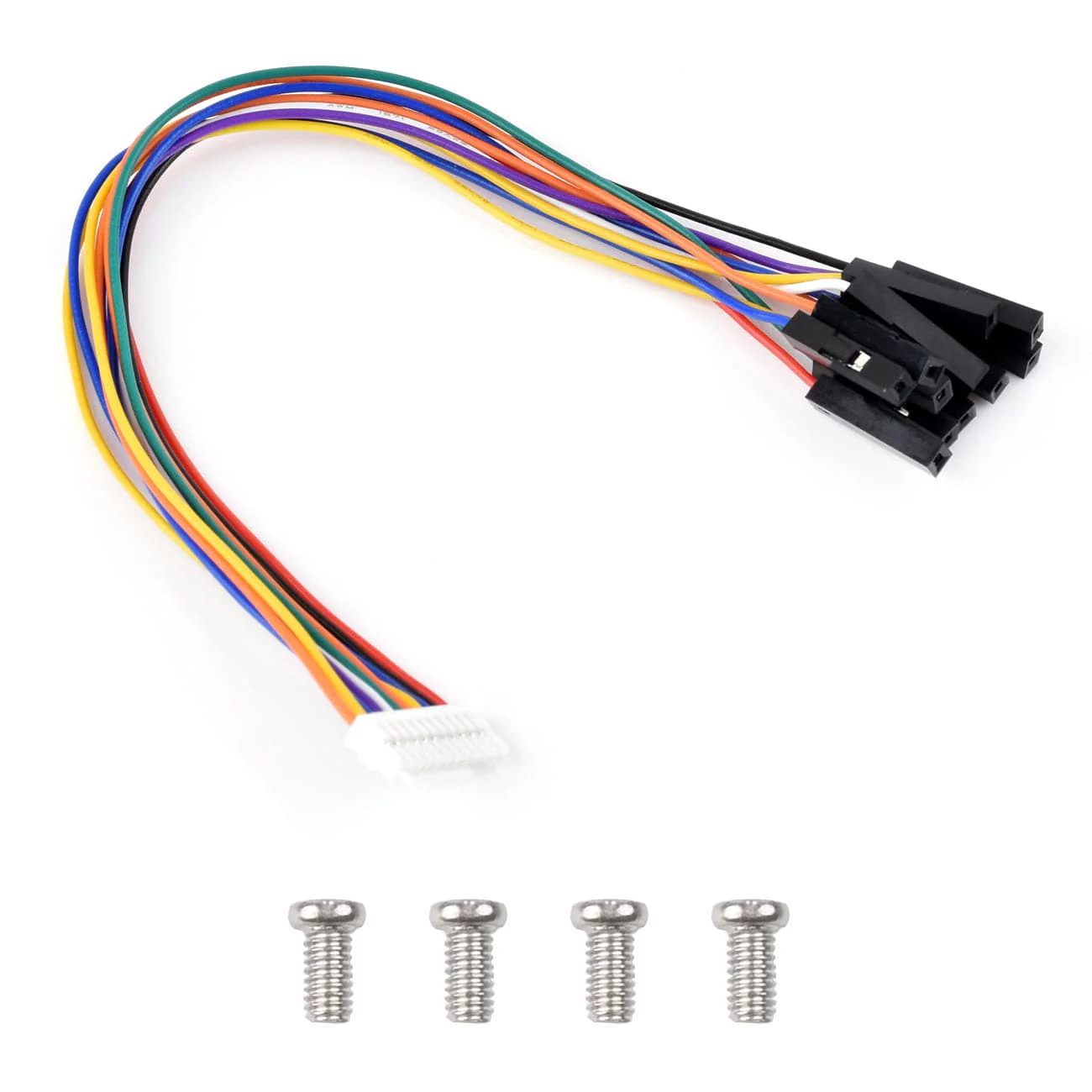

Package Contents

• 1x 3.5" Resistive Touch Display (G) for Raspberry Pi (320x480)
• 1x GH1.25 11-pin cable
• 1x Screw pack

Raspberry Pi not included.
