Original: $34.04
-70%$34.04
$10.21The Story

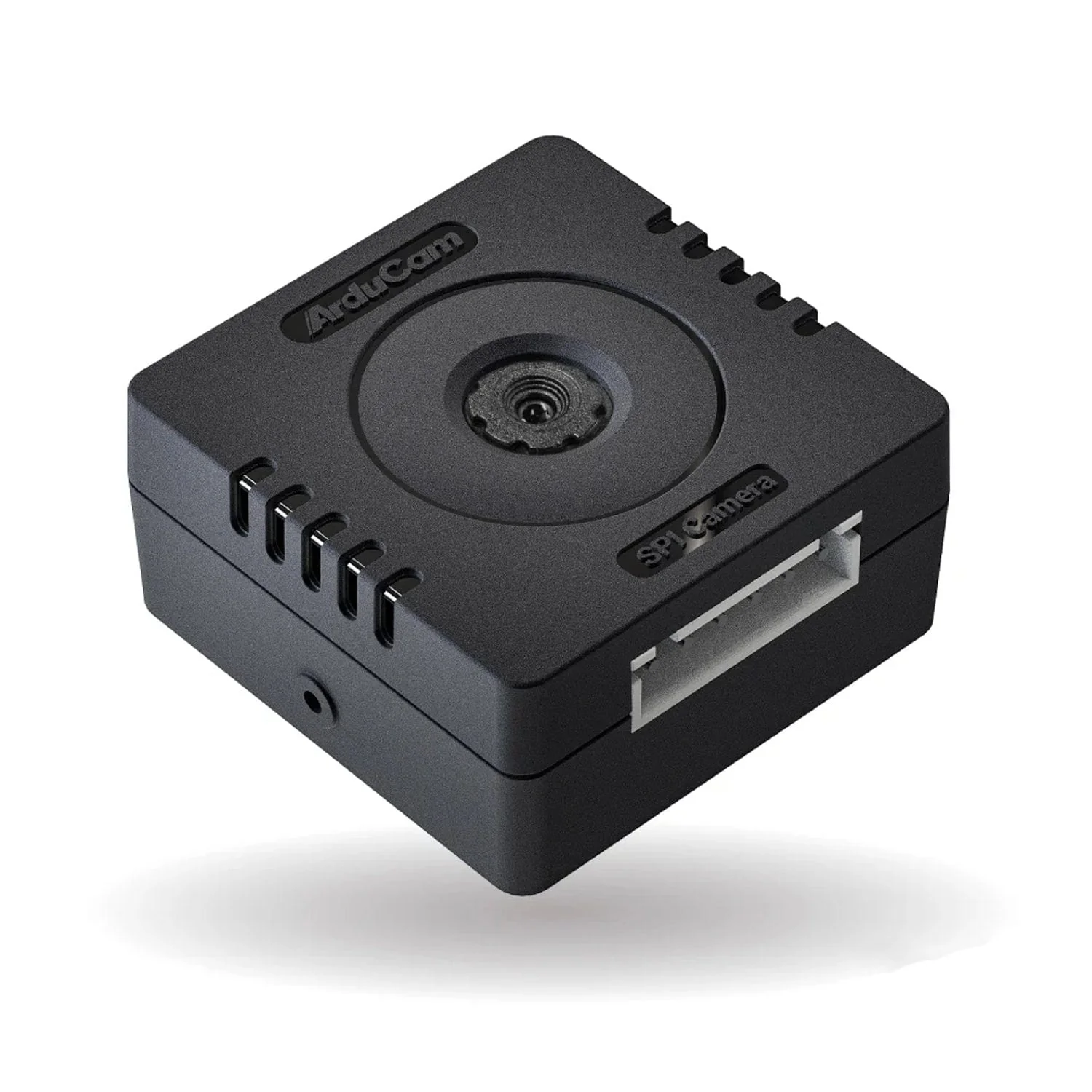

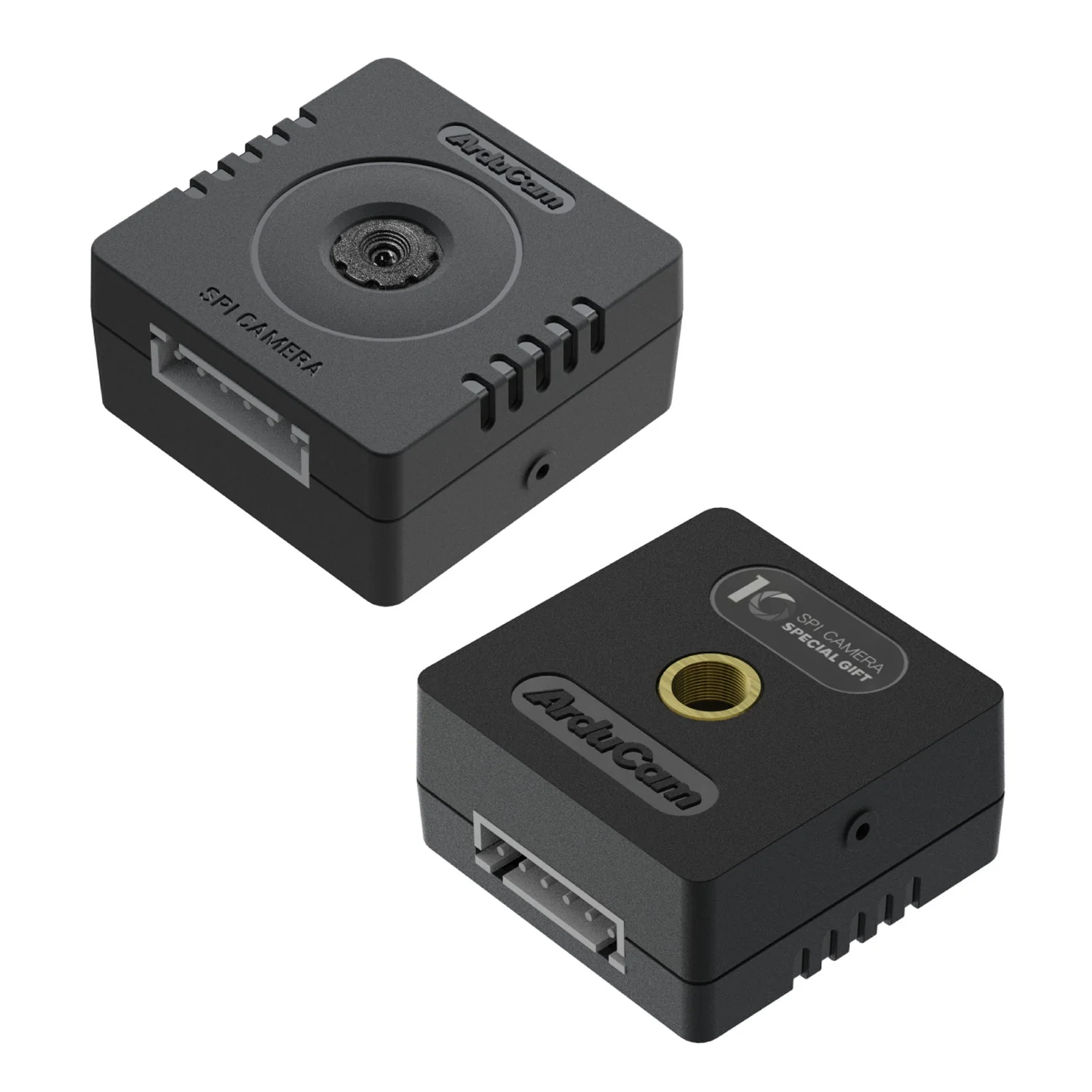

This SPI Camera Module is made for easy integration with microcontrollers such as Raspberry Pi, Arduino, ESP32 etc via a standard SPI interface. It functions like a DSLR with built-in high-level commands, making it simple to control. It also features a 3 MP resolution for sharp and crisp images, power-saving capabilities, including quick wake-up in 42ms and low power consumption under 200mW.
It supports up to four cameras using multiplexing and offers an open-source SDK for easy integration with new MCUs. Sealed in a durable ABS case, it's compact and great for various projects.
For the 5 MP version with autofocus, click here to find it in our shop.
Features
- Extremely easy to use. High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.
- Quick sleep and quick wake-up (within 42ms). No worries about loading long register settings. The power consumption is as low as under 200mW.
- Up to 4 cameras run on a single MCU using an adapter board. They capture it at the same time with a sequential readout.
- The SDK is fully open-source with an MIT license. A lean architecture with a hardware abstraction layer, enabling you to add a new MCU without effort.
- It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, and countless more.
Specifications
| Optical Size | 1/4” |
| Speed | 8Mhz |
| Number of effective pixels | 2048 x 1536 |
| Power Supply | 3.3V/5V |
| Interface | SPI (4-wire) |
| Shutter Type | Rolling Shutter |
| Colour Filter | Colour |
| Power Consumption (idle/Working) | 185mW-585mW |
| Field of View | 68.75°(D) |
| F.NO | F2.8 |
| Lens Type | Stock Lens |
| Focal Length | 3.3mm |
| Focus Distance | 0.6m-INF |
| Electric Current (Idle/Working) | 56mA-136mA |
| Output Format | RGB/YUV/JPEG |

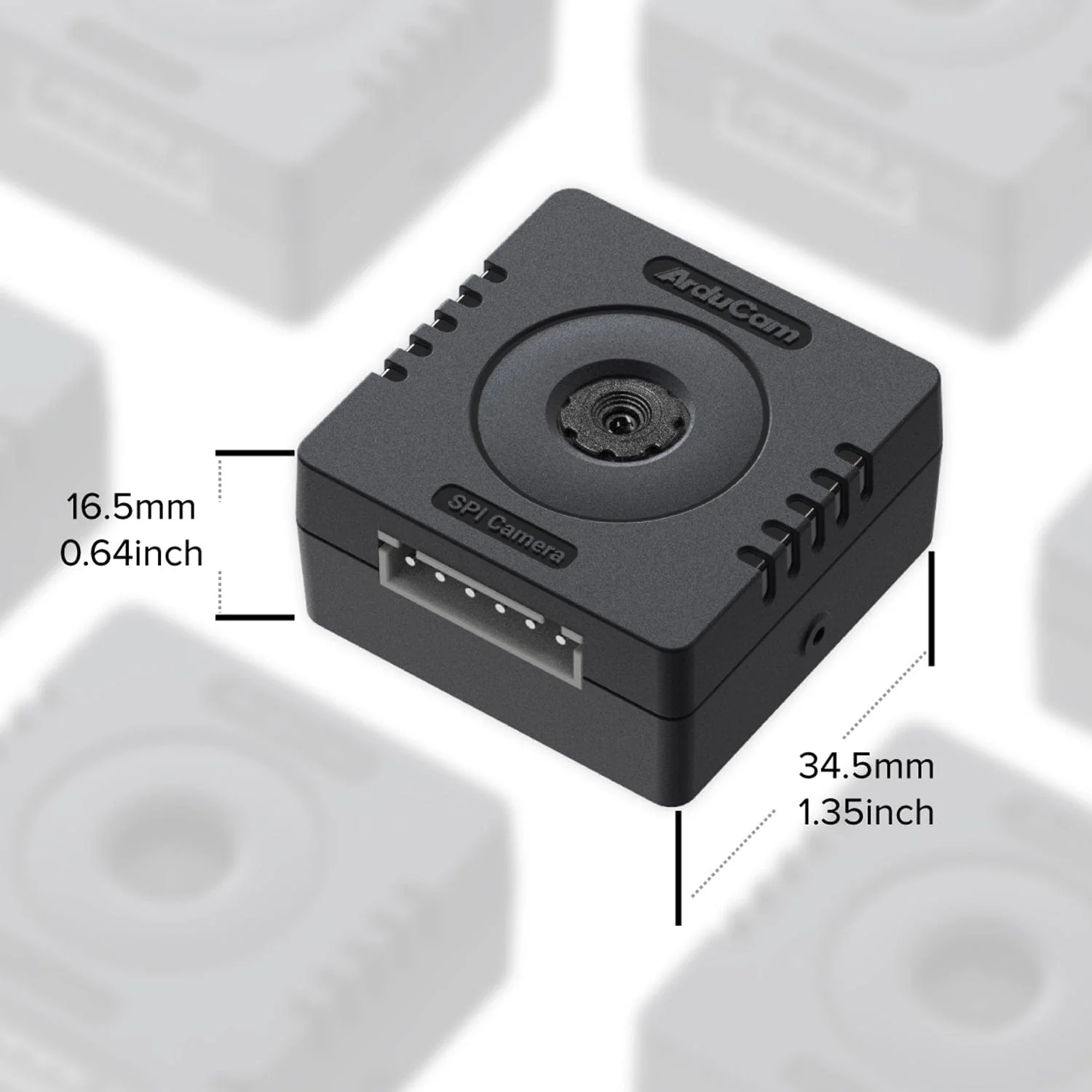

| Camera Board Size | 33 x 33 x 17 mm |

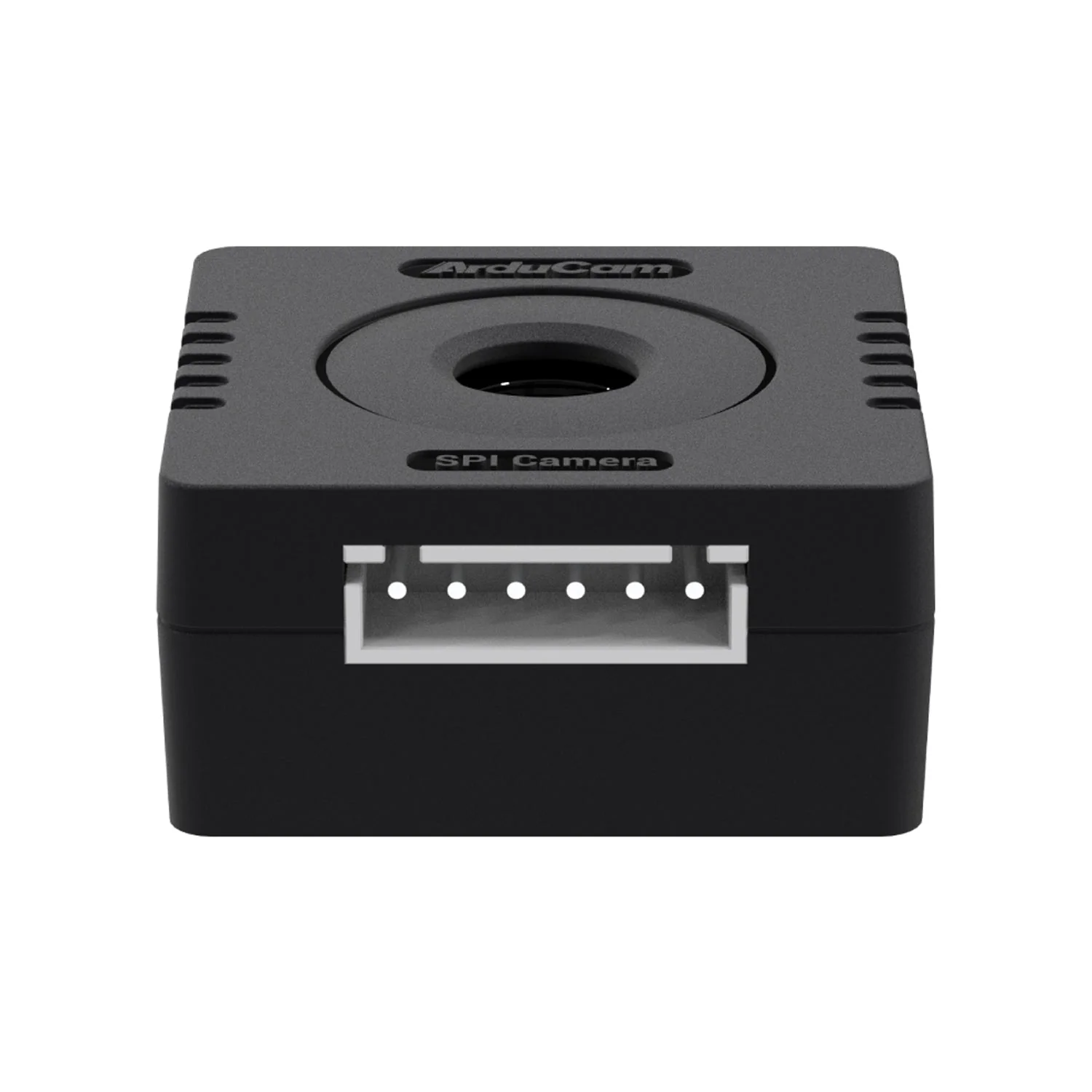

| Connector No. | XH2.54-6P |
Resources
- Arducam Mega SPI Camera
- Troubleshooting
- Arducam Mega SPI Camera Quick Start Guide
- Mega SPI Camera Application Note
Package Contents
- 1 x Arducam Mega 3MP SPI Camera
- 1 x 300mm 6-pin cable
