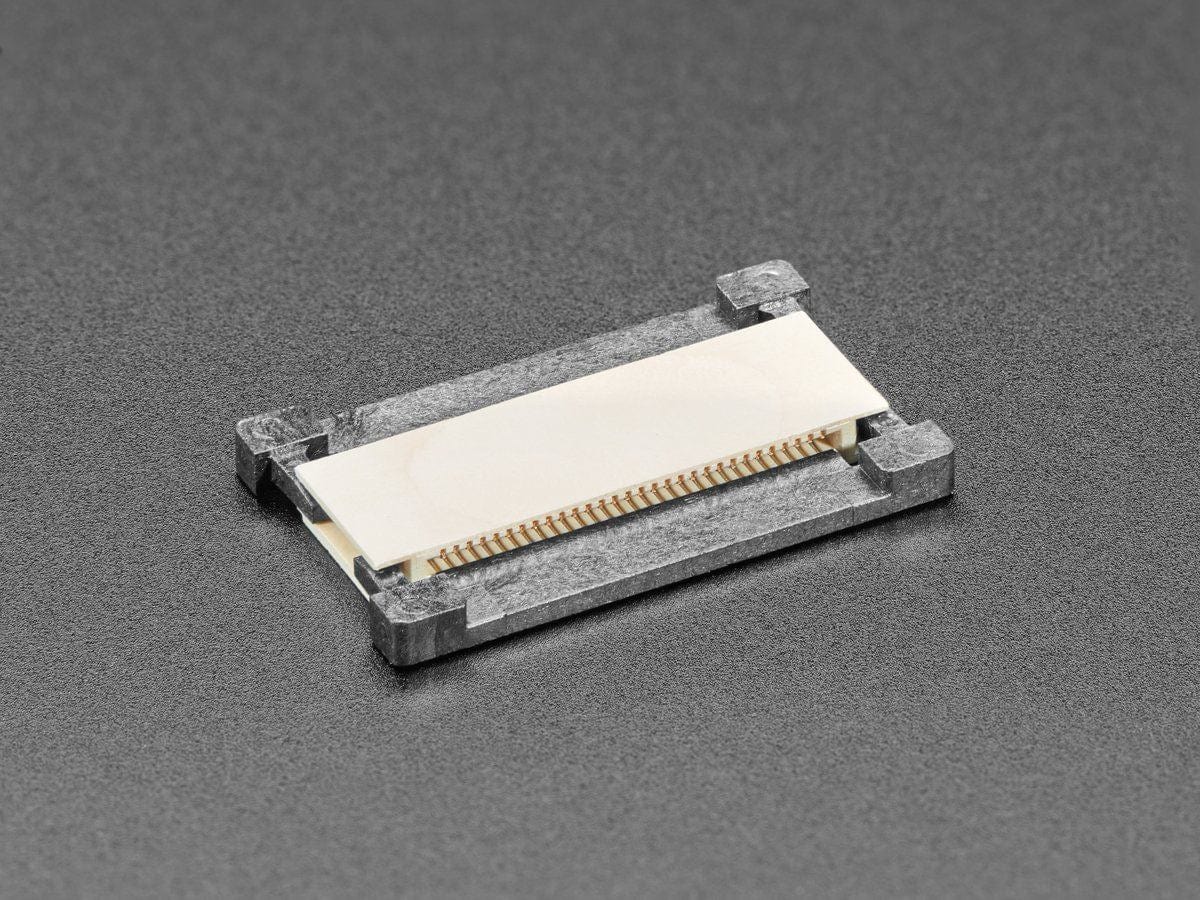

![30-pin 0.5mm FFC / FPC Extender [Discontinued]](https://img.piphonic.shop/images/product/30-pin-0-5mm-ffc-fpc-extender-1.jpg)
The Story
This 30-pin FFC / FPC Extender is very simple. It lets you connect two 30-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.
Note that pin 1 of one cable is connected to pin 30 of the other so you need to use a cable that has contacts on the same side (type A-A cable)
Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.
Technical Details
- Product Dimensions: 21.4mm x 10.3mm x 2.0mm / 0.8" x 0.4" x 0.1"

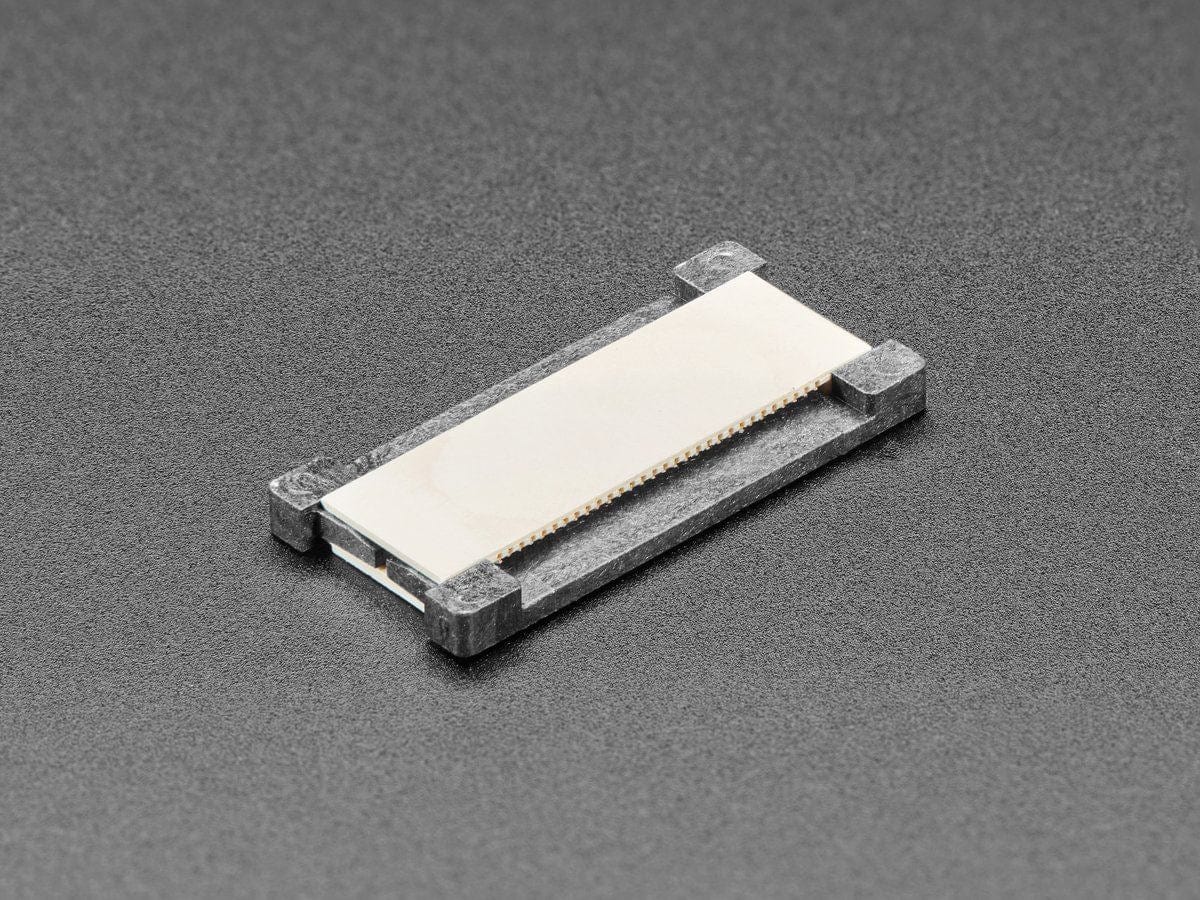

![30-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 2](https://img.piphonic.shop/images/product/30-pin-0-5mm-ffc-fpc-extender-2.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

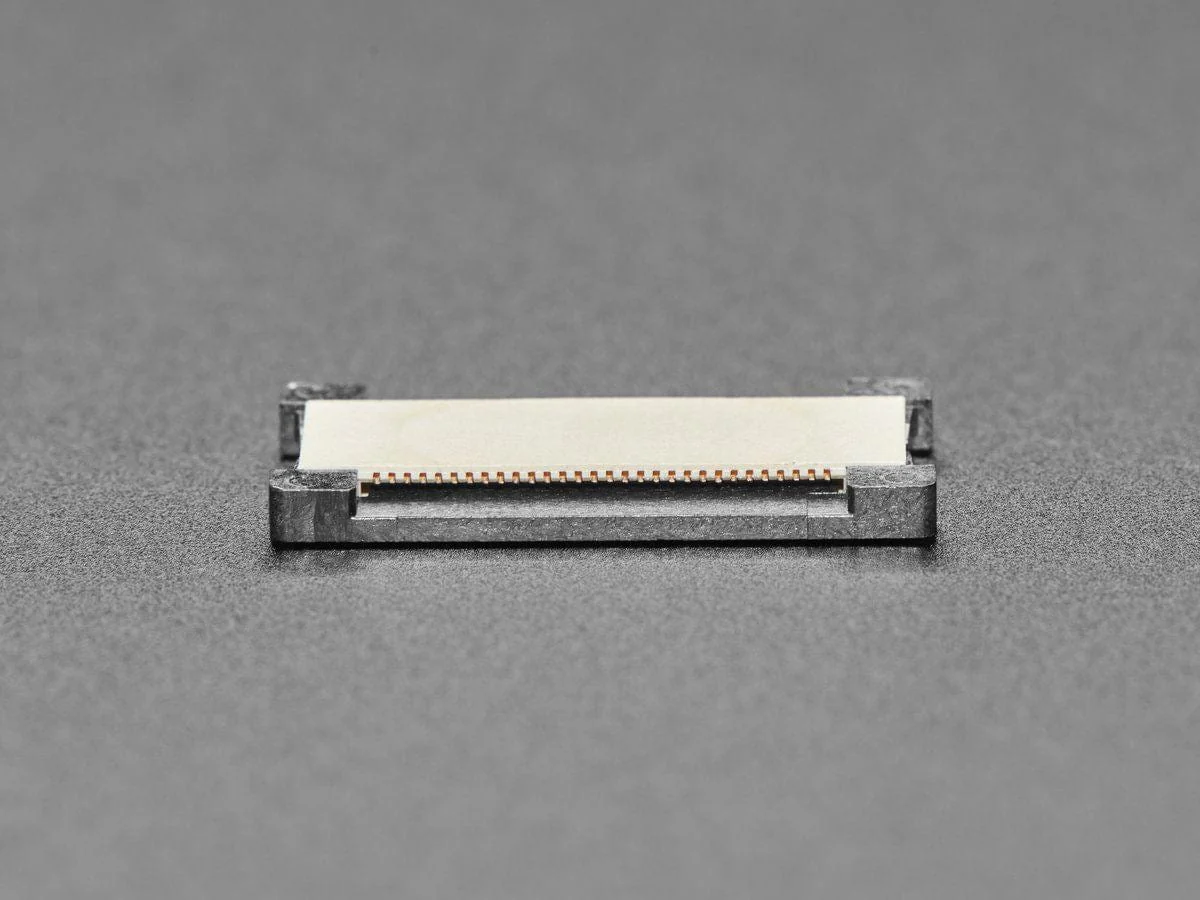

![30-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 3](https://img.piphonic.shop/images/product/30-pin-0-5mm-ffc-fpc-extender-3.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

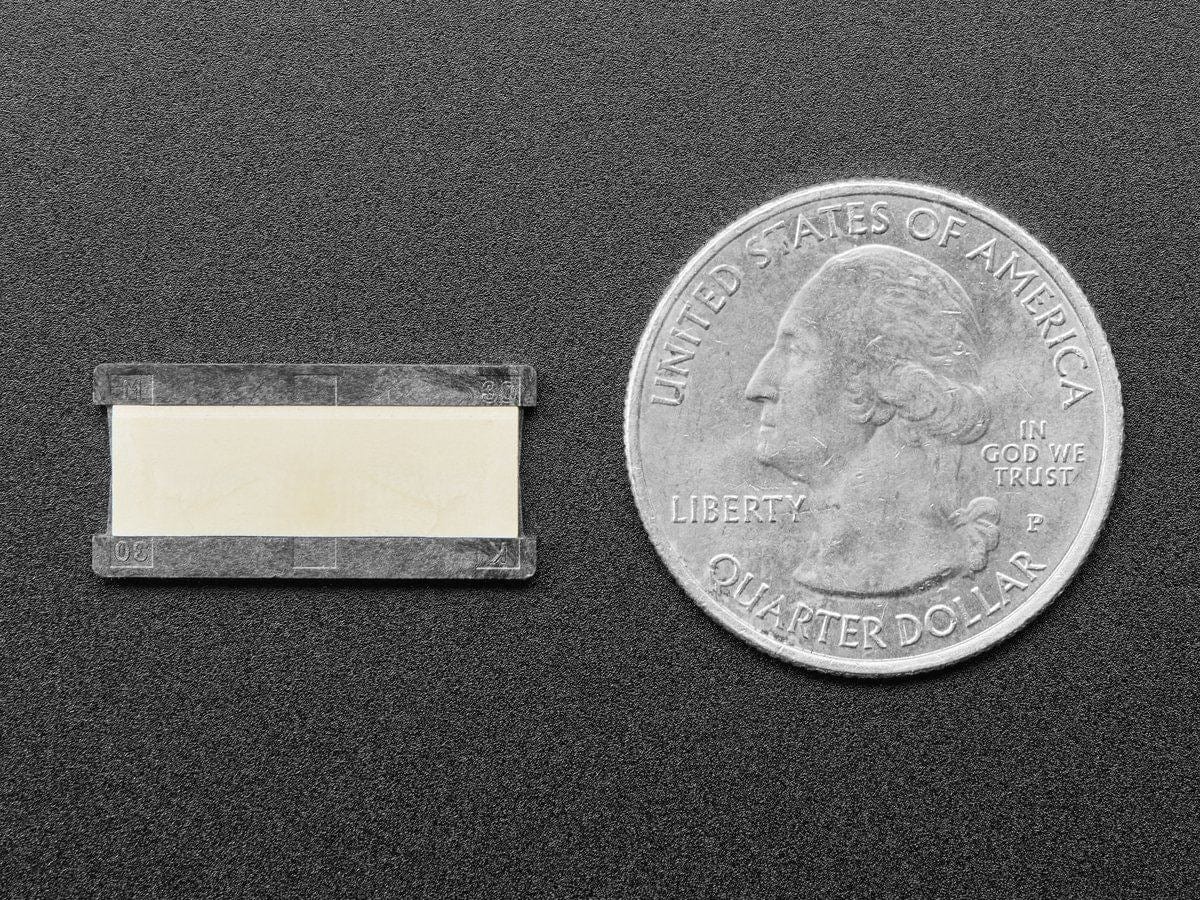

![30-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 4](https://img.piphonic.shop/images/product/30-pin-0-5mm-ffc-fpc-extender-4.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This 30-pin FFC / FPC Extender is very simple. It lets you connect two 30-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.
Note that pin 1 of one cable is connected to pin 30 of the other so you need to use a cable that has contacts on the same side (type A-A cable)
Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.
Technical Details
- Product Dimensions: 21.4mm x 10.3mm x 2.0mm / 0.8" x 0.4" x 0.1"
