Metal Cooling Fan for Raspberry Pi Compute Module 5

This fan has fast heat dissipation with the included thermal tapes and matches the size of the CM5 by sitting nicely on the mounting holes.

There is room left to add an antenna, the fan speed is adjustable and it can also be used on the Compute Module 5 IO Board and the Waveshare PoE IO Board for Raspberry Pi CM5.

Note: The Compute Module 5 and the IO Board are NOT included

Specifications

General	Low-profile, PWM speed adjustment
Interface	4-wire PWM speed-adjustable fan header
Rated Speed	8000±10%RPM
Power Supply	5V
Cable Length	125±10mm

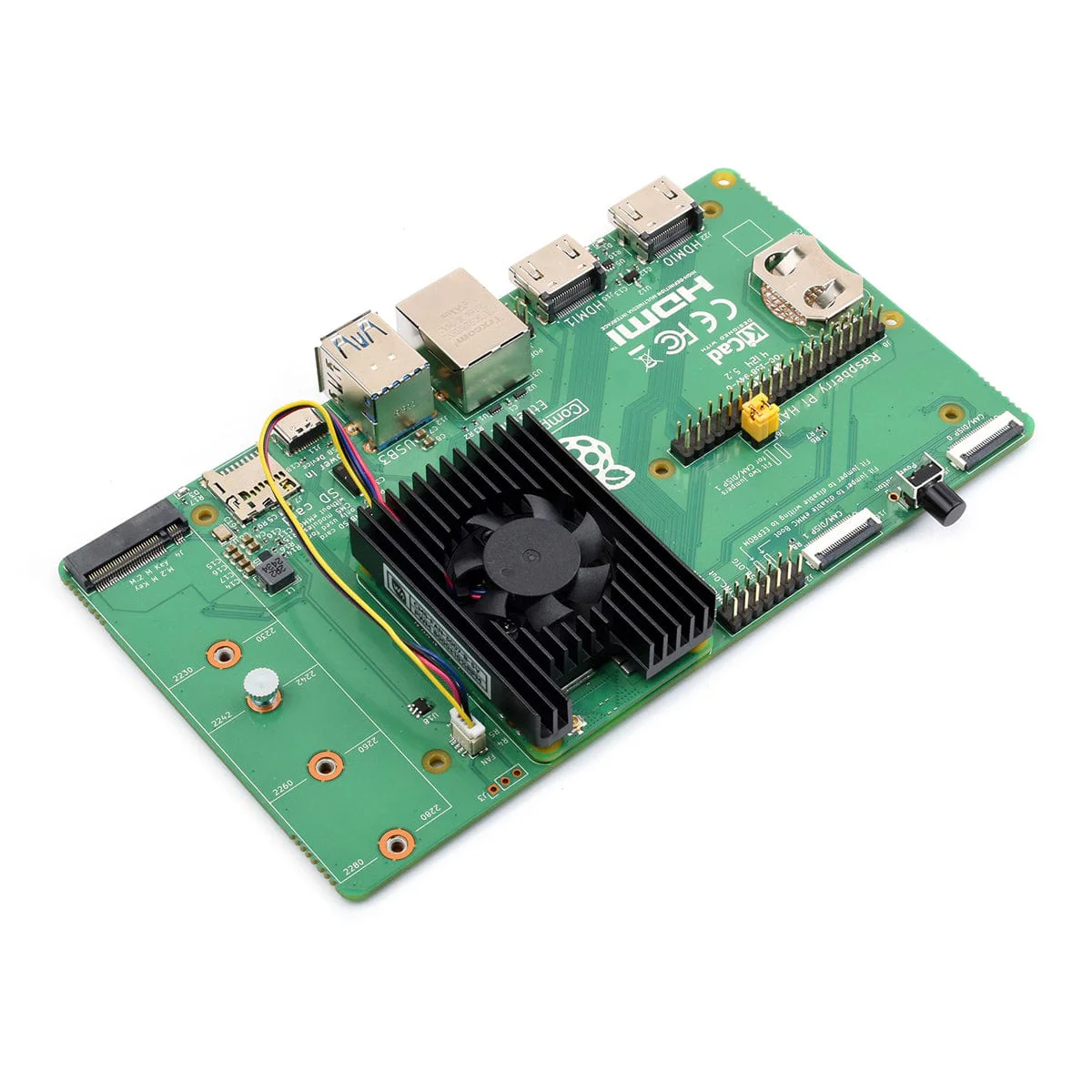

Connection Example - Compute Module 5

Resources

• For assembly instructions, check the bottom of Waveshare's product page

Package Contents

• 1x 3007 Cooling Fan for CM5
• 1x Screws and Thermal Tapes
