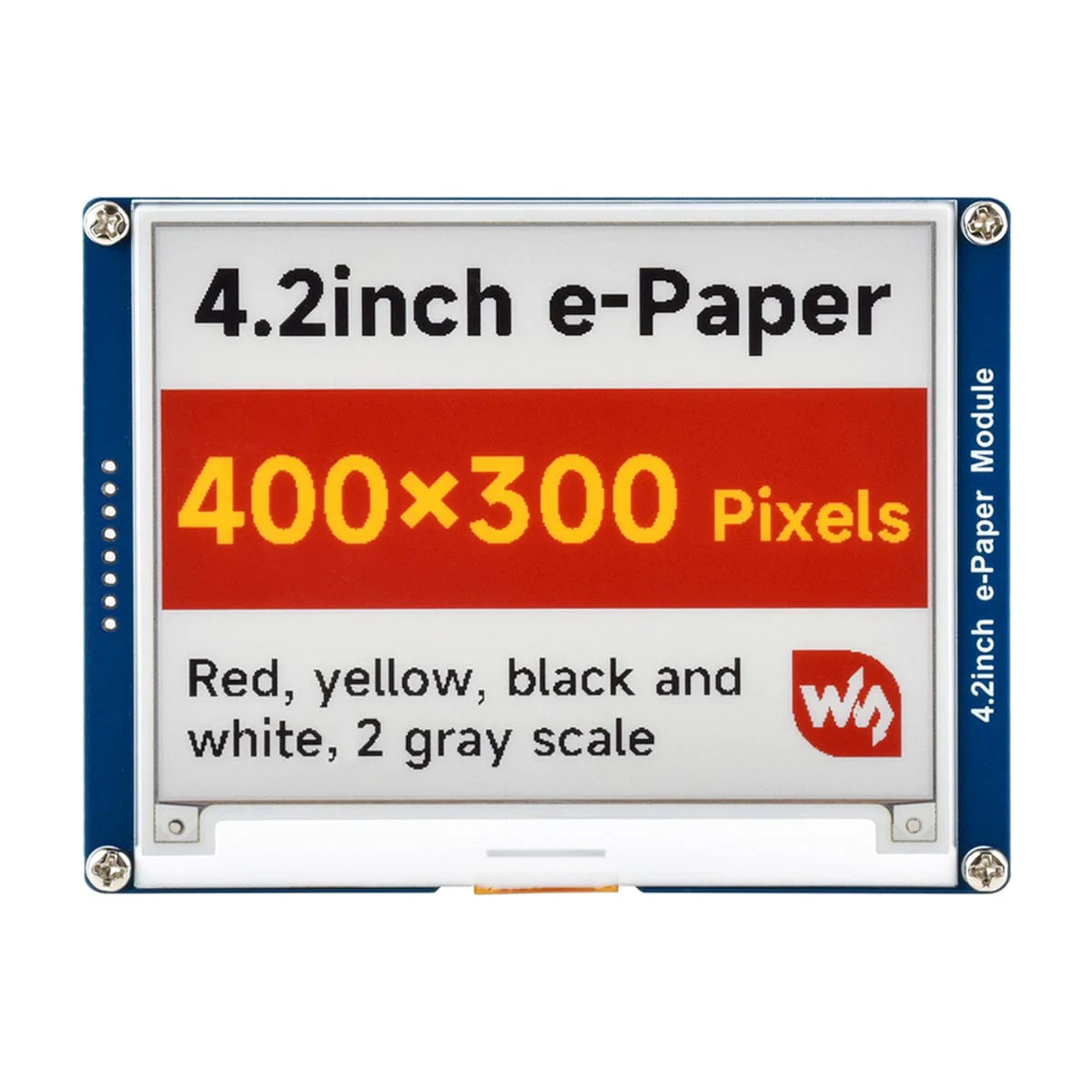

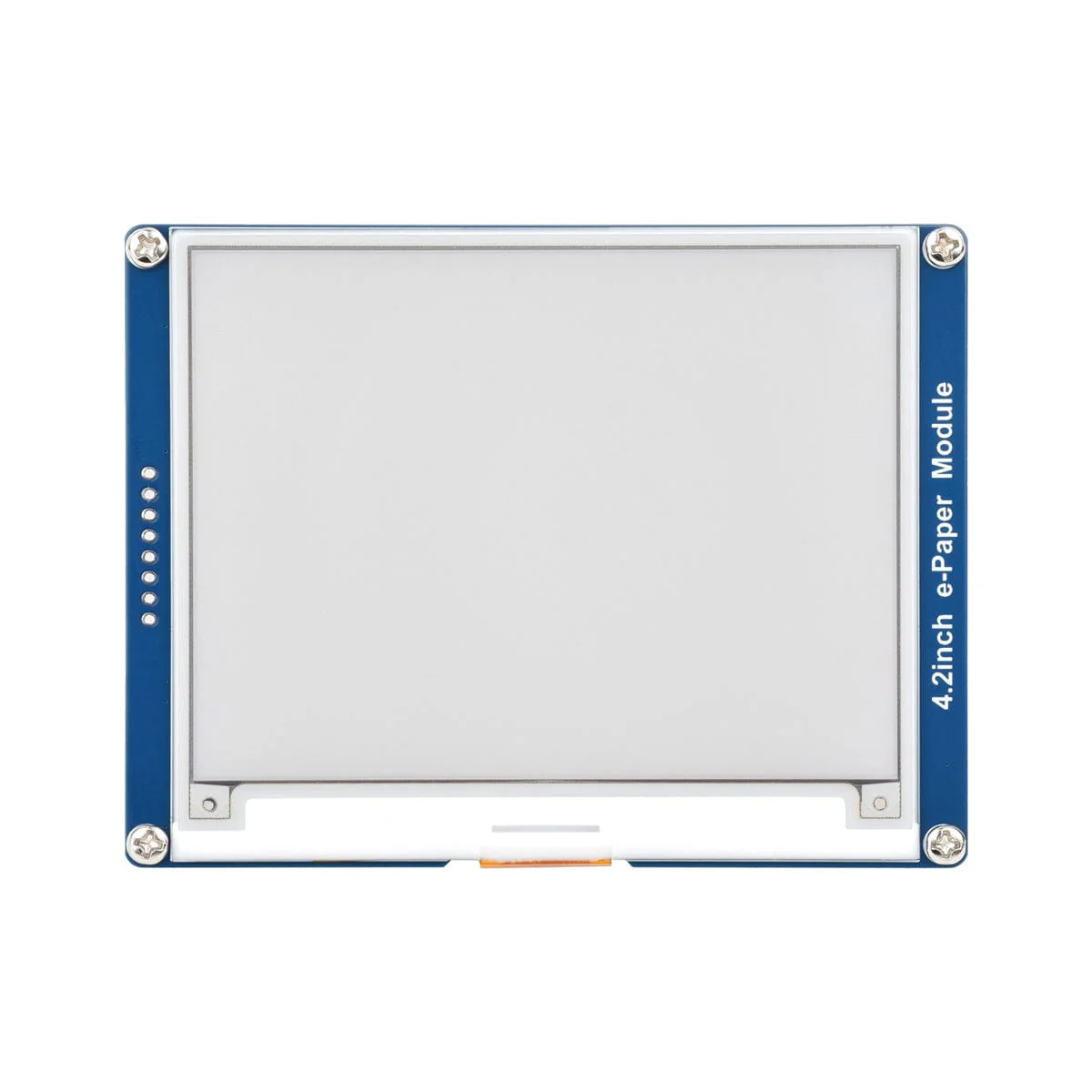

4.2" ePaper Display Module - Red/Yellow/Black/White (400x300)

This 4.2" e-Paper module is a quad-colour display (Red/Yellow/Black/White) with no backlight and keeps the last displayed image for long periods even when powered off. Power is only needed during refreshes, so you're barely using any power. The display also has a wide 170° viewing angle for visibility from most angles.

The SPI interface lets it connect to other controller boards like Raspberry Pi and Arduino, while a built-in voltage translator provides compatibility with both 3.3V and 5V MCUs. Included are online development resources and a manual, which makes it easy to get started!

We also have the raw display panel here

Features

• No backlight, keeps displaying last content for a long time even when powered down
• Ultra-low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32)
• Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32, etc.
• Voltage translator, compatible with 3.3V / 5V MCUs

Specifications

Operating Voltage	3.3V/5V
Interface	3-wire SPI, 4-wire SPI

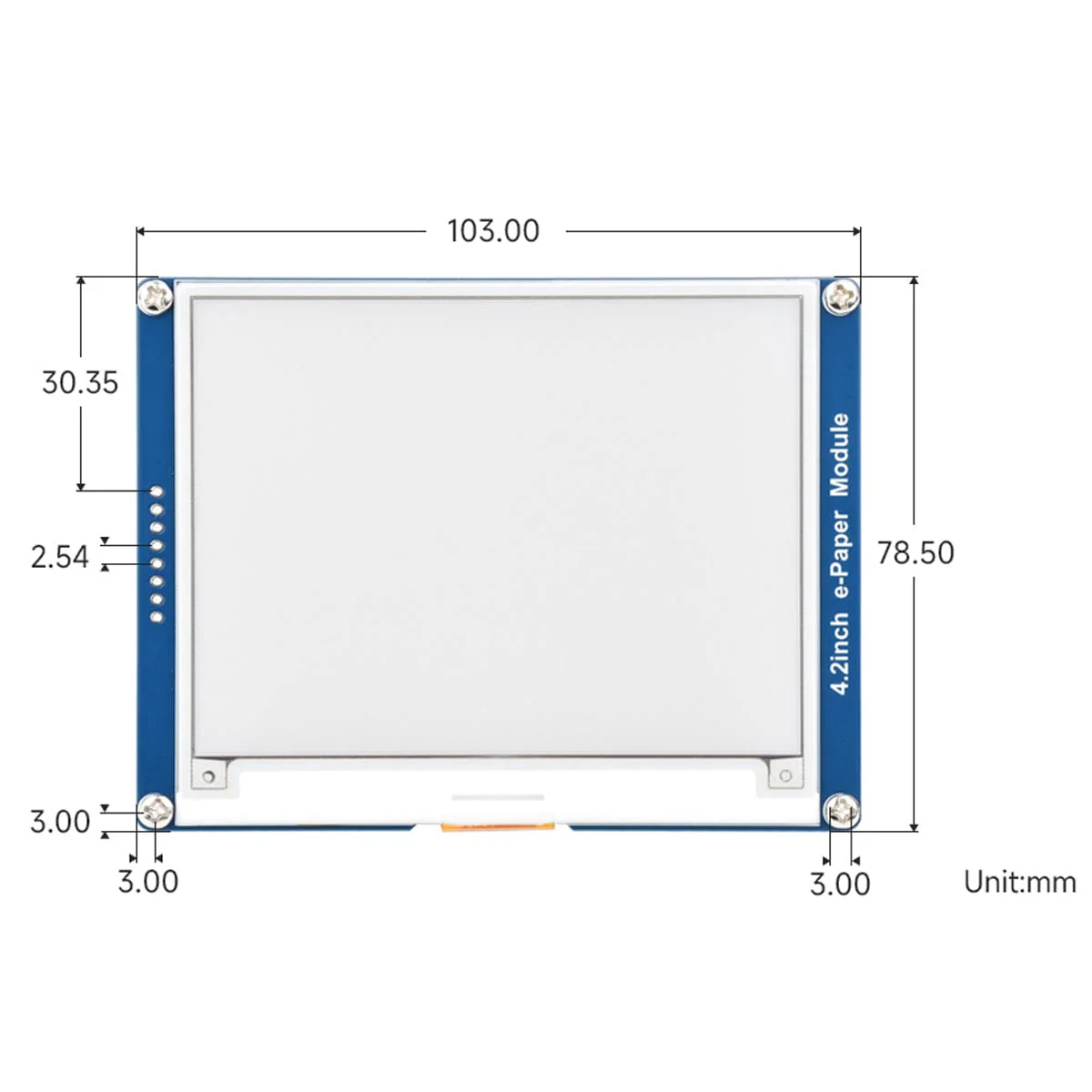

Outline Dimensions	103 x 78.5 (mm)
Display size	84.8 x 63.6 (mm)
Dot Pitch	0.212 x 0.212 (mm)
Resolution	400 x 300 pixels
Display Colours	Red/Yellow/Black/White
Greyscale	2
Full Refresh Time	21s
Refresh Power	<30mW
Standby Current	<0.01uA (almost none)
Viewing Angle	>170°

Resources

• Product Wiki
• Datasheet

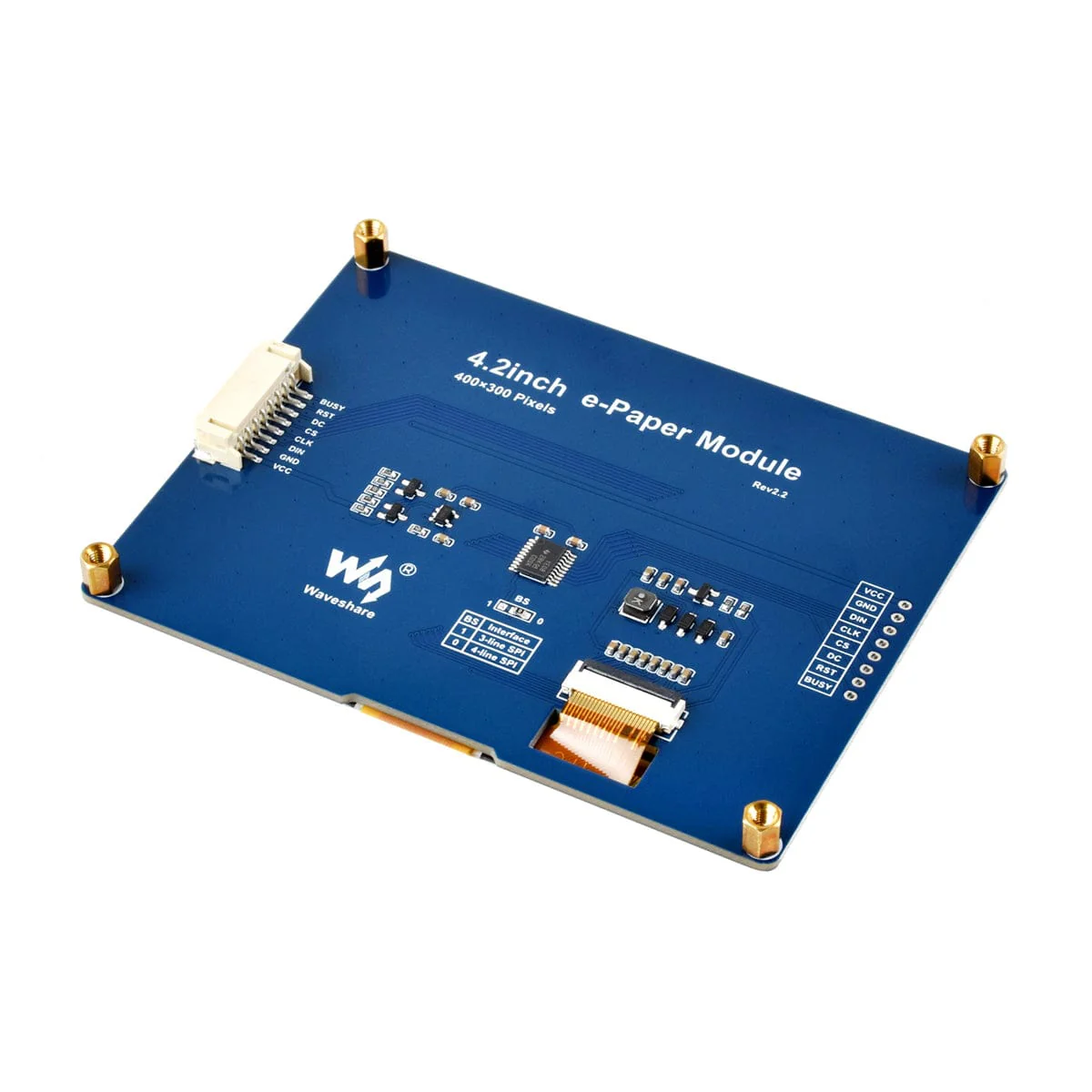

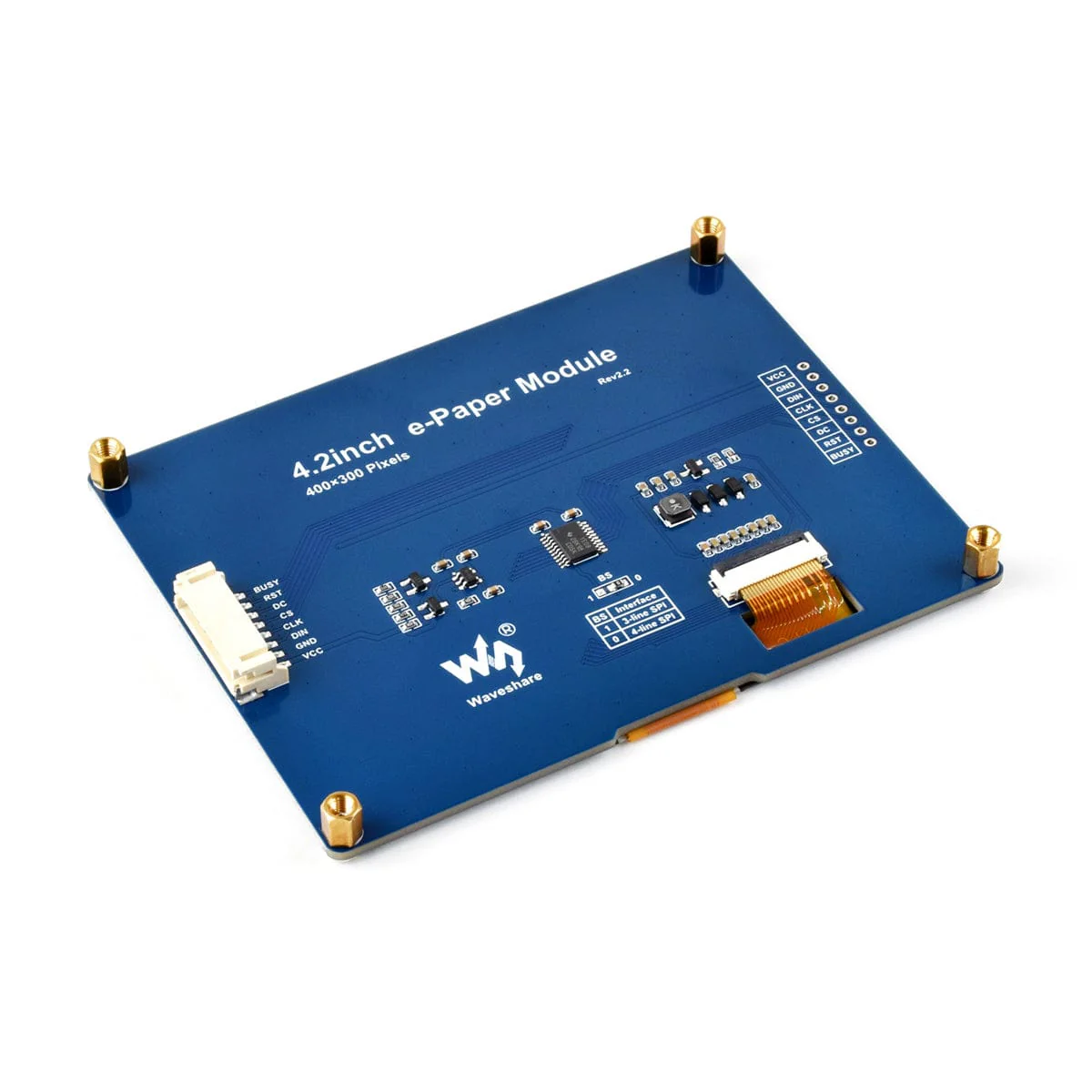

Pinout

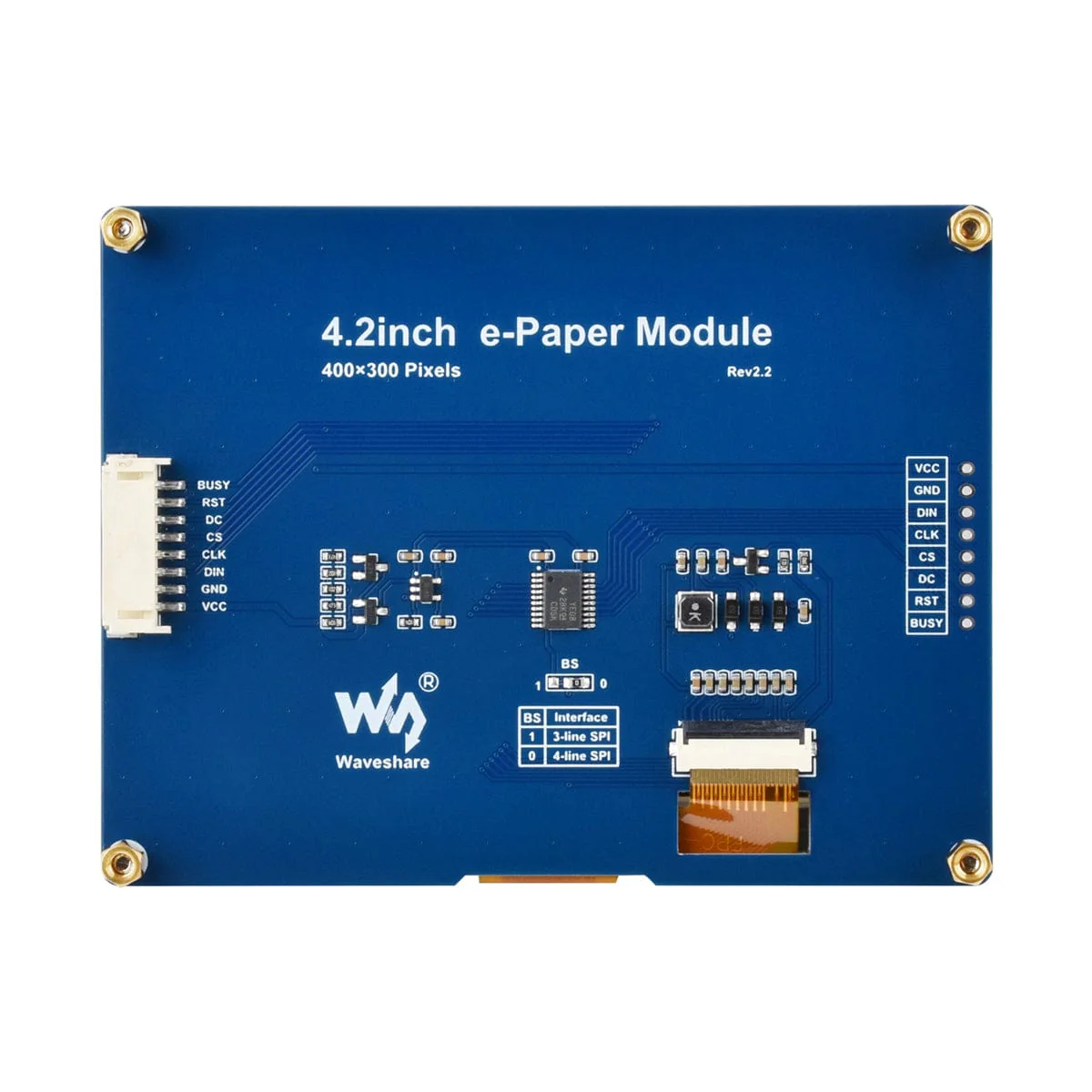

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin

Package Contents

• 1x 4.2" e-Paper Module
• 1x PH2.0 8-pin Cable
