4" HDMI Round Touch Display for Raspberry Pi (720x720)

The 4" HDMI Touch Display has a 720 x 720 resolution for sharp images, a vibrant IPS panel, and a wide 170° viewing angle. It has a 10-point capacitive touch screen with toughened glass and optical bonding technology for a clear, durable, and responsive touch experience.

This display supports multiple devices, including Raspberry Pi, Jetson Nano, and PCs, and is driver-free for easy setup. This display is ideal for adding a high-quality, compact touch interface to your projects.

If you'd like your display to be a bit smaller, we also have a 3.4" version here

Note: Raspberry Pi is NOT included

Features

• 4" round IPS screen with 720 x 720 hardware resolution.
• 10-point capacitive touch with up to 6H hardness toughened glass panel.
• Optical bonding technology, better-displaying effect.
• Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
• Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.

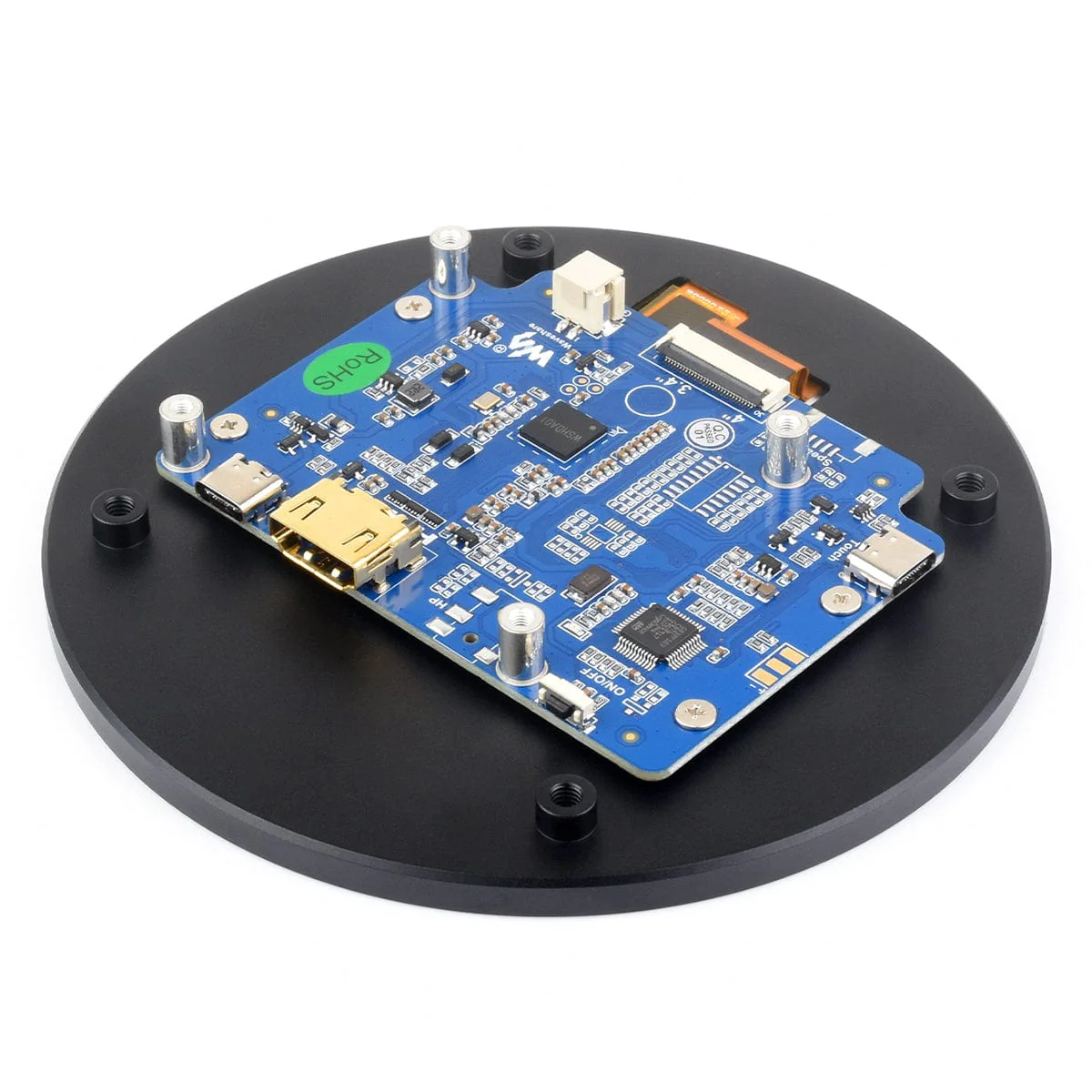

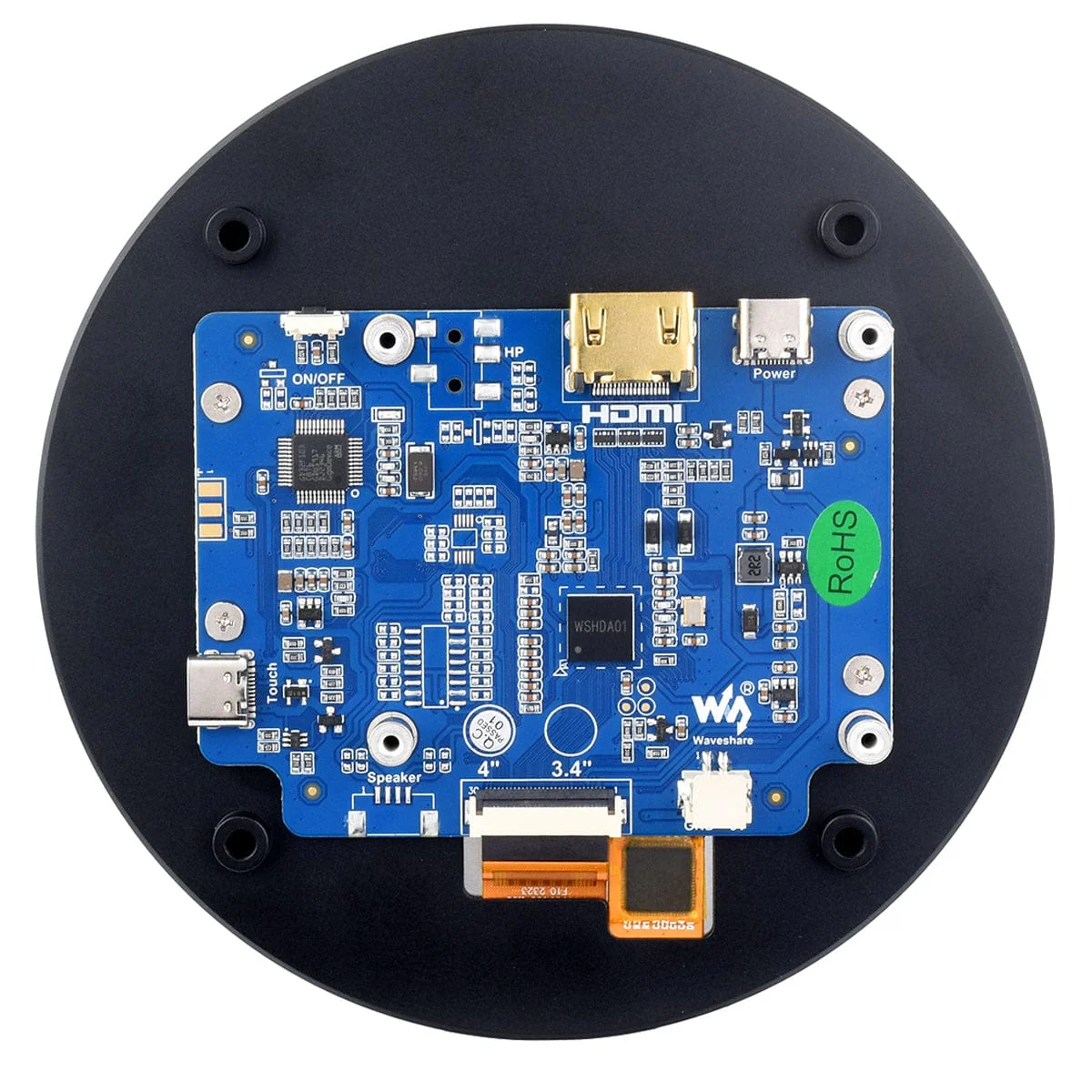

What's on Board

Specifications

Item	Description	Unit
Size	4	"
Viewing Angle	170	Deg
Resolution	720 x 720	Pixels

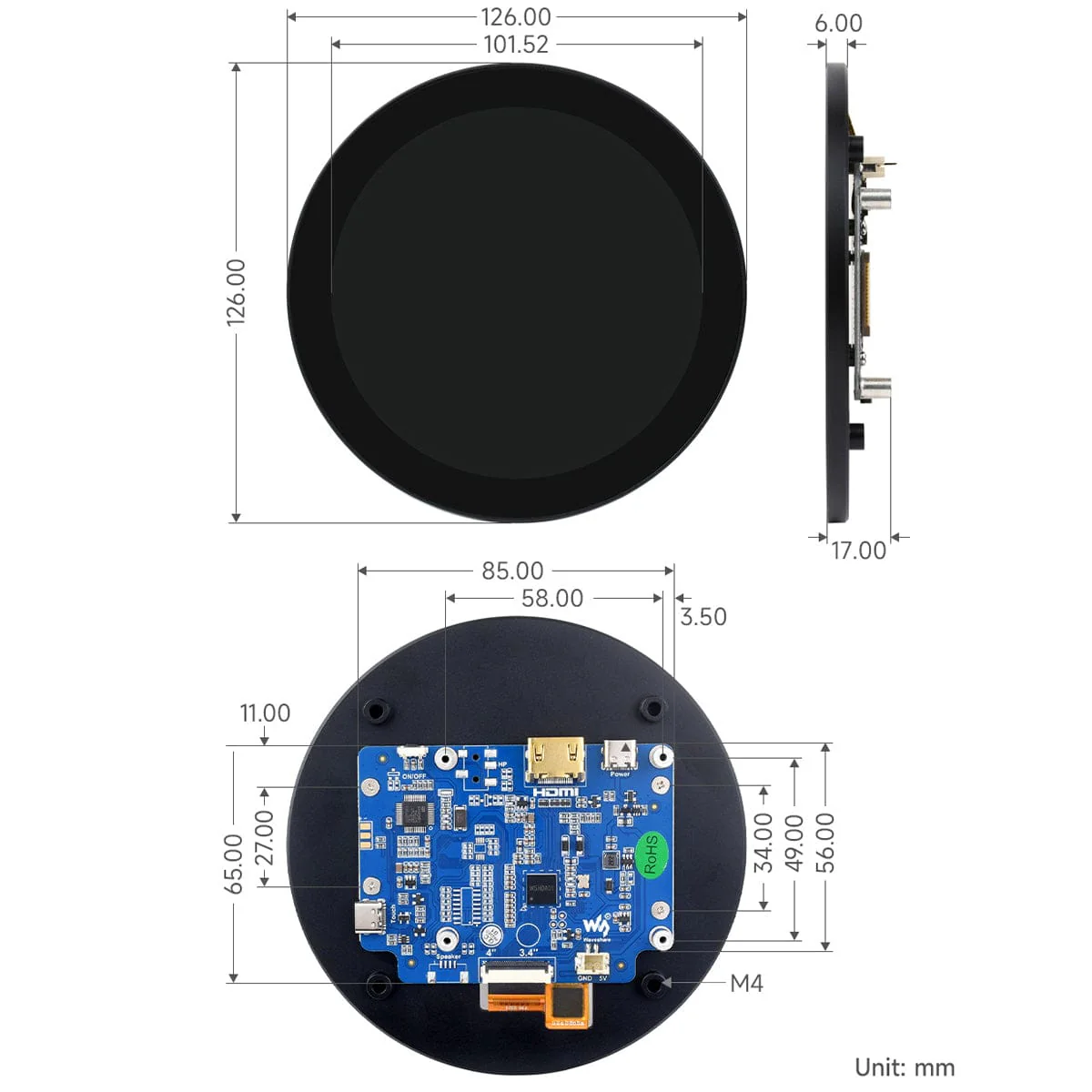

Overall Size	126.00(H) x 126.00(V) x 17.00(D)	mm
Display Area	101.52(H) x 101.52(V)	mm
Colour Gamut	0.6	NTSC
Maximum Brightness	350	cd/m²
Contrast	50.00069444	/
Backlight Adjustment	Button dimming	/
Refresh Rate	60	Hz
Display Interface	Standard HDMI Interface	/
Power Port	5V Type-C Power Supply	/
Power Consumption	1.8	Watt

Connection Example - Raspberry Pi 5

Resources

• Product Wiki

Package Contents

1. 1x 4" 720 x 720 LCD
2. 1x Silver capacitive touch pen
3. 1x USB-A to USB-C cable - 1m
4. 1x HDMI flat cable - 1m
5. 1x USB to Type-C adapter (C)
6. 1x USB to Type-C adapter (B)
7. 1x HDMI to Micro HDMI adapter
8. 1x HDMI adapter
9. 1x Screwspack
