4-Relay Heavy Duty Stackable Card for Raspberry Pi [Discontinued]

When you need to switch heavy loads, relays are a great solution for allowing your Raspberry Pi to control high voltage and current with its GPIO pins.

Stackable to 8 layers, the Sequent 4-Relay card can control loads of up to 10A and 250V. Each relay has N.O. and N.C. contacts brought to pluggable terminal blocks.

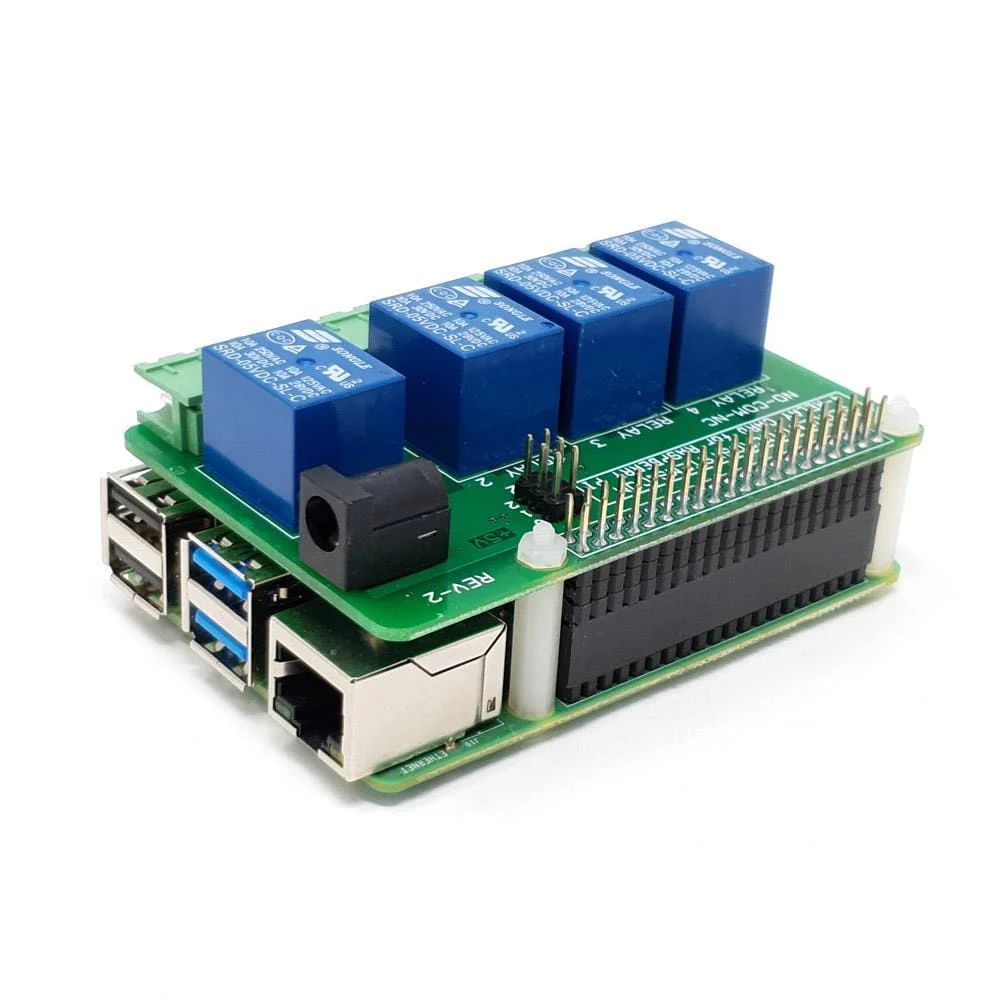

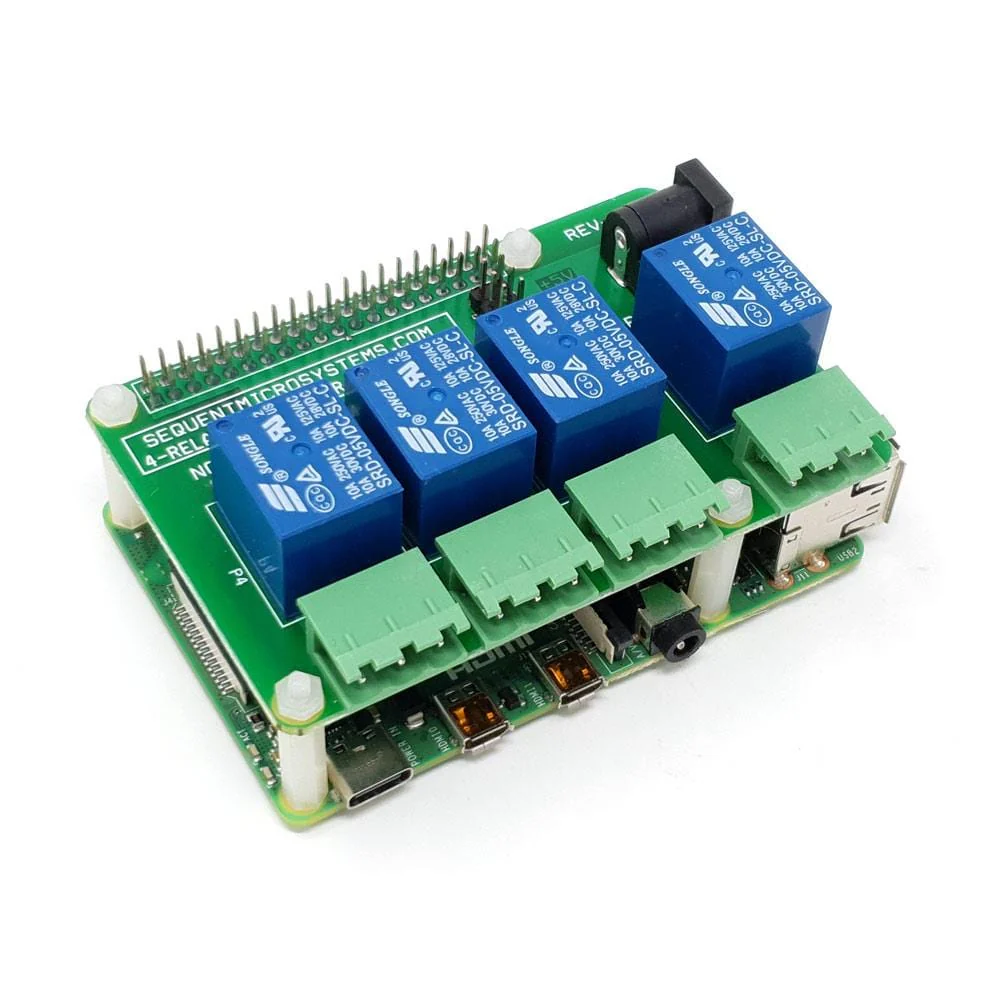

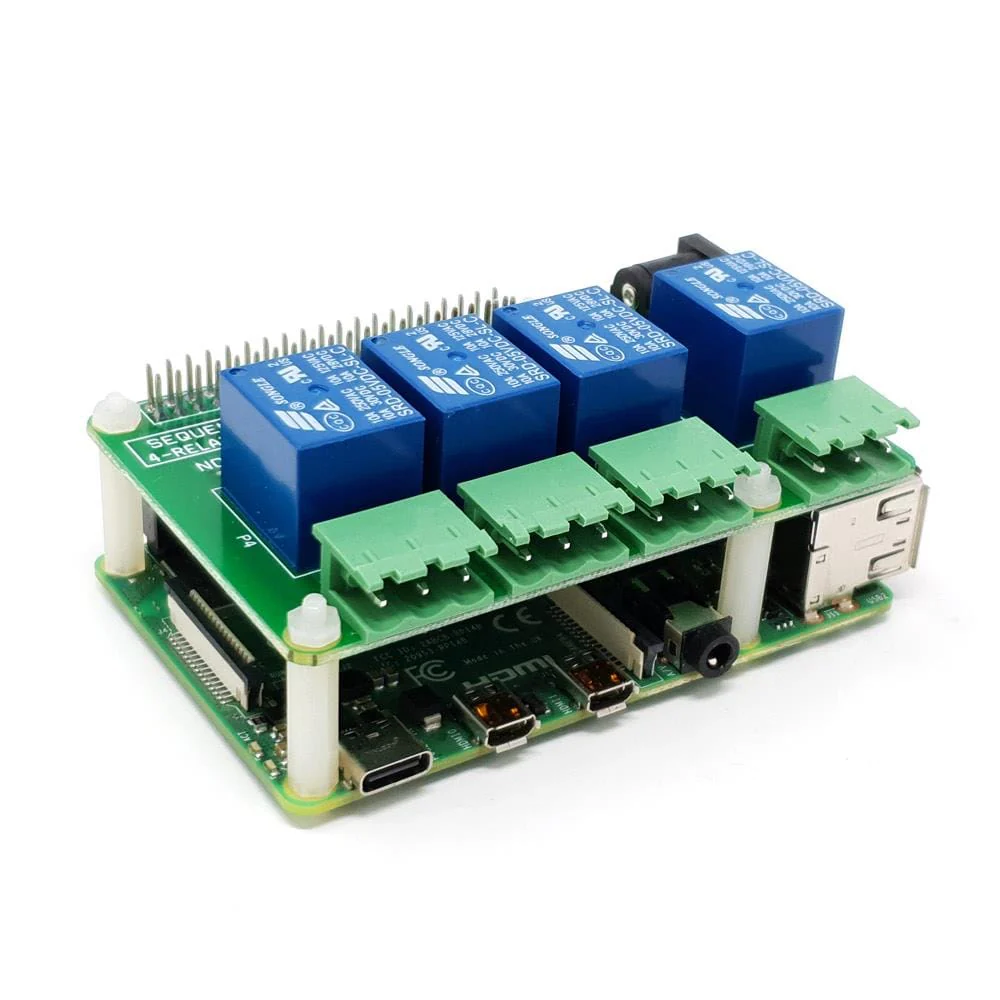

Up to 8 cards can be stacked on top of a single Raspberry Pi for a total of 32 relays!

Note: We do not recommend makers to control wired mains voltages/devices!

Features

• Four onboard relays with status LEDs
• Eight layer stackable to 32 relays
• Switch loads of up to 10A and 250V
• Pluggable terminal blocks
• Command-line and Python drivers

Contents

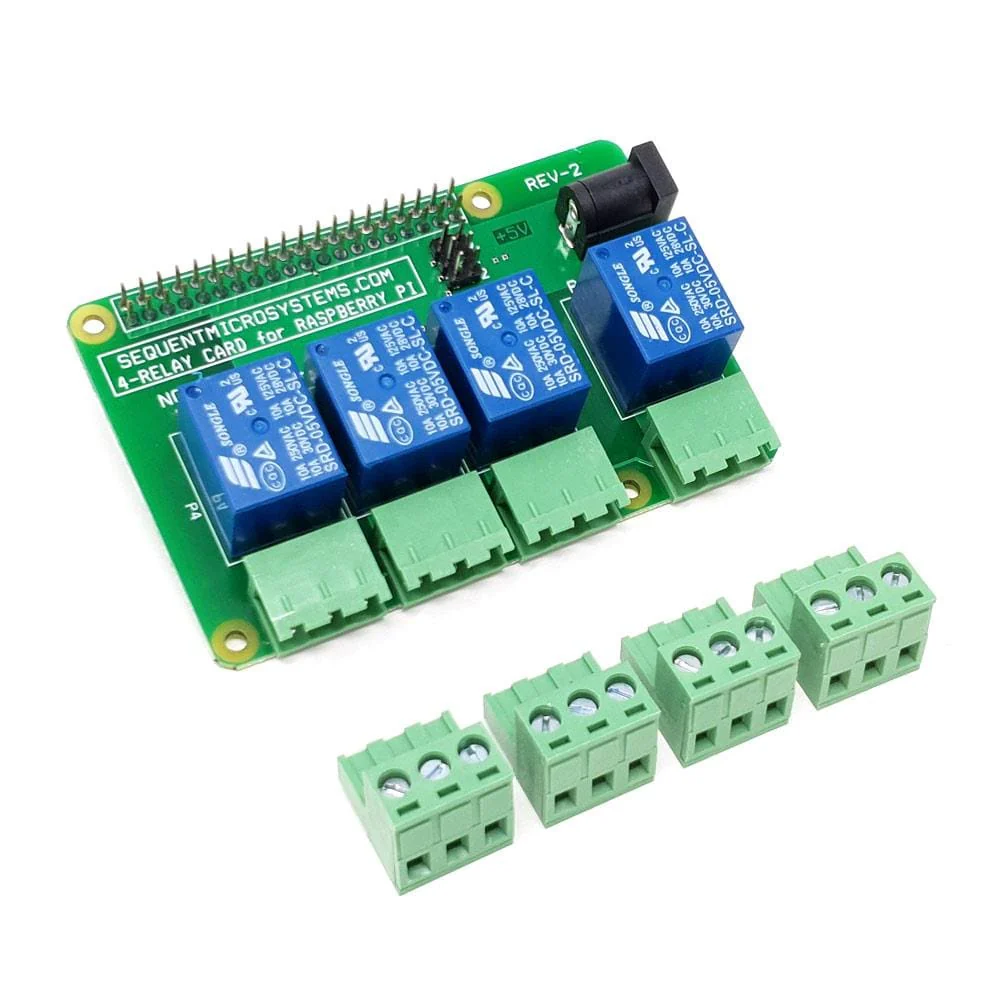

• 1x 4-Relay Card
• 4x Pluggable terminal blocks
• Fixings - 18mm stand-offs, screws, nuts and jumper selector

Resources

• User Guide
• Command Line & Python Drivers
• Sequent Microsystems I2C Address Map
• 2D CAD Drawing
