$2.61The Story

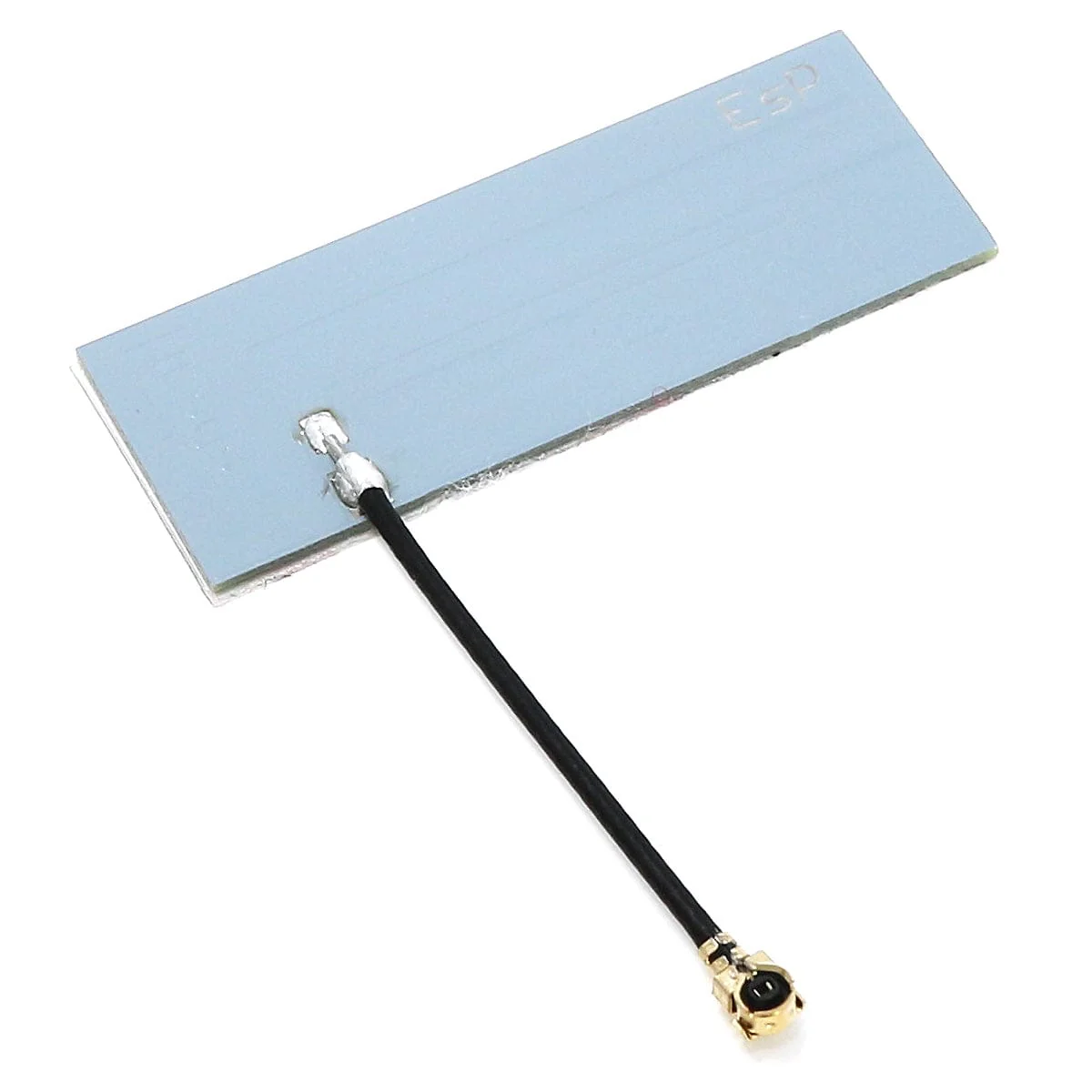

This is a penta band antenna made to be used together with LTE/2G-based boards, such as the Challenger RP2040 LTE MkII.

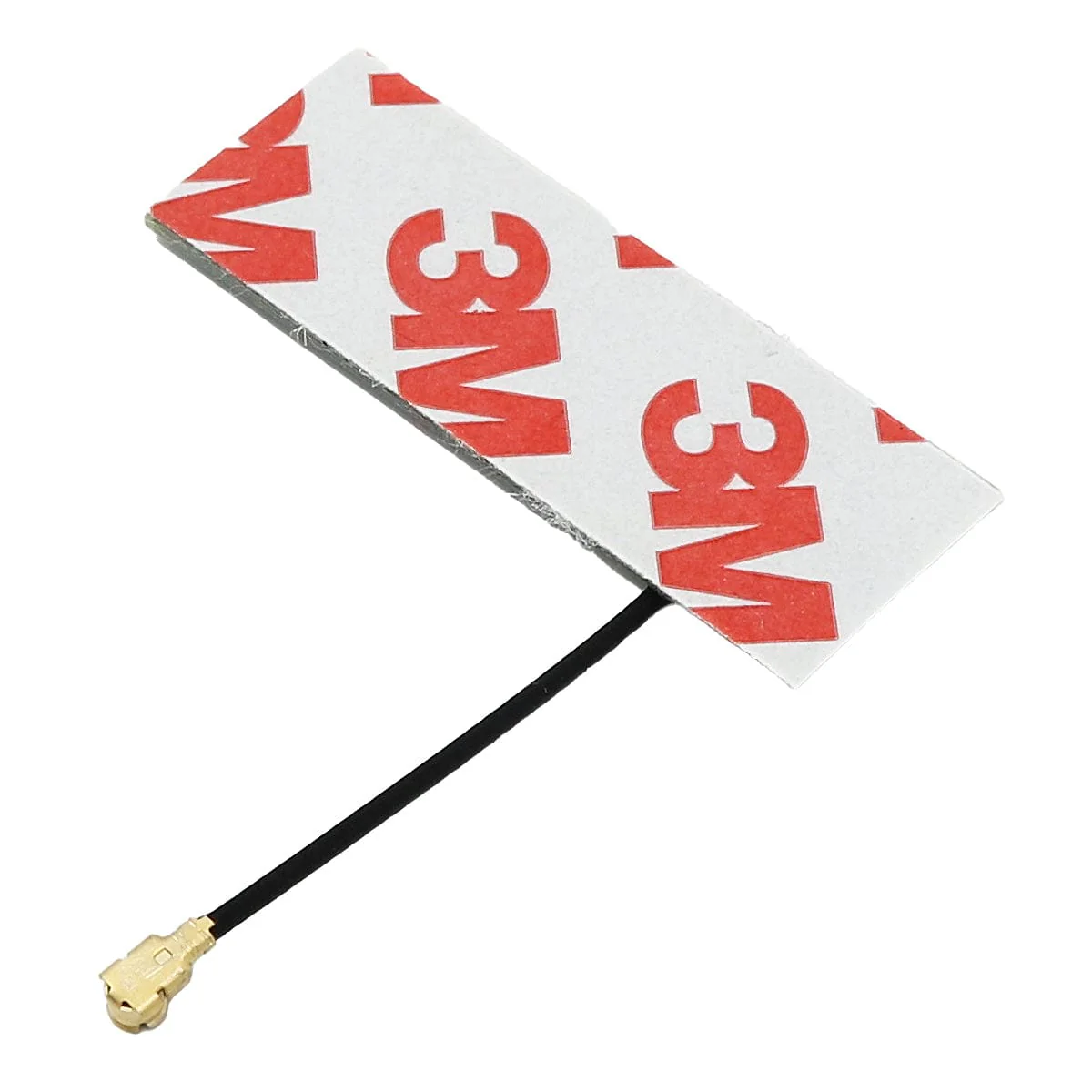

The antenna has a small (30mm) coax wire attached to a U.FL connector. It is lined with strong double-sided tape on the back side that allows you to place the antenna inside your enclosure.
The antenna works with five different LTE bands: 850/900/1800/1900/2100 MHz
Features
- Size 40mm x 15mm x 2.3mm (Height includes tape and coax cable)
- Penta band EU/US GSM/WCDMA/LTE
- U.FL connector
- Self-adhesive
- Frequencies: 850 / 900 / 1800 / 1900 / 2100 MHz
- Dimensions: 50 x 20 x 5mm
Specifications
Typical free space performance measured flat on the floor in test unit mechanics:
| Freq. range |
Max Gain (dBi) |
Efficiency (%) |
Return Loss min (dB) |
| 824-960 | -1.2 | 27 | -4 |
| 1710-1990 | 1 | 33 | -7 |
| 1920-2170 | 1.1 | 40 | -4 |
Package Contents
- 1x 5-band LTE antenna
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a penta band antenna made to be used together with LTE/2G-based boards, such as the Challenger RP2040 LTE MkII.
The antenna has a small (30mm) coax wire attached to a U.FL connector. It is lined with strong double-sided tape on the back side that allows you to place the antenna inside your enclosure.
The antenna works with five different LTE bands: 850/900/1800/1900/2100 MHz
Features
- Size 40mm x 15mm x 2.3mm (Height includes tape and coax cable)
- Penta band EU/US GSM/WCDMA/LTE
- U.FL connector
- Self-adhesive
- Frequencies: 850 / 900 / 1800 / 1900 / 2100 MHz
- Dimensions: 50 x 20 x 5mm
Specifications
Typical free space performance measured flat on the floor in test unit mechanics:
| Freq. range |
Max Gain (dBi) |
Efficiency (%) |
Return Loss min (dB) |
| 824-960 | -1.2 | 27 | -4 |
| 1710-1990 | 1 | 33 | -7 |
| 1920-2170 | 1.1 | 40 | -4 |
Package Contents
- 1x 5-band LTE antenna
