The Story
This RF Antenna is designed specifically for use with LTE modem boards. Its whip multiband antenna gives a strong performance in a minimal footprint, which is ideal for setups where space is limited. Unlike many antennas, it doesnβt require mounting on a metallic surface, making it especially useful for compact IoT installations and small devices.

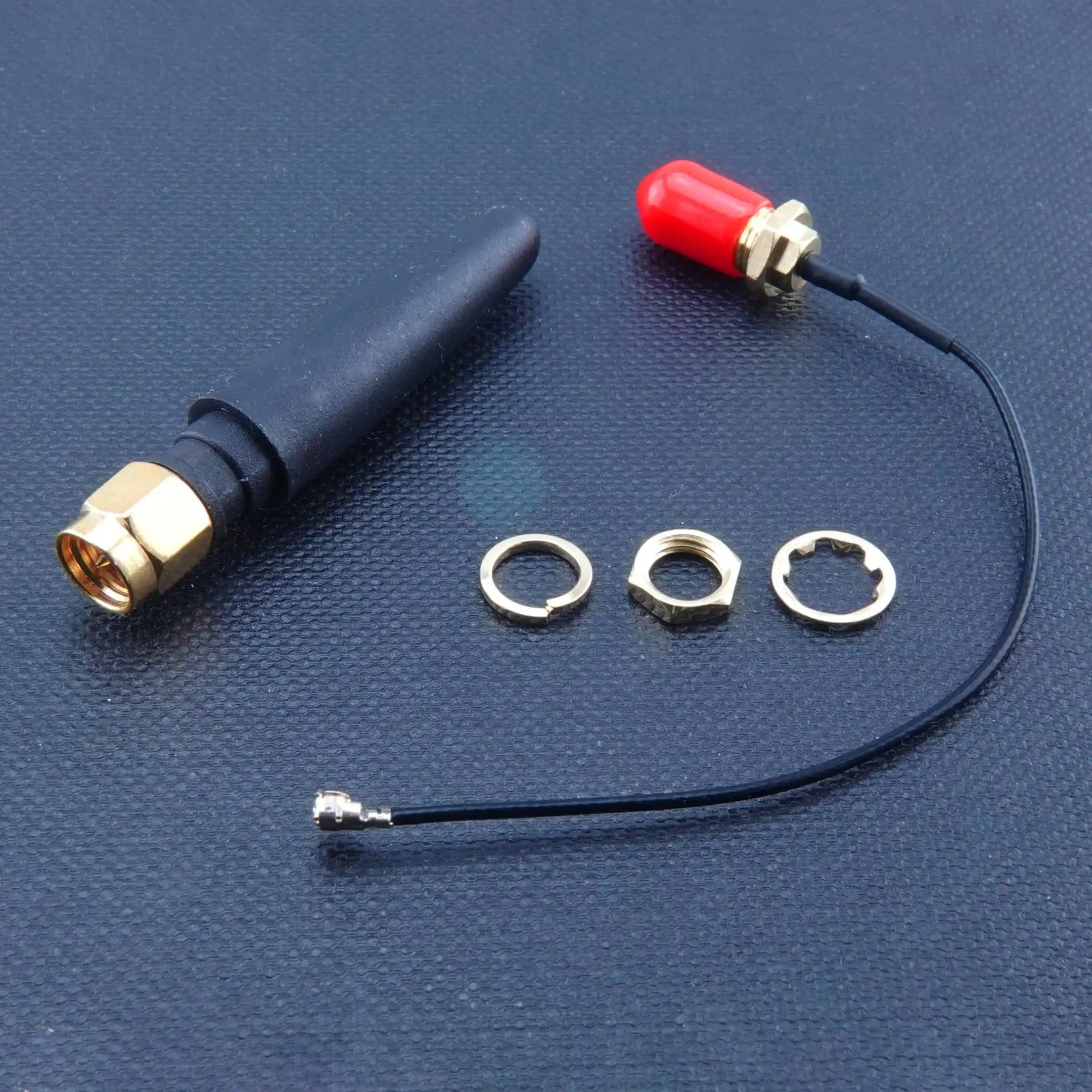

This antenna kit includes an RF cable assembly featuring an SMA (Female) connector and a JK-IPEX/MHF/U.FL connector for easy PCB connection. The coaxial cable is 1.13mm in diameter, with a 50-Ohm rating, and measures 100mm in length, providing a solid link for reliable LTE connectivity.

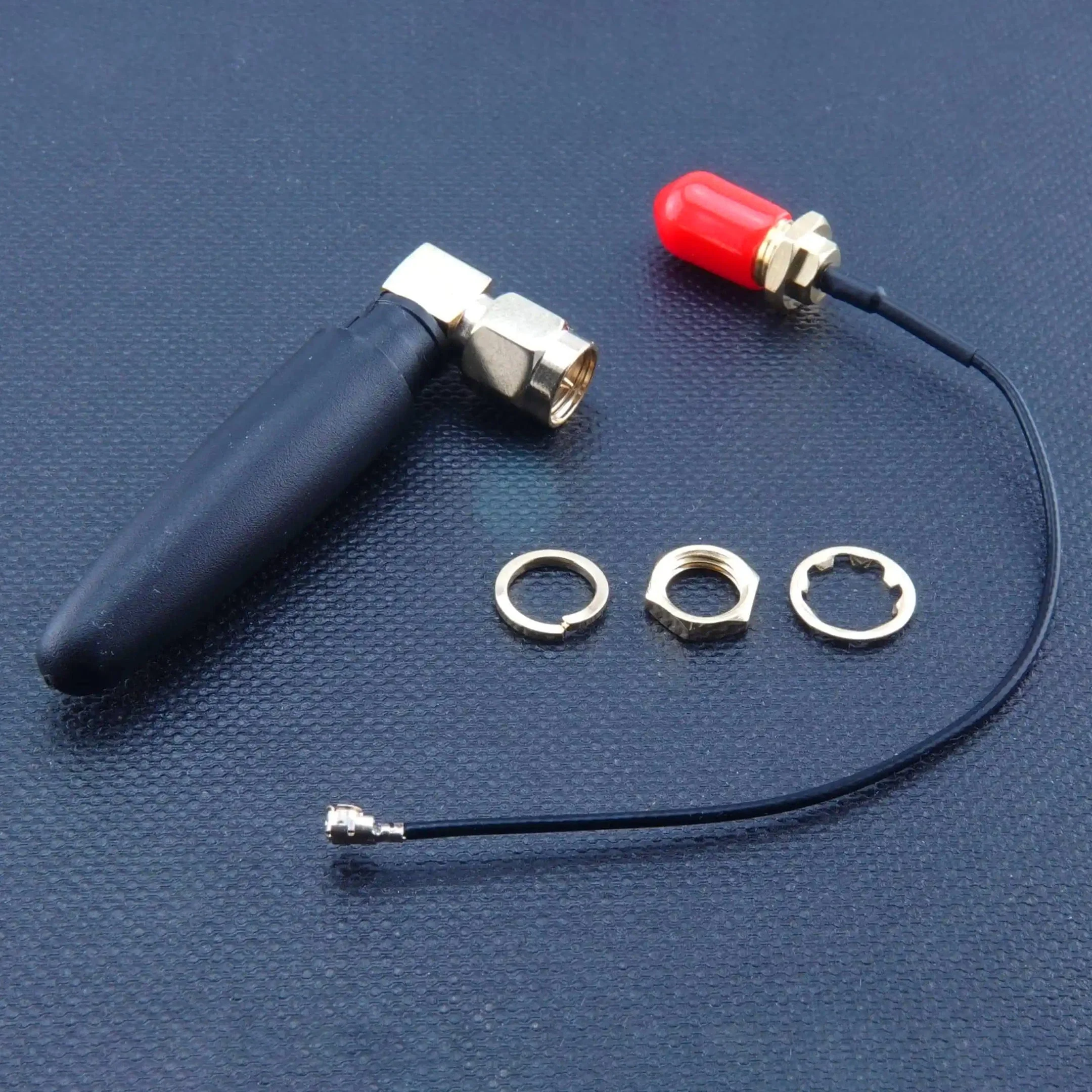

This comes in two variants. Straight and Angled. Please choose which version you want before adding it to your cart!
Specifications
| Characteristic impedance | 50 ohms |
| Radiation Pattern | Omni Directional |
| Polarisation | Linear |
| Temperature Range | -40C β +85C |
| Dimensions | 51mm x 10.4mm |
| Connector | SMA Male (Straight) |
| SMA Male (90 Degree Angled) | |
| Connector Plating | Gold/Nickel |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This RF Antenna is designed specifically for use with LTE modem boards. Its whip multiband antenna gives a strong performance in a minimal footprint, which is ideal for setups where space is limited. Unlike many antennas, it doesnβt require mounting on a metallic surface, making it especially useful for compact IoT installations and small devices.
This antenna kit includes an RF cable assembly featuring an SMA (Female) connector and a JK-IPEX/MHF/U.FL connector for easy PCB connection. The coaxial cable is 1.13mm in diameter, with a 50-Ohm rating, and measures 100mm in length, providing a solid link for reliable LTE connectivity.
This comes in two variants. Straight and Angled. Please choose which version you want before adding it to your cart!
Specifications
| Characteristic impedance | 50 ohms |
| Radiation Pattern | Omni Directional |
| Polarisation | Linear |
| Temperature Range | -40C β +85C |
| Dimensions | 51mm x 10.4mm |
| Connector | SMA Male (Straight) |
| SMA Male (90 Degree Angled) | |
| Connector Plating | Gold/Nickel |
