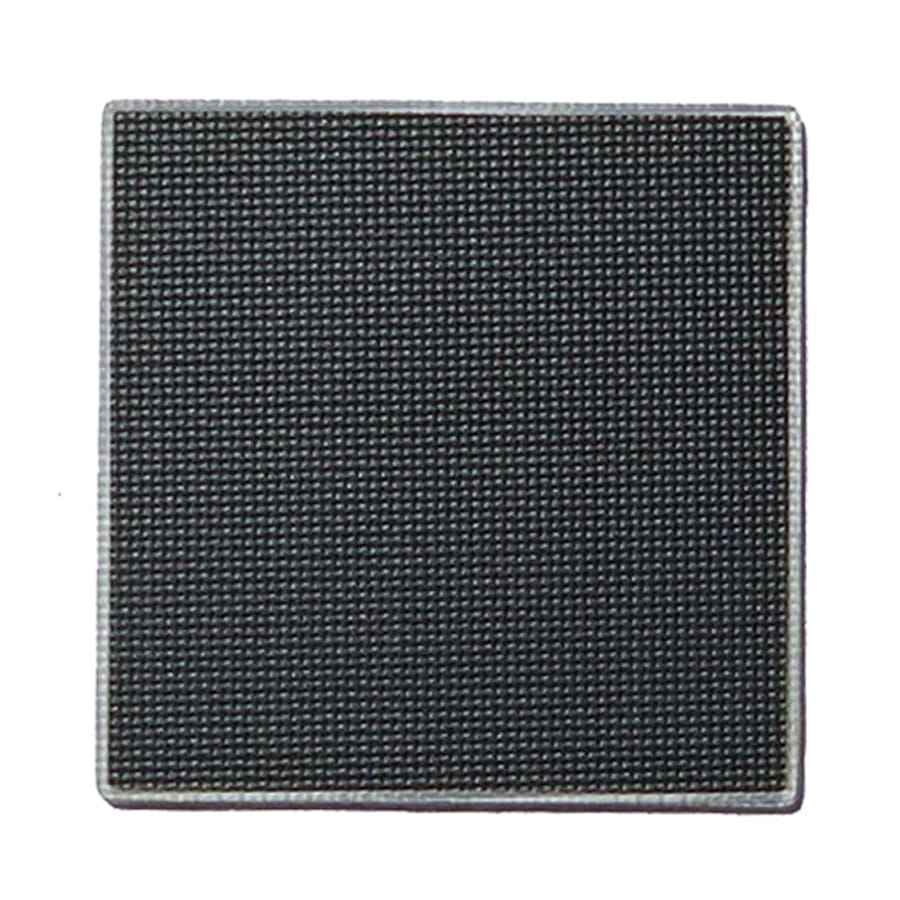

Voltaic P123 - 6V 0.6W Mini Solar Panel (ETFE)

The Voltaic P123 6V 0.6W Mini Solar Panel delivers high-performance solar power in a lightweight design, ideal for IoT applications with strict size, reliability, and longevity requirements.

---

The Voltaic P123 is a 66x66mm, high-performance 6V 0.6W Mini ETFE solar panel designed for industrial IoT applications, offering a lightweight, efficient, and cost-effective solution for outdoor power.

SMT ETFE panels are advantageous where size or weight is constrained, long lifetimes are desired, and strict quality and dimensional tolerances must be maintained. They do not come with a pre-installed cables, these panels require soldering.

Voltaic ETFE panels are manufactured using a strictly sourced and qualified material stack. They are third-party tested for the equivalent of over 10 years of UV exposure, along with thermal cycling, vibration stress, and exposure to chemicals and oils.

They are also used in a number of ATEX applications, demonstrating suitability for demanding and hazardous environments.

Panel Accessories

• VHB Gasket - creates a waterproof, secure seal when mounting P123 solar panels to enclosures

Features

• IPX7 waterproof rated
• 10+ years UV exposure testing
• Third-party agency qualification
• 24% high-efficiency Sun power solar cells
• Black matte appearance
• Low friction, anti-dust surface

Specifications

Output

• Open Circuit Voltage: 7.09V
• Peak Voltage: 6.07V
• Peak Current: 110mA
• Peak Power: 0.64W
• Power Tolerance: +/-10%
• For maximum power output, orient the panel towards the sun

Mechanical Characteristics

• Dimensions: 66 x 66 x 3.1 mm
• Weight: 14.4 g
• Standard Tolerance: ± 0.5 mm
• Compliance: RoHS and REACH
• Testing: relevant sections of IEC 61215, SAE
  J1455, and IEC 60529
• Mounting: G105 VHB gasket
• Operating Temperature: −40°C to 85°C


Construction

• Matte ETFE coating
• 1.5mm double sided PCB

Electrical Characteristics

Symbol	Parameter	Nominal	Expected*	Unit
WP	Max power (mpp)	0.71	0.60	W
VP	Voltage @ mpp	6.11	5.89	V
IP	Current @ mpp	0.12	0.10	A
VOC	Open-circuit voltage	7.25	7.04	V
ISC	Short-circuit current	0.12	0.11	A
η	Cell efficiency	23.9	-	%

*Expected values are adjusted for real-world losses that include cutting of cells, imperfect transmissivity of the EVA and ETFE encapsulation layers, and the tolerance of the lowest performing cell piece in the series

Resources

• Datasheet
• Technical drawing
• STEP Model

Package Contents

• 1x Voltaic P123 6V 0.6W Mini Solar Panel - ETFE
