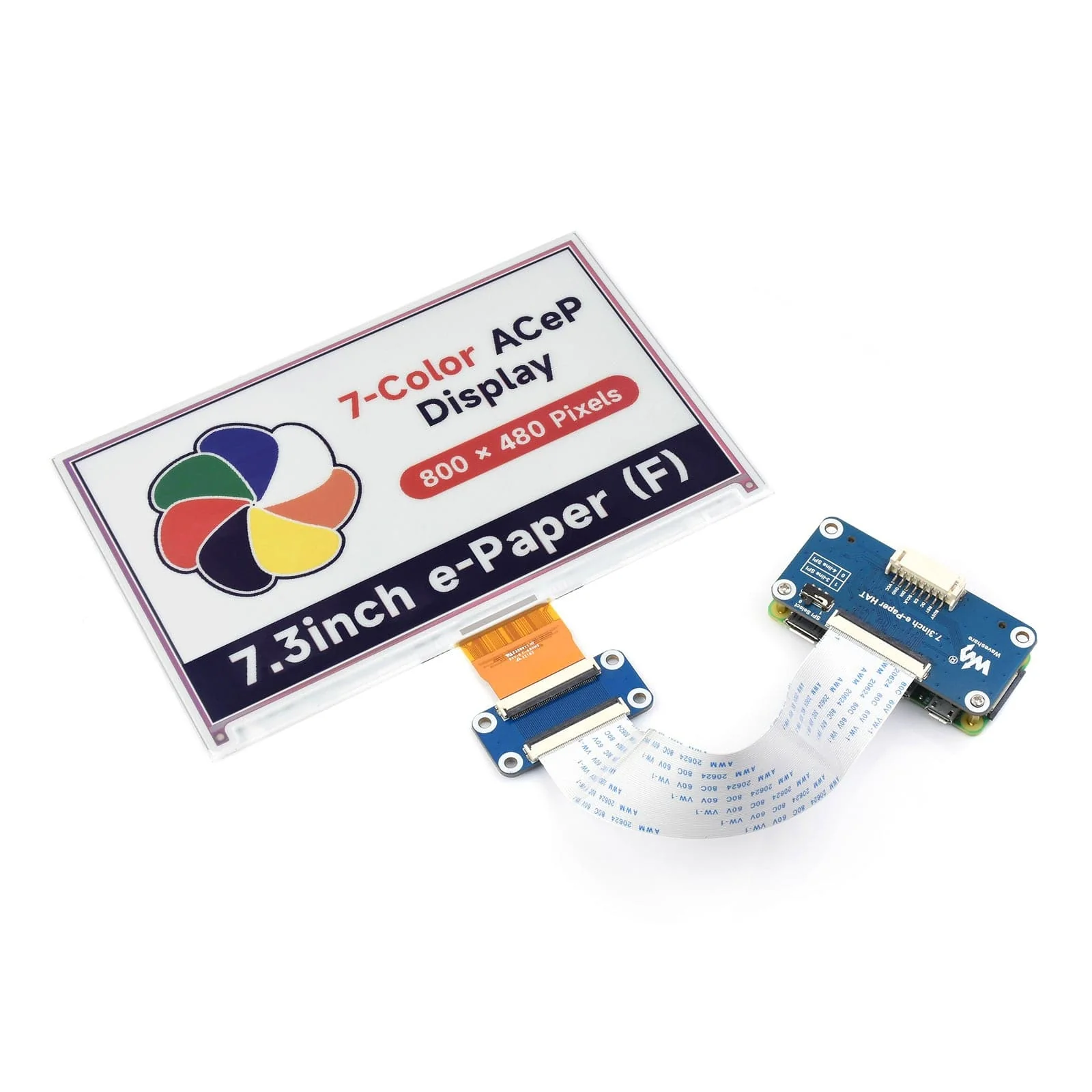

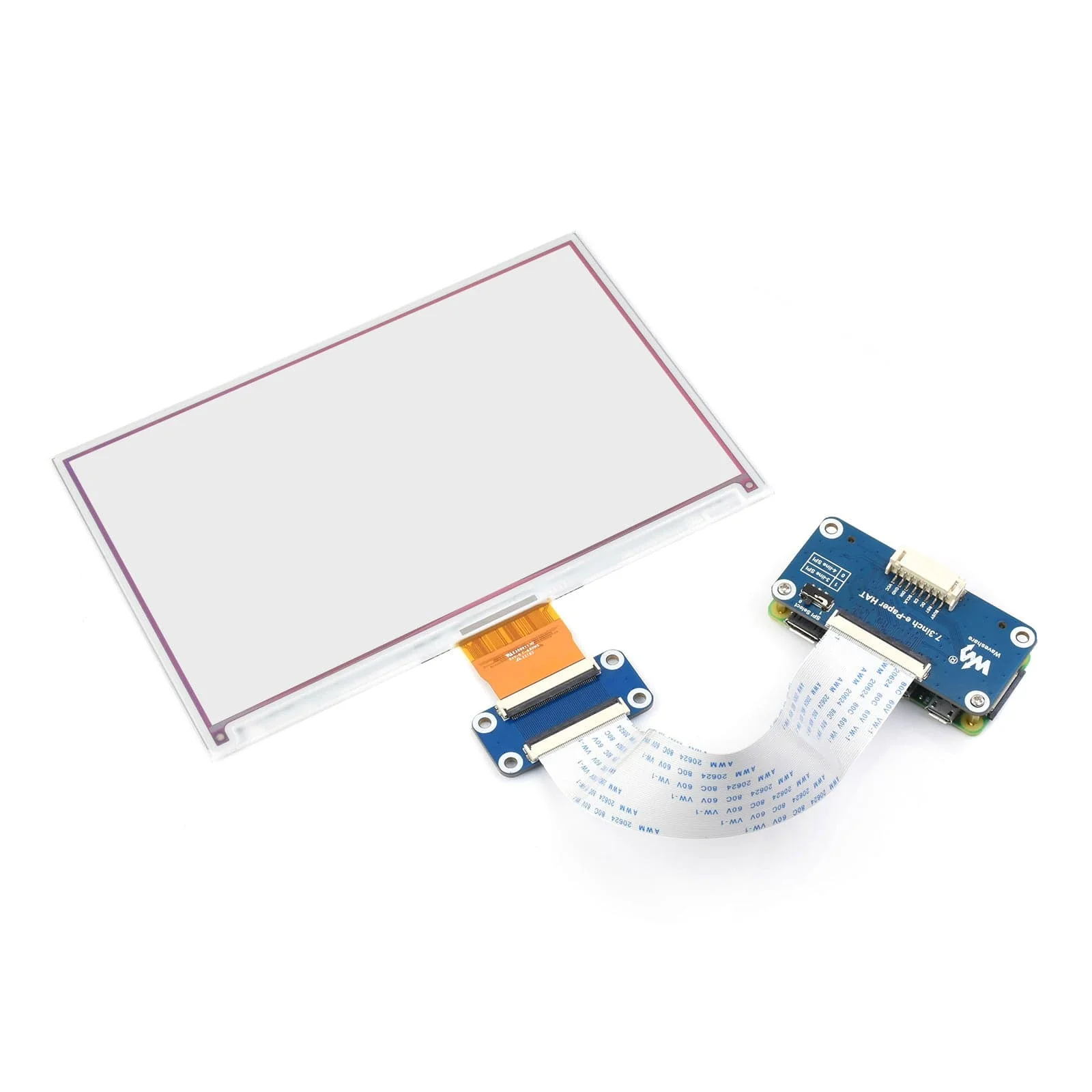

7.3" ACeP 7-Color ePaper Display Module (800×480)

This 800x400 E-paper display module has advanced colour ePaper technology which makes it a more comfortable read than a conventional display, due to a stable image, not having to be refreshed constantly, a wider viewing angle, and the fact that it reflects ambient light rather than emitting its own light. Thanks to its low-power feature it can retain text and images even when the power is off.

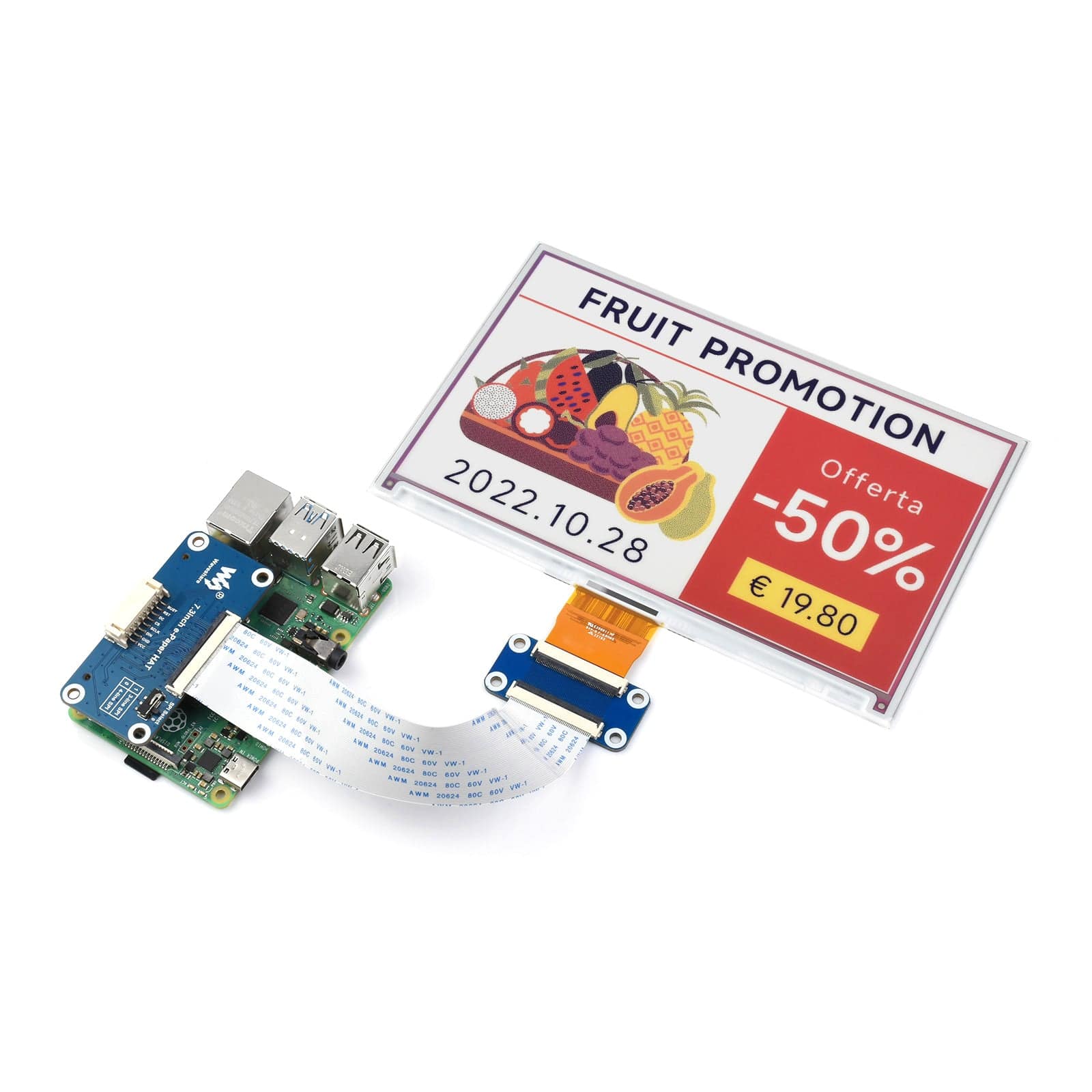

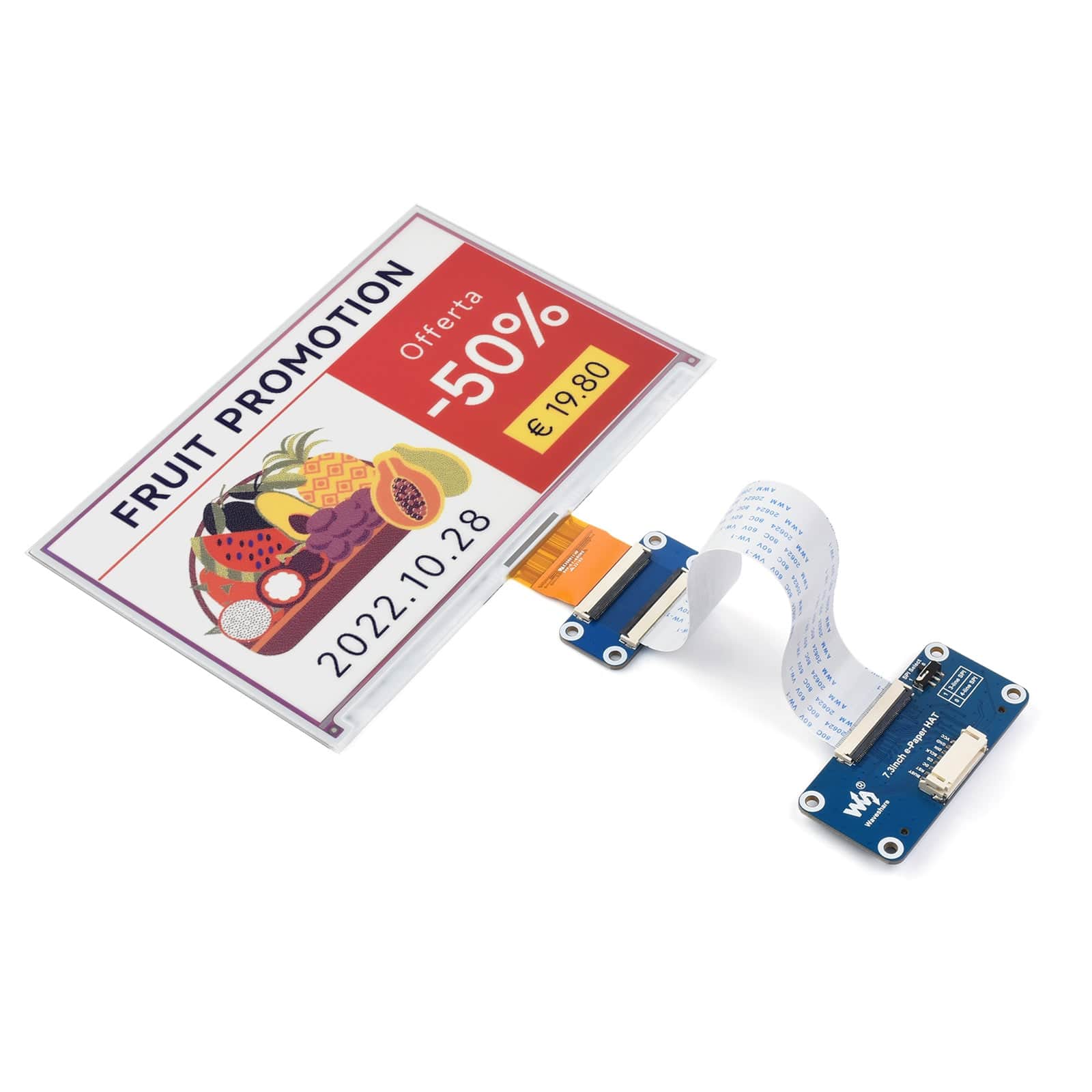

With an SPI control interface to use development boards like Raspberry Pi, Arduino, STM32 and others, a lovely 7-colour display, and a 40-pin GPIO header for an easy connection to your Raspberry Pi. This is a great display for lots of different projects, including price tags, shelf labels, industrial instruments, and many more!

Note: This does NOT come with the Raspberry Pi board

Features

• Advanced Color ePaper (ACeP) technology, supports 7-Color display
• No backlight keeps displaying last content for a long time even when powered down
• Ultra-low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

Dimensions	7.3"

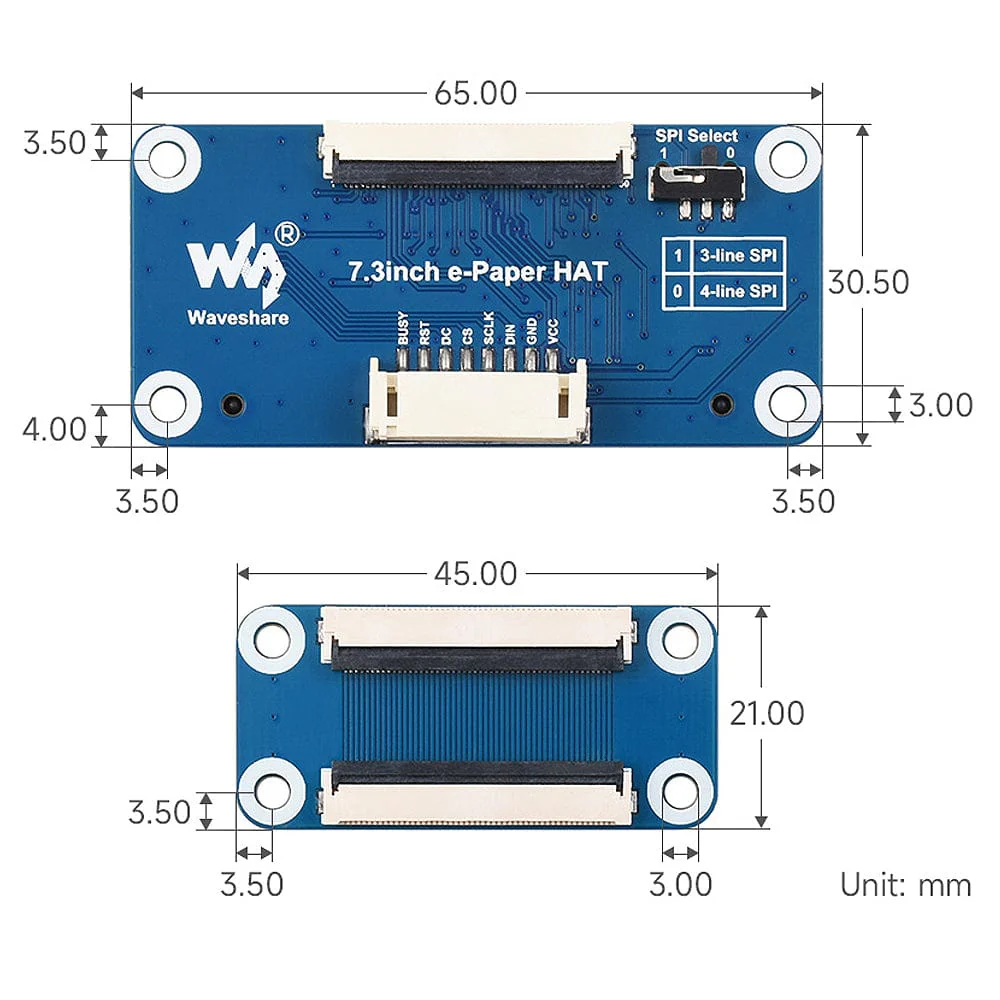

Outline dimension (driver board)	65.0mm × 30.5mm
Display dimension	160.0mm × 96.0mm

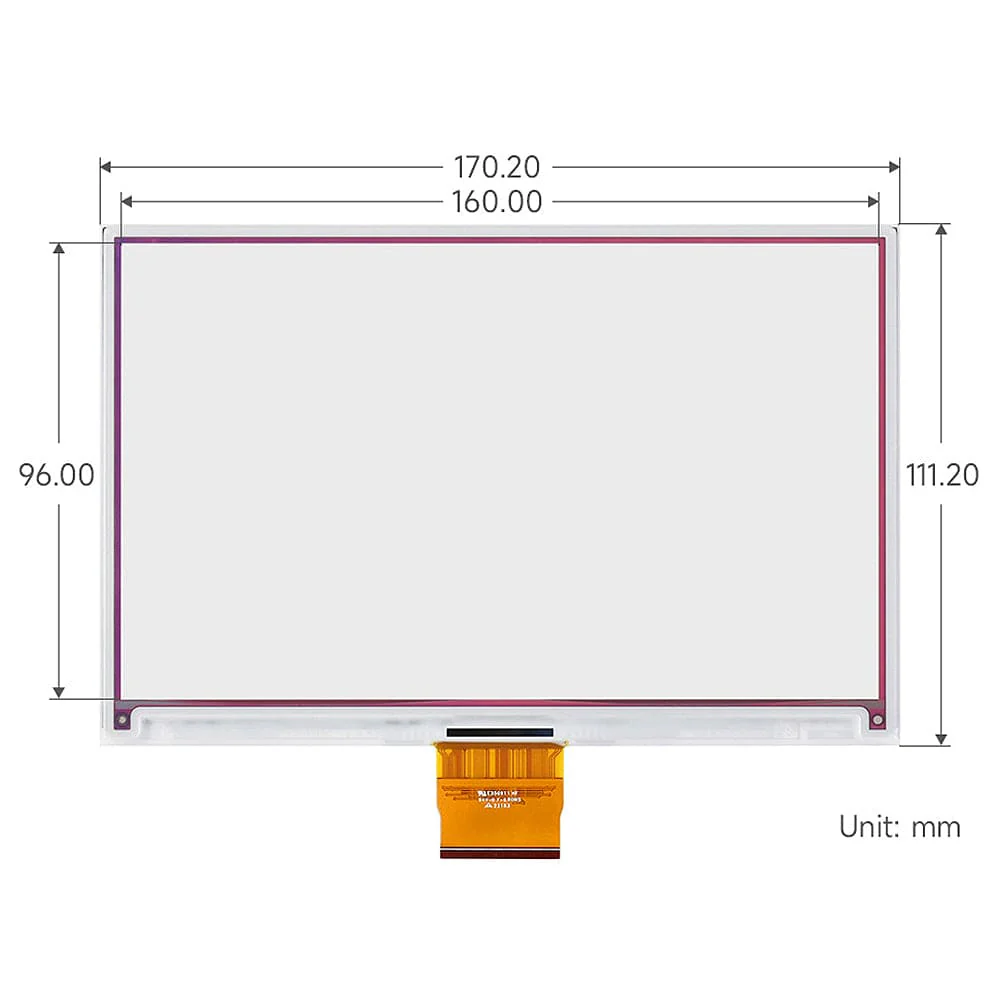

Outline dimensions	170.20mm × 111.20mm × 0.91mm
Operating voltage	3.3V / 5V（Both power supply and signal need to be 5V）
Communication interface	SPI
Dot pitch	0.2mm × 0.2mm
Resolution	800 × 480
Display color	Black, White, Green, Blue, Red, Yellow, Orange
Grey scale	2
Refresh time	35s
Refresh power	49.4mW（typ.）
Standby current	< 0.01uA (almost none)

Resources

• Product Wiki
• 7.3inch e-Paper HAT schematic diagram
• 7.3inch e-Paper (F) Datasheet
• Github
• E-Paper code.7z

Pinout



VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
SCLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin

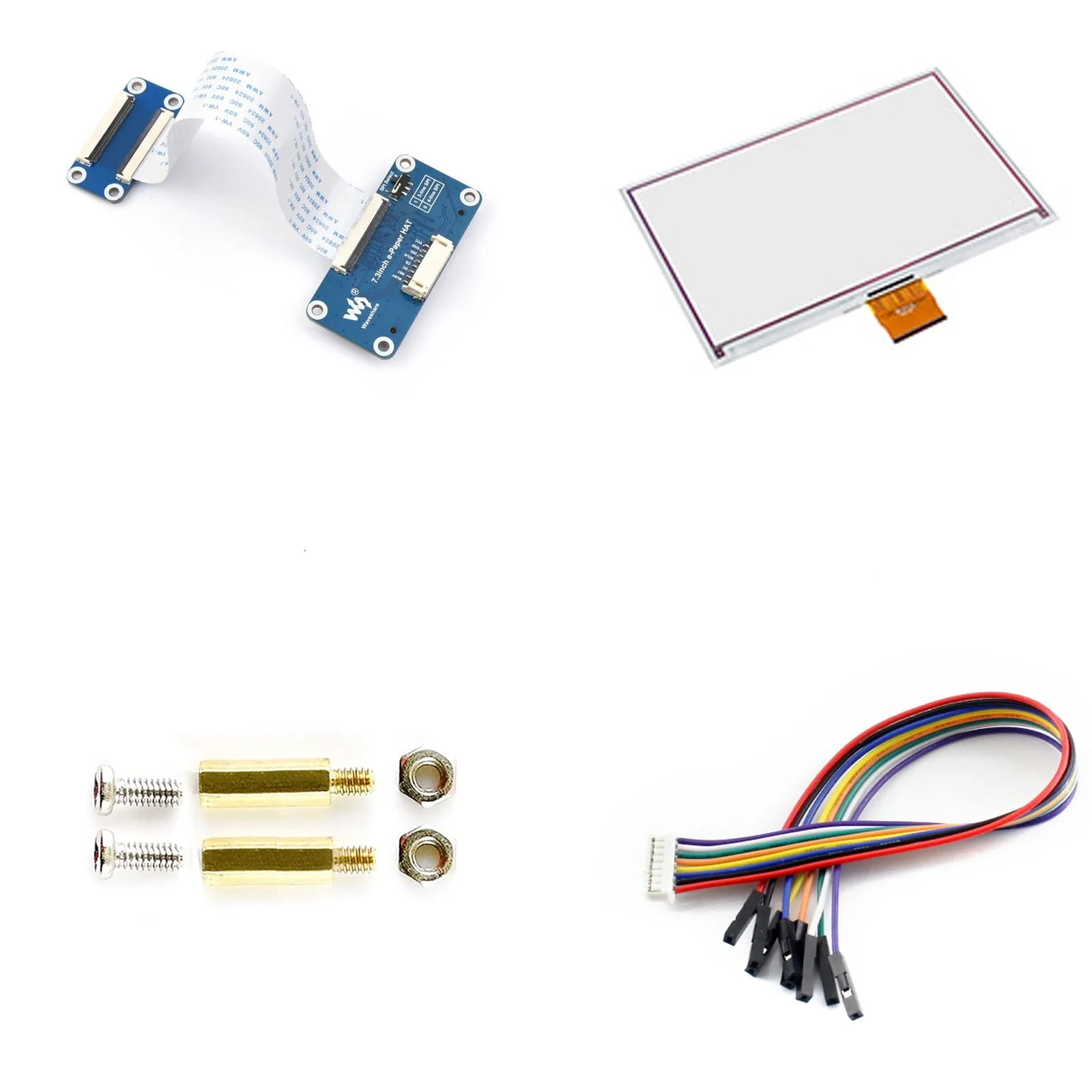

Package Contents

• 1x 7.3inch e-Paper (F)
• 1x Driver Board and FFC cable
• 1x PH2.0 20cm 8Pin
• 1x RPi screws pack (2pcs)
