The Story

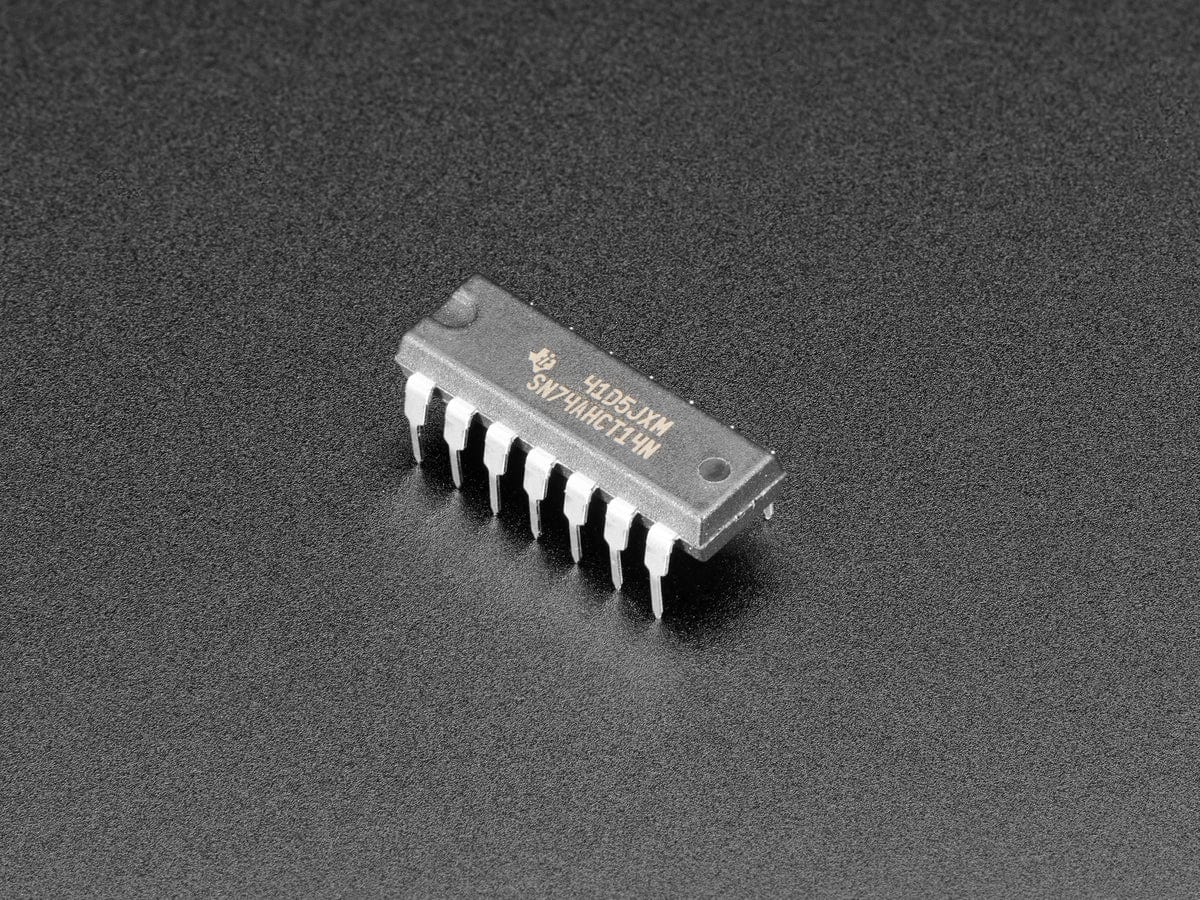

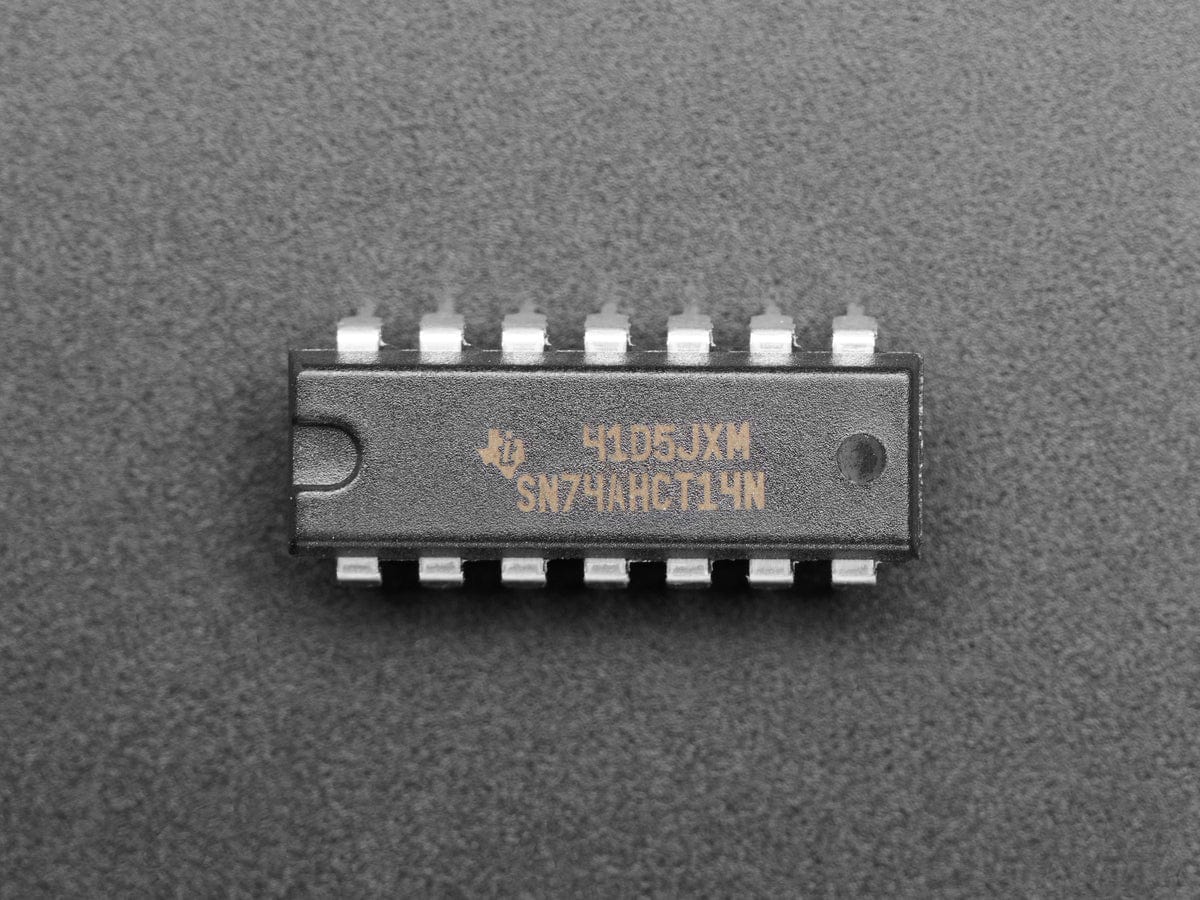

Sometimes you feel low, and sometimes you feel high - cause your logic levels are opposite what they should be! But this easy-to-use inverter chip will flip that frown upside-down.
This chip is spec'd to run at 5V but we've run it at 3V just fine. Power it by connecting up GND and VCC to your desired output logic level. High-level inputs can be as low as 2V and the output will be inverted on each of the 6 pairs of inverters. It's breadboard and perf-board friendly.
Technical Details

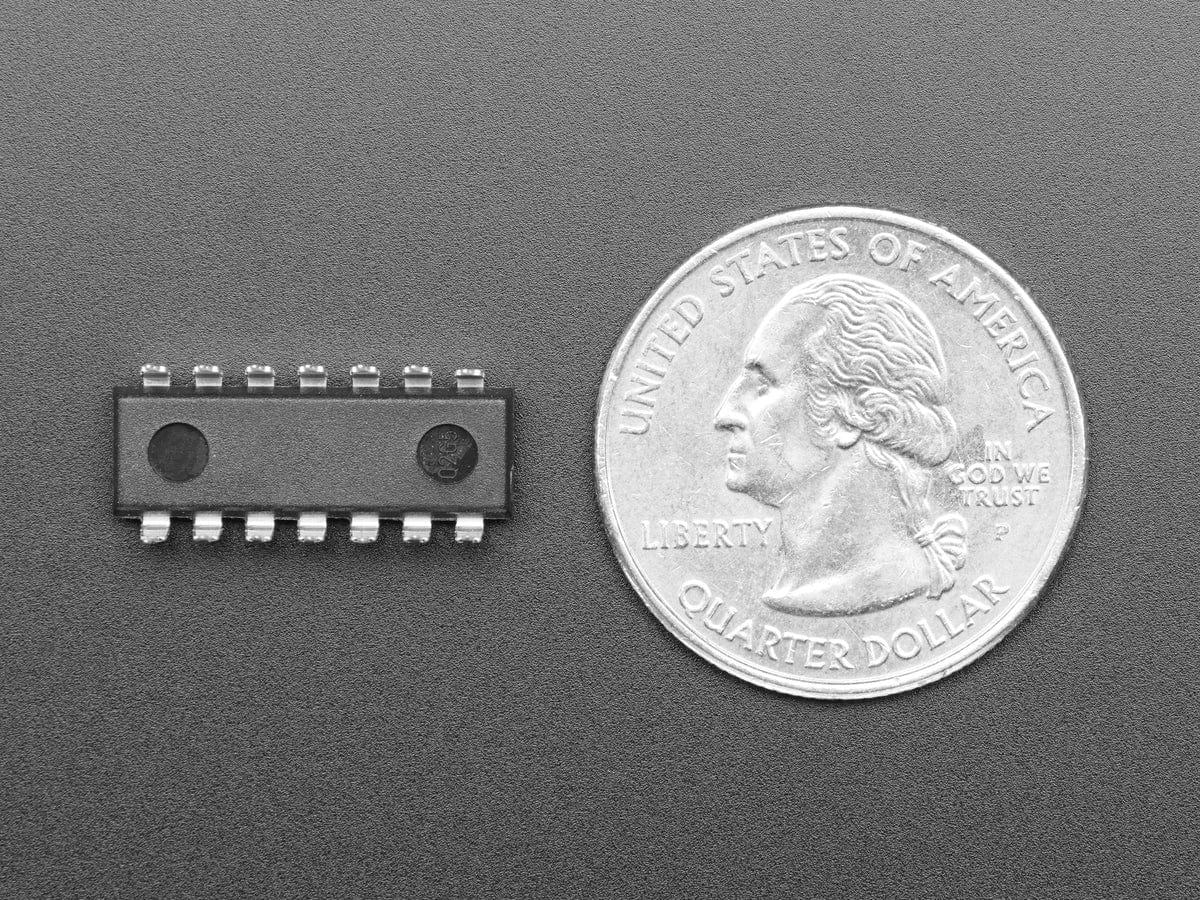

Product Dimensions: 19.5mm x 9.0mm x 7.5mm / 0.8" x 0.4" x 0.3"
Product Weight: 0.9g / 0.0oz
- Datasheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Sometimes you feel low, and sometimes you feel high - cause your logic levels are opposite what they should be! But this easy-to-use inverter chip will flip that frown upside-down.
This chip is spec'd to run at 5V but we've run it at 3V just fine. Power it by connecting up GND and VCC to your desired output logic level. High-level inputs can be as low as 2V and the output will be inverted on each of the 6 pairs of inverters. It's breadboard and perf-board friendly.
Technical Details
Product Dimensions: 19.5mm x 9.0mm x 7.5mm / 0.8" x 0.4" x 0.3"
Product Weight: 0.9g / 0.0oz
- Datasheet
