$1.80The Story
This antenna is perfect for use together with our iLabs LoRa and SubGHz Challenger boards (or any other LoRa/SubGHz devices with a U.FL connector)

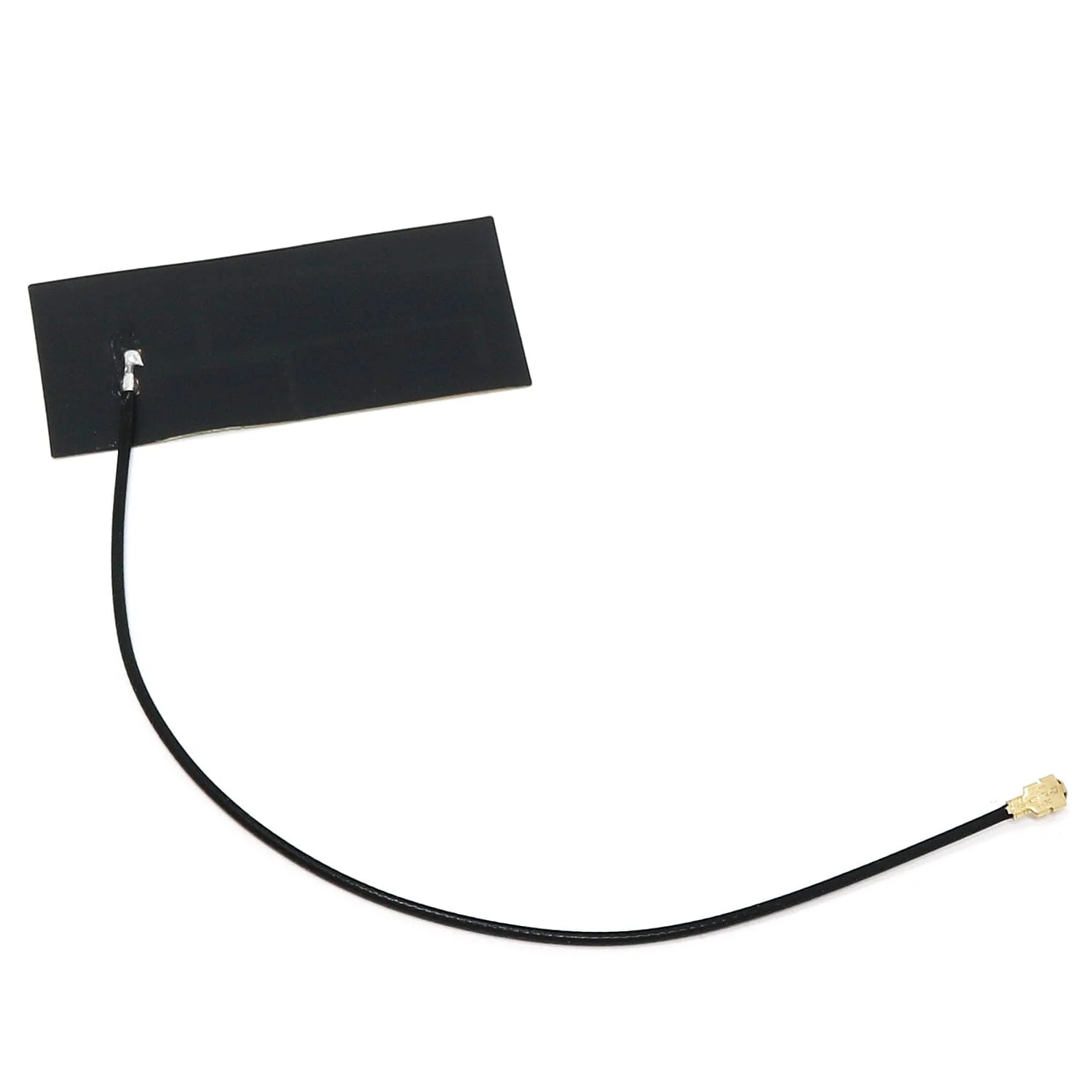

It's a 43.5x20mm flex PCB antenna with double-sided tape on the backside making it perfect for mounting inside of an enclosure. It has been designed specifically to be attached to a plastic wall of around 1.5-2.0mm thickness. In the open air, it does not perform as well as when it has been mounted properly.
The antenna cable is a 110mm long, 1.13mm OD 50ohm coaxial cable that is soldered onto the antenna. The other end of the cable is terminated with a 50ohm IPEX connector that attaches directly to our LoRa and SubGHz Challenger boards.

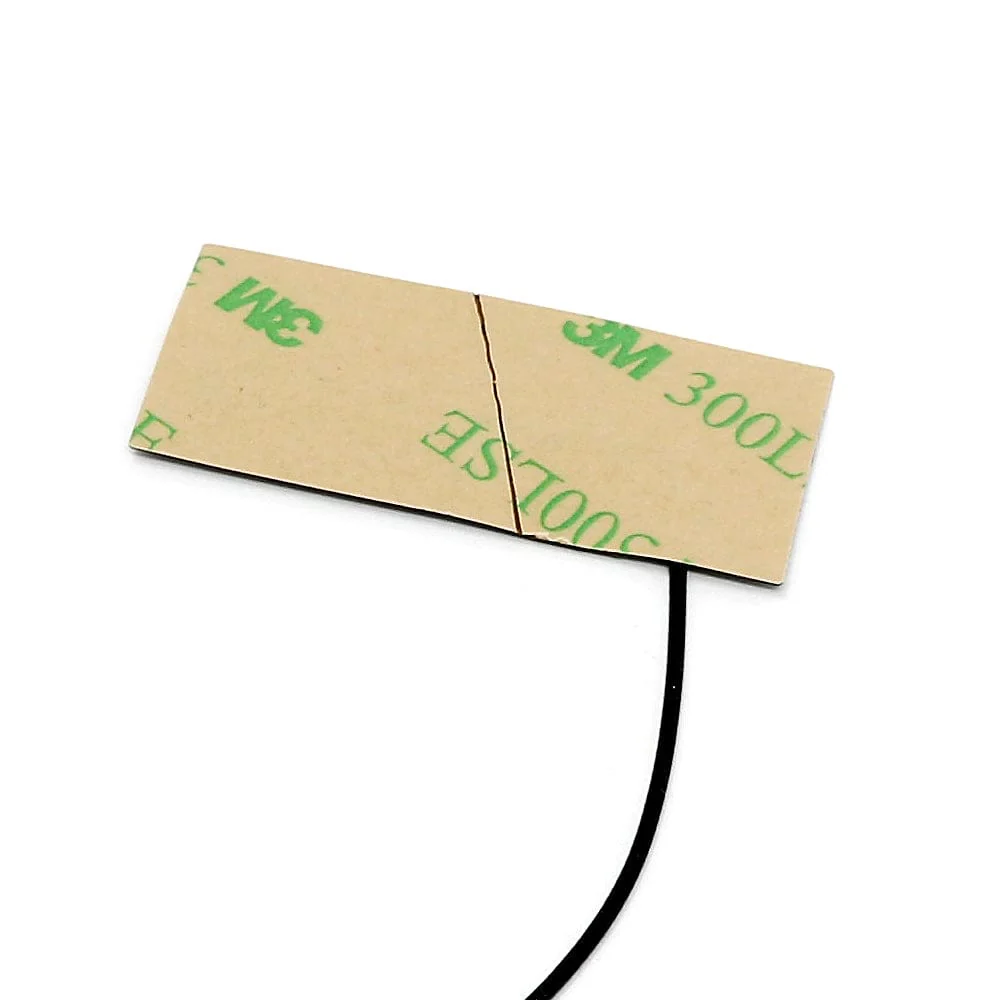

The back of the antenna is lined with a 3M (300LSE) double-sided adhesive which makes it super easy to attach the antenna to the inside of your product enclosure.
Performance
Return loss diagrams of the antenna mounted on a 2mm thick 15cm x 10cm polycarbonate sheet:
Reference cursor at 868 MHz:
Reference cursor at 915 MHz
Specification
| Parameter | Specification |
| Center Frequency | 891 MHz |
| Bandwidth | >55 MHz |
| Antenna Gain | 3dBi |
| Impedance | 50R |
| Cable length | 110mm |
Package Contents
- 1x 868/915MHz Flexible ISM Band Antenna
