8MP IMX219 Fixed Focus Camera Module for Raspberry Pi (with ABS Case) [discontinued]

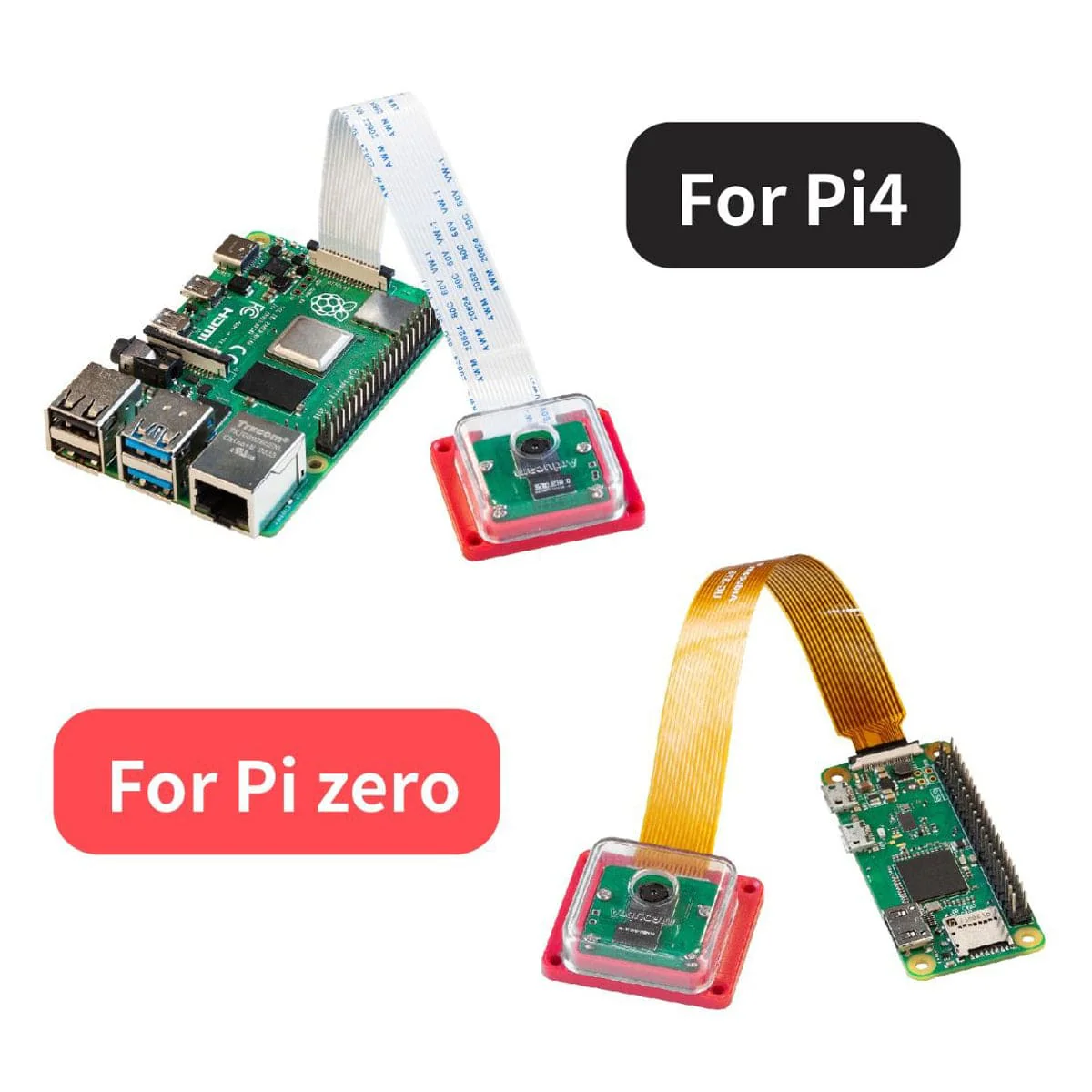

This Arducam IMX219 8MP fixed focus camera module is designed for the Raspberry Pi 4/3/2/Zero and supports the latest Raspberry Pi OS with the libcamera library.

The fixed focus distance is 200mm ~infinity, making this the ideal match for projects like OctoPrint and wildlife cameras.

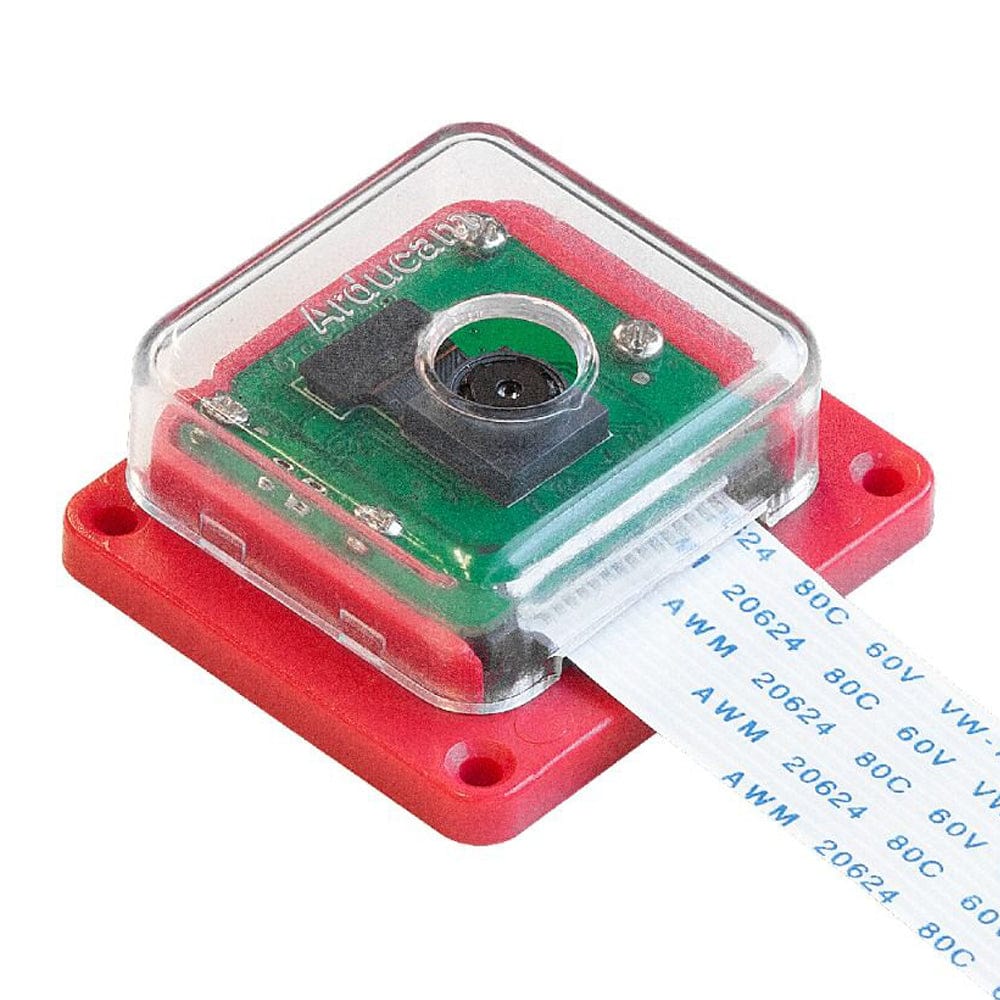

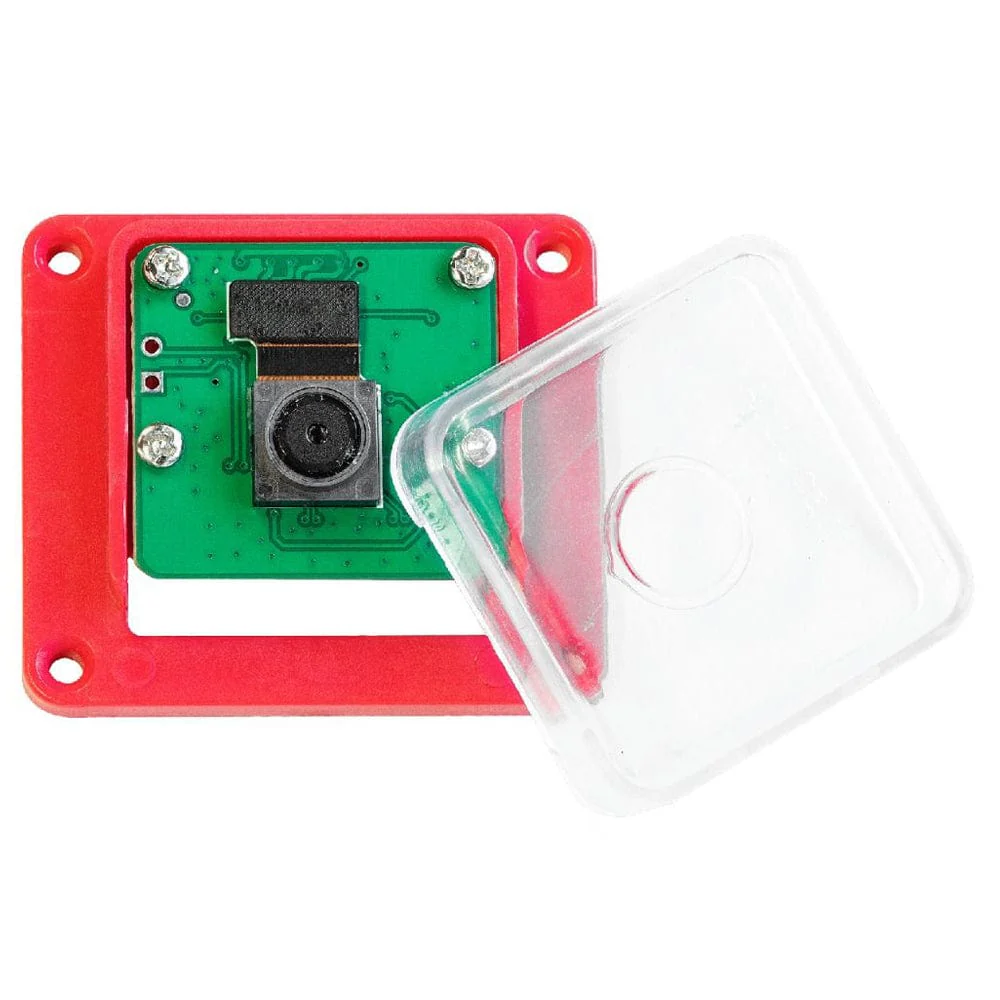

This module comes bundled with a pre-fitted ABS case and 150mm flex cable, a 50cm long flex cable for extra reach, and a 150mm adapter cable for using this with a Raspberry Pi Zero.

To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!

Features

• Sony IMX219: 8MP pixel sensor with a fixed focus lens. EFL: 3.04mm, F.NO: 2.0, View Angle: 62.2 (Horizontal).
• 8MP High Quality: Excellent image quality, colour fidelity and low light performance
• 1080p High resolution: Supports 3280x2464 pixel still images as well as 1080p30, 720p60, and VGA90 video modes and still captures.
• Libcamera only: This camera module supports the latest Raspberry Pi libcamera application only
• Easy to set up: Simply use the 15-pin ribbon cable to attach the CSI port on the Raspberry Pi, then make a simple configuration and you are ready to use the camera.
• Multiple Applications: Perfect for time-lapses, slow motion, home security applications, monitoring Octoprint 3D Printers, wildlife camera trap applications and more

Specifications

• Sensor: 1/4” 8MP IMX219
• Max. still resolution: 3280 x 2464 pixels
• Frame Rates: supports 1080p30, 720p60 and VGA90
• Focal Length: 3.04 mm; Angle of View: H=62.2 degree, V=48.8 degree
• IR Sensitivity: Integral IR filter, visible light only
• Shutter Type: Rolling Shutter
• Interface: 2-Lane MIPI
• Focus Distance: 200mm ~ infinity

Resources

• Sensor Datasheet, Sony IMX219
• Manual
• User Guide

Package Contents

• 1x Arducam IMX219 Fixed Focus Camera Module
• 1x ABS Case
• 1x 15cm 15-pin FPC cable
• 1x 15cm 15-pin to 22-pin FPC cable
• 1x 50cm 15-pin FPC cable

Raspberry Pi not included
