The Story

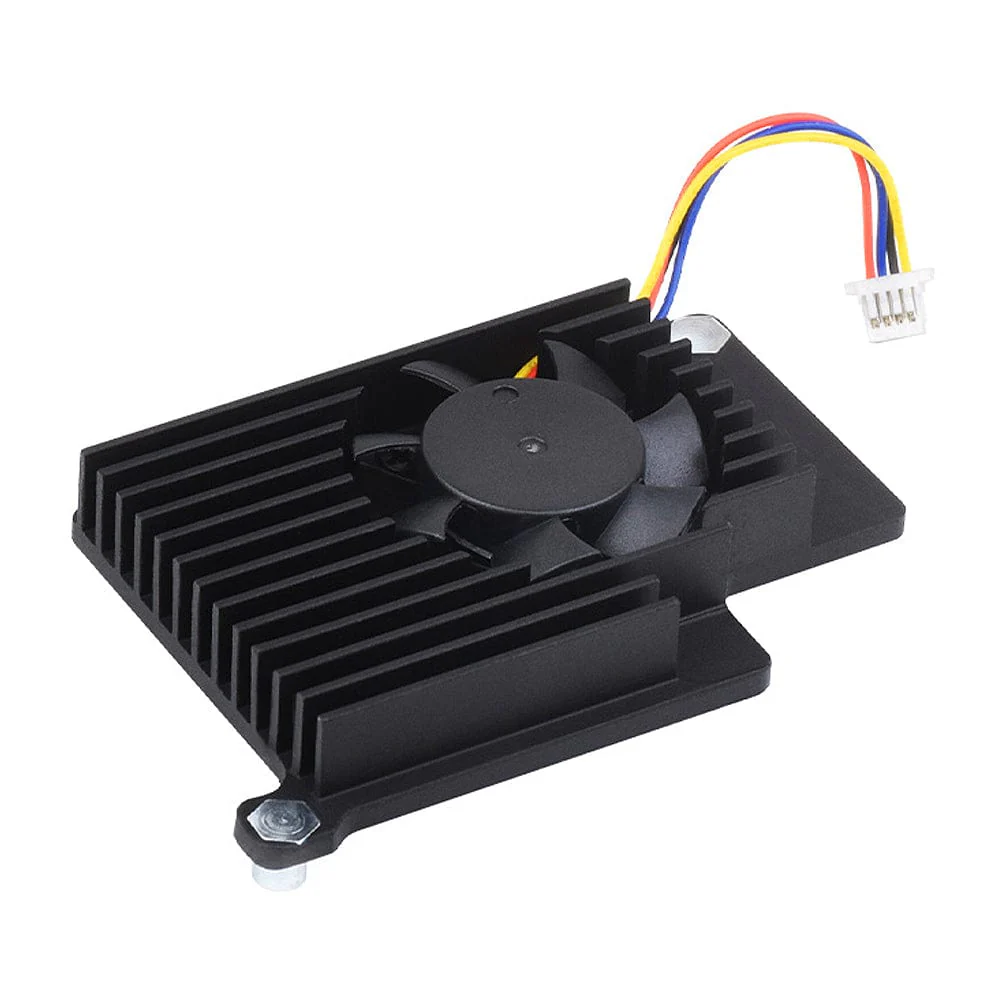

The Waveshare active cooling heatsink is designed to optimise the performance of your Raspberry Pi 5 by keeping the critical components cool.

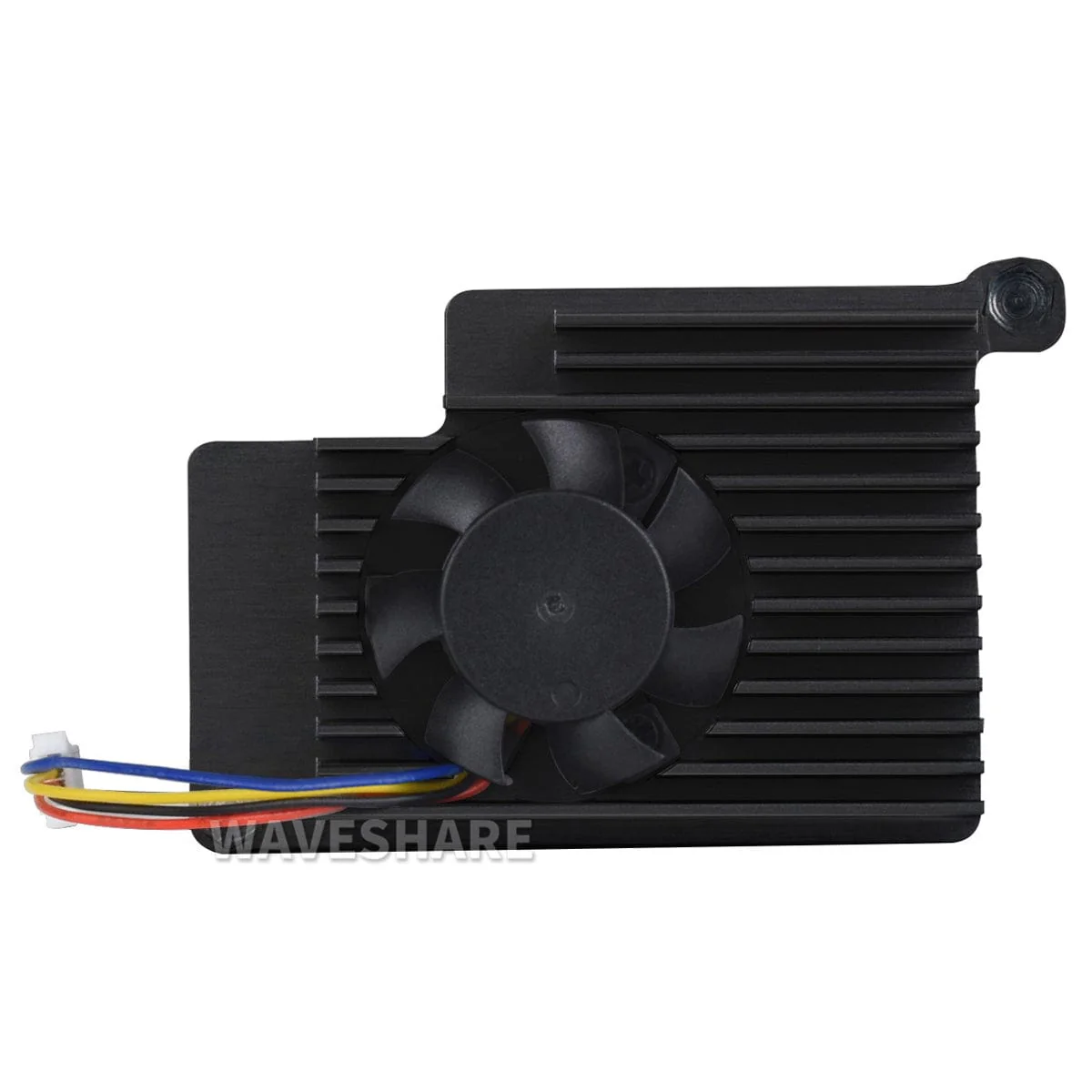

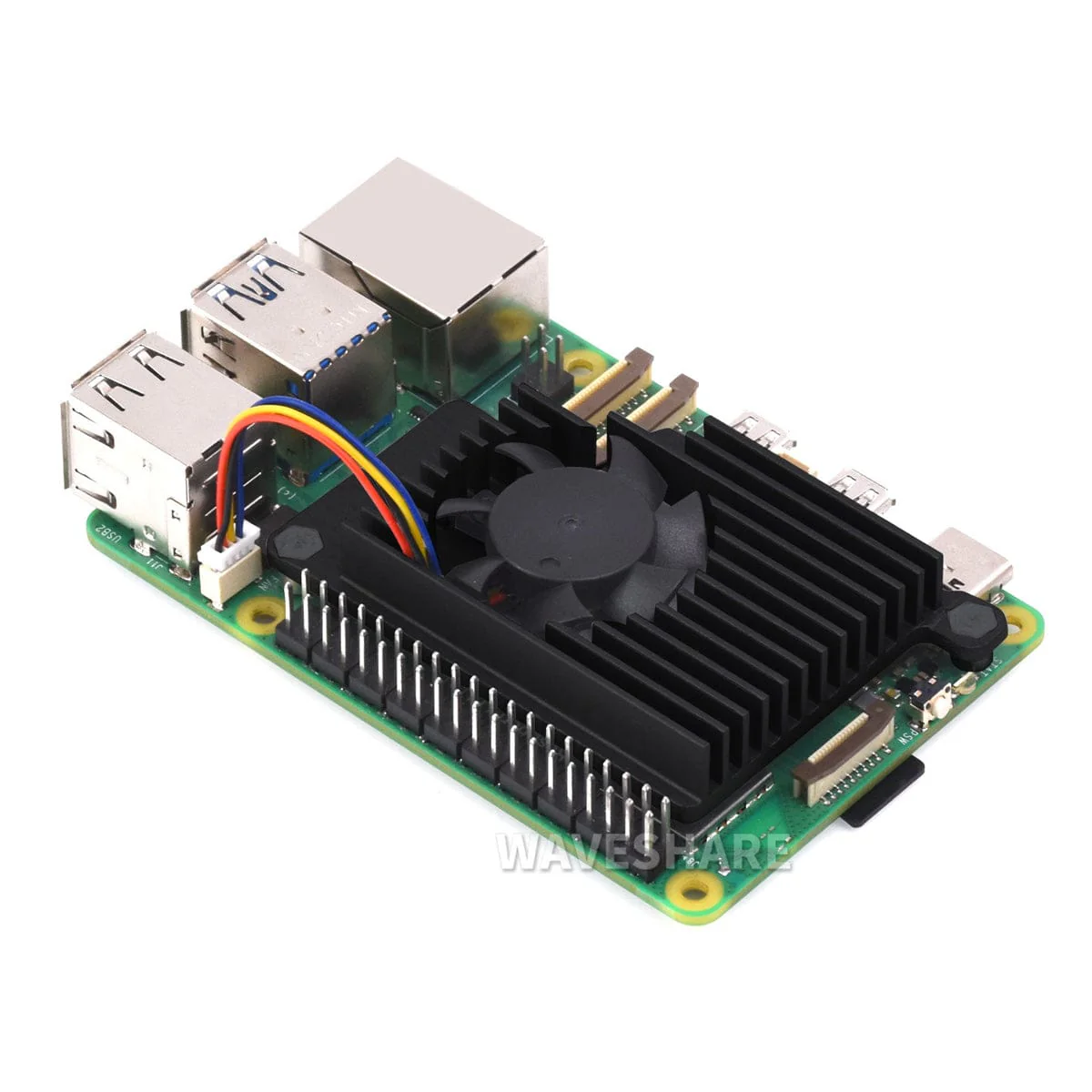

The heatsink offers efficient cooling with a minimal footprint, connecting to the board via the dedicated Raspberry Pi 5 heatsink mounting points. The tall heatsink fins move heat away from your Pi, assisted by the cooling fan.
The fan connects to the dedicated Raspberry Pi 5 fan header, meaning all your GPIO pins are left free for your project, and offers software-controlled fan speeds.
The heatsink also comes bundled with thermal pads, ensuring reliable heat transfer from your Raspberry Pi.
Note: The Raspberry Pi is not included
Specifications
| Input Voltage | 5V DC (supplied via 4-pin fan header on Raspberry Pi 5) |
| Fan Speed Control | Pulse width modulation control with tachometer |
| Maximum Airflow | 2.35 CFM |
| Fan Speed | 8000±10% RPM |
| Weight | 0.029kg |
| Material | Anodised aluminium |
Package Contents
- 1x Active Cooling fan
- 3x Thermal pads
- 2x Nylon screws
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Waveshare active cooling heatsink is designed to optimise the performance of your Raspberry Pi 5 by keeping the critical components cool.
The heatsink offers efficient cooling with a minimal footprint, connecting to the board via the dedicated Raspberry Pi 5 heatsink mounting points. The tall heatsink fins move heat away from your Pi, assisted by the cooling fan.
The fan connects to the dedicated Raspberry Pi 5 fan header, meaning all your GPIO pins are left free for your project, and offers software-controlled fan speeds.
The heatsink also comes bundled with thermal pads, ensuring reliable heat transfer from your Raspberry Pi.
Note: The Raspberry Pi is not included
Specifications
| Input Voltage | 5V DC (supplied via 4-pin fan header on Raspberry Pi 5) |
| Fan Speed Control | Pulse width modulation control with tachometer |
| Maximum Airflow | 2.35 CFM |
| Fan Speed | 8000±10% RPM |
| Weight | 0.029kg |
| Material | Anodised aluminium |
Package Contents
- 1x Active Cooling fan
- 3x Thermal pads
- 2x Nylon screws
