$0.78The Story

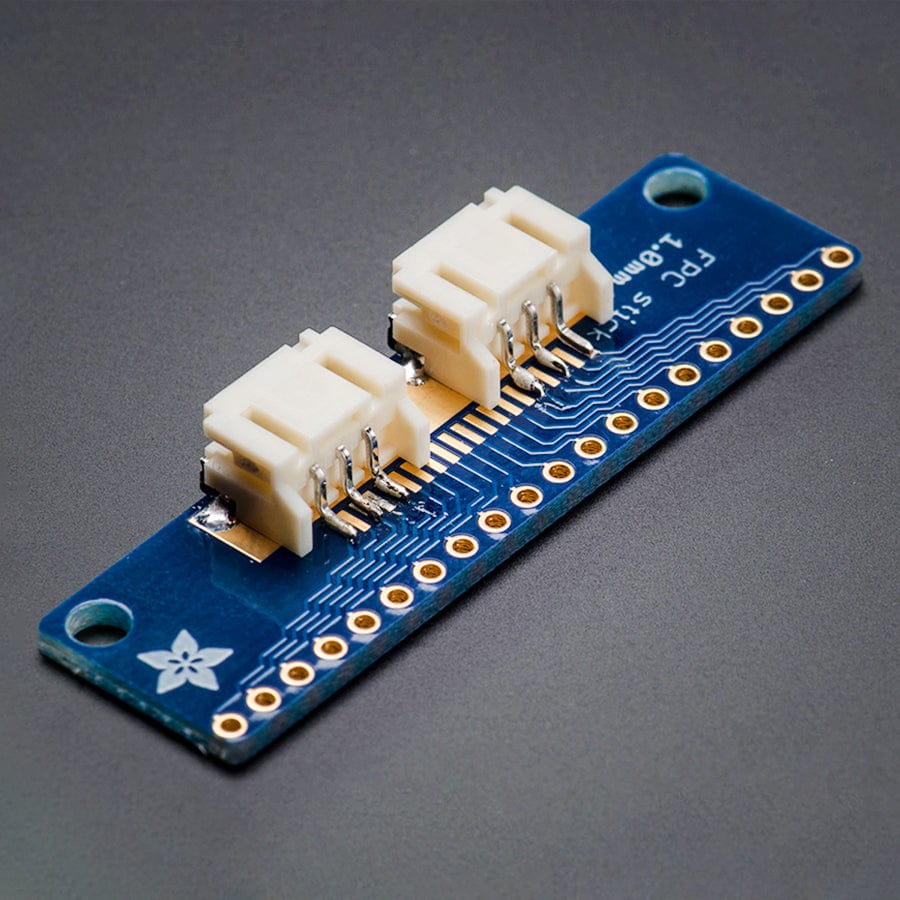

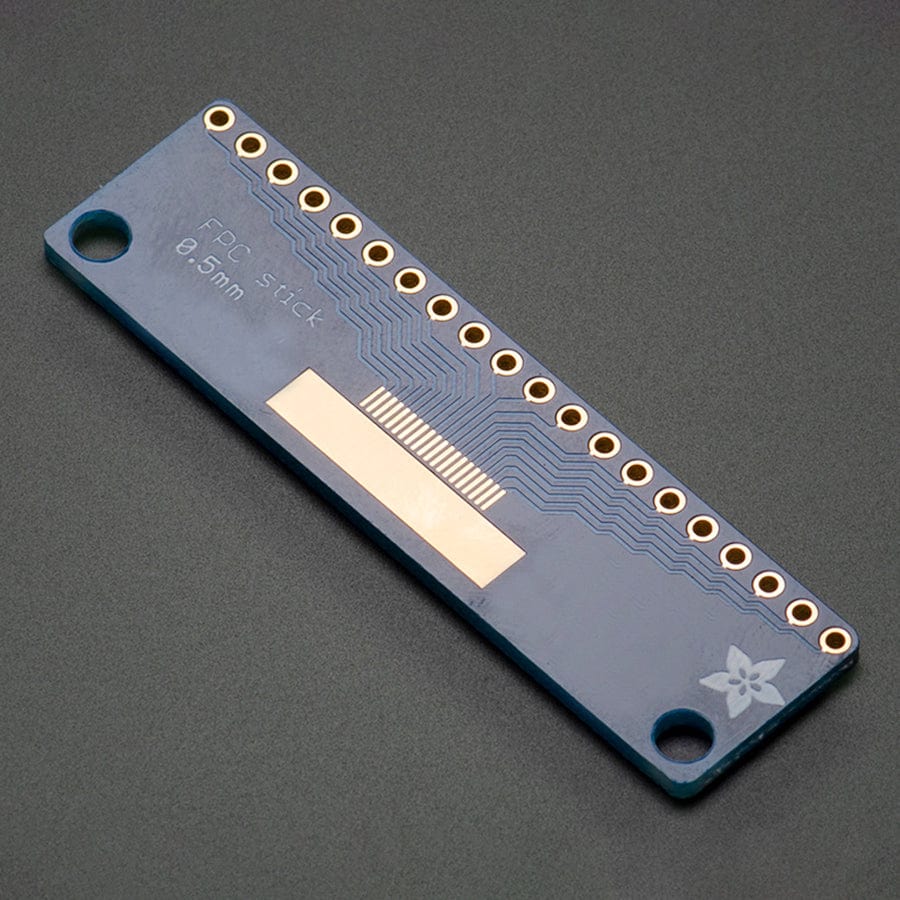

Connect to 0.5mm, 1.0mm and even some 2.0mm pitch connectors that you may run across with an FPC stick. We designed this for use in-house, to quickly connect to FPCs we need to test. But we also thought it might be useful for our customers. On either side is a 20-pin 0.5 or 1.0mm pitch connector with long pads and one very long 'mechanical' pad. Each pad is broken out to a 20-pin long 0.1" spaced header. It can accommodate most ZIF and snap connectors and will make prototyping much easier!

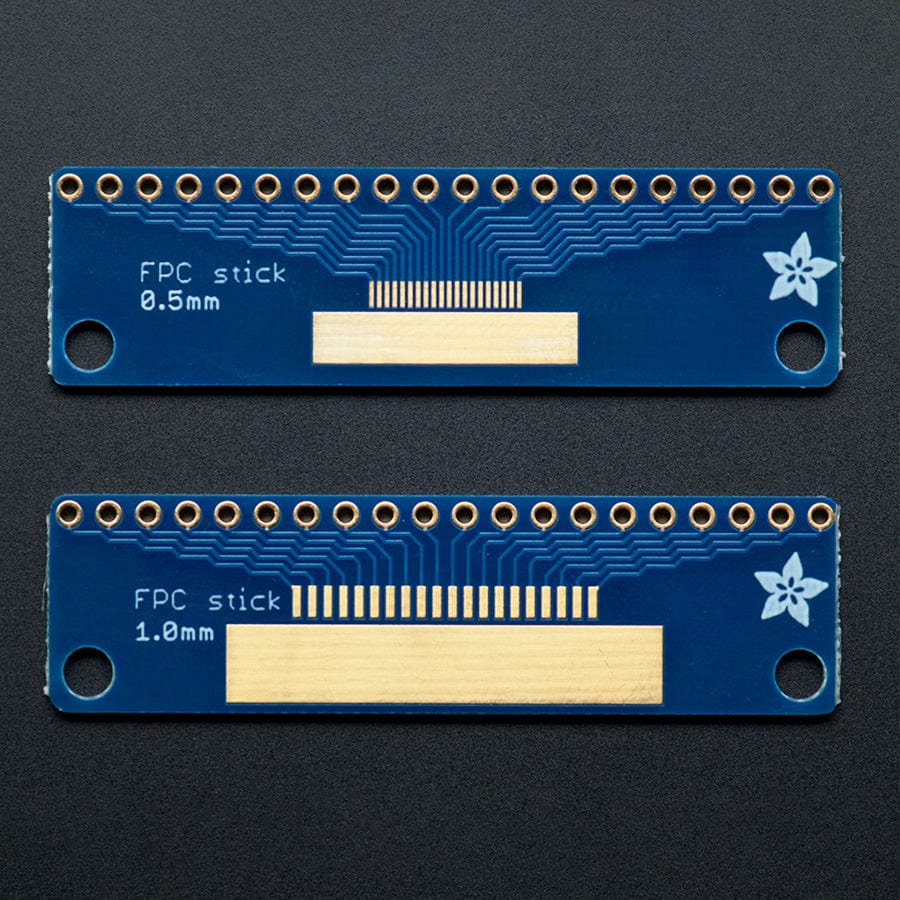

Each order comes with a single double-sided PCB stick (one side 0.5mm the other 1.0mm), no header or other connectors included.
Specifications
- Dimensions: 13.98mm
- Weight: 2.10g
Resources
-

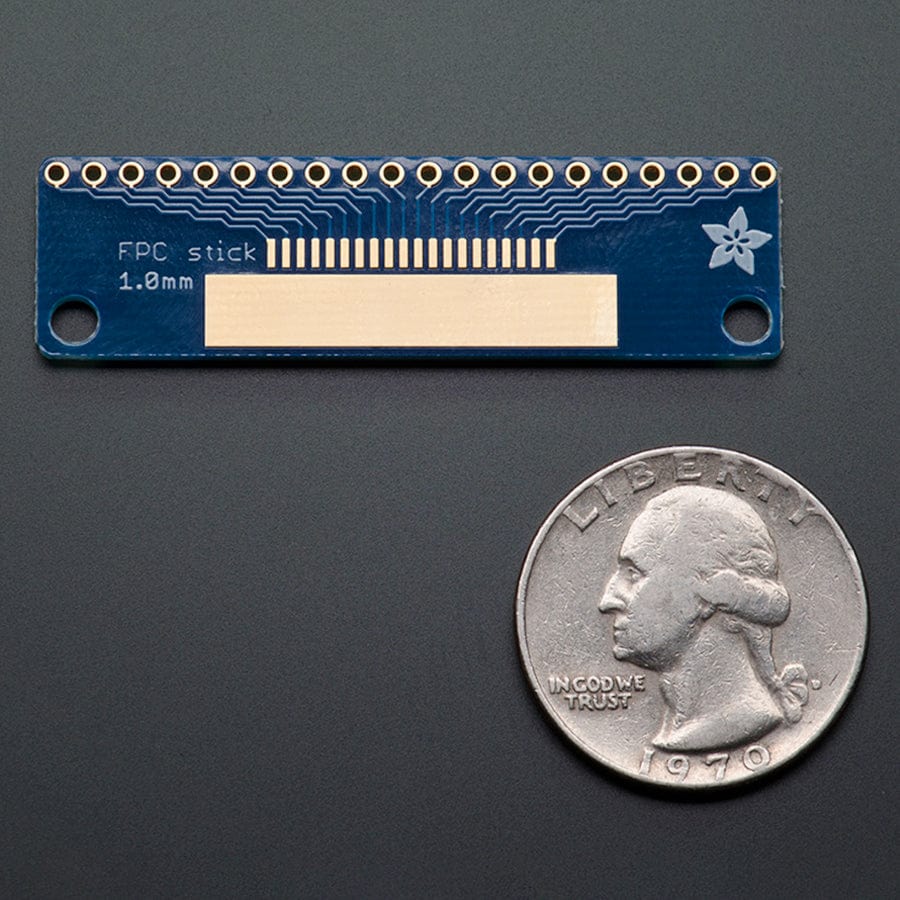

1.0mm pitch side dimensions
