JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board
HomeStore

JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board

JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board

$6.54
JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board—
$6.54

The Story

This adapter board is designed for adapting a 'classic' 2 x 10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable. It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.

This board comes with no cables. It's really just the adapter - but is super helpful when you want to use JTAG debugging on boards that can't support 2 x 10 cables. We do stock the SWD cable if you need one here!

Specifications

  • Dimensions with components: 34mm x 24mm x 12mm
  • Weight: 5.7g

Resources

  • EagleCAD PCB Files on GitHub
  • Fritzing object available in Adafruit Fritzing library
JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

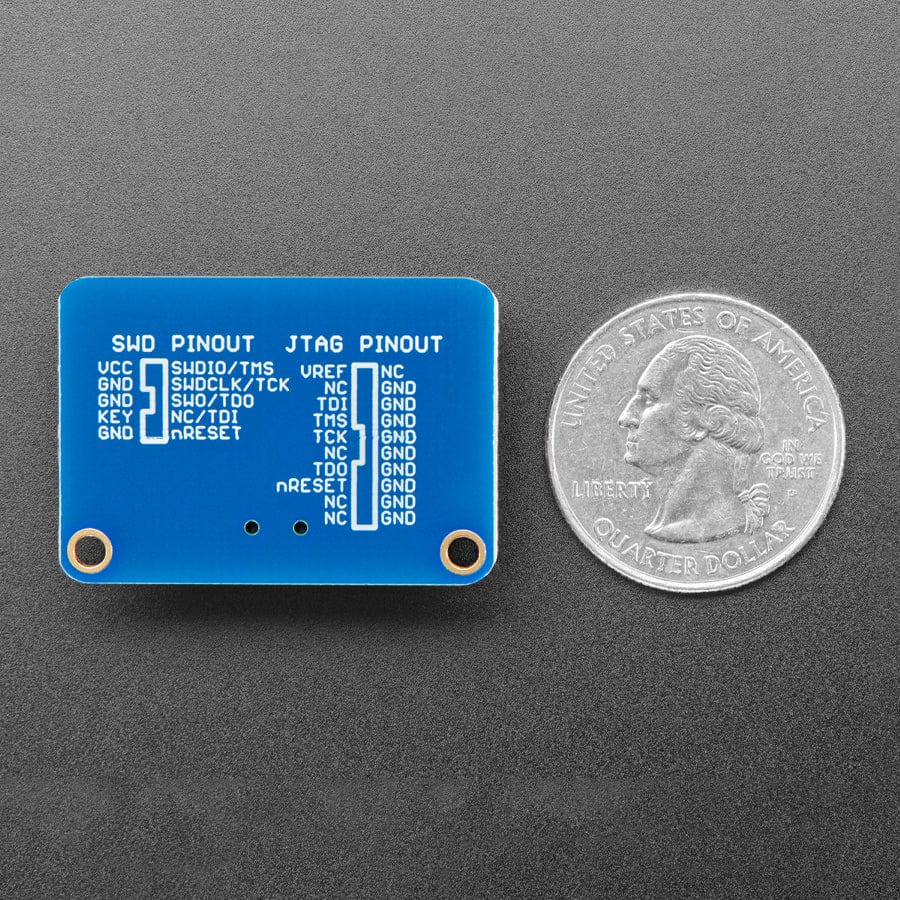

JTAG (2 x 10 2.54mm) to SWD (2 x 5 1.27mm) Cable Adapter Board - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This adapter board is designed for adapting a 'classic' 2 x 10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable. It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.

This board comes with no cables. It's really just the adapter - but is super helpful when you want to use JTAG debugging on boards that can't support 2 x 10 cables. We do stock the SWD cable if you need one here!

Specifications

  • Dimensions with components: 34mm x 24mm x 12mm
  • Weight: 5.7g

Resources

  • EagleCAD PCB Files on GitHub
  • Fritzing object available in Adafruit Fritzing library
