The Story
These LED Sequin lights up instantly with just power and ground - no code required, perfect for quick wearable projects.
Sew a little sparkle into your wearable project with an Adafruit LED Sequin. These are the kid-sister to our popular Flora NeoPixel, they only show a single colour and they don't have digital control, but that makes them smaller easier to use for many projects.
Simply connect 3 to 6VDC to the + pin and ground to the - pin, and the LED on the board will light up. You can make the LEDs fade and twinkle by using the PWM (a.k.a. analogWrite) functionality of your Gemma or Flora, or just connect directly to a digital I/O pin of a microcontroller to turn on and off. Or even skip the micro altogether, and power directly from a LiPoly or coin battery.

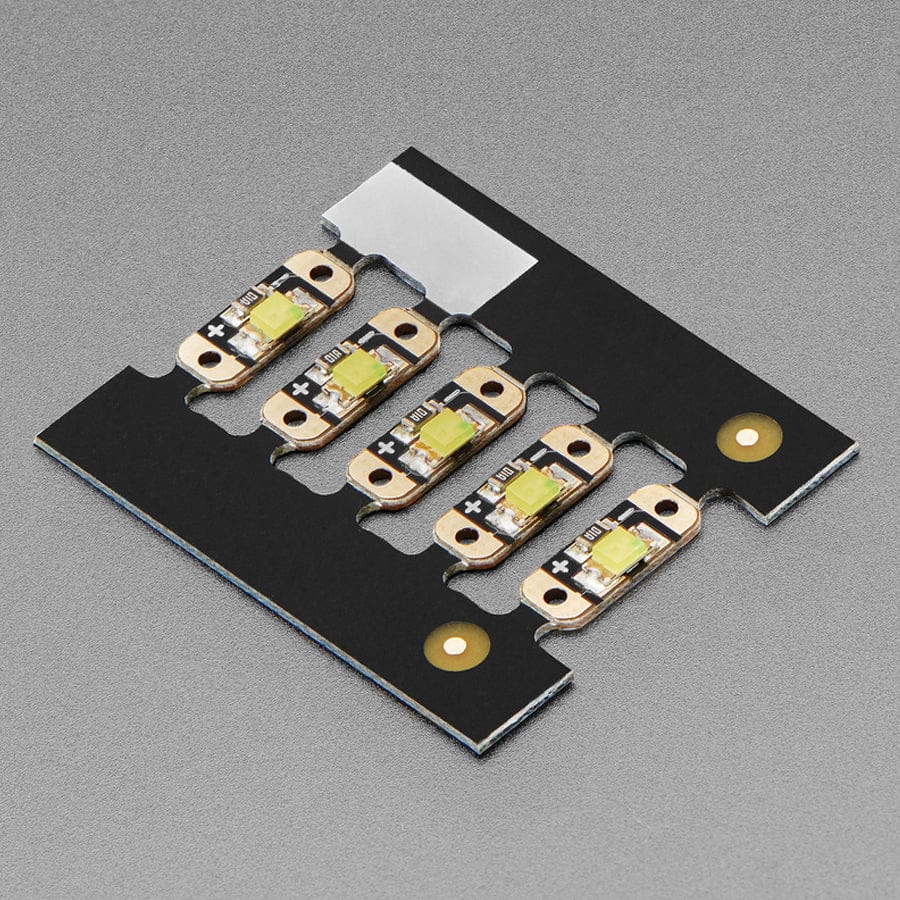

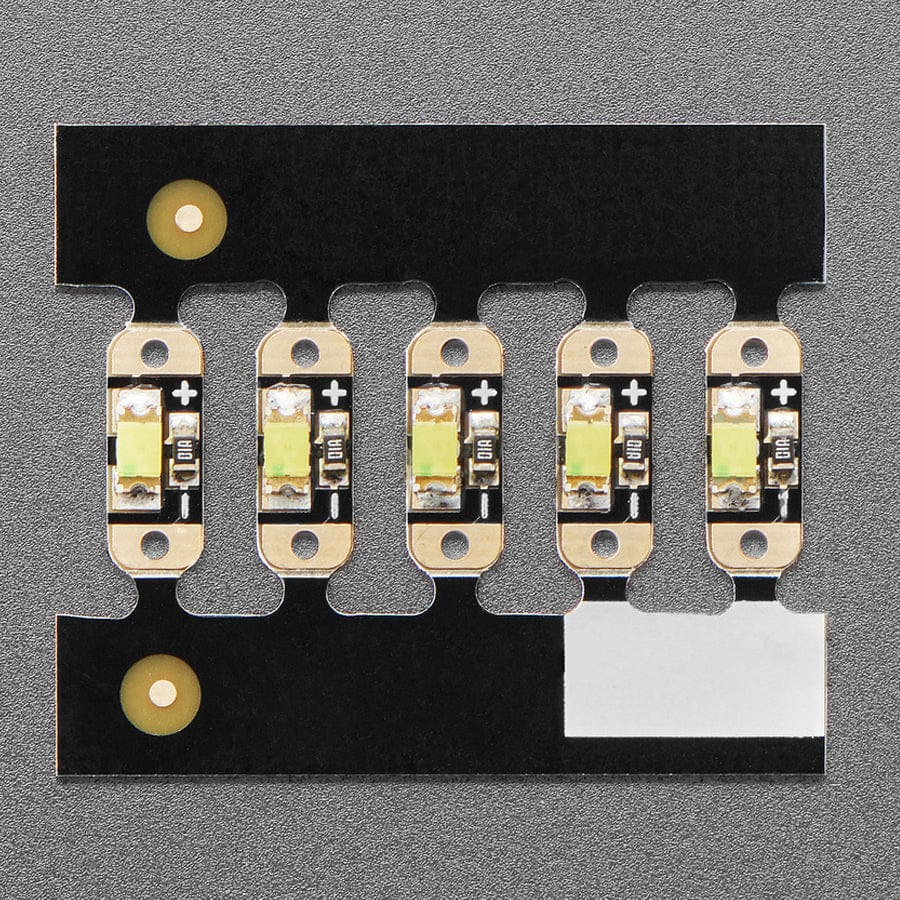

This order comes with 5 Cool White "1206 size" LEDs, matched with a 100 ohm resistor. When powered from 3.3V they draw about 5mA so you can put up to 4 or 5 in parallel on a single microcontroller pin. We also have these sequins in warm white, ruby red, emerald green, royal blue, and rose pink.
Features
- LED Sequins for wearable projects
- 1206 sized LED's
- 3 to 6VDC
- Matched with 100 ohm resistors
- No digital control - Power on/off or use PWM
Specifications

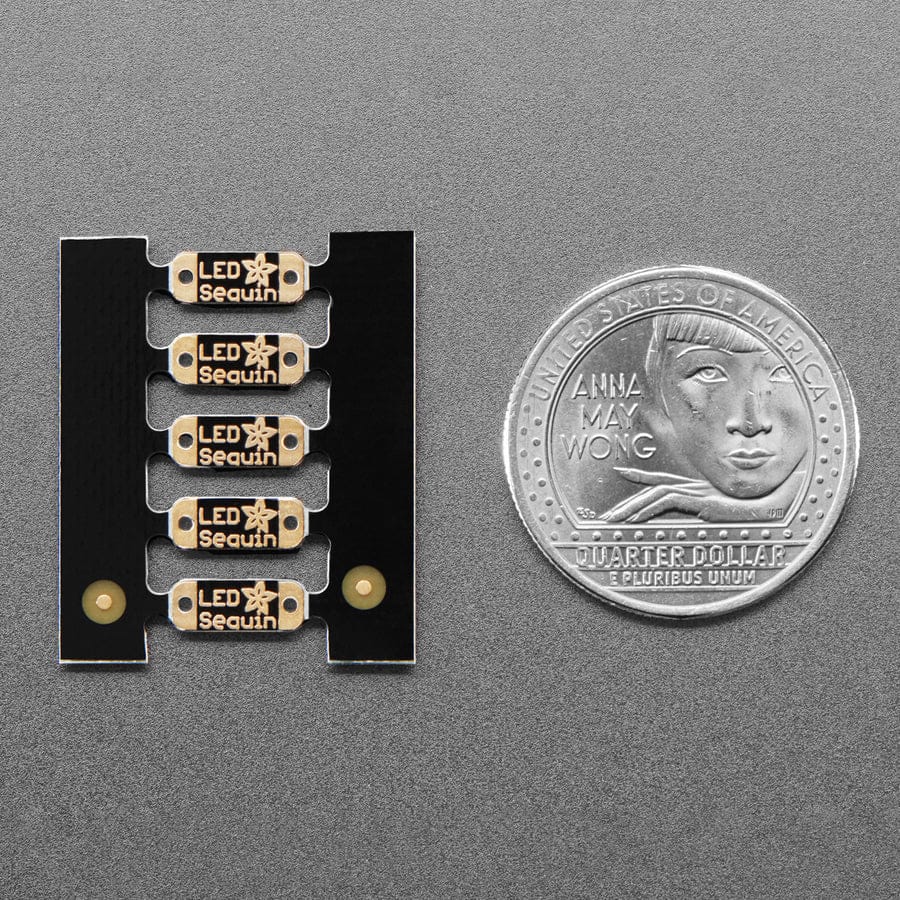

- 4mm x 9mm
- 2mm thick
- Holes are 7mm
Resources
- Product DocumentationÂ
Package Contents
- 5x Adafruit LED Sequins - Cool White

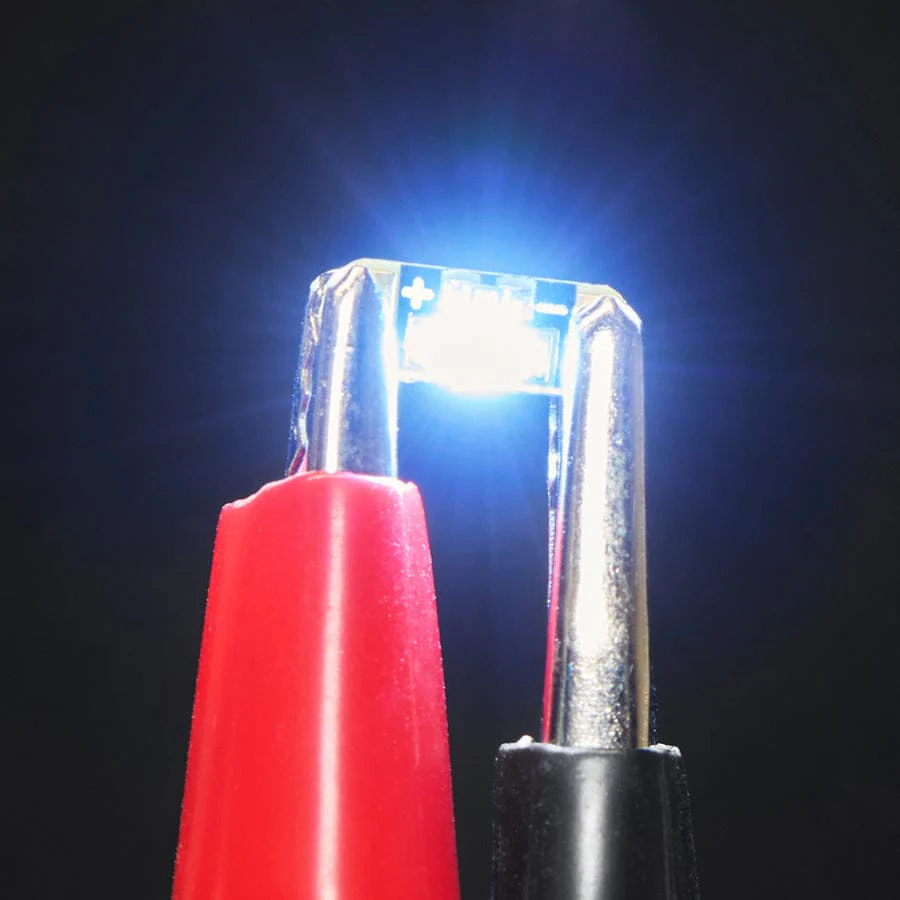

Alligator clips not included.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
These LED Sequin lights up instantly with just power and ground - no code required, perfect for quick wearable projects.
Sew a little sparkle into your wearable project with an Adafruit LED Sequin. These are the kid-sister to our popular Flora NeoPixel, they only show a single colour and they don't have digital control, but that makes them smaller easier to use for many projects.
Simply connect 3 to 6VDC to the + pin and ground to the - pin, and the LED on the board will light up. You can make the LEDs fade and twinkle by using the PWM (a.k.a. analogWrite) functionality of your Gemma or Flora, or just connect directly to a digital I/O pin of a microcontroller to turn on and off. Or even skip the micro altogether, and power directly from a LiPoly or coin battery.
This order comes with 5 Cool White "1206 size" LEDs, matched with a 100 ohm resistor. When powered from 3.3V they draw about 5mA so you can put up to 4 or 5 in parallel on a single microcontroller pin. We also have these sequins in warm white, ruby red, emerald green, royal blue, and rose pink.
Features
- LED Sequins for wearable projects
- 1206 sized LED's
- 3 to 6VDC
- Matched with 100 ohm resistors
- No digital control - Power on/off or use PWM
Specifications
- 4mm x 9mm
- 2mm thick
- Holes are 7mm
Resources
- Product DocumentationÂ
Package Contents
- 5x Adafruit LED Sequins - Cool White
Alligator clips not included.
