The Story
Beguiled by a fancy new chip, regulator or transistor that is only available in a SOT23-3, SOT23-5, SOT23-6, SOT-223, SOT-89, or TO-252 pinout? This set of breakout PCBs will make your life much much easier and get you prototyping faster than ever.

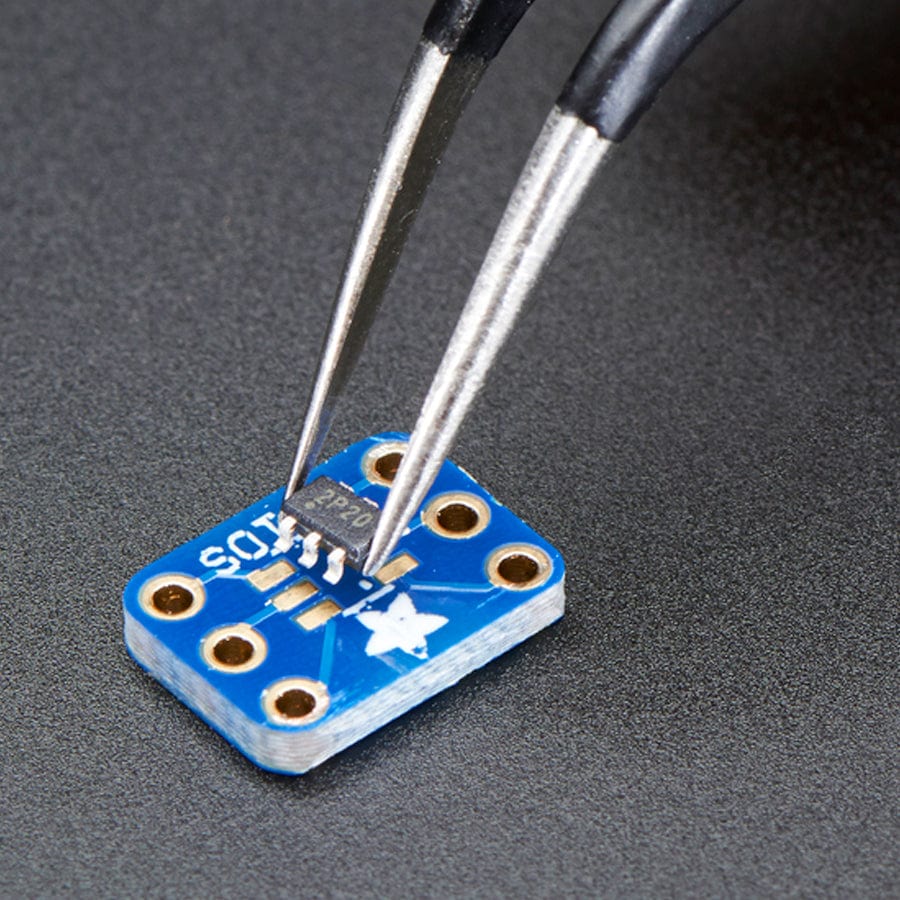

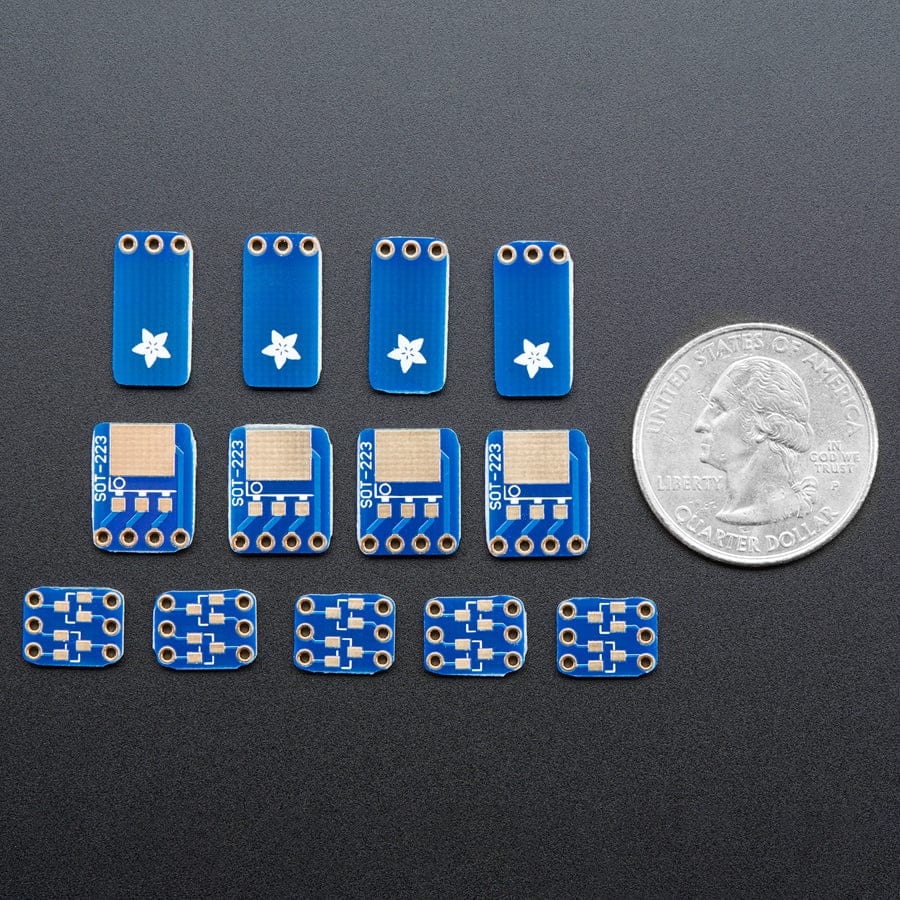

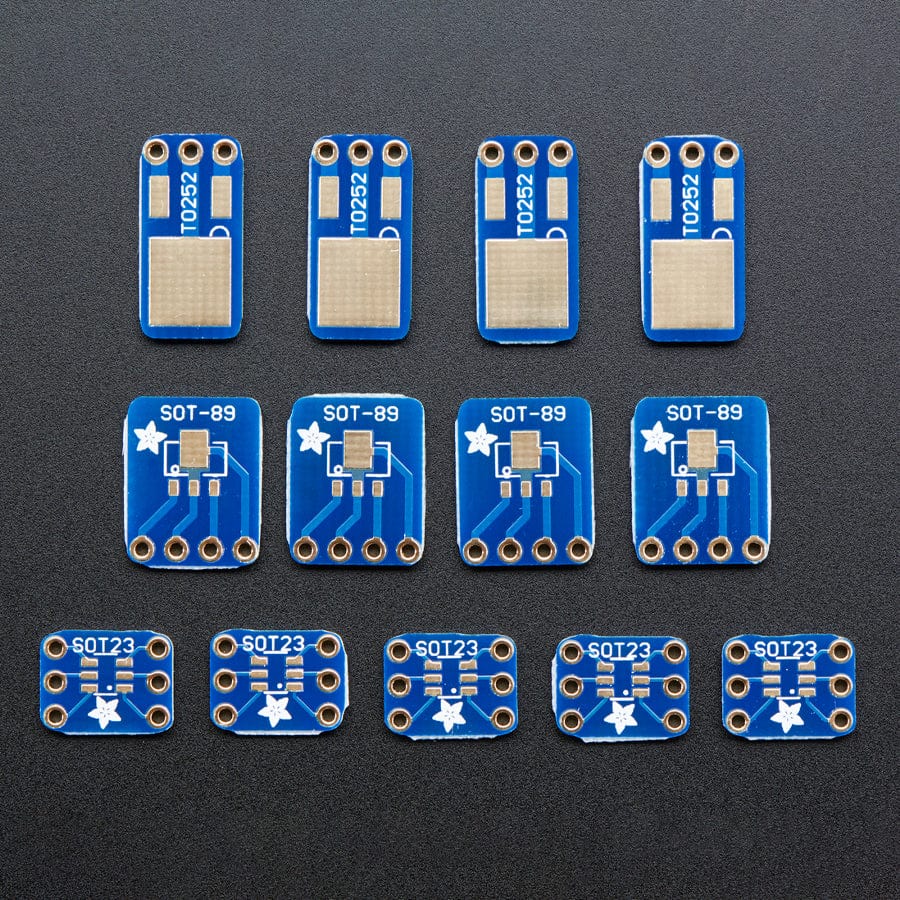

This set comes with 3 different boards which fit 5 different packages and comes with five SOT-23 (fits 2 x SOT-23 on the back, and a single SOT-23-5 or SOT-23-6 on the front), four SOT-89 or SOT-223, and four TO-252. Each board has 0.1" spaced holes. Solder your chip to either side and you're ready to rock on any solderless breadboard.
Each item comes with 13 standard-thickness PCBs.
Note: The board does not include headers, so why don't you pick some up?
Resources
- Overview and Tutorial
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Beguiled by a fancy new chip, regulator or transistor that is only available in a SOT23-3, SOT23-5, SOT23-6, SOT-223, SOT-89, or TO-252 pinout? This set of breakout PCBs will make your life much much easier and get you prototyping faster than ever.
This set comes with 3 different boards which fit 5 different packages and comes with five SOT-23 (fits 2 x SOT-23 on the back, and a single SOT-23-5 or SOT-23-6 on the front), four SOT-89 or SOT-223, and four TO-252. Each board has 0.1" spaced holes. Solder your chip to either side and you're ready to rock on any solderless breadboard.
Each item comes with 13 standard-thickness PCBs.
Note: The board does not include headers, so why don't you pick some up?
Resources
- Overview and Tutorial
