Simple but effective - this breakout board has a USB Mini-B connector, with all 5 pins broken out. Great for pairing with a microcontroller with USB support, or adding USB 5V power to a project.

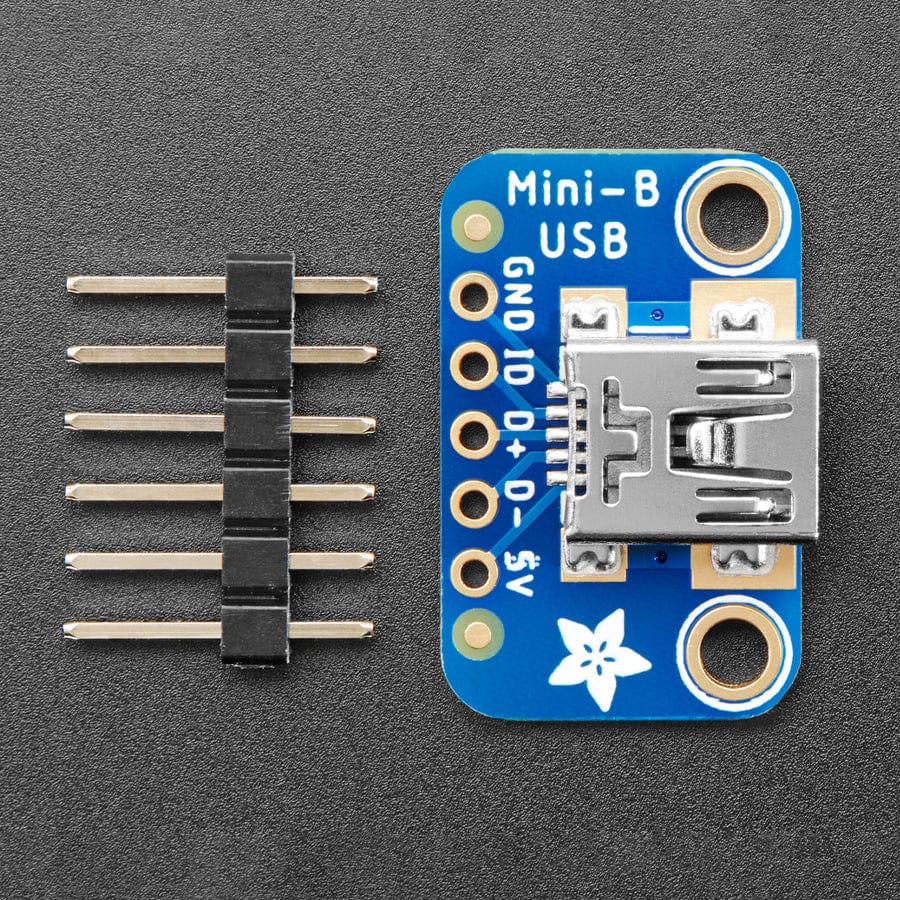

Comes with one fully assembled and tested mini B breakout PCB and a small stick of 0.1" header so you can solder it on and plug it into a breadboard.
Specifications
Dimensions (without 0.1" header or terminal blocks):
- Length: 21mm
- Width: 13mm
- Height: 2mm
- Weight: 1.6g
Resources
- Mini B connector Datasheet
- Fritzing object in the Adafruit Fritzing library
- EagleCAD PCB files in GitHub
