Air Quality Monitor (PM 2.5 + Temperature & Humidity Sensor)—
$41.80
The Story
This is a multifunction air quality monitor that can detect not only the concentration of particles but also the value of temperature and humidity.
As the particle concentration sensor it can be used to obtain the number of suspended particles in the air by laser, as well as temperature and humidity.
The sensor can be inserted into variable instruments related to the environment parameters in the air or other environmental improvement equipments to provide correct data in time.
Working principle: Laser scattering principle is used for such sensor, i.e. produce scattering by using laser to radiate suspending particles in the air, then collect scattering light in a certain degree, and finally obtain the curve of scattering light change with time. In the end, equivalent particle diameter and the number of particles with different diameter per unit volume can be calculated by microprocessor based on MIE theory.
Working principle: Laser scattering principle is used for such sensor, i.e. produce scattering by using laser to radiate suspending particles in the air, then collect scattering light in a certain degree, and finally obtain the curve of scattering light change with time. In the end, equivalent particle diameter and the number of particles with different diameter per unit volume can be calculated by microprocessor based on MIE theory.
Features
- Zero false alarm rate
- Real-time response
- Correct data
- Minimum distinguishable particle diameter :0.3 micrometer
- High anti-interference performance because of the patent structure of six sides shielding
- Optional direction of air inlet and outlet in order to adapt the different design
- Temperature and Humidity output
Specifications
- Operating Voltage: 5.0VDC
- Active Current: 100 mA
- Standby Current: ≤200 uA
- Interface Level: L<0.8V, H>2.7V, Max 3.3V
- Particle Range of measurement: 0.3 ~ 1.0μm; 1.0 ~ 2.5μm; 2.5 ~ 10μm
- Particle Counting Efficiency: 50%@0.3μm 98%@>=0.5μm
- Particle Effective Range (PM2.5 standard): 0 ~ 500μg/m
- Particle Maximum Range (PM2.5 standard)*: >0 ~ 2000ug / m³
- Particle Resolution: 1ug / m³
- Particle Maximum Consistency Error (PM2.5 standard data)*: ±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
- Particle Standard Volume: 0.1 L
- Temperature Maximum Range: -10~50 ℃
- Temperature Resolution: 0.1 ℃
- Temperature Maximum Error: ± 0.5 ℃
- Humidity Maximum Range: 0 ~ 99%
- Humidity Resolution: 0.1%
- Humidity Maximum Error: ± 2%
- Weight: 50g
- Default Baud rate: 9600bps
- Total Response time: ≤ 10s
- Operating Temperature Range: -10 ~ +60 ℃
- Working Humidity Range: 0~99%
- MTTF: ≥ 3 years
- Dimension: 50 * 38 * 21 mm/1.97*1.50*0.83 inches
Resources
- Product WIKI
- More Documents

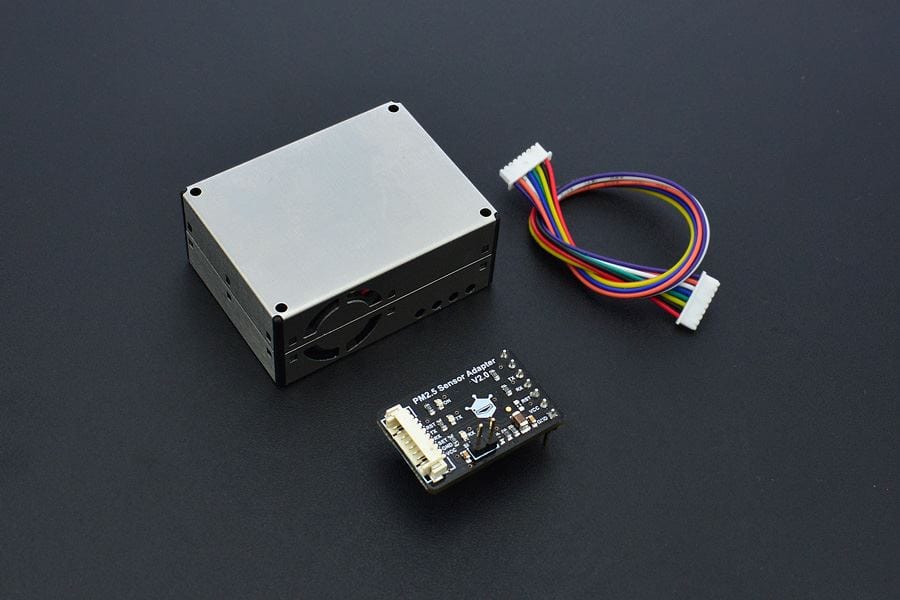

Package Contents

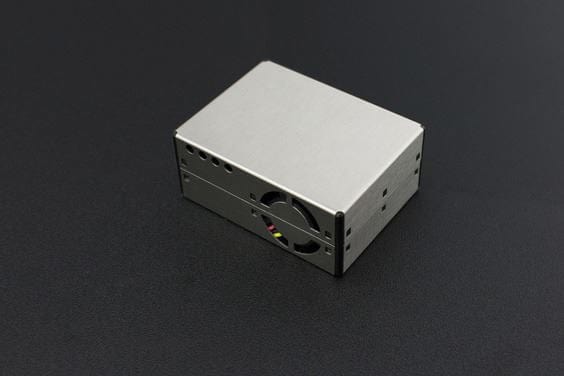

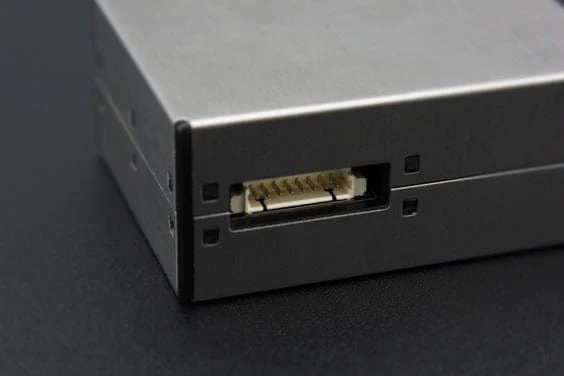

- 1x Air Quality Monitor (PM 2.5 + Temperature & Humidity Sensor)

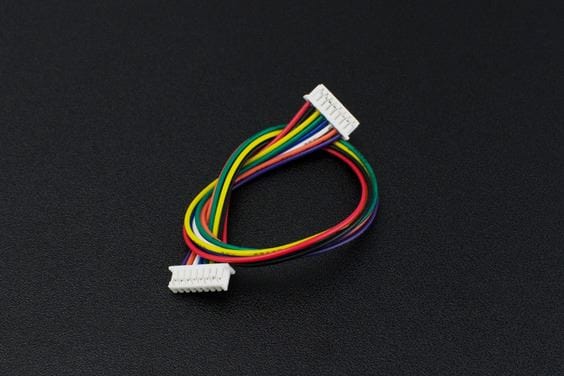

- 1x 8-Pin Cable

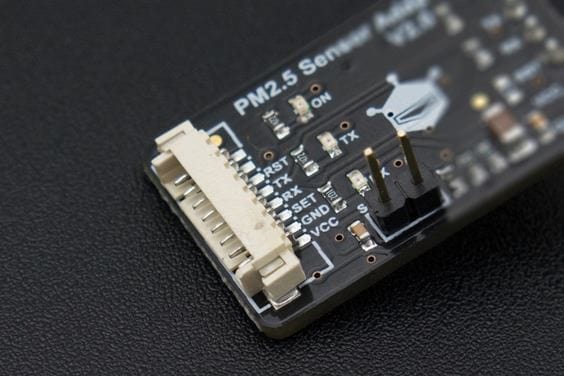

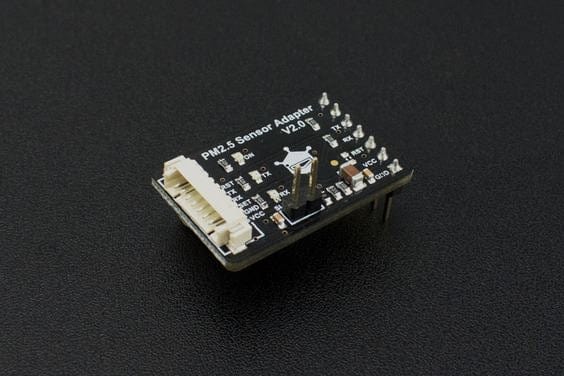

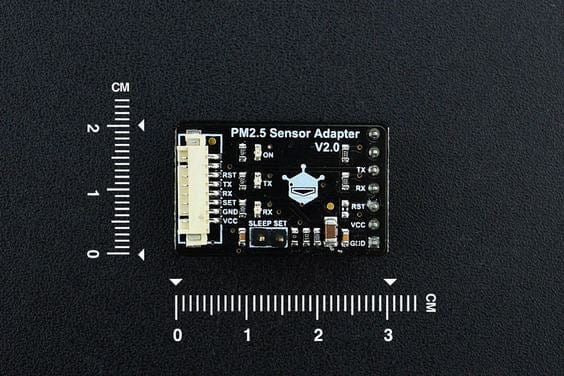

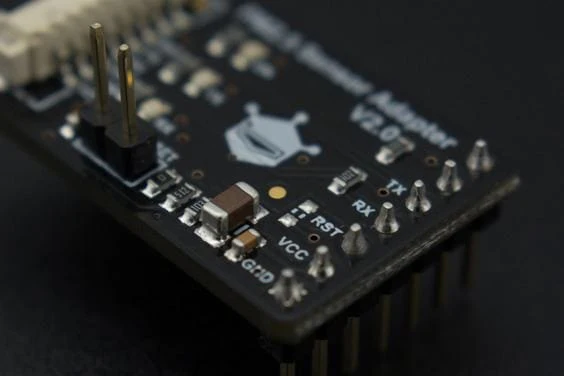

- 1x PM2.5 Adapter Board
