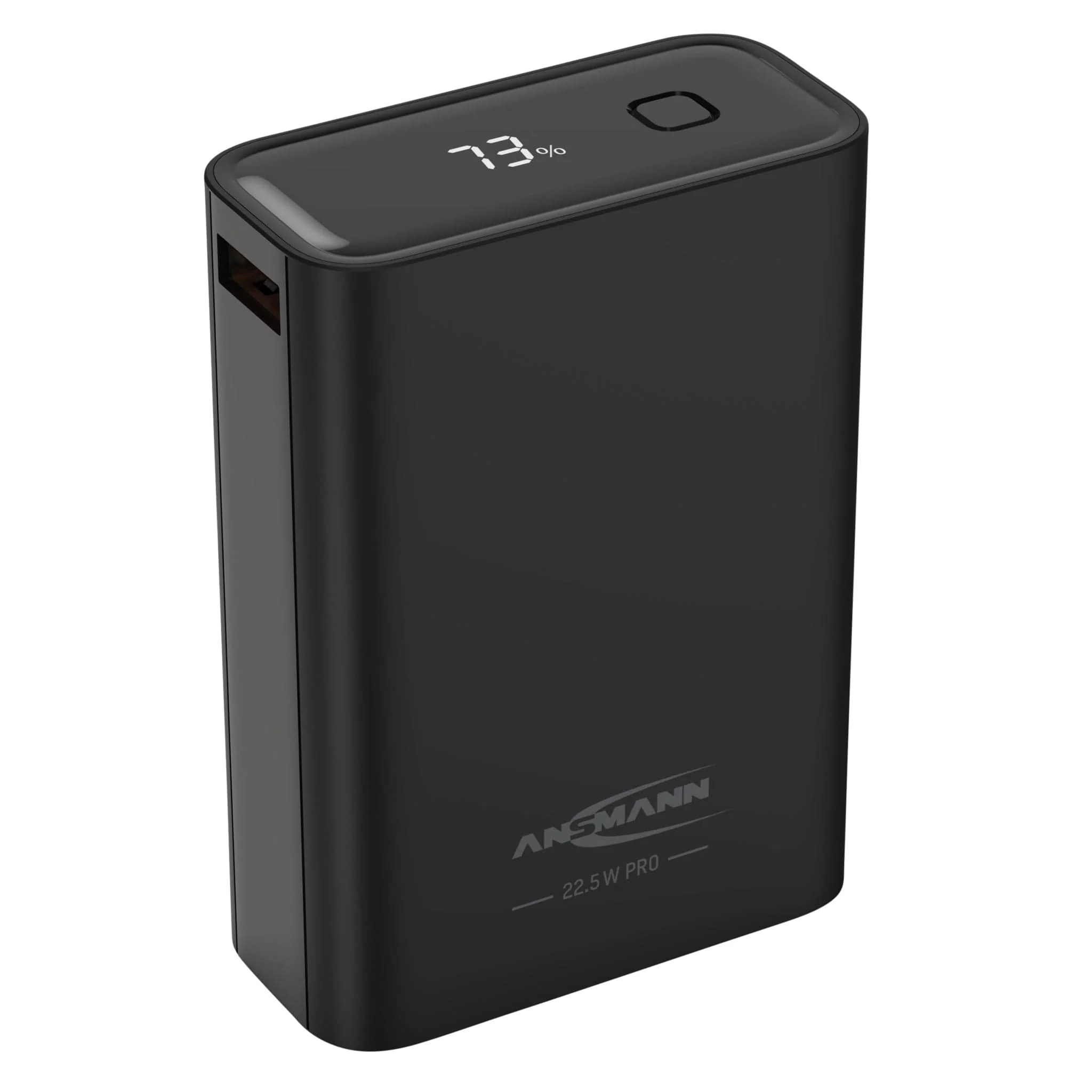

ANSMANN PB222PD 20,000mAh 22.5W PD Power Bank

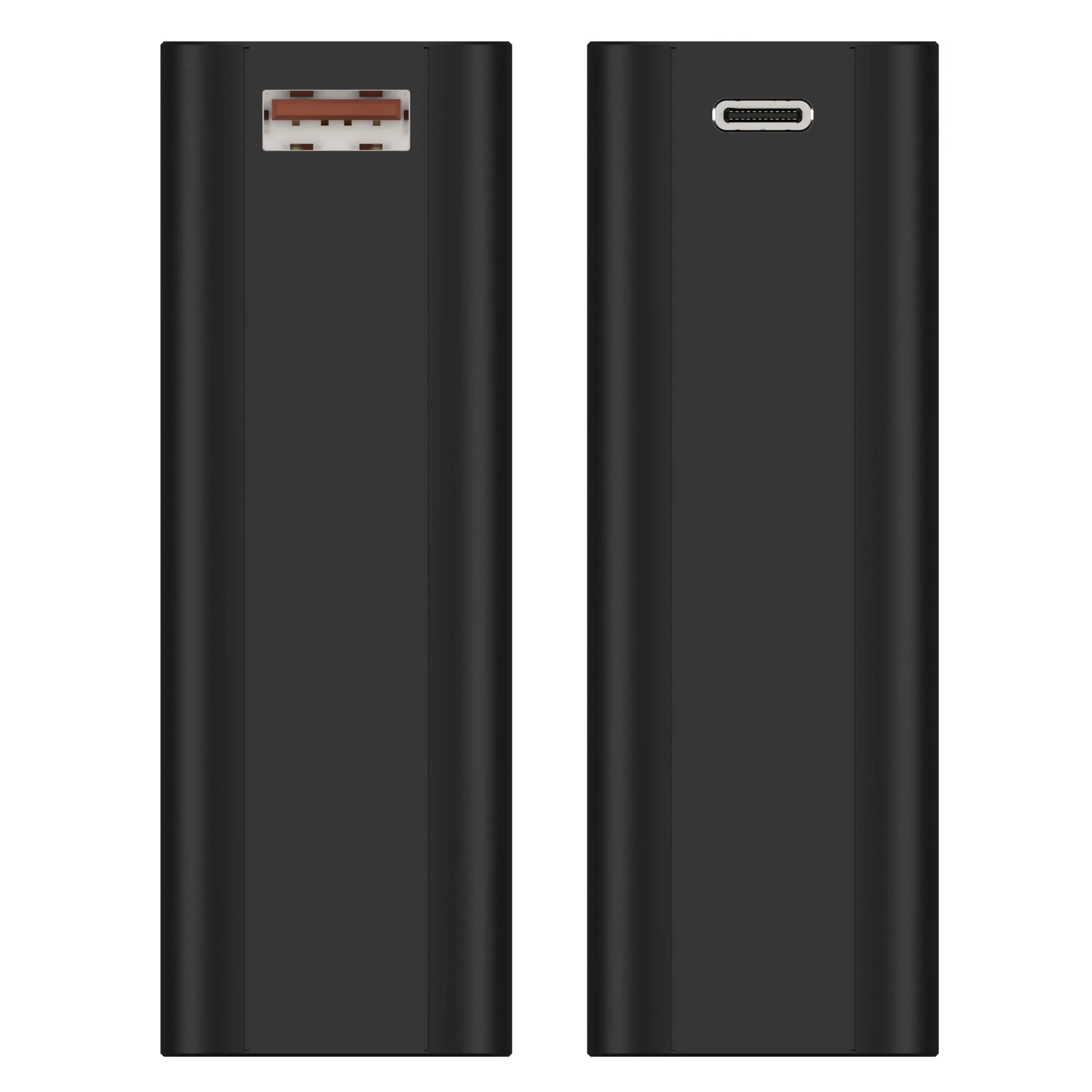

This is ANSMANN's PB222PD 20,000 22.5W PD (power Delivery) power bank, providing 1x USB-A and 1x USB-C output ports, and a USB-C input port for recharging. It's capable of powering USB devices up to 22.5W, supporting Power Delivery (PD), PPS, Quick Charge 3.0 and Huawei Supercharge.

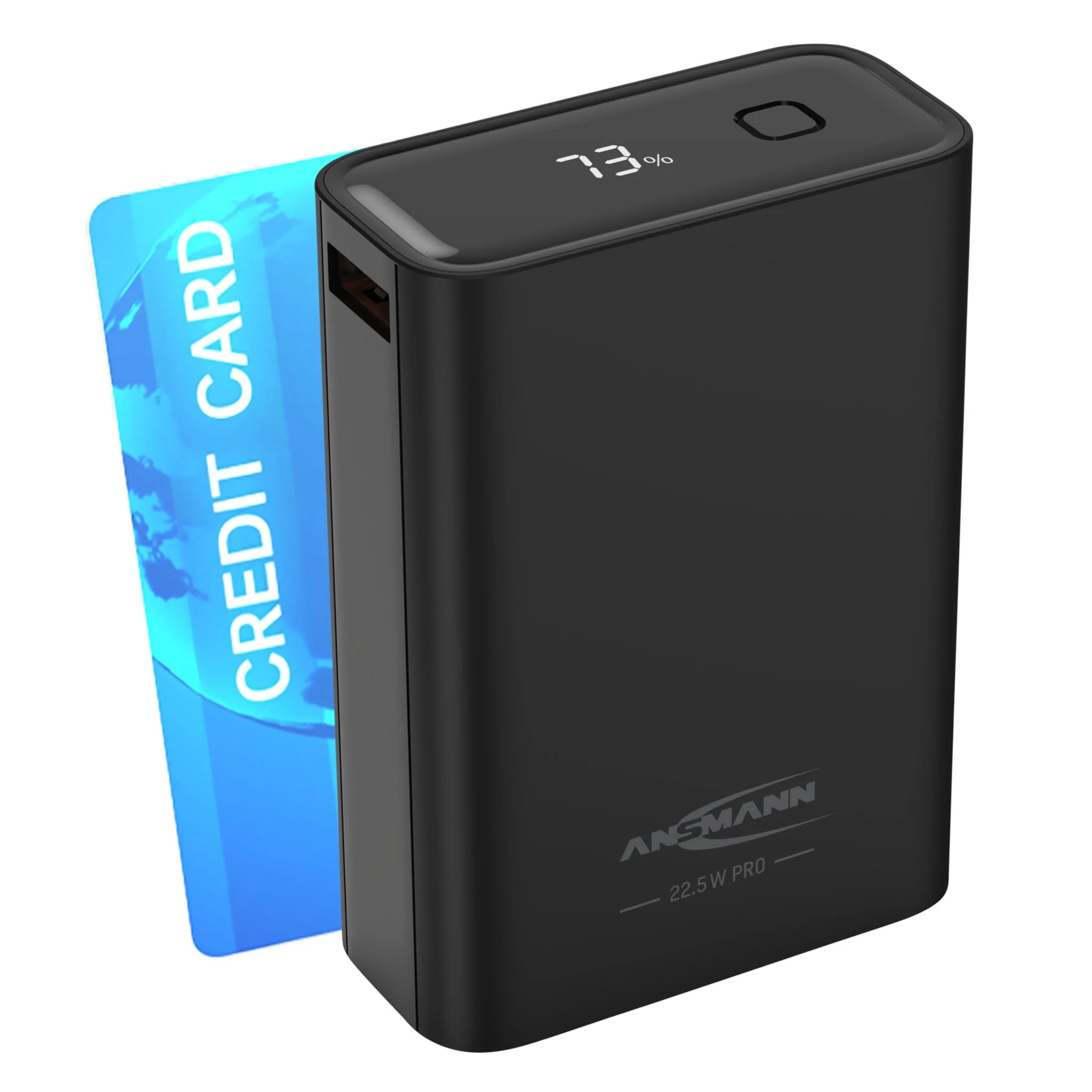

It's the big brother of the 10,000mAh version, but still one of the most compact in its class, including a neat display on the front.

It features a large 20,000 capacity and maximum output current of 4.5A (at 5V), and is able to power/charge 5V, 9V and 12V devices (consider a Power Bank Keepalive if your project runs on a very low current draw, to stop your power bank turning off automatically).

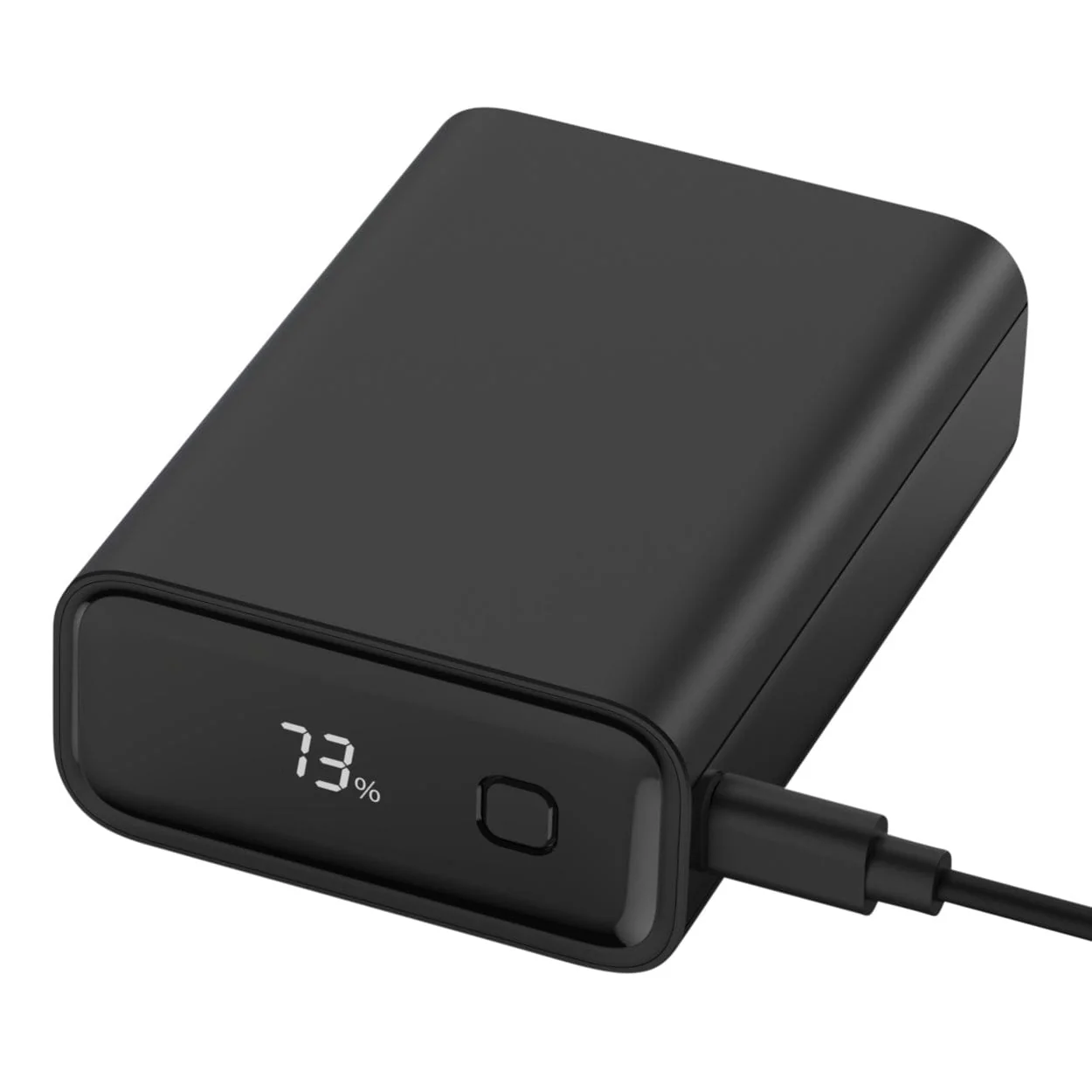

The power bank comes with a short USB-C cable for recharging, with fast chargers (QC or PD) allowing for particularly quick charging of the power bank.

Charging Currents

Mode	Voltage range	Max. charging current	Maximum power
USB-A	5.0 V DC	4.5 A	22.5 W
USB-A	9.0 V DC	2.0 A	18.0 W
USB-A	12.0 V DC	1.5 A	18.0 W
USB-C	5.0 V DC	3.0 A	15.0 W
USB-C	9.0 V DC	2.2 A	20.0 W
USB-C	12.0 V DC	1.7 A	20.0 W
USB-C PPS	3.3 - 11.0 V DC	2.0 A	22.0 W
USB-A + USB-C	5.0 V DC	3.0 A	15.0 W

Multi Safe Technology

With ANSMANN you play it safe. The integrated over-charging protection ensures that the Power bank stops the charge process automatically once charging has been successfully completed.

The deep discharge protection switches the Power bank off as soon as the voltage of the Power bank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

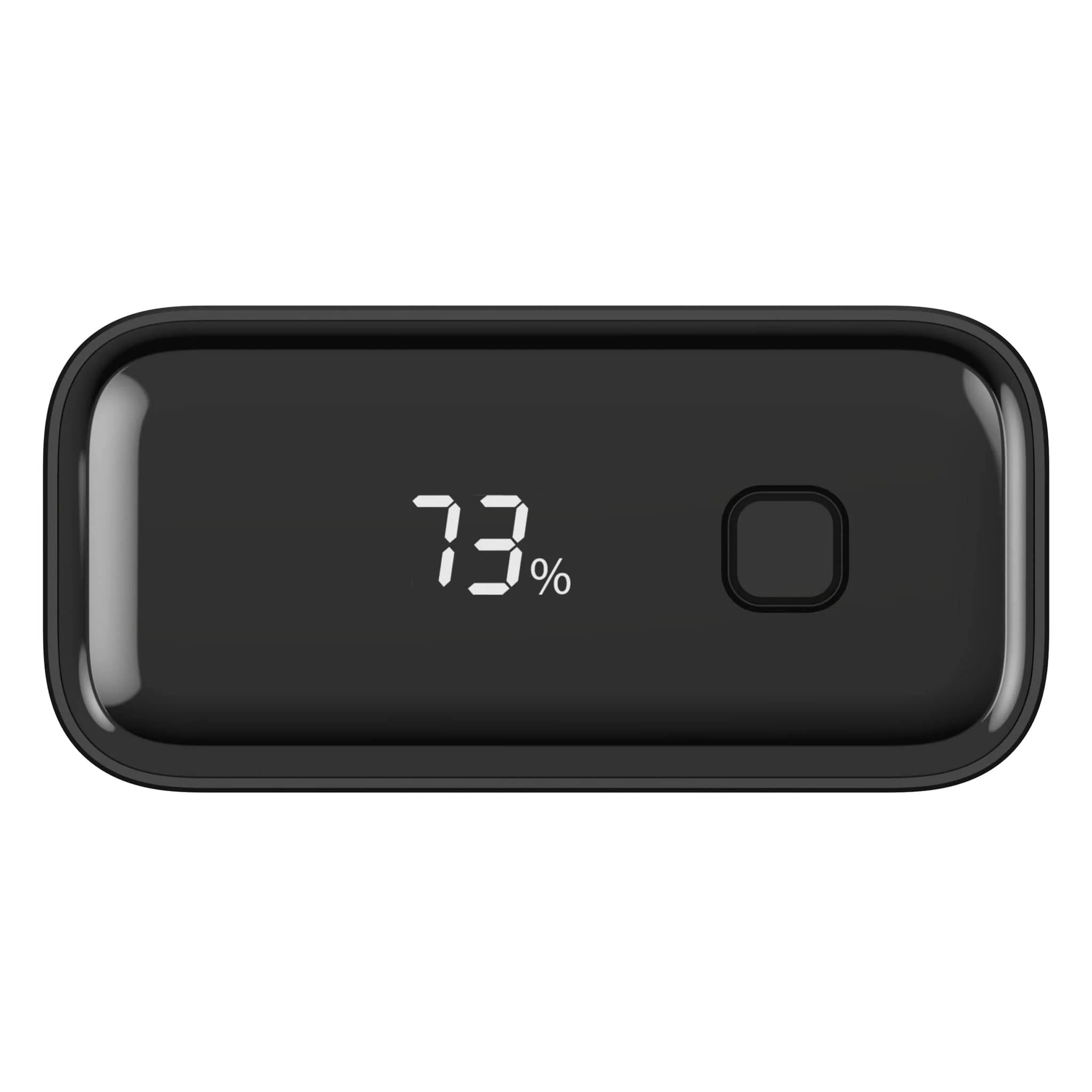

LED capacity indicator

The charge level indicator can be activated at the touch of a button, providing information about the current capacity in percent via the discreet digital LED display.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL. Why?

---

Features

• 20,000mAh lithium-polymer power bank
• Up to 22.5W max output
• USB-C input and output
• USB-A output, supports Quick Charge 3.0 and Huawei SuperCharge
• USB-C supports Power Delivery up to 20W and PPS support up to 22W
• Maximum output current: 4.5A
• Digital LED display with percentage charge indicator
• Automatic voltage detection and charge current regulation
• Overcharge, overcurrent, overvoltage and short-circuit protection
• Compact size: 8.8 x 6.3 x 3cm
• Weight: 0.32kg

Specifications

Ports entrance	USB Type-C
Ports output	USB Type-C, USB-A
Energy	77 Wh
Output voltage	5 - 12V DC
Functions	Automatic voltage detection, charging current regulation, overcharge protection, overcurrent protection, overvoltage protection, short circuit protection
Max. output current	4.5 A
Max. input current	2 A
Charging cycles	300
Input voltage	5 - 12V DC
Cell chemistry	Lithium polymer
Nominal voltage	3.85 V
Nominal capacity	20000 mAh
Maximum output power	22.5 W
Maximum input power	18 W
Colour	black
Storage temperature	-20 - 40 °C
Operating temperature	-10 - 40 °C

Resources

• Manual
• Datasheet
• EAN: 4013674191925
• Product number: ANSMANN 1700-0155

Package Contents

• 1x ANSMANN PB222PD 20,000mAh 22.5W PD Power Bank
• 1x USB-C cable
