$9.80The Story
The Arducam high-resolution autofocus camera module for the Raspberry Pi is an exclusive camera board that takes what other leading camera modules offer and excels in every single aspect.
The camera module has a resolution of 16 megapixels, an autofocus lens, an official camera module form factor and boatloads of improvements. The camera is the ideal choice for personal and industrial users alike, compatible with any existing Raspberry Pi models and works with the latest software from the Raspberry Pi Foundation, leveraging the same tuning algorithms used in the oļ¬cial camera modules.
The package contains the camera board with a Sony IMX519 sensor and autofocus lens and now includes two different FPC cables for use with different boards, including Pi 5 and Zero! We also stock a compatible case!
Review Video
Check out this early preview review from Jeff GeerlingĀ (shows the case as included however the retail version does not include this but is available as a separate product)
Features
- 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496 (twice as high as the v2 camera and 40% higher than the HQ camera)
- Compatible with any Raspberry Pi board with a MIPI/CSI interface
- Runs directly on the Raspberry Pi OS without much configuration
- Built-in autofocus motor allows you to get focus quickly so that you can focus to infinity no matter where you place your camera
- Minimum focus distance: 10cm
- Longest allowed exposure time: 200 seconds
- Can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second
- Provides an effective 80-degree field of view
- Same size as the Official Raspberry Pi Camera V2
- Compatible housing with tripod mounting point available separately
Specifications
| Sensor | Sony IMX519 stacked Back-illuminated sensor 16 megapixels 1.22 Āµm Ć 1.22 Āµm pixel size 7.103 mm diagonal (Type 1/2.534) |
| Output | RAW10/8, COMP8 |
| Lens: Autofocus | Autofocus; f/1.75; EFL: 4.28; FoV: 80Ā° Focus Range: 10 cm ~ infinite |
| IR cut Filter | Integrated |
| Video Modes | 1080p@30fps,Ā 720p@60fps |
| Linux integration | V4L2 driver available |
| Ribbon Cable Length | 150mm |
Resources
- 3D Drawing
- Manual

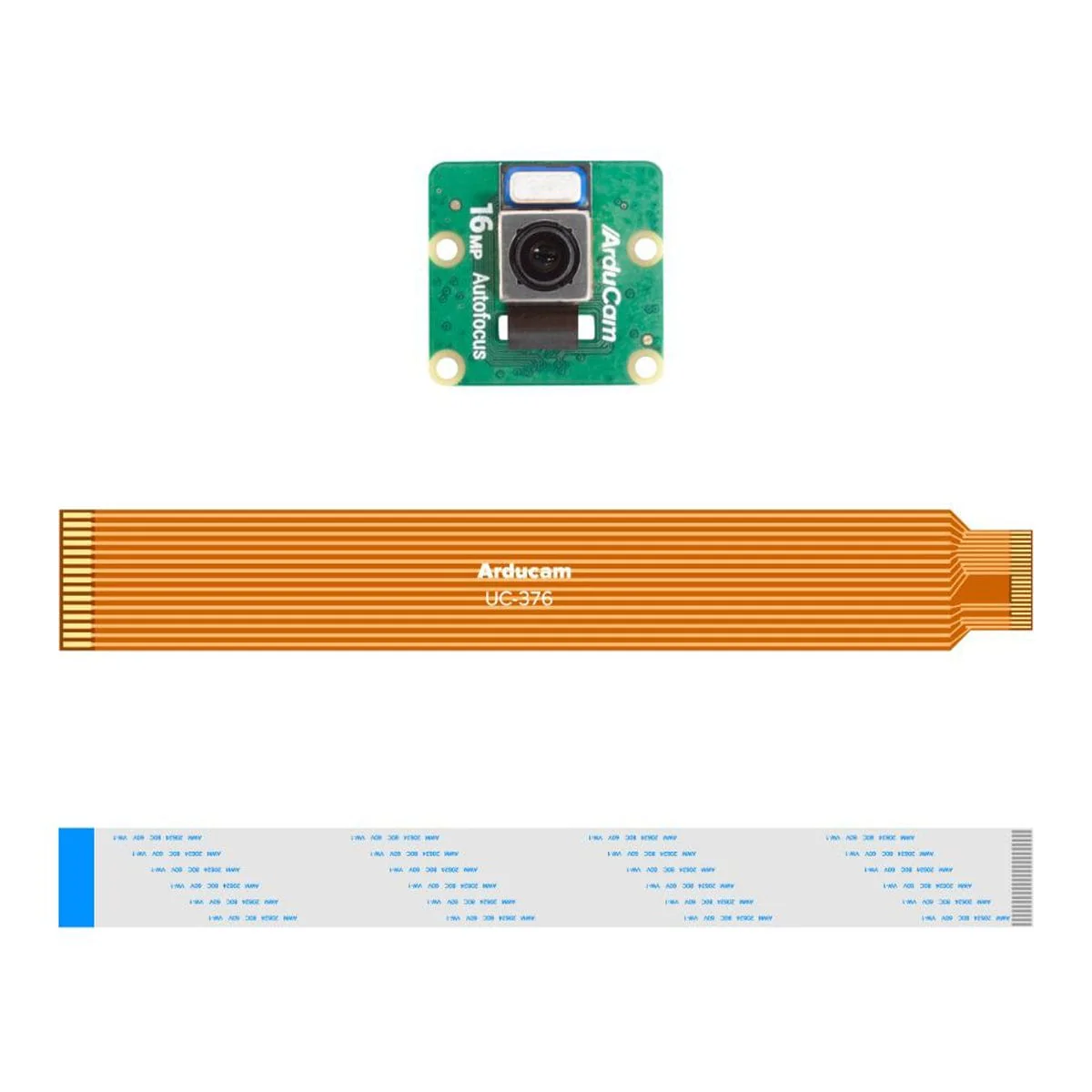

Package Contents
- Arducam IMX519 Autofocus Camera Module
- 1 x 22pin to 22pin FPC Cable (15cm) for Pi 5, Pi Zero
- 1 x 15pin to 22pin FPC Cable (15cm) for Pi 4B, 3B+
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Arducam high-resolution autofocus camera module for the Raspberry Pi is an exclusive camera board that takes what other leading camera modules offer and excels in every single aspect.
The camera module has a resolution of 16 megapixels, an autofocus lens, an official camera module form factor and boatloads of improvements. The camera is the ideal choice for personal and industrial users alike, compatible with any existing Raspberry Pi models and works with the latest software from the Raspberry Pi Foundation, leveraging the same tuning algorithms used in the oļ¬cial camera modules.
The package contains the camera board with a Sony IMX519 sensor and autofocus lens and now includes two different FPC cables for use with different boards, including Pi 5 and Zero! We also stock a compatible case!
Review Video
Check out this early preview review from Jeff GeerlingĀ (shows the case as included however the retail version does not include this but is available as a separate product)
Features
- 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496 (twice as high as the v2 camera and 40% higher than the HQ camera)
- Compatible with any Raspberry Pi board with a MIPI/CSI interface
- Runs directly on the Raspberry Pi OS without much configuration
- Built-in autofocus motor allows you to get focus quickly so that you can focus to infinity no matter where you place your camera
- Minimum focus distance: 10cm
- Longest allowed exposure time: 200 seconds
- Can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second
- Provides an effective 80-degree field of view
- Same size as the Official Raspberry Pi Camera V2
- Compatible housing with tripod mounting point available separately
Specifications
| Sensor | Sony IMX519 stacked Back-illuminated sensor 16 megapixels 1.22 Āµm Ć 1.22 Āµm pixel size 7.103 mm diagonal (Type 1/2.534) |
| Output | RAW10/8, COMP8 |
| Lens: Autofocus | Autofocus; f/1.75; EFL: 4.28; FoV: 80Ā° Focus Range: 10 cm ~ infinite |
| IR cut Filter | Integrated |
| Video Modes | 1080p@30fps,Ā 720p@60fps |
| Linux integration | V4L2 driver available |
| Ribbon Cable Length | 150mm |
Resources
- 3D Drawing
- Manual
Package Contents
- Arducam IMX519 Autofocus Camera Module
- 1 x 22pin to 22pin FPC Cable (15cm) for Pi 5, Pi Zero
- 1 x 15pin to 22pin FPC Cable (15cm) for Pi 4B, 3B+
