The Story
Place your Raspberry Pi camera up to 15 metres away with the Arducam LAN Cable Extension Kit. It converts the MIPI CSI-2 interface to Ethernet, works out of the box with Pi 5/4/3/CM, and supports a wide range of cameras.
The Arducam LAN Cable Extension Kit lets you place your Raspberry Pi camera up to 10โ15 metres away from your board using a standard LAN cable (1m cable included). It converts the high-speed MIPI CSI-2 interface into an Ethernet-compatible connection, allowing far greater range than a traditional FFC cable - and without needing any additional software or configuration.

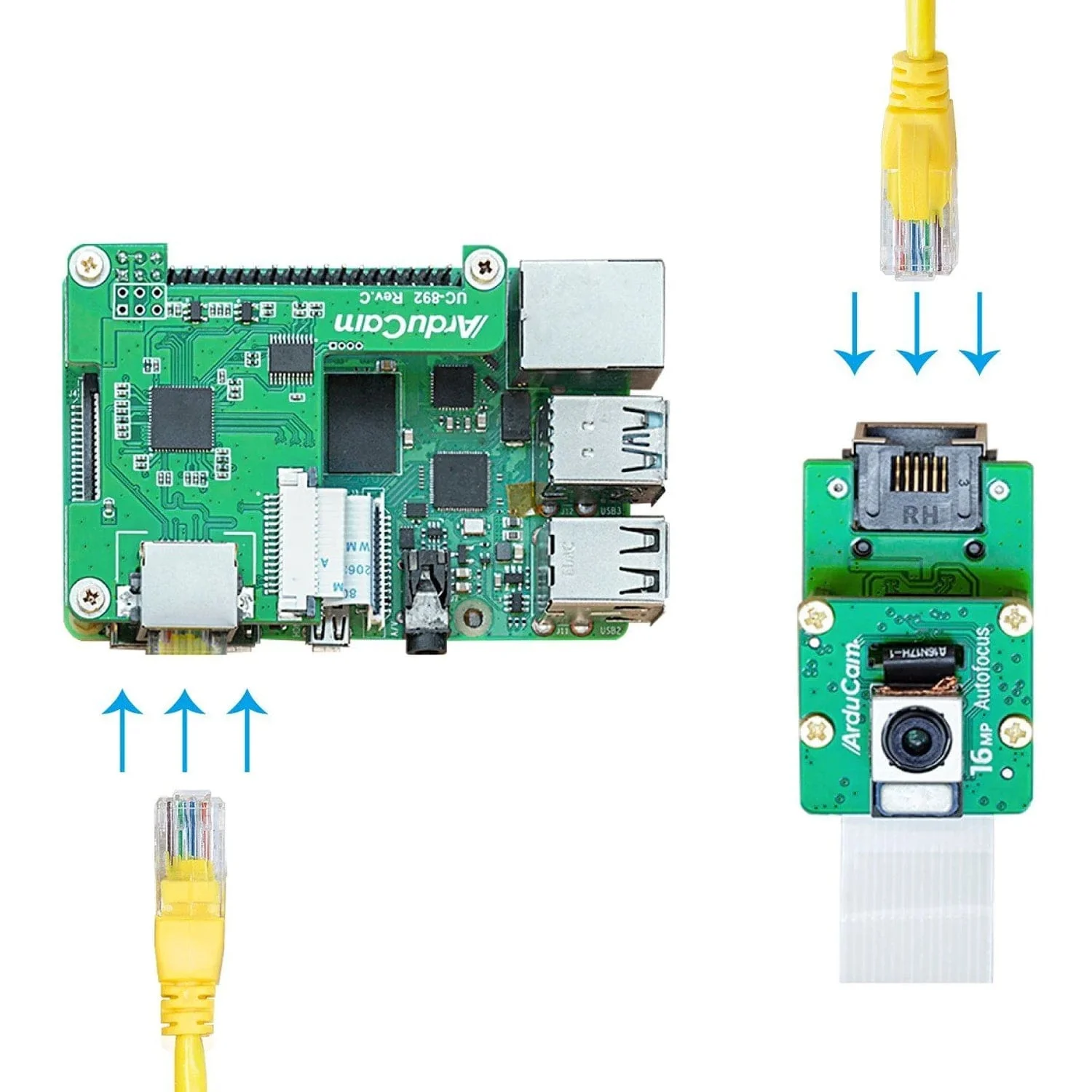

Itโs plug-and-play with Raspberry Pi 5, 4 and 3 and Compute Modules (CM modules via carrier boards with appropriate IO available). Simply connect your camera and board at each end of the LAN cable, and youโre ready to go. A 1m Rj45 cable is included to get you started, but you'll find longer RJ45 cable options in the store.
The kit supports a wide range of camera modules, including:
- Official Raspberry Pi Camera Modules
-
Arducam camera modules
- OV5647, IMX219, IMX296, IMX477, IMX708
- 16MP, 64MP Hawkeye, 64MP Owlsight
- ToF cameras
Raspberry Pi and camera modules not included
Supported Camera and Modes
| Supported cameras | Video Modes |
| Camera Module V1 (OV5647) | 1080p 30 fps, 720p 60fps, 480p 60fps/90fps |
| Camera Module V2 (IMX219) | 1080p47, 1640ร1232p41, 640ร480p206 |
| HQ Camera (IMX477) | 2028ร1080p50, 2028ร1520p40, 1332ร990p120 |
| Camera Module V3 (IMX708) | 2304ร1296p56, 2304ร1296p30 HDR, 1536ร864p120 |
| Arducam IMX296 Global Shutter Camera (B0445) | 1440ร1080@60fps |
| Arducam IMX519 Camera | 1080p30, 720p60 |
| Arducam 64MP Camera (B0399) | 1080p30, 720p60, 640ร480p60/90 |
| Arducam 64MP Camera (B0483) (link-frequency=456000000) | 1080p30, 720p60, 640ร480p60/90 |
| Arducam ToF Camera (B0410) | 240ร180@30fps |
Resources
- Arducam Wiki entry
- 3D drawing for U6248

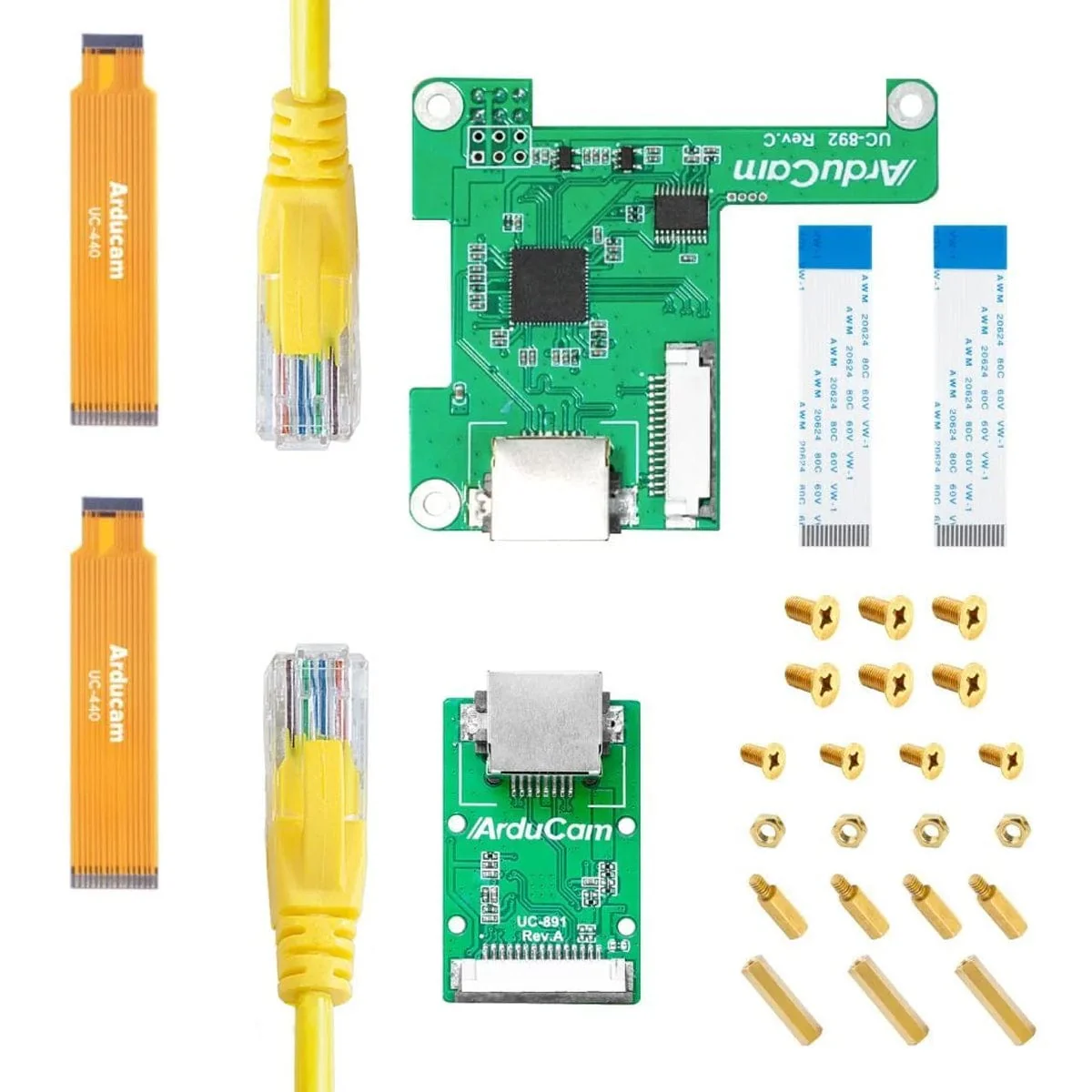

Package Contents
- 1x Rx board
- 1x Tx board
- 1x 1m LAN cable
- 2x 8cm ribbon flex cables for MIPI CSI-2 Transmission
- 2x 7.3cm 15-22pin FPC Cable
- 1x Mounting screw pack
Raspberry Pi and camera modules not included
