Arducam Mini 16MP IMX519 Camera Module for Raspberry Pi

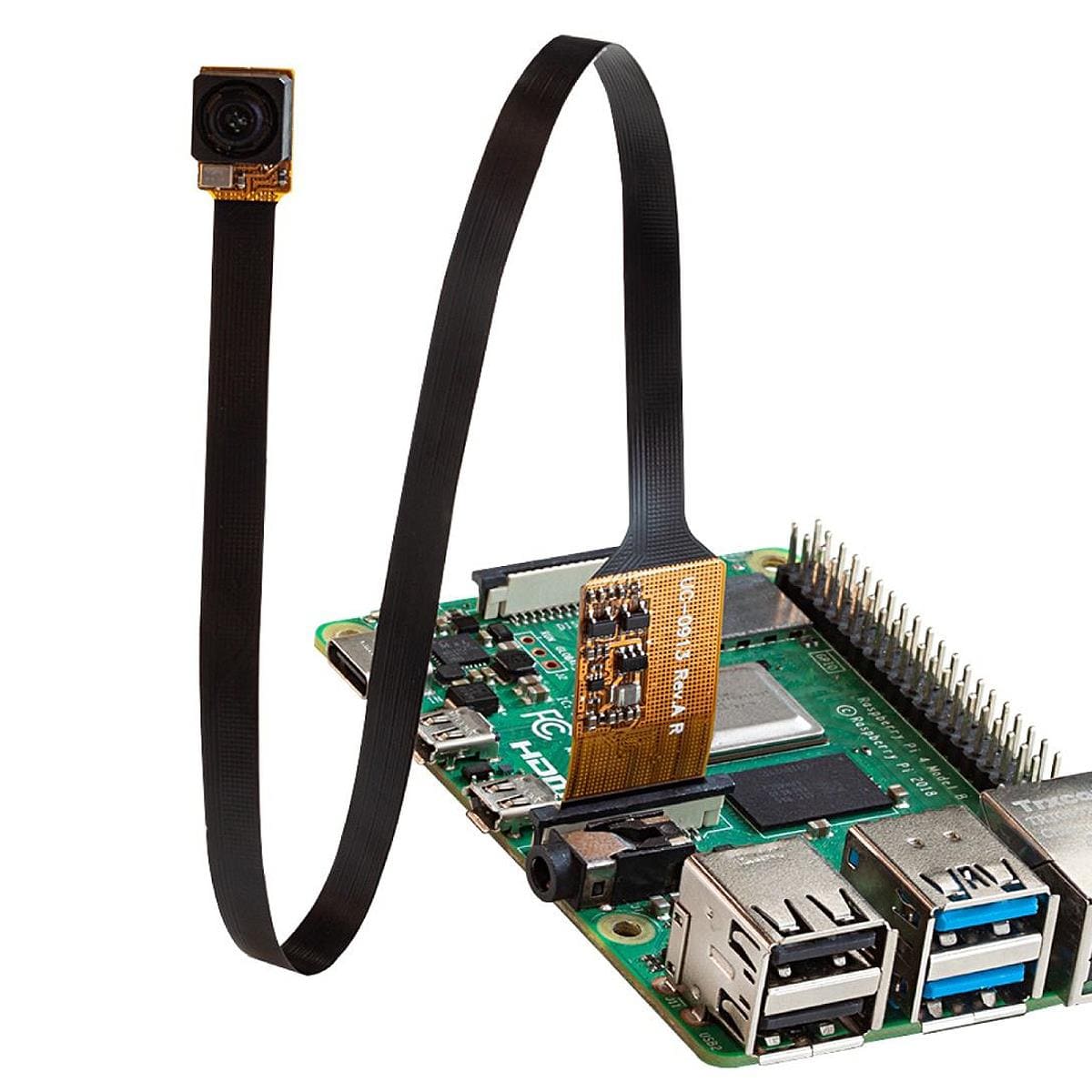

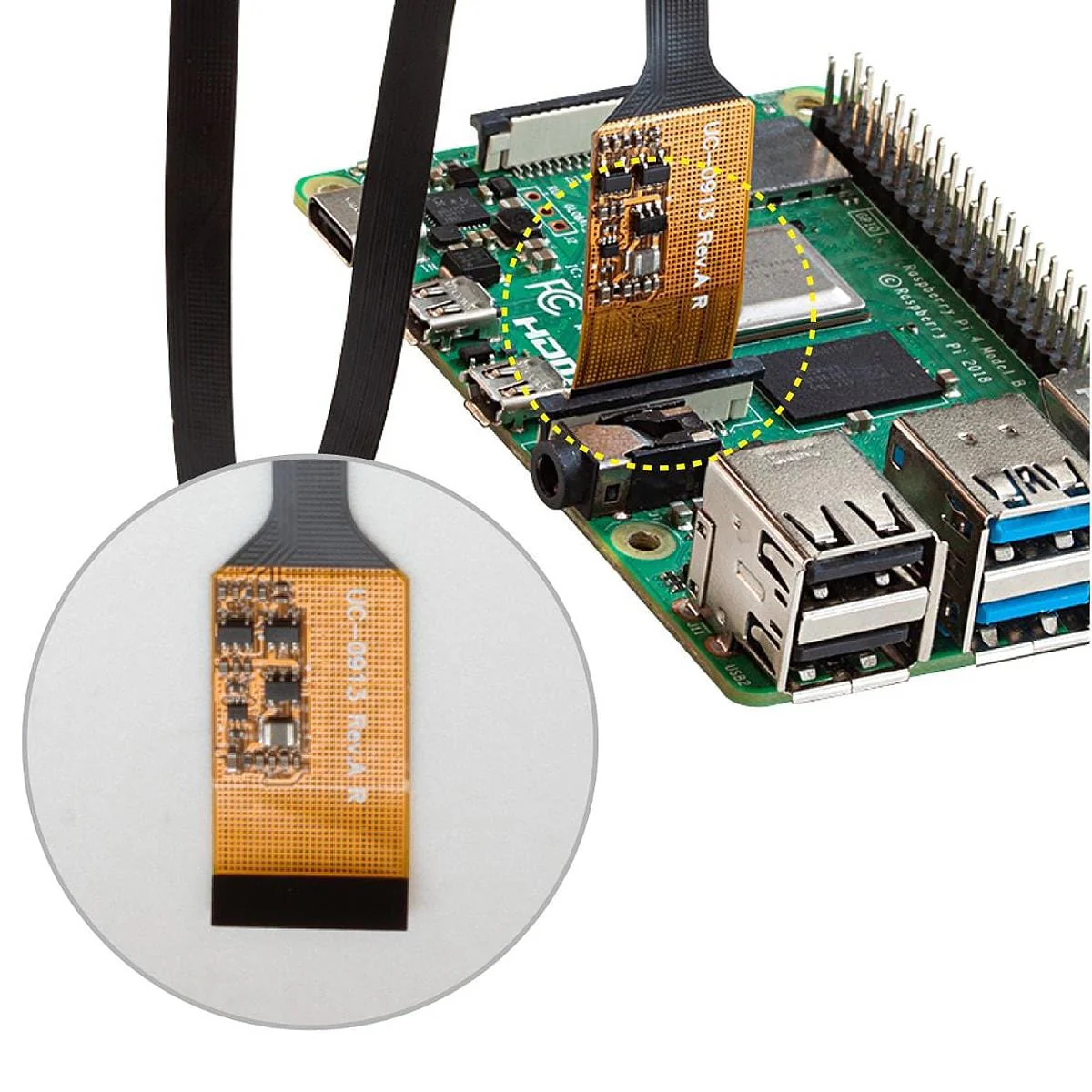

Compatible with the full-size CSI connector on the Raspberry Pi, this compact camera module offers an impressive 16MP via its Sony IMX519 sensor offering a pixel resolution of 4656 x 3496, twice as high as the Raspberry Pi V2 camera and 40% higher than the Raspberry Pi HQ camera!

Not compatible with the Raspberry Pi 5 or Pi Zero due to the different CSI connectors used.

This camera module uses a Sony IMX519 sensor with an F/1.75 80° FOV lens, capable of 1080p@30FPS or 720@60FPS video. It uses an integrated IR-cut filter - visible light only.

Please make sure you are running a recent version of Raspberry Pi OS.

Specification

Camera

• Sensor Sony IMX519 stacked, back-illuminated sensor
• 16 Megapixels
• Compatible with Raspberry Pi 4/3/2/B+ (not compatible with Pi Zero or Pi 5)
• Optical size: 1/2.534"
• Resolution: 16MP 4656x3496
• Output RAW10/8, COMP8
• Pixel size: 1.22µm*1.22µm
• Video Modes: 1080p@30fps, 720p@60fps
• Linux integration: V4L2 driver available

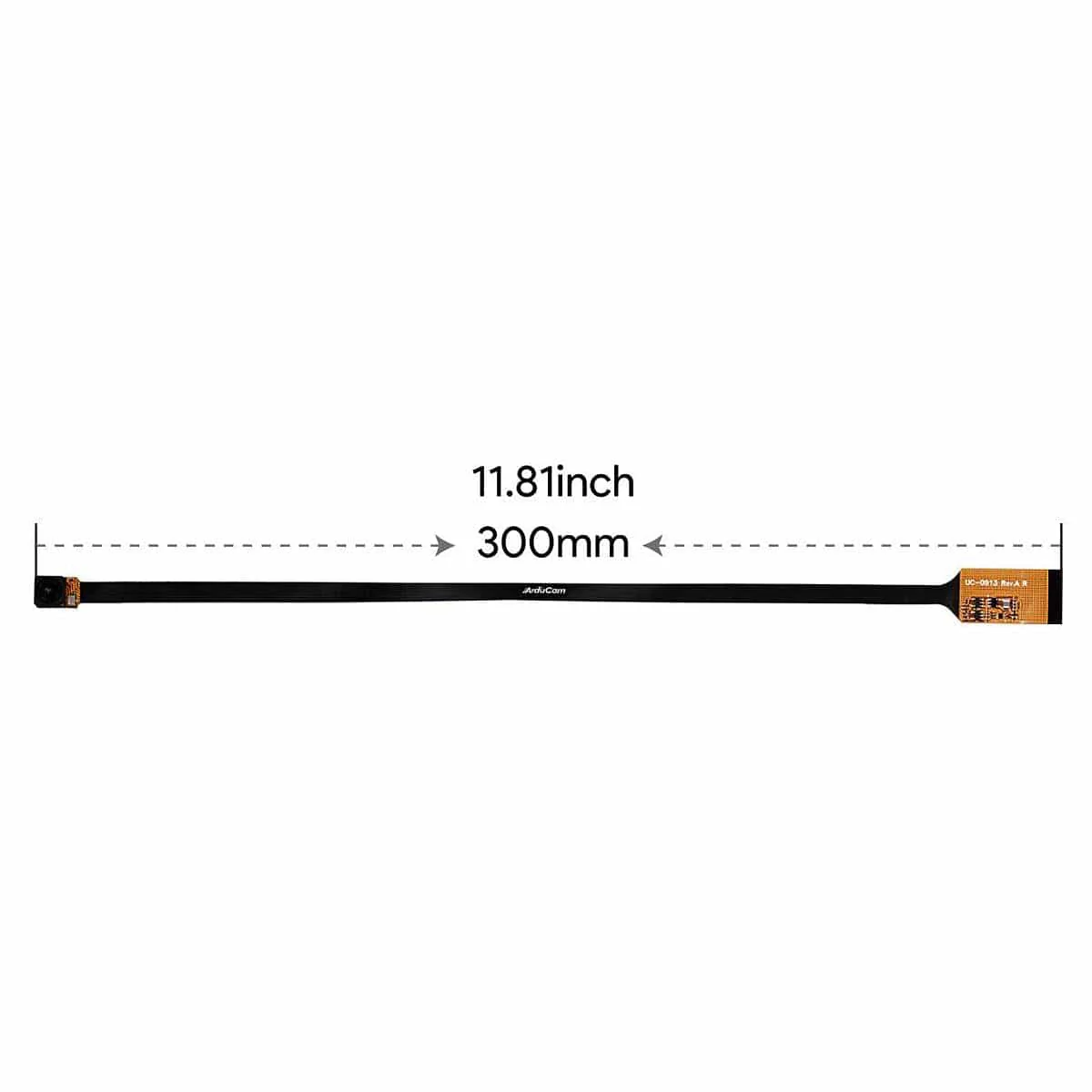

• Ribbon Cable Length: 300mm

Lens

• Field of View (FOV): 80°(H)
• Lens: f/1.75; EFL: 4.28
• IR Sensitivity: Integrated IR-cut filter, visible light only


Resources

• Product manual
• Common Issues & Fixes

Package Contents

• 1x 300mm 16MP Camera Module

Raspberry Pi not included
