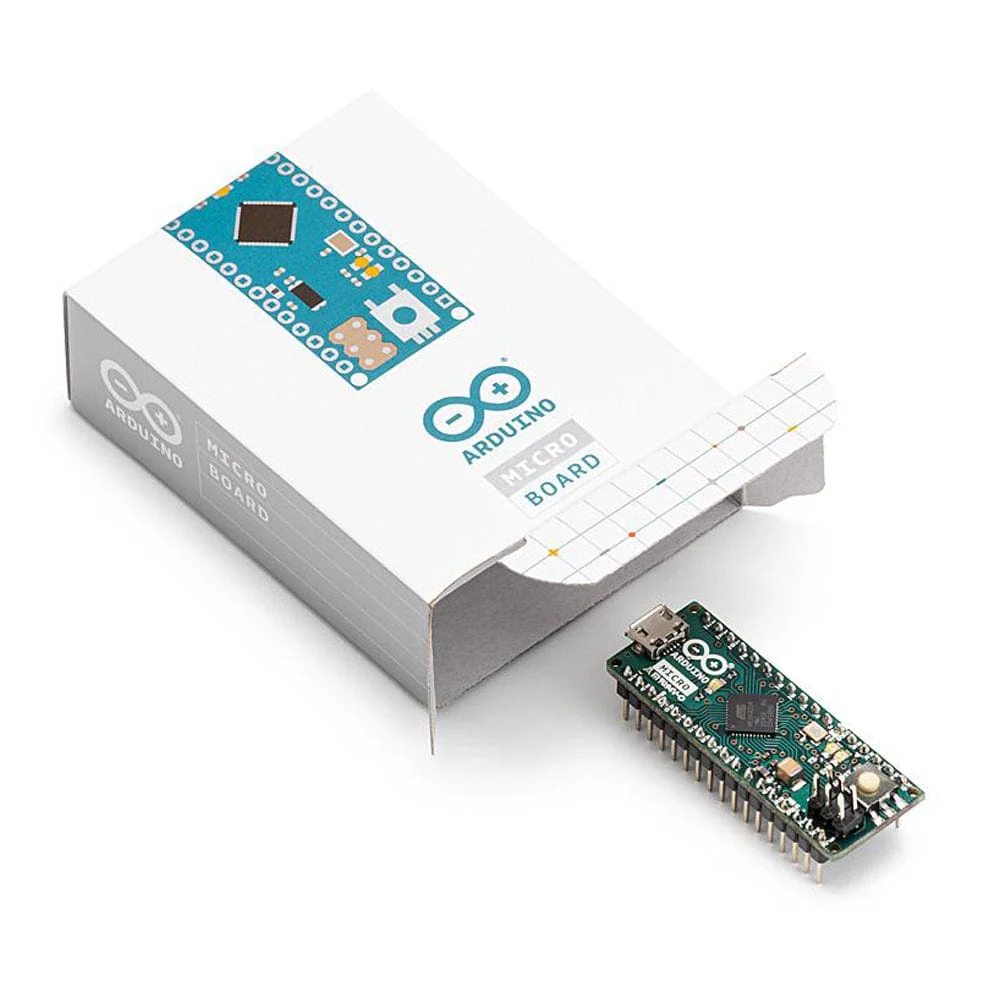

Arduino Micro (with headers)

The Arduino Micro comes with a built-in USB which makes the Micro recognizable as a mouse or keyboard.

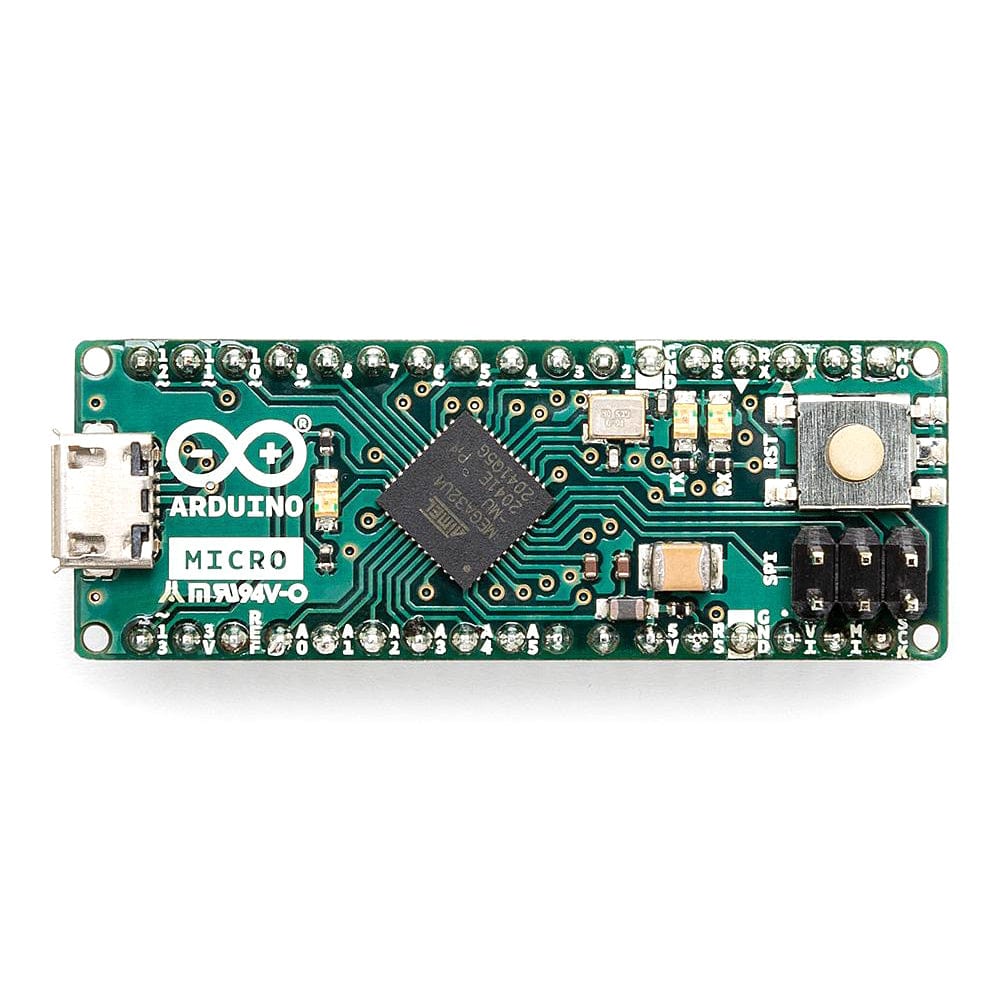

The Micro is a microcontroller board based on the ATmega32U4 (datasheet), developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analogue inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Getting Started

Find inspiration for your projects from the tutorial platform Project Hub.

You can find in the Getting started with the Arduino Micro section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section, you can find examples from libraries and built-in sketches as well as other useful information to expand your knowledge of the Arduino hardware and software.

Resources

• Development Environments
  • Arduino IDE
  • Arduino CLI
  • Arduino Web Editor
  • Arduino IoT Cloud
• Getting Started
• Project Hub
• Arduino Micro Pinout Diagram

Specifications

Microcontroller	ATmega32U4
Operating Voltage	5V
Input Voltage (recommended)	7-12V
Digital I/O Pins	20
PWM Channels	7
Analog Input Channels	12
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	32 KB (ATmega32U4) of which 4 KB used by the bootloader
SRAM	2.5 KB (ATmega32U4)
EEPROM	1 KB (ATmega32U4)
Clock Speed	16 MHz
LED_BUILTIN	13
Length	48 mm
Width	18 mm
Weight	13g
