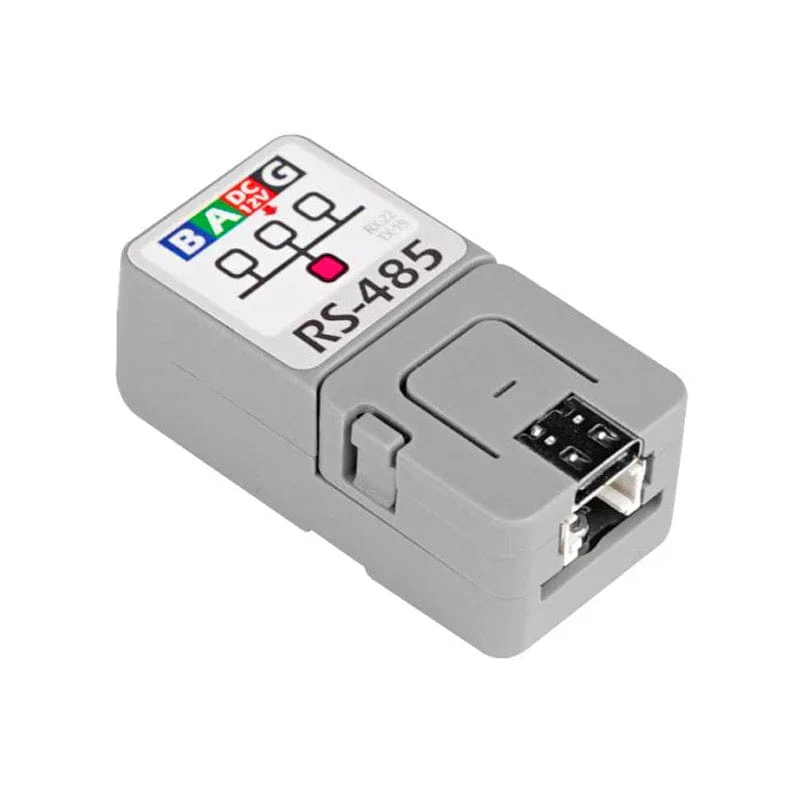

M5Stack ATOM RS485 DC/DC Voltage Converter Development Kit (SP3485EE) [discontinued]

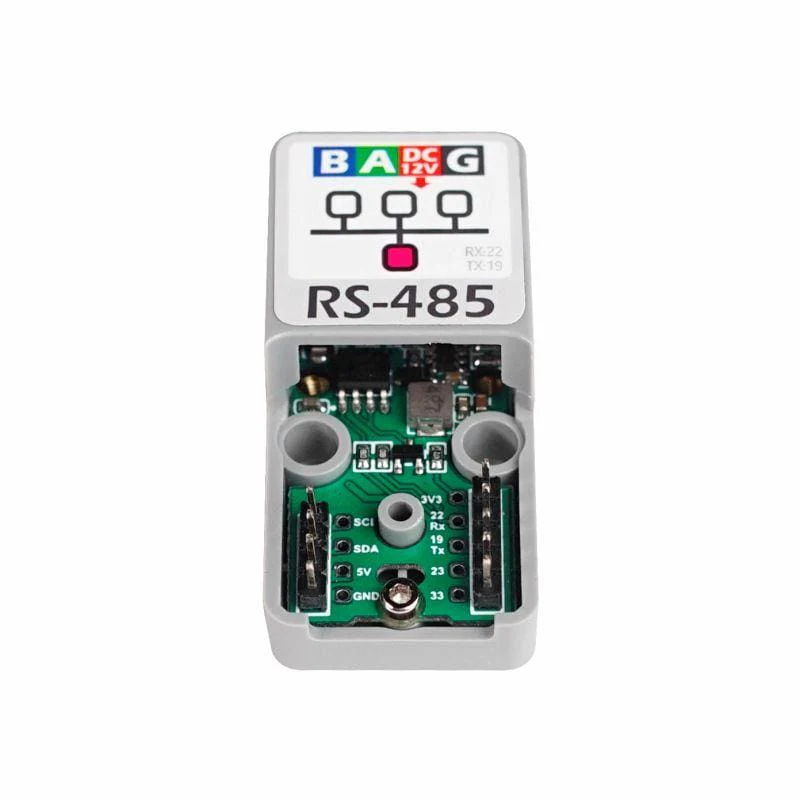

The ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It's function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports a multi-point system and is widely used in the industry. When the applications equipment needs to communicate and be controlled through RS485, the ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.

Features

• Compatible ATOM Matrix/ATOM Lite
• SP3485EE
• Built-in DC/DC
• Multipoint communication

Package Contents

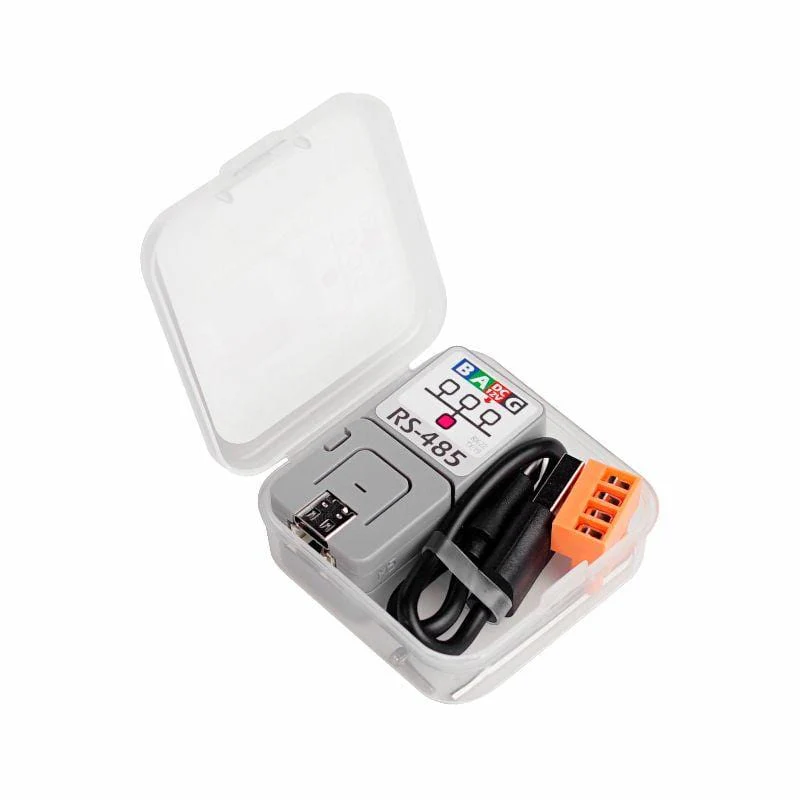

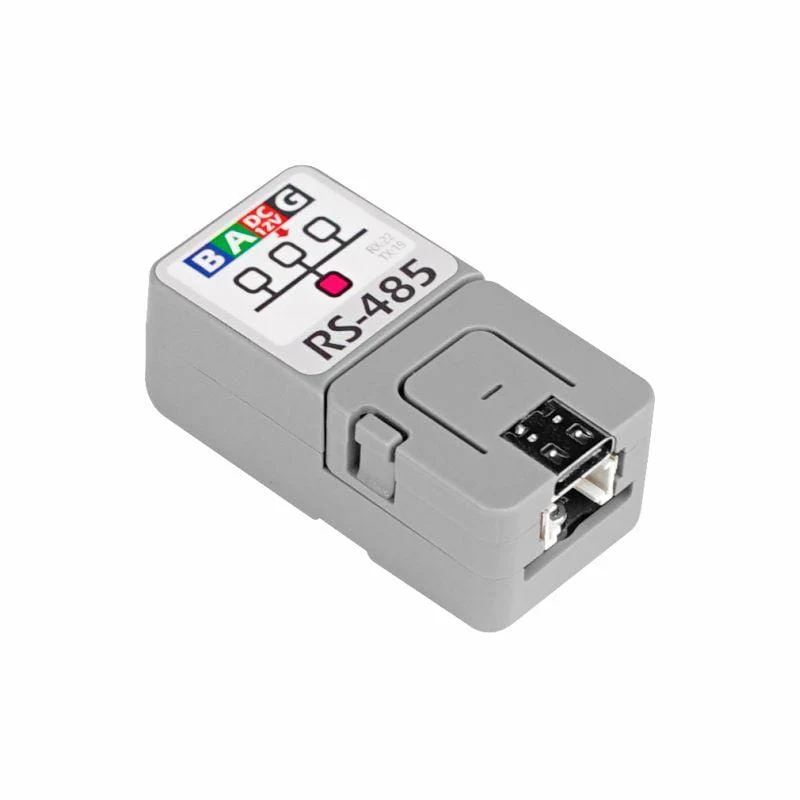

• 1x ATOM RS-485
• 1x ATOM Lite
• 1x Hex Key

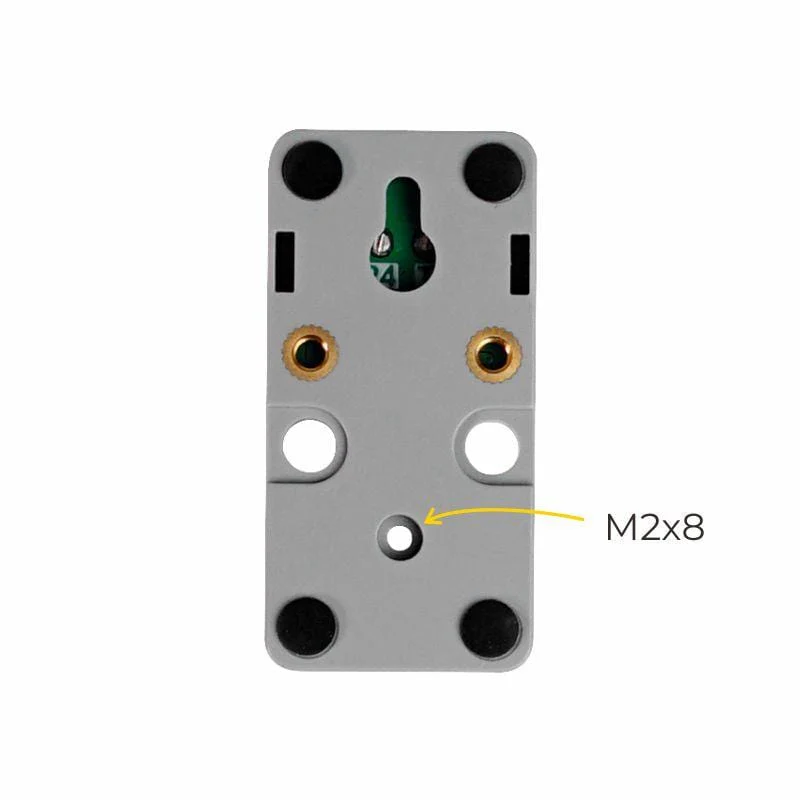

• 1x M2*8mm Hexagon socket cup head machine screw
• 1x 18cm TYPE-C Cable

Specifications

Specification	Parameter

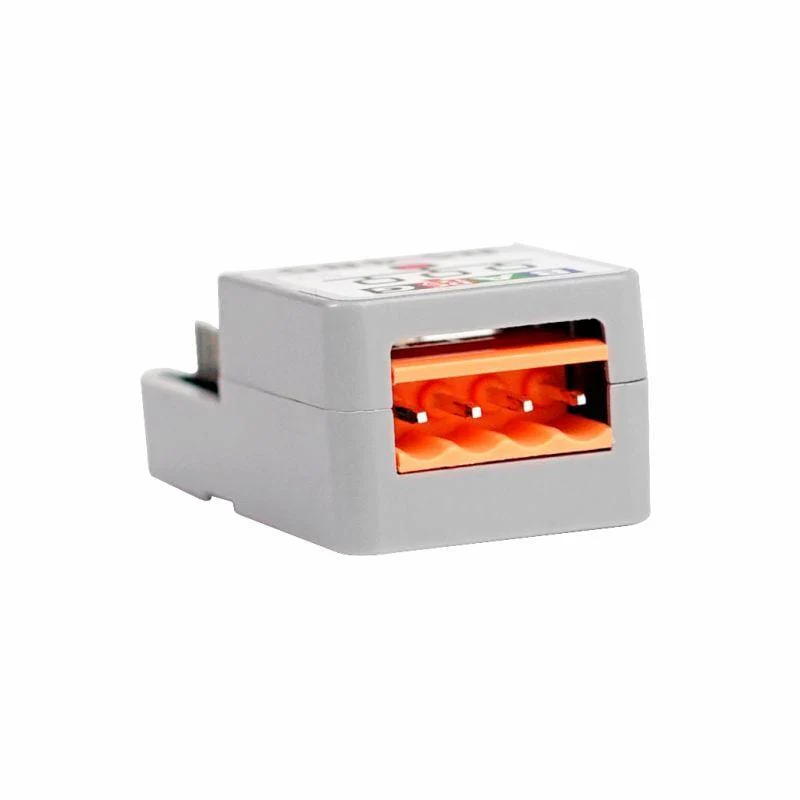

External port	VH-3.96 4P
Conversion level	5V12V
level-conversion IC	SP3485EE
DC-DC	A0Z1282CI
Net weight	28g
Gross weight	38g

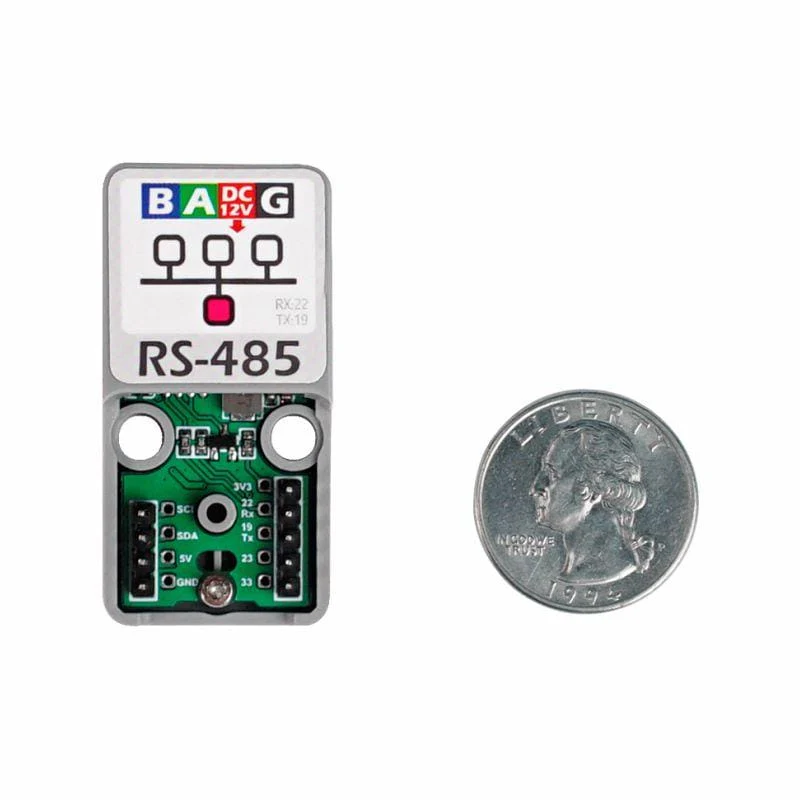

Product Size	24*48*18mm
Package Size	54*54*20mm
Case material	Plastic ( PC )
