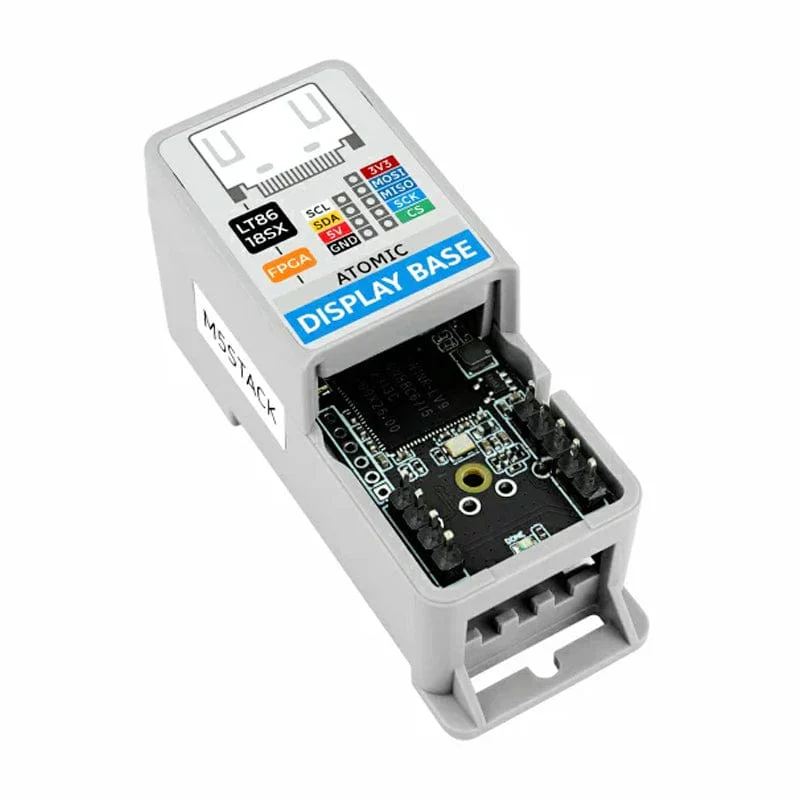

M5Stack Atom GW1NR - HDMI Display Base

The Atomic Display Base is an HDMI display driver unit that gives high-definition visuals with support for up to 720P (1280 x 720) output. Using FPGA technology, it emulates traditional SPI TFT-LCD data output, providing compatibility with a wide range of HDMI signal outputs through a dedicated RGB-to-HDMI chip. It pairs easily with ATOM series hosts, which in turn provides flexible memory and functionality configurations.

Note: The Atomic Display Base requires a display with adaptive resolution scaling. Some displays without adaptive resolution support may experience display issues.

Features

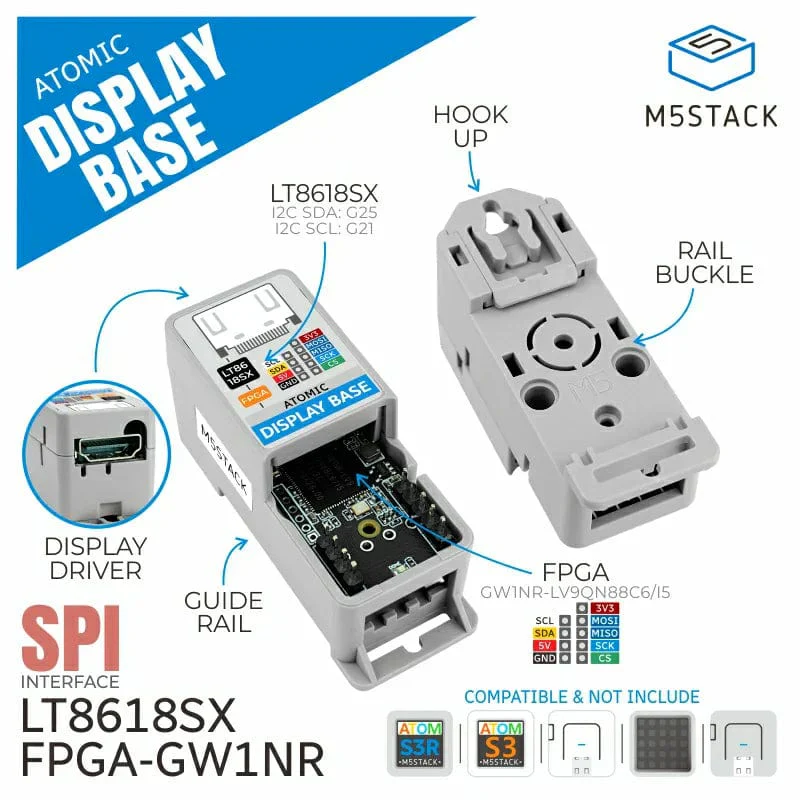

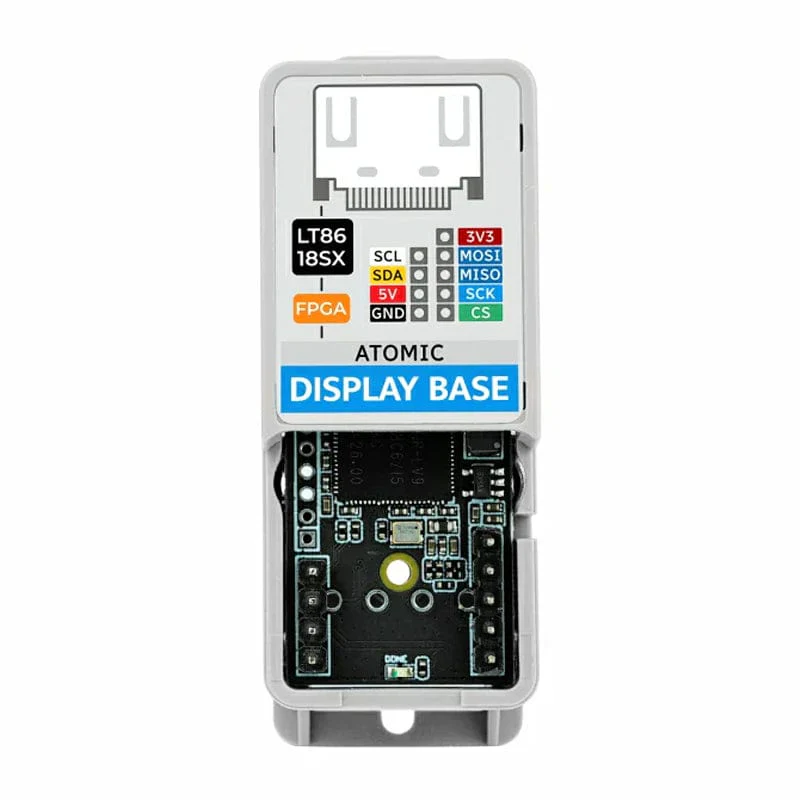

• Uses FPGA (Gowin GW1NR-9C)
• Built-in LT8618SX RGB-to-HDMI chip (supports 24-bit colour depth)
• SPI interface (FPGA) + I2C interface (LT8618SX)
• Maximum 720P (1280 x 720) image output
• Various output modes with optimized frame rates of up to 12 - 16 FPS
• Development platforms: Arduino, ESP32-IDF (UIFlow not yet supported)

Specifications

FPGA	Gowin GW1NR-9C
LT8618SX	RGB-to-HDMI chip supports 24-bit colour depth
Max Output Size	720P (1280 x 720)
Output Frame Rate	1280 x 720 60Hz

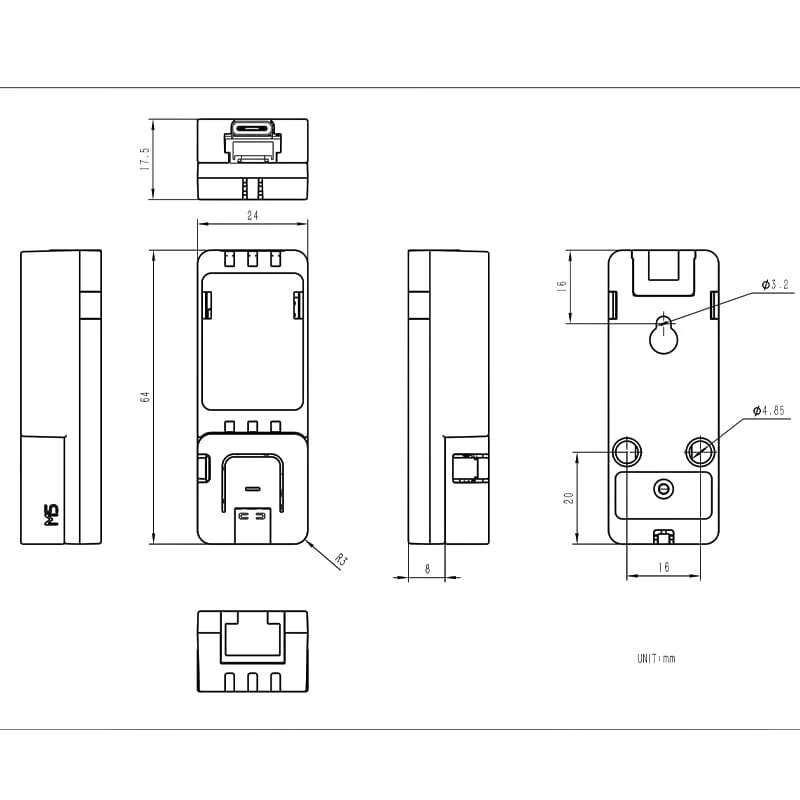

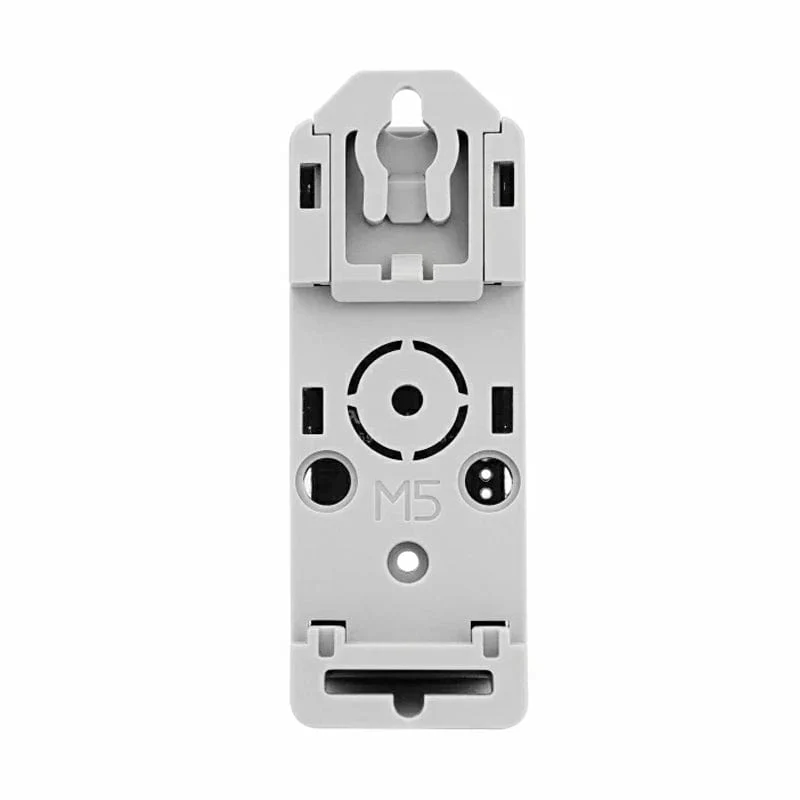

Product Size	64 x 24 x 29mm
Package Size	136 x 92 x 30mm
Product Weight	15.2g
Package Weight	17.3g

Resources

• Product Wiki

Package Contents

• 1x Atomic Display Base
