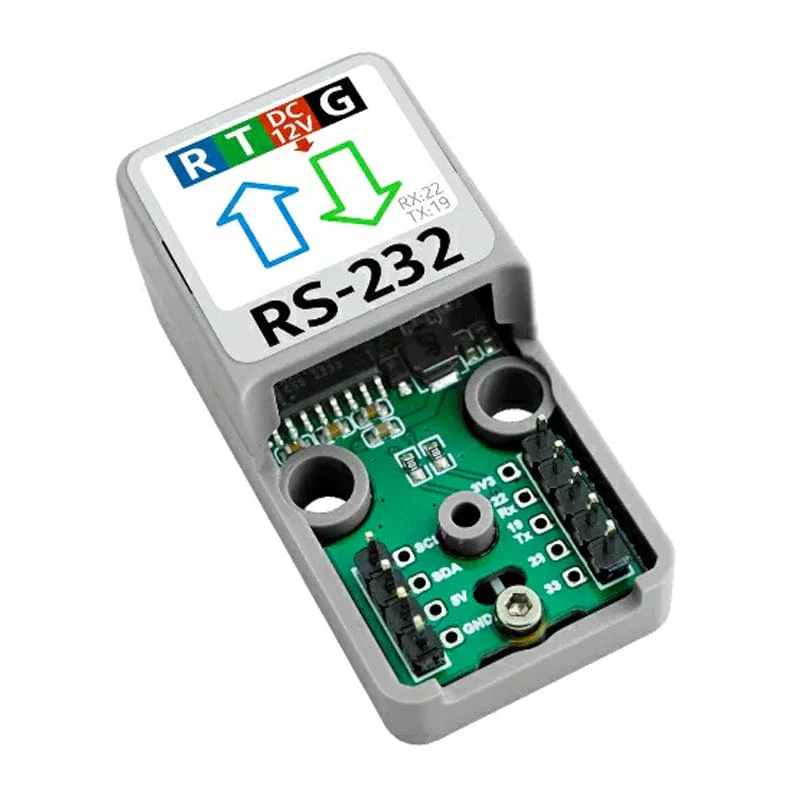

ATOMIC RS232 Base

The Atomic RS232 Base is a specialised TTL-RS232 level converter, made for use with Atom Series controllers. It provides communication between computers and peripheral devices, adhering to the industry-standard RS-232 protocol for serial communication.

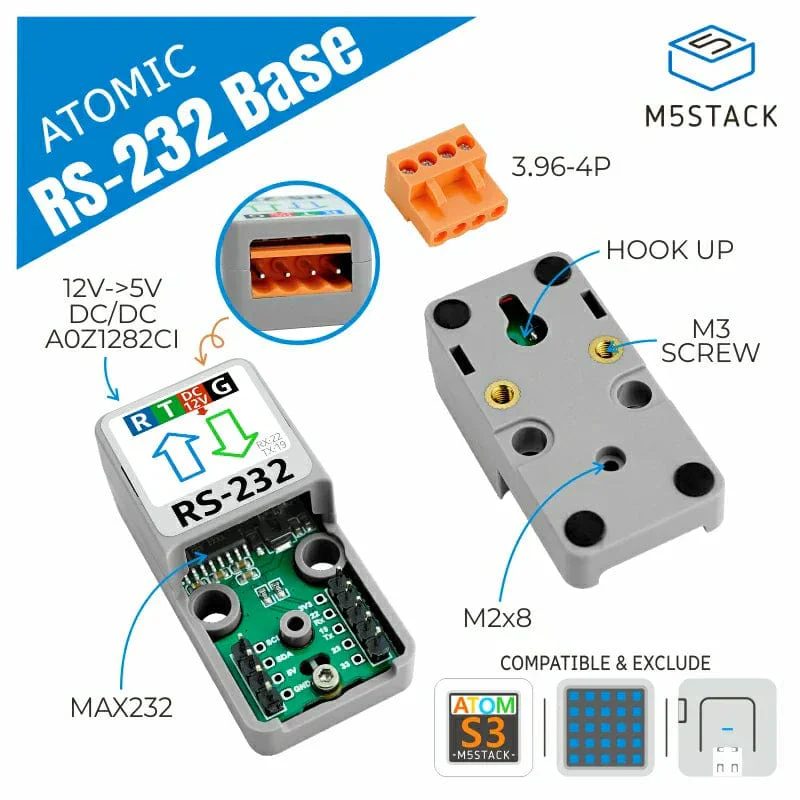

At the heart of the Atomic module is the MAX232 chip, to run it effectively. This chip provides a bidirectional conversion between TTL and RS232 voltage levels, which significantly enhances the compatibility and functionality of your Atom Series controller with RS232-compatible devices.

We've enhanced the module's capabilities by integrating an internal DC-DC buck voltage regulator chip. This provides power to your ATOM device using an external 12V source, greatly enhancing convenience and providing added flexibility in its use.

Features

• Compatible ATOM Matrix/ATOM Lite/ATOMS3 Lite/ATOMS3
• Built-in DC/DC
• Full-duplex communication

Specifications

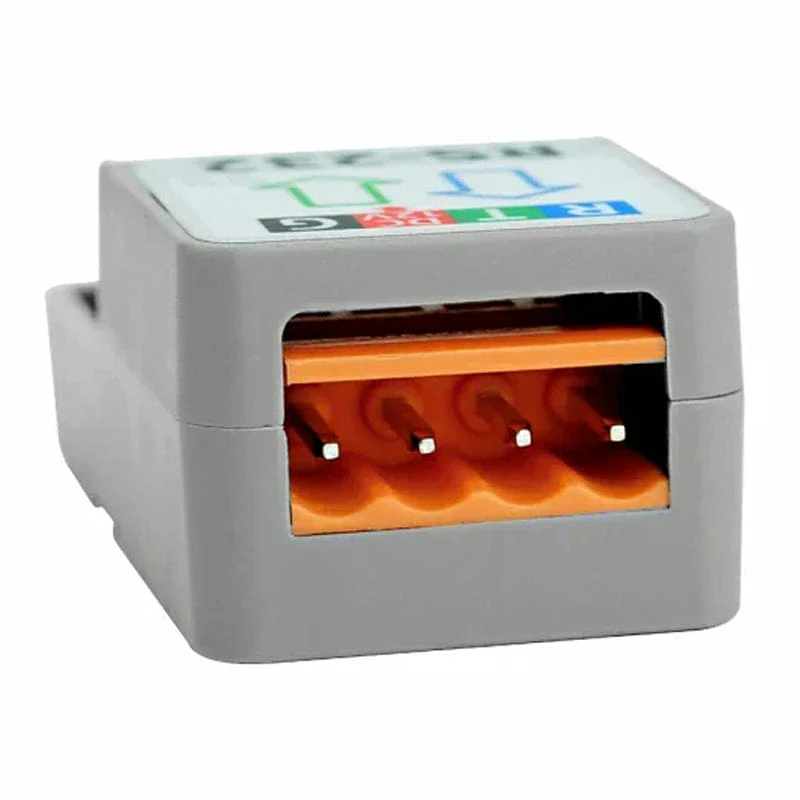

External port	VH-3.96 4P
Level-conversion IC	MAX232
DC-DC	A0Z1282CI
Case Material	Plastic (PC)
Product Size	24 x 48 x 18mm
Package Size	136 x 92 x 13mm
Product Weight	18g
Package Weight	28g

Resources

• Product Wiki

Package Contents

• 1x Atomic RS232 Base
• 1x VH3.96-4P
