The Story

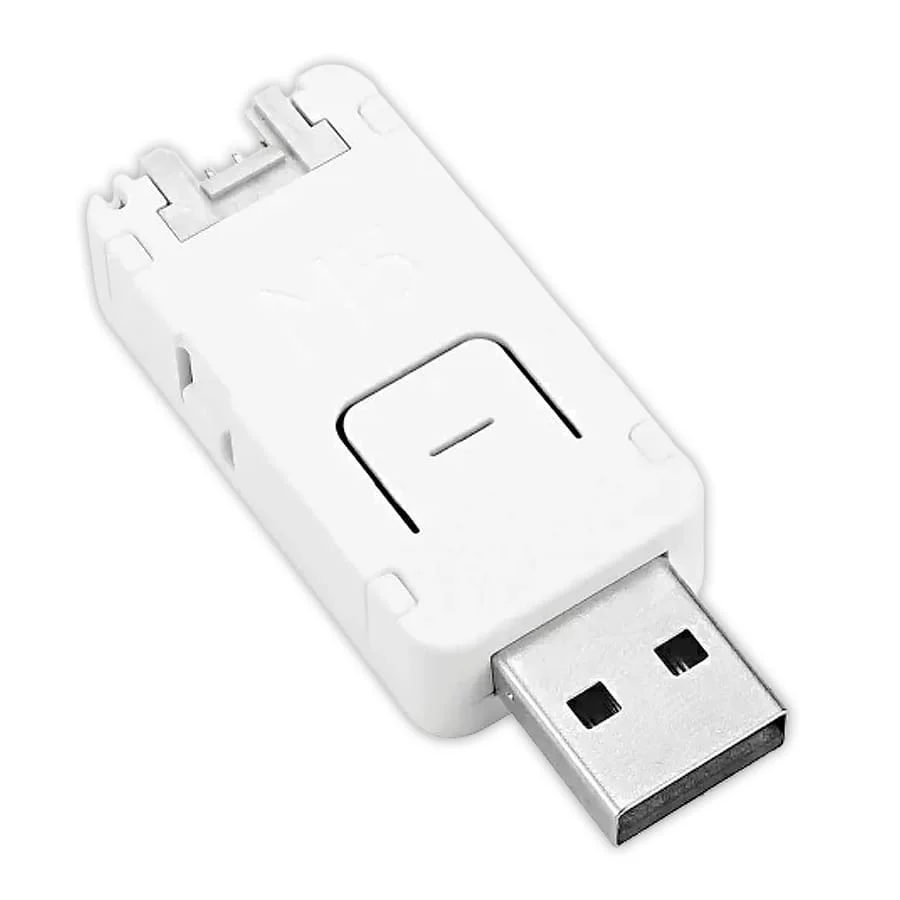

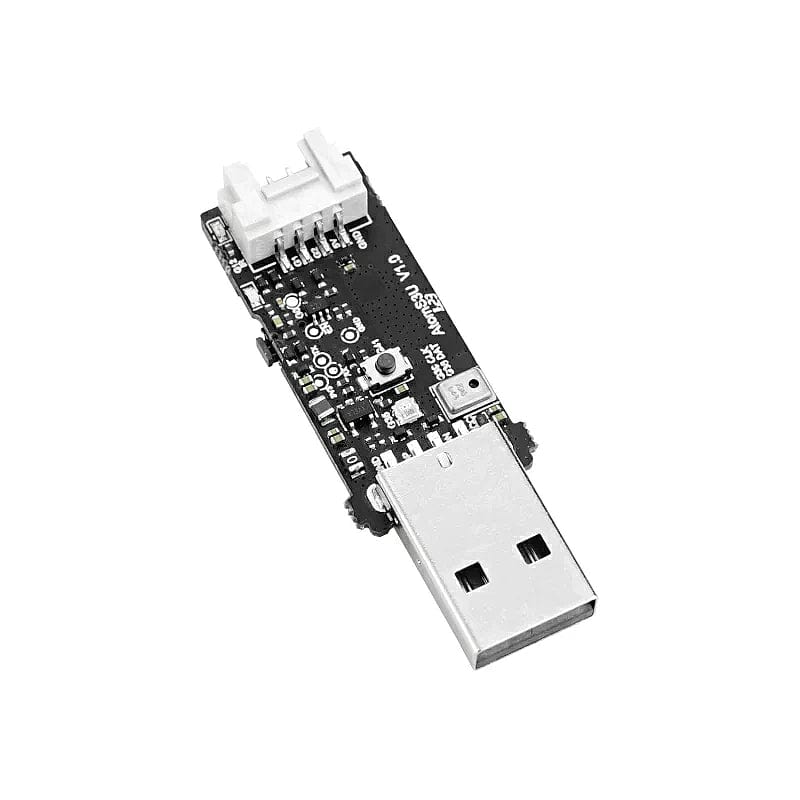

The M5Stack AtomS3U ESP32S3 Development Kit is a U disk form ESP32-S3 multi-function development board, using Espressif's ESP32S3 main control chip, dual-core Xtensa LX7 processor, main frequency 240MHz and built-in Wi-Fi function.

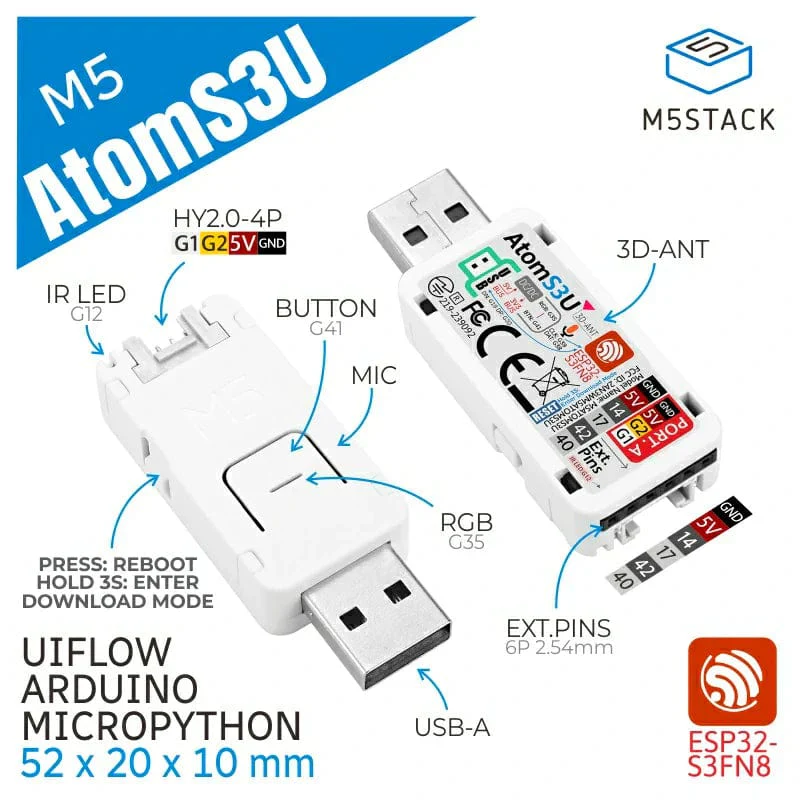

Its interfaces include a USB-A port (support OTG), one Grove port, a [email protected] header (including four GPIOs), peripherals include 1PDM microphone, one IR tube, and one programmable RGB-LED.
The product can be used in scenarios such as human-computer interaction, voice input/recognition (STT), and IO control.
Features
- ESP32-S3FN8@240Mhz,Xtensa LX7,WIFI,OTG,CDC
- Integrated programmable RGB LEDs and buttons
- Built-in infrared emitter
- Expandable pin interface with GROVE
- Development platform: MicroPython, Arduino
Specifications
| Resources | Parameters |
| MCU | ESP32-S3FN8@Xtensa LX7,WIFI,OTG,CDC |
| Microphone | SPM1423 |
| interface | USB-A |

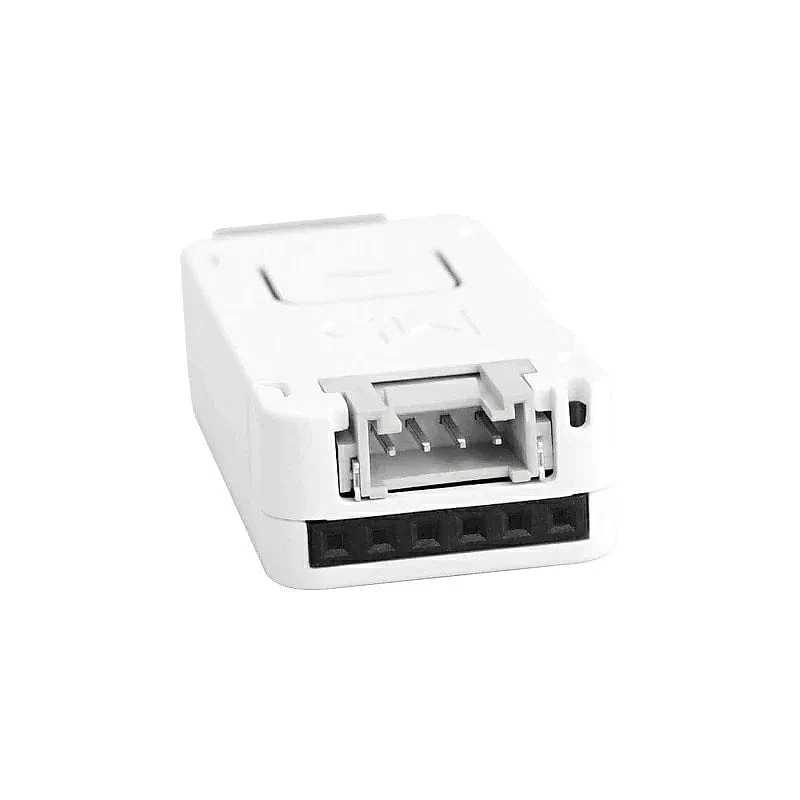

| Grove interface | PORTA |

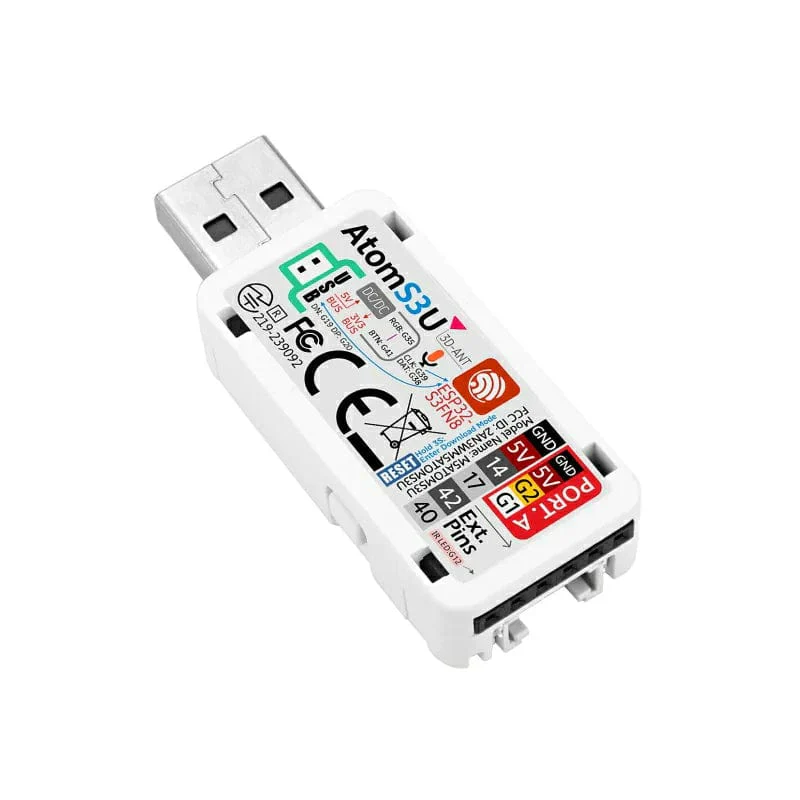

| 2.54-6P interface | GND/VIN_5V/G14/G17/G42/G40 |
| Microphone sensitivity | 94dB SPL@1KHz typical: -22dBFS |
| Microphone signal-to-noise ratio | 94dB SPL@1KHz, A-weighted Typical: 61.4dB |
| Support for entering sound frequencies | 100Hz ~ 10KHz |
| Supports PDM clock frequency | 1.0 ~ 3.25MHz |
| RGB | WS2812 |

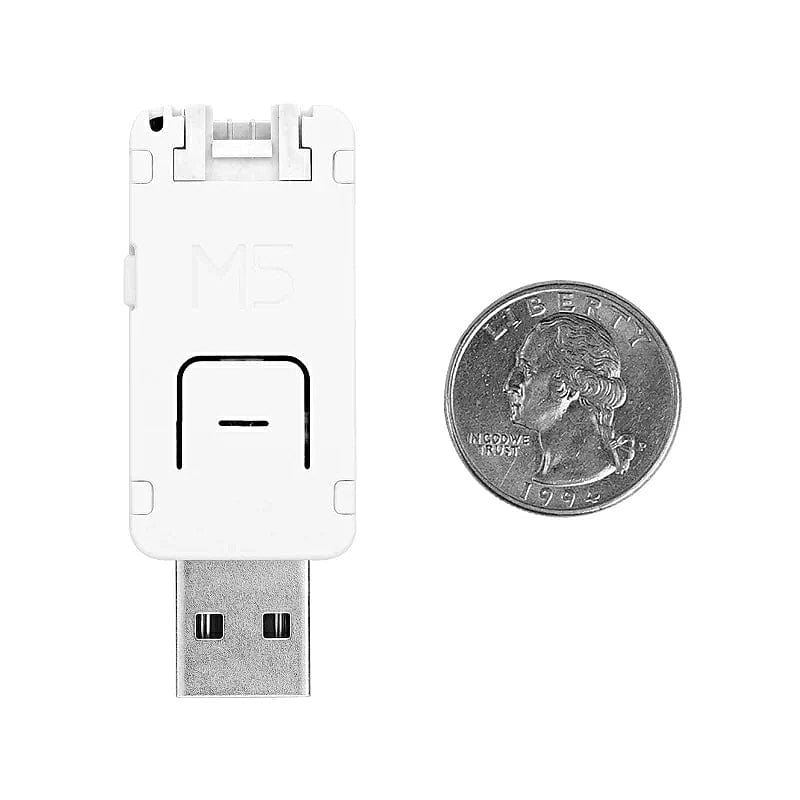

| Product Size | 52 x 20 x 10mm |
| Package Size | 68 x 21 x 11mm |
| Product Weight | 8.4g |
| Package Weight | 10.6g |
Resources
- Product Wiki
- ESP32S3
- SPM1423
Package Contents
- 1x AtomS3U ESP32S3 Development Kit
