Bitaxe Gamma 602 - Bitcoin Mining Kit

The Bitaxe Gamma is the the world’s first open source bitcoin miner, allowing you to mine to a pool, lottery mine or solo mine without the huge costs, power consumption or noise of traditional Bitcoin mining rigs. It's an easy way to get started with serious, open-source Bitcoin mining with modern ASIC silicon.

This is our Bitaxe Gamma 602 Kit - including a Bitaxe Gamma 602 board, a 5V 6A multi-head power supply (includes heads for UK, EU and USA), 3D-printed case, metal stand, heatsink and 40mm cooling fan. It's everything you need to get started - perfect for anyone who wants to plug in, point at a pool and start mining - or tinker, overclock and experiment with different settings.

The Gamma uses a BM1370 Bitmain chip from the Bitmain S21 miner, mining up to 1.2 TH/s of hashrate and designed to be incredibly power efficient whilst also quiet enough to run in the home. There is also an ESP32 controller alongside this, hosting a local web page for configuration and information as well as in built wireless networking - removing the need for an external computer.

Open-source design & firmware

The Bitaxe Gamma 602 is part of the wider Bitaxe ecosystem – an open-source Bitcoin ASIC miner project using modern chips like the BM1370. Hardware design files live on GitHub, and firmware is provided by the Bitaxe Gamma repository and ESP-Miner firmware.

That means you’re free to audit, modify and extend the device – whether that’s tweaking cooling, integrating it into a swarm, writing your own monitoring scripts or experimenting with different voltage/frequency curves.

Features

• Modern ASIC: BM1370 SHA-256 chip taken from the Antminer S21 family, capable of around 1.2 TH/s on a single chip
• Open-source hardware & firmware: based on the Bitaxe Gamma design and AxeOS firmware, with design files and code available on GitHub
• Standalone miner: no external computer required – mines directly over Wi-Fi
• Low power: powered from a 5V 6A PSU (included), suitable for desks, shelves and home labs
• Beginner friendly: easy web dashboard for configuration and monitoring
• Advanced ready: full access to frequency, voltage and pool settings for tuning and experimentation
• Ready to run: kit includes everything you need, including multi-head PSU, heatsink/fan, stand and case

Specifications

ASIC	BM1370 SHA-256 chip (from Antminer S21 series)
Hashrate	Up to ~1.2 TH/s (typical, depending on settings and cooling)
Efficiency	Around 15 J/TH achievable with sensible tuning
Power input	5V DC via 2.1/5.5 mm barrel jack
PSU	5V 6A regulated power supply (included)
Controller	On-board ESP32 microcontroller
Cooling	40mm active cooler (heatsink + fan) mounted on the BM1370
Interface	Web UI (AxeOS) for config and monitoring over Wi-Fi
Mining	Supports Stratum V1 - mine to any standard pool, solo pool or your own node
Form factor	Compact PCB with stand-friendly mounting, ideal for desk use

Resources

The Bitaxe Gamma 602 is part of the wider Bitaxe ecosystem – an open-source Bitcoin ASIC miner project using modern chips like the BM1370. Hardware design files live on GitHub, and firmware is provided by the Bitaxe Gamma repository and ESP-Miner firmware.

Bitaxe

• Bitaxe Gamma repository
• Bitaxe.org
• Bitaxe Web Flasher
• ESP-Miner

OSMU (Open Source Miners United)

• OSMU.wiki
• OSMU Discord

Package Contents

• 1x Bitaxe Gamma 602 board

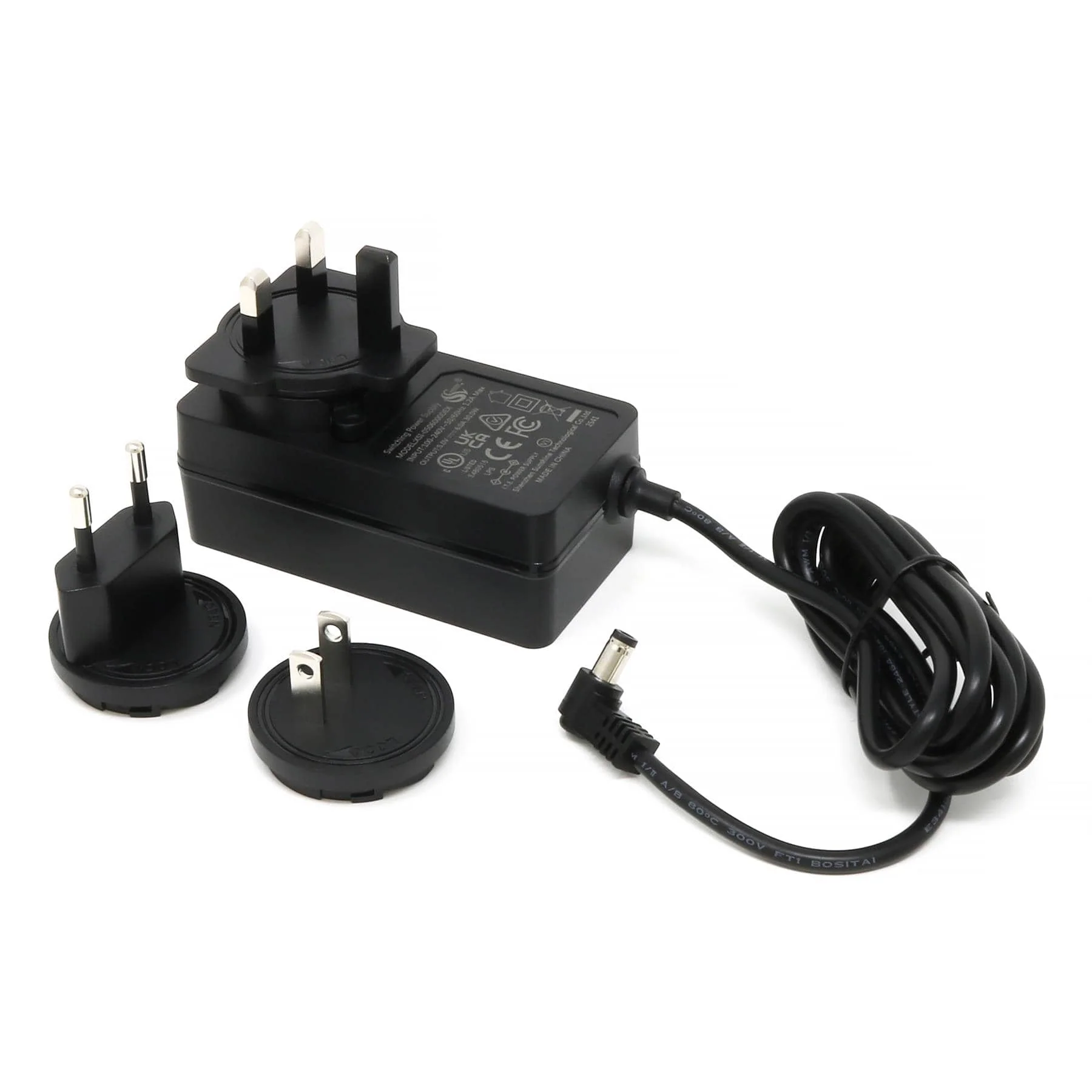

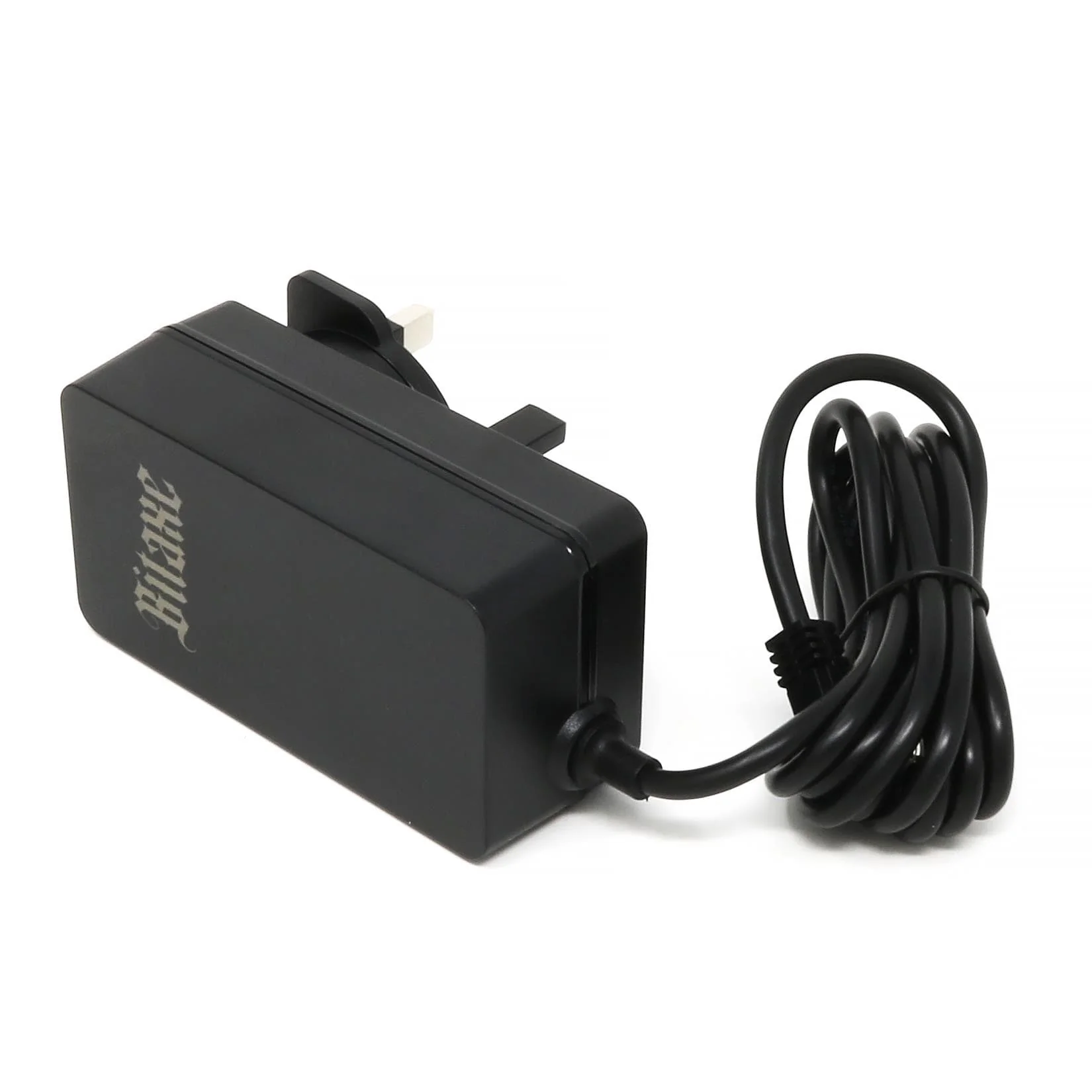

• 1x 5V 6A multi-head regulated power supply
  • Includes heads for UK, EU and USA
• 1x 3D-printed case

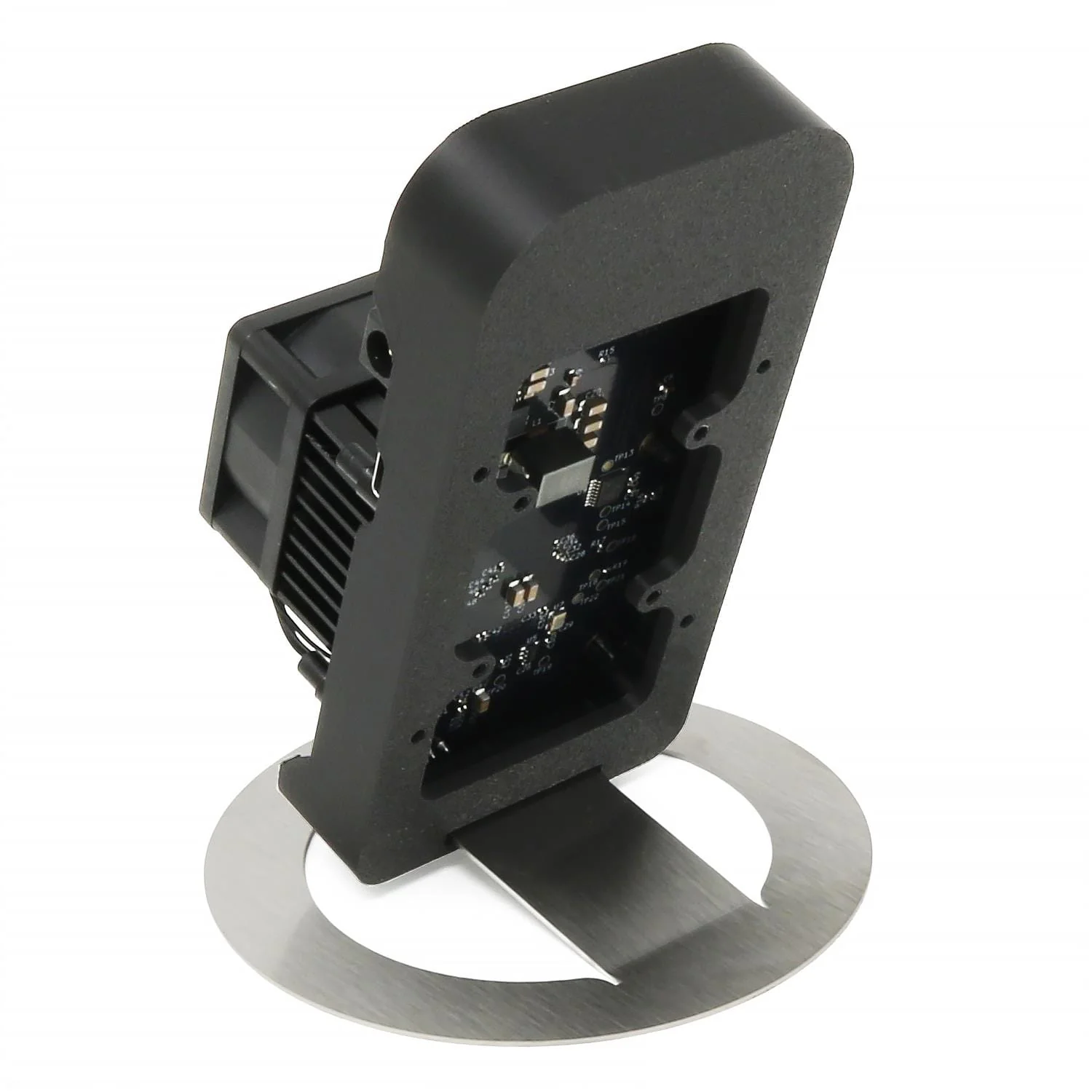

• 1x Metal stand
• 1x Heatsink
• 1x Fan
