Original: $7.62
-70%$7.62
$2.29The Story

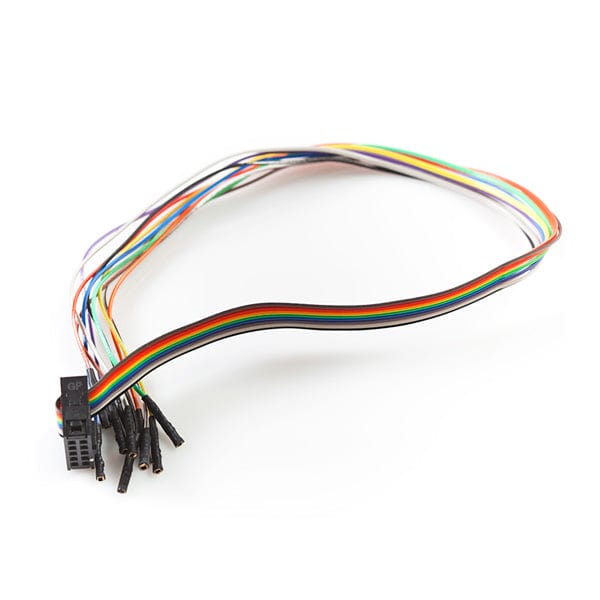

This is an interface cable for the Bus Pirate v3.6, designed to connect to its 2x5 I/O header.
Not compatible with Bus Pirate 5!
The cable's connector is composed of two rows of five 0.1" spaced pins; it's also polarized, as is the mating connector on-board the Bus Pirate, so you can only connect the cable in one direction.
The leads of the cable are terminated with female ends to mate with test hooks. The pin-out of the connector is documented here.
Description
This is an interface cable for the Bus Pirate v3.6, designed to connect to its 2x5 I/O header.
Not compatible with Bus Pirate 5!
The cable's connector is composed of two rows of five 0.1" spaced pins; it's also polarized, as is the mating connector on-board the Bus Pirate, so you can only connect the cable in one direction.
The leads of the cable are terminated with female ends to mate with test hooks. The pin-out of the connector is documented here.
