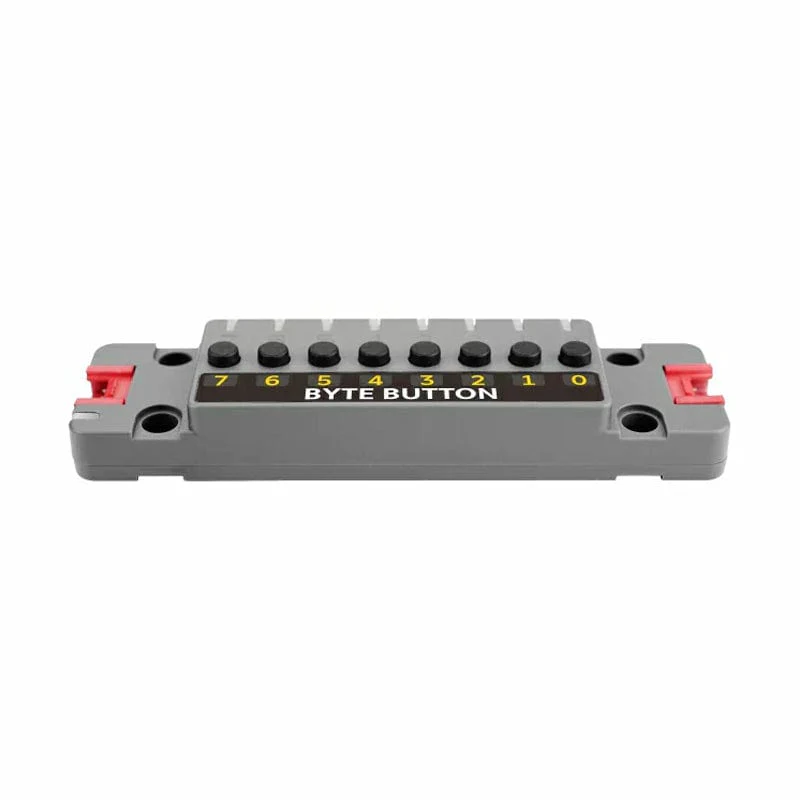

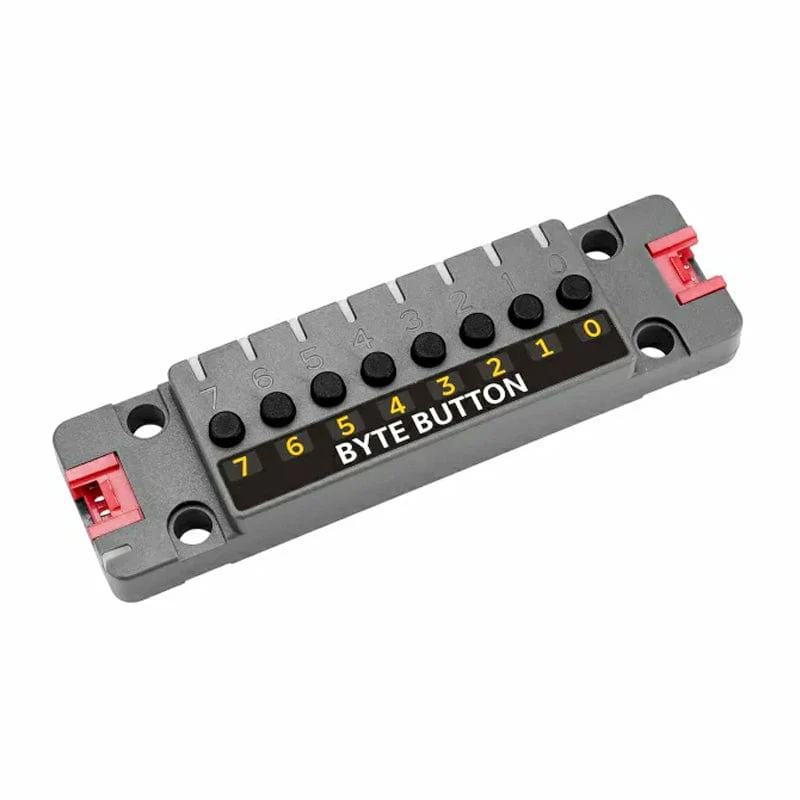

M5Stack Byte Button Unit with 8x Buttons (STM32G031)

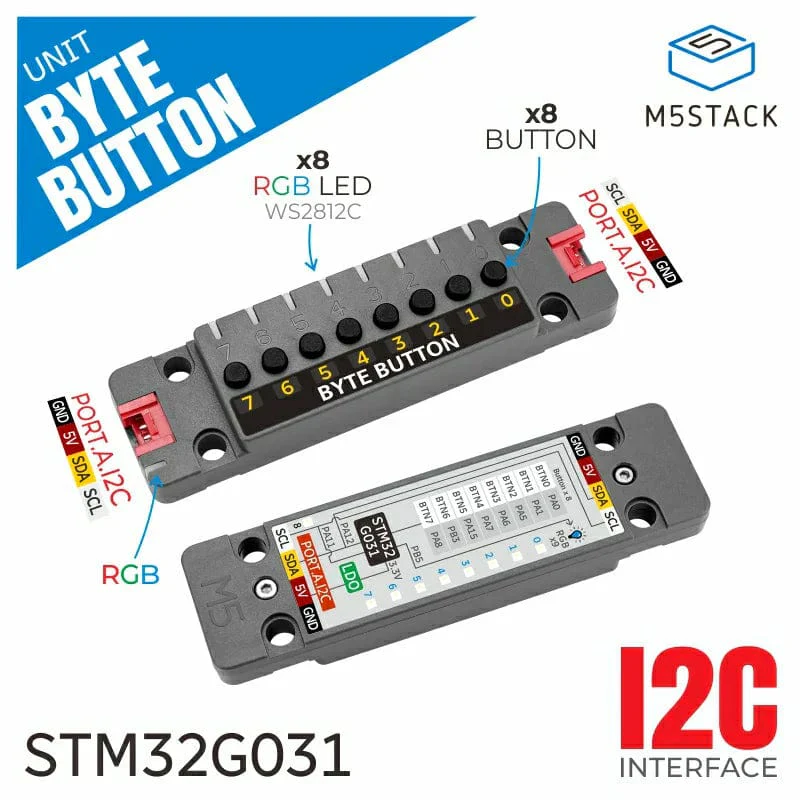

This ByteButton Unit is an 8-button touch input module with (you guessed it) 8 touch buttons and 9 colourful WS2812C RGB LEDs. It uses the STM32 microcontroller and communicates via I2C, letting you use this with a variety of different systems.

The module includes two Port A connectors, allowing you to put multiple ByteButton Units together to create larger, more tricky setups. It has both button input detection and lighting feedback, making it great for projects such as smart home control, status displays and many more!

Features

• 8 Independent button inputs
• 9 WS2812C RGB LEDs
• STM32 microcontroller
• I2C communication interface

Specifications

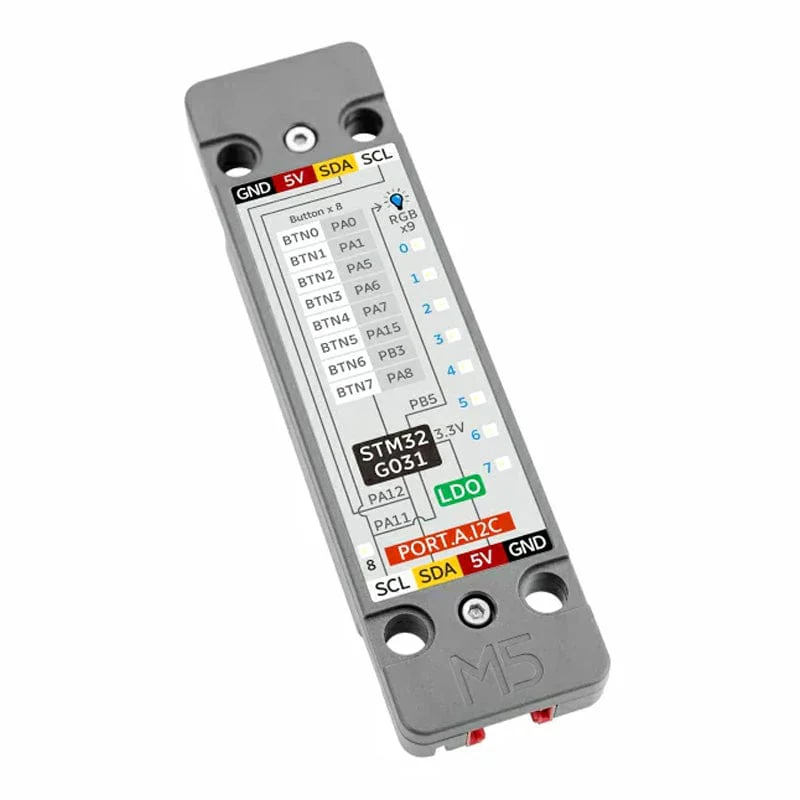

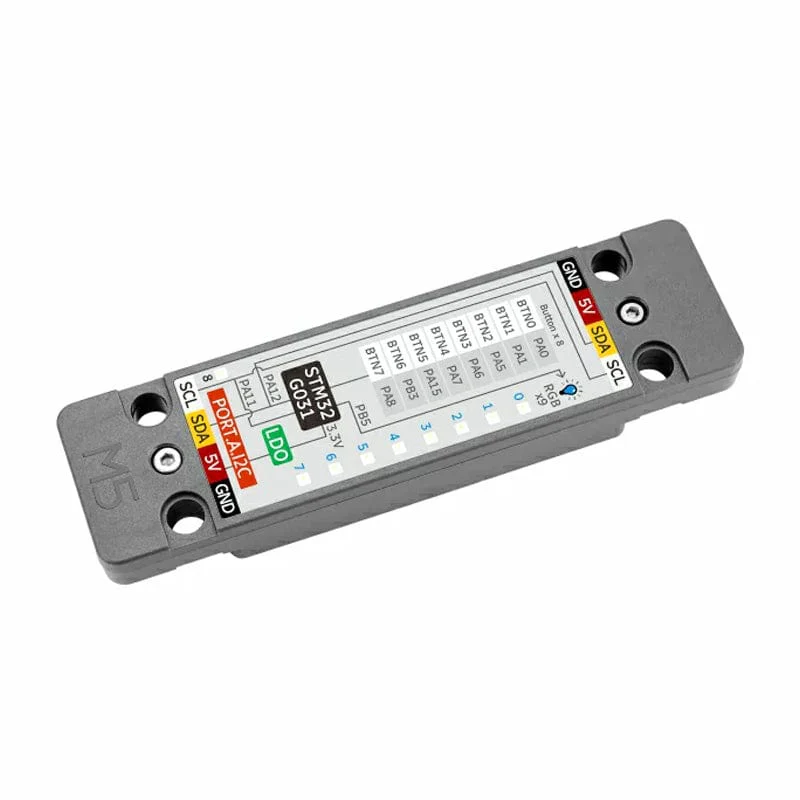

MCU	STM32G031G8U6, 32-bit ARM Cortex-M0+ core, 64 MHz
Button Count	8 independent button inputs
Button Type	Capacitive touch buttons
RGB LEDs	WS2812C-2020 (9 LEDs)
Communication	I2C @ 0x47
Grove Interface	2 (I2C bus expansion)
Standby Power	DC [email protected]
Operating Temperature	0-40°C
Product Size	88 x 24 x 12mm
Package Size	169 x 119 x 13mm
Product Weight	15.1g
Package Weight	21.5g

Resources

• Product Wiki

Package Contents

• 1x Byte Button Unit
• 1x HY2.0 4-pin cable (20cm)
