Camera Module 8MP for LLM630 Kit (SC850SL)

The Camera Module 8MP for LLM630 Kit (SC850SL) is an 8MP camera for the LLM630 Compute Kit, featuring 4K video, HDR, low-light sensitivity, and low power use. It connects via 200mm FPC and MIPI CSI-2 for real-time AI vision tasks such as detection and navigation.

---

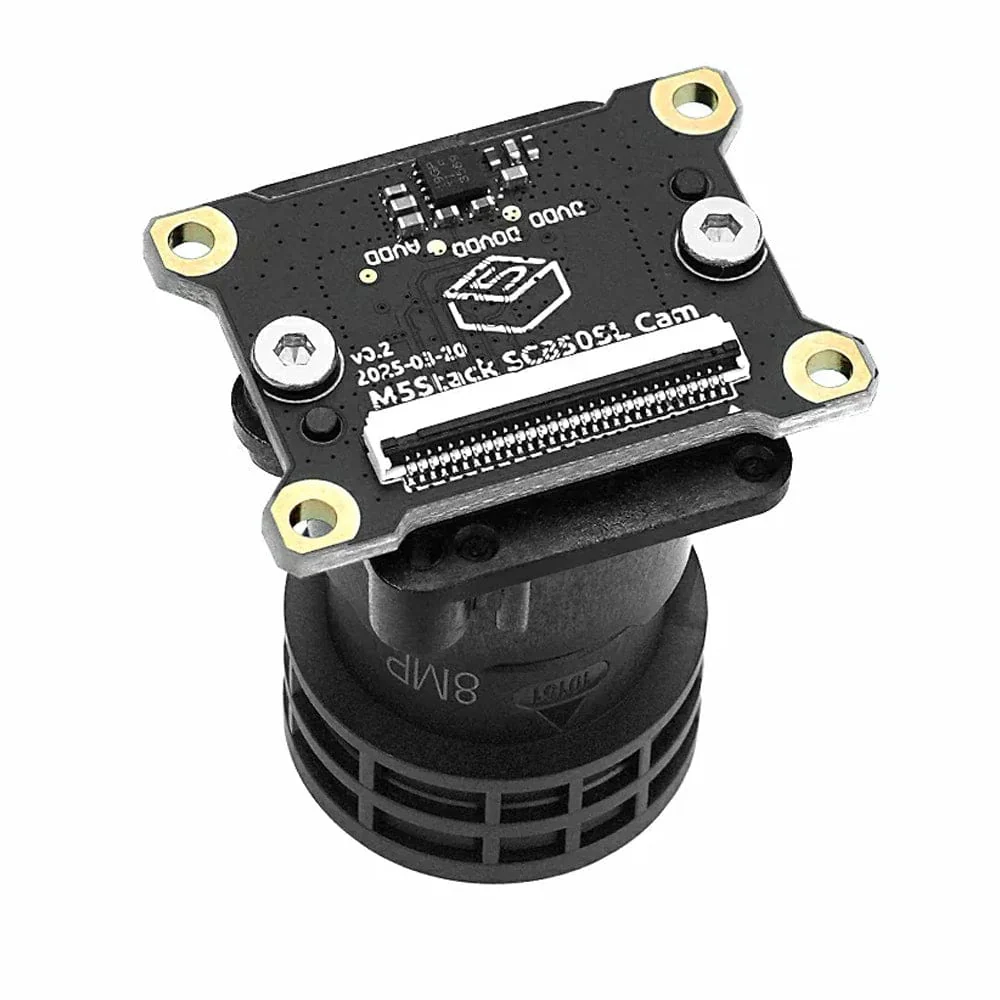

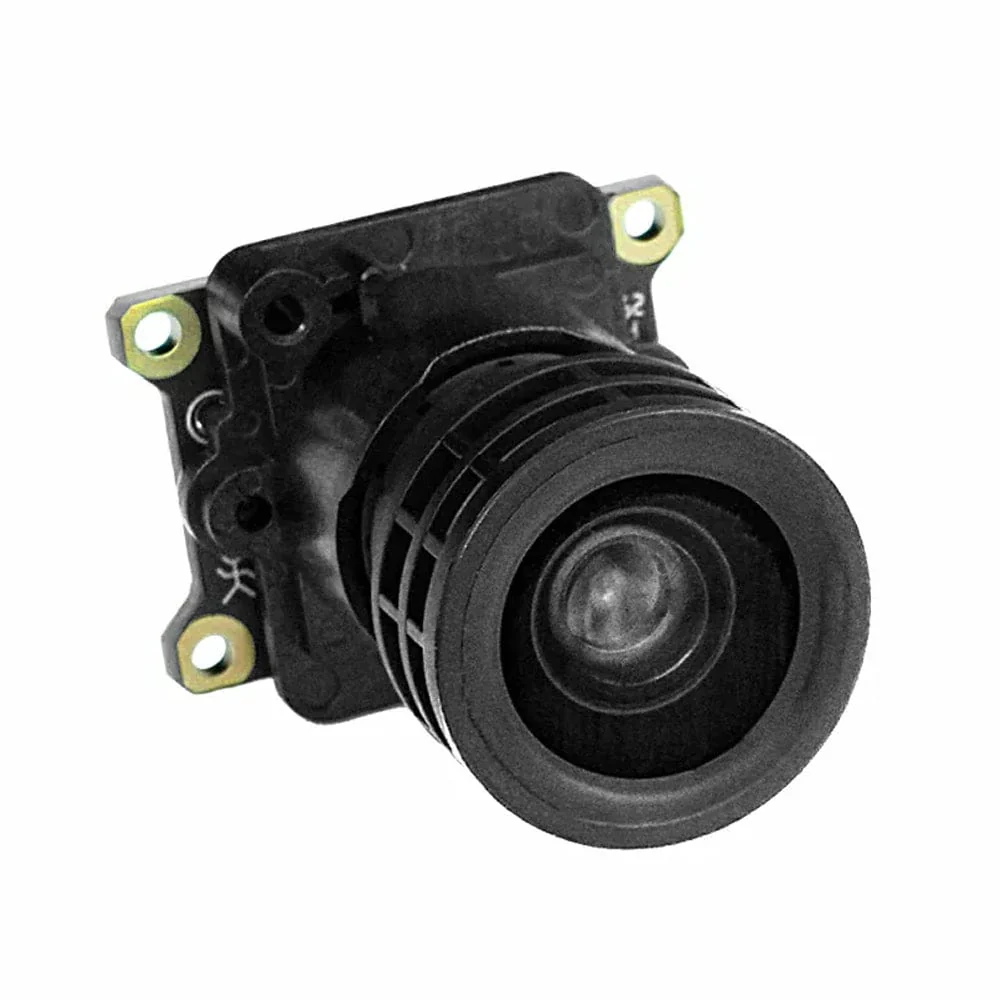

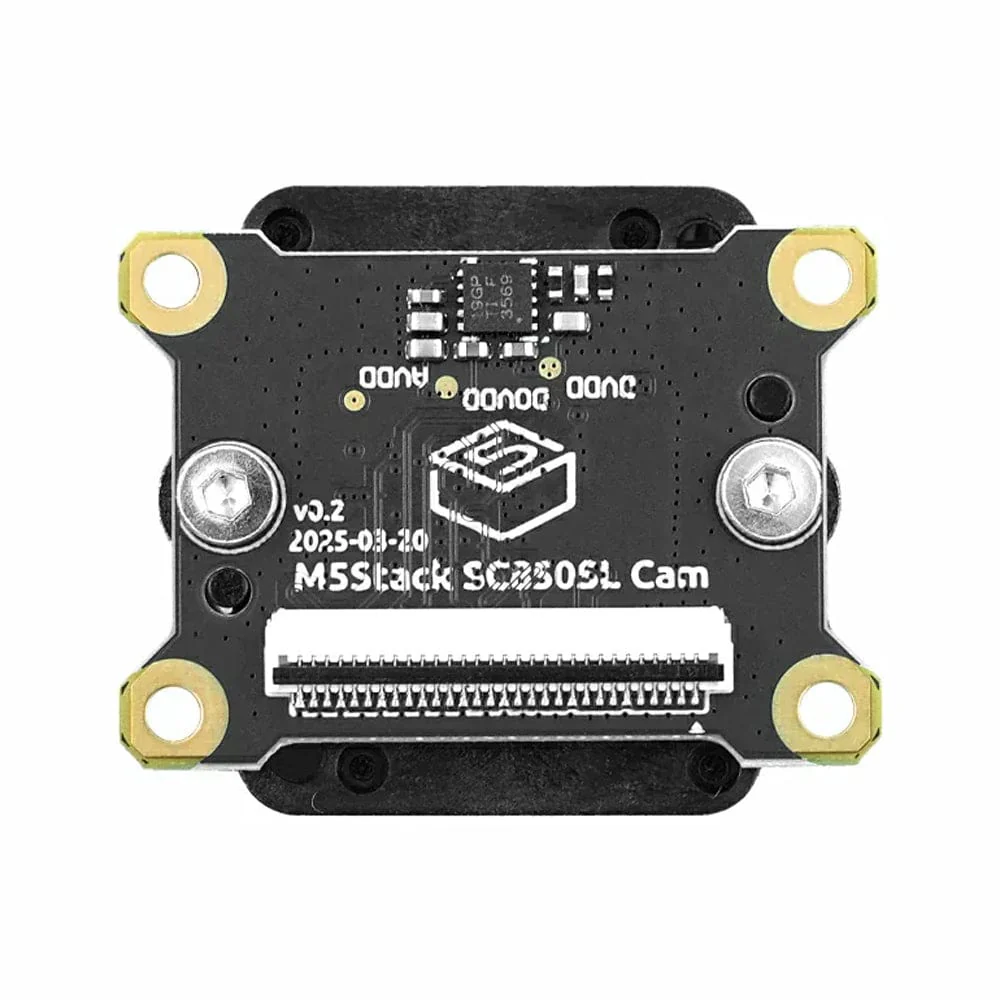

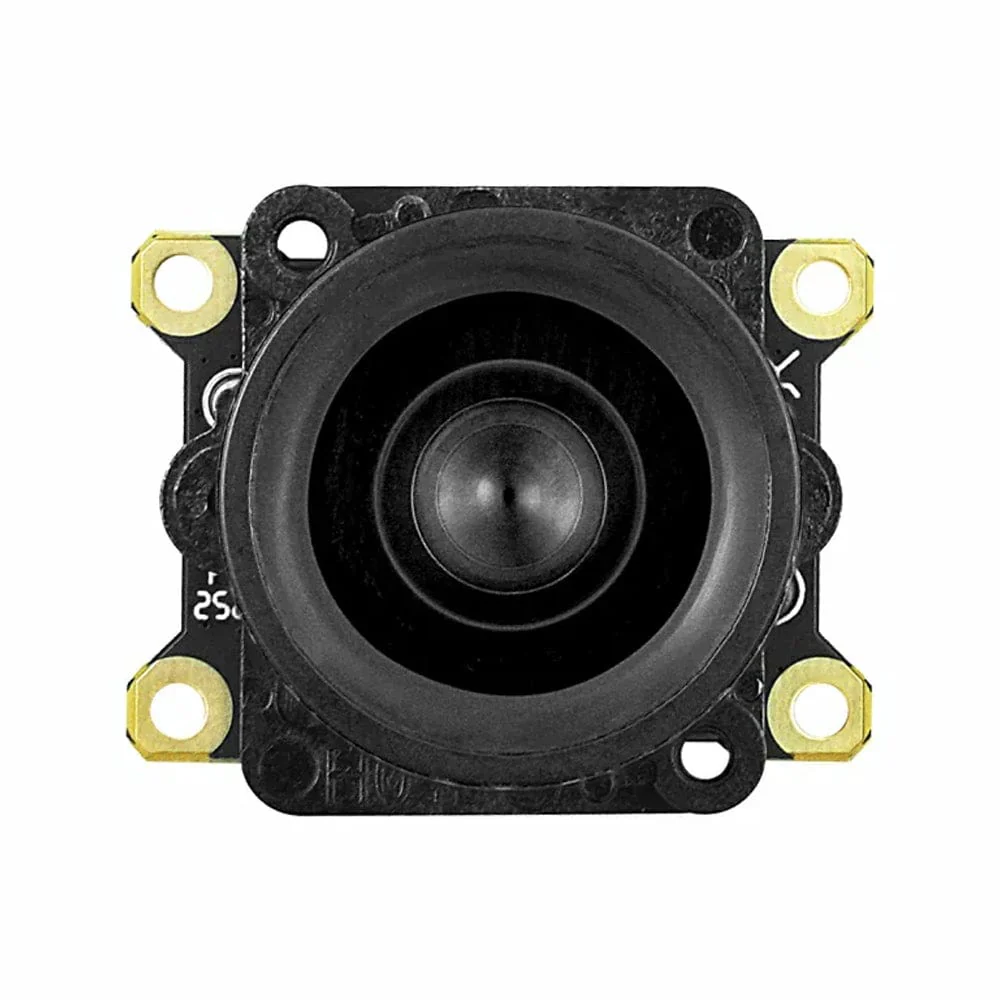

M5Stack Camera Module 8MP for LLM630 Kit (SC850SL) is a high-performance camera module customized for the LLM630 Compute Kit, integrating the SmartSens SC850SL 8 MP sensor. It supports 4K video capture, wide dynamic range (HDR), and low-light high sensitivity, enabling stable imaging in complex lighting environments.

It also offers advantages of low read noise, high signal-to-noise ratio, and low power consumption. Equipped with a 200 mm FPC for flexible cabling, it transmits images to LLM630 via MIPI CSI-2 for real-time AI inference and intelligent analysis (such as object detection, image classification, and visual navigation). Suitable for AI vision scenarios like intelligent monitoring, robotic vision, drone inspection, and smart cities.

Features

• Compatible with LLM630 Compute Kit
• SmartSens SC850SL CMOS sensor

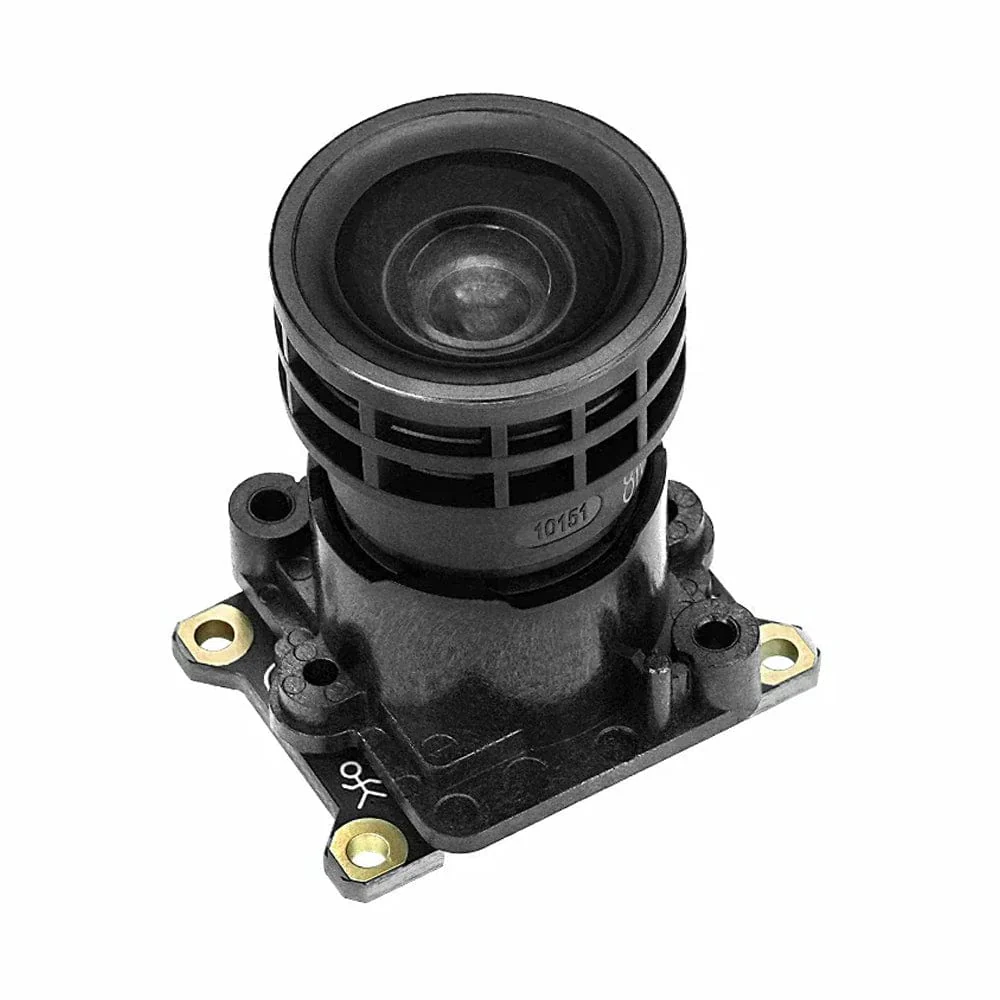

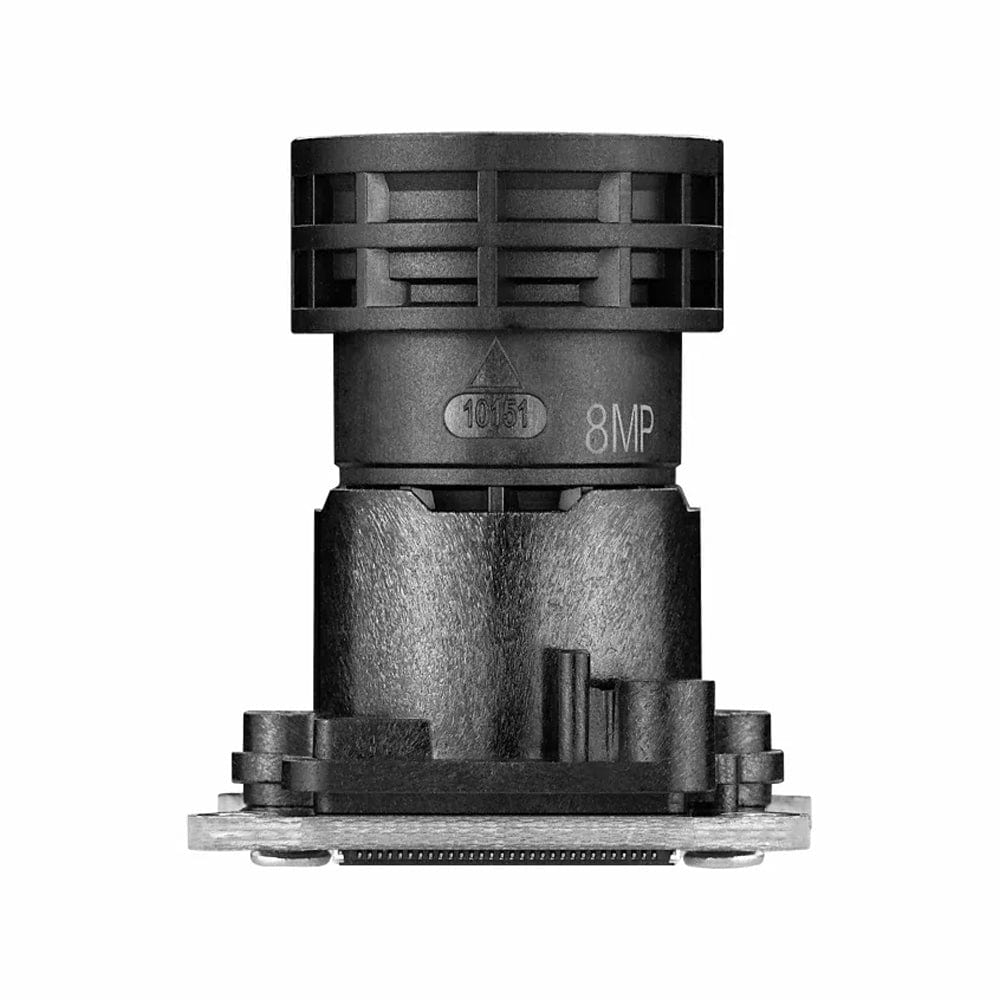

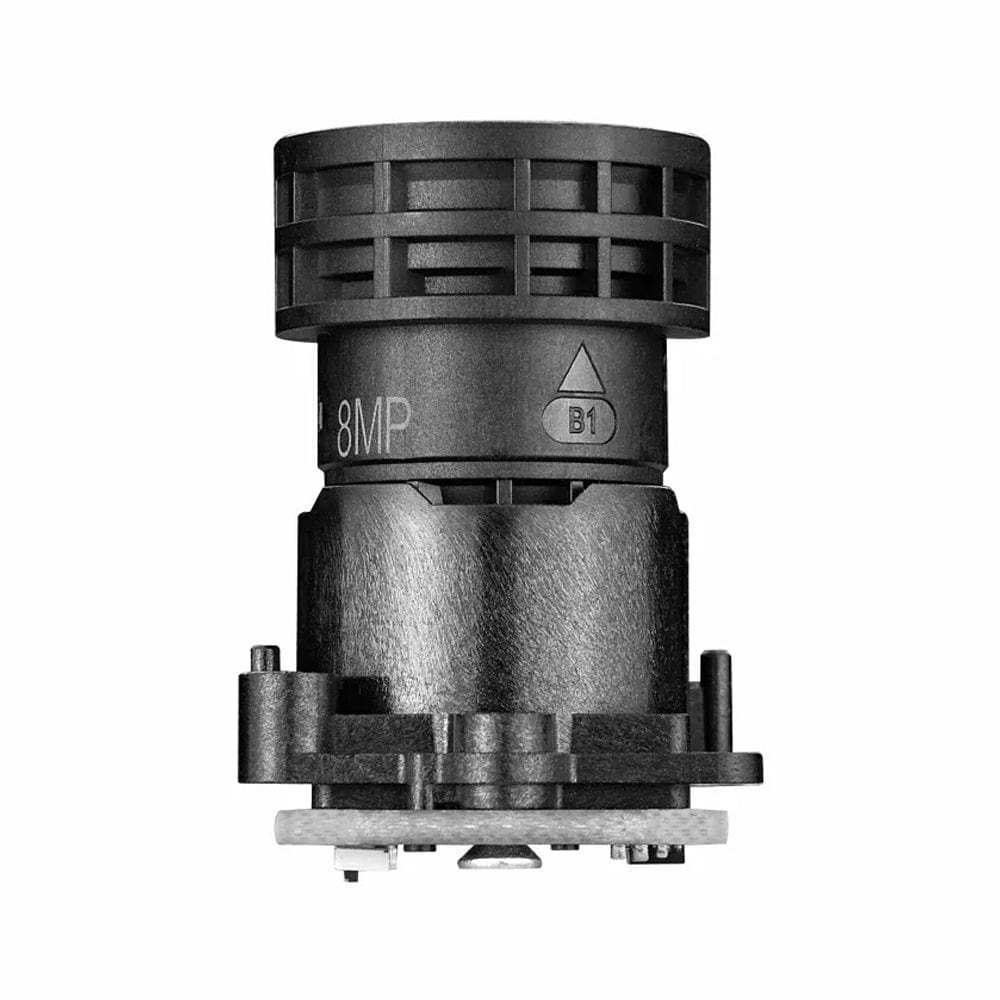

• YT10151-8MP-4mm lens
• Stack BSI + Rolling Shutter architecture
• MIPI communication interface
• 4K video capture
• High signal-to-noise ratio and dynamic range
• High-speed DPC function
• Excellent night vision performance
• High sensitivity & fast bad pixel correction

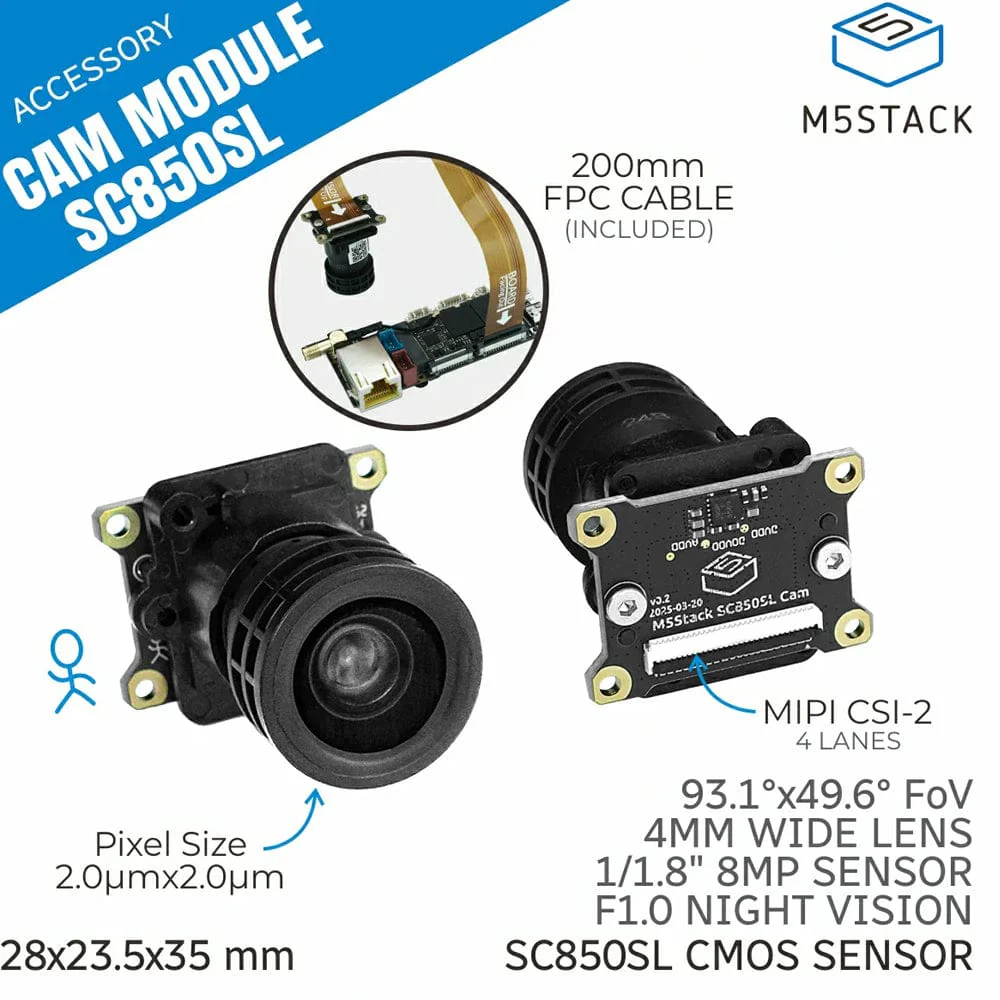

Specifications

Specification	Parameter
Image Sensor	SmartSens SC850SL CMOS
Resolution	8 MP
Pixel Array	3856H × 2176V
Pixel Size	2.0 µm × 2.0 µm
Optical Specs	1/1.8″
Max Frame Rate	3840 × 2160 @ 60 fps
Output Interface	MIPI CS1-2 (4 Lanes)
Image Format	RAW RGB
Diagonal Field of View (DFoV)	93.1° x 49.6°
Photosensitivity	5034 mV/(Lux・s)
Dynamic Range	Up to 100dB in HDR mode; 75 dB in linear mode
Signal-to-Noise Ratio (SNR)	39 dB
Operating Temperature	–30 °C ~ +85 °C
Optimal Image Quality Temperature	–20 °C ~ +60 °C
Lens Specs	M16

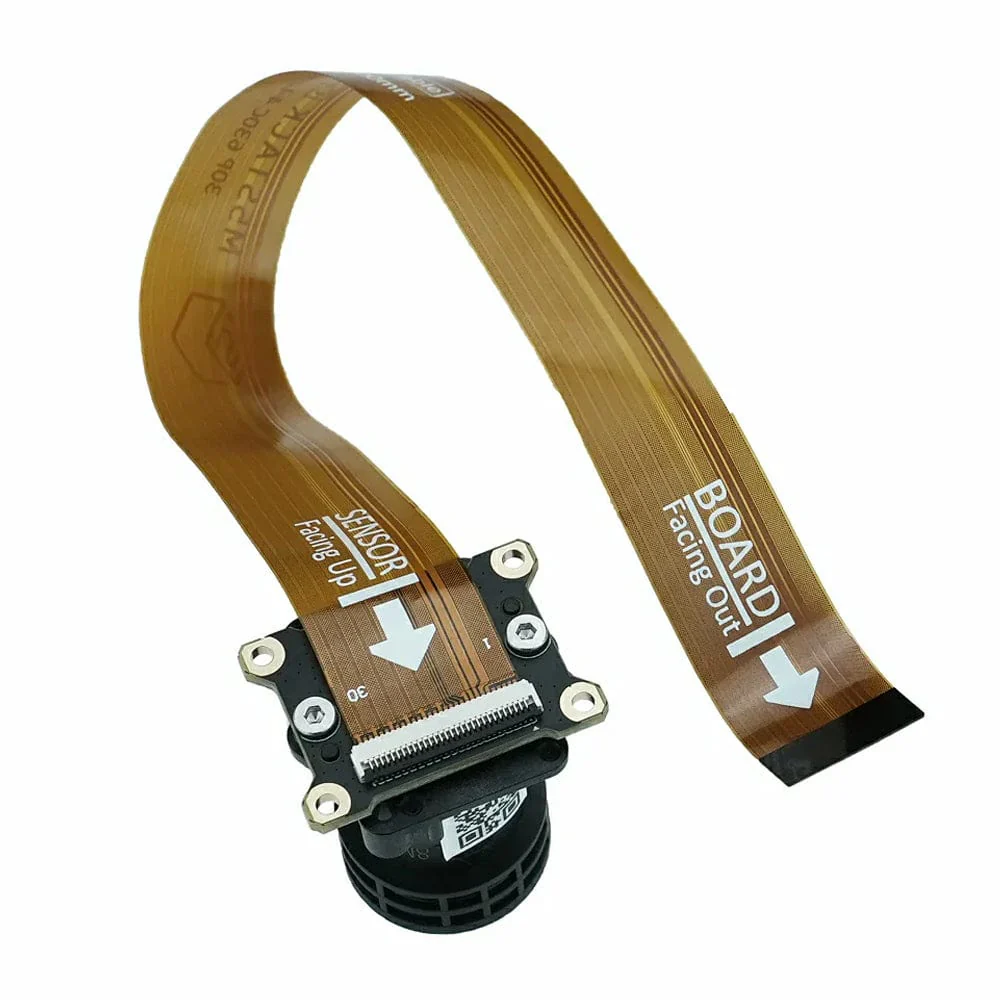

Interface Method	200mm FPC Cable
Product Size	28.0 x 23.5 x 33.9mm

Resources

• Product documentation

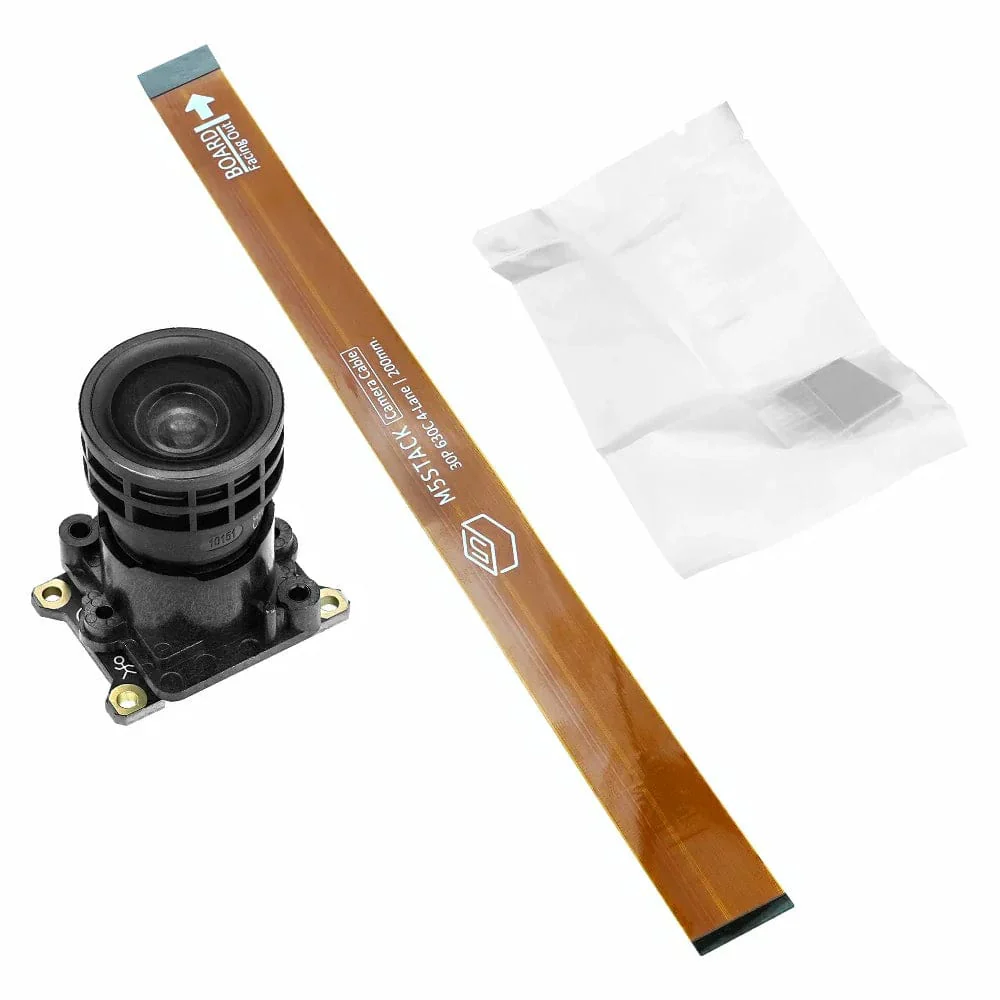

Package Contents

• 1 x CamModule SC850SL
• 1 x 200 mm FPC cable
• 1 x Thermal pad
