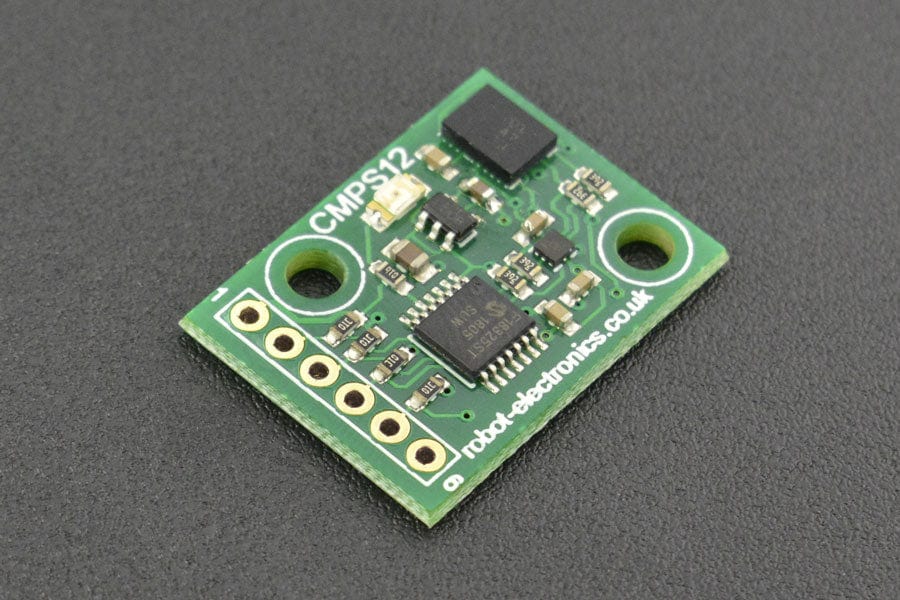

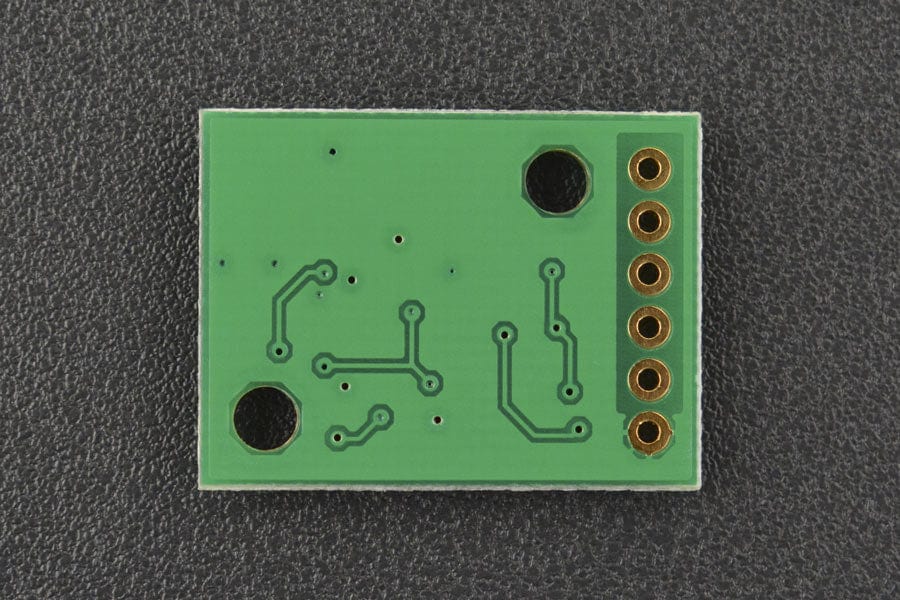

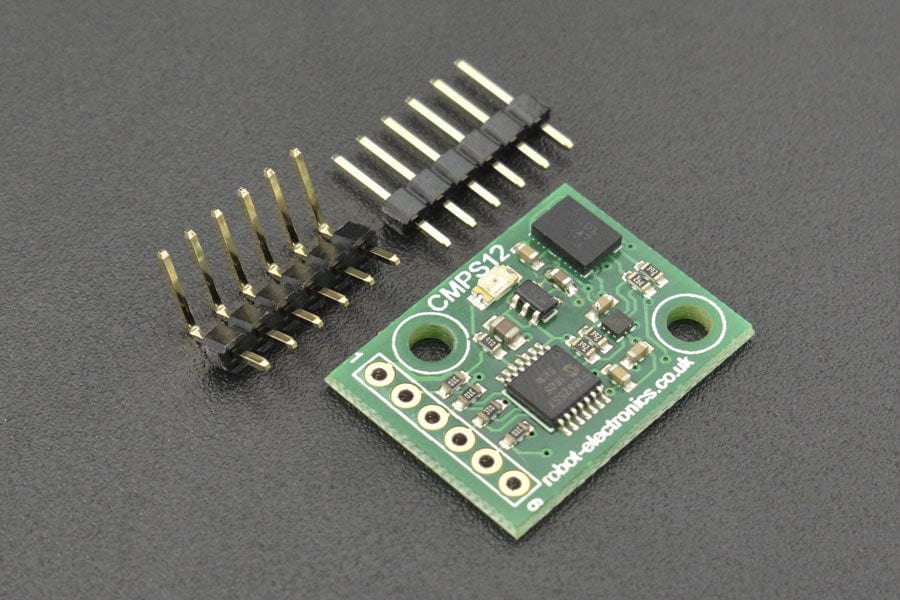

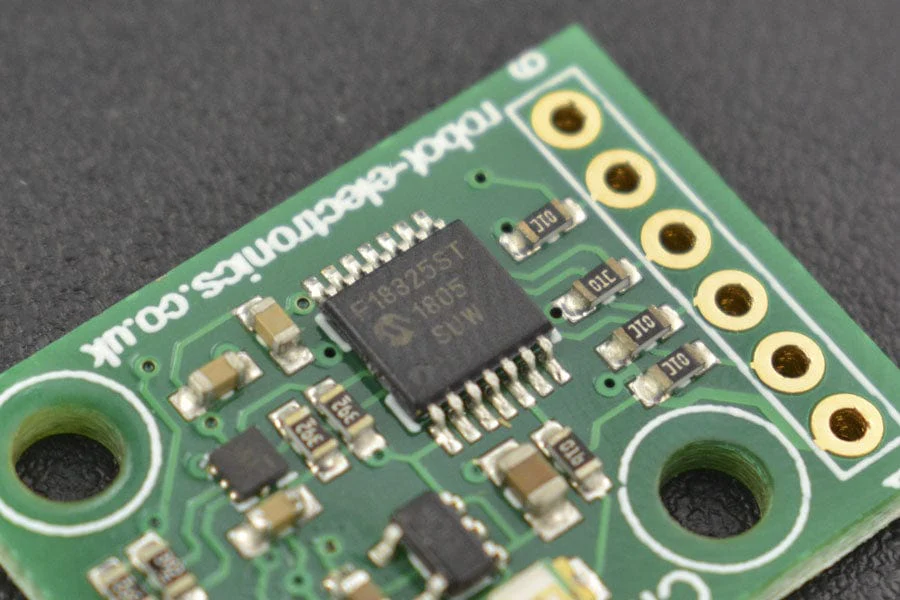

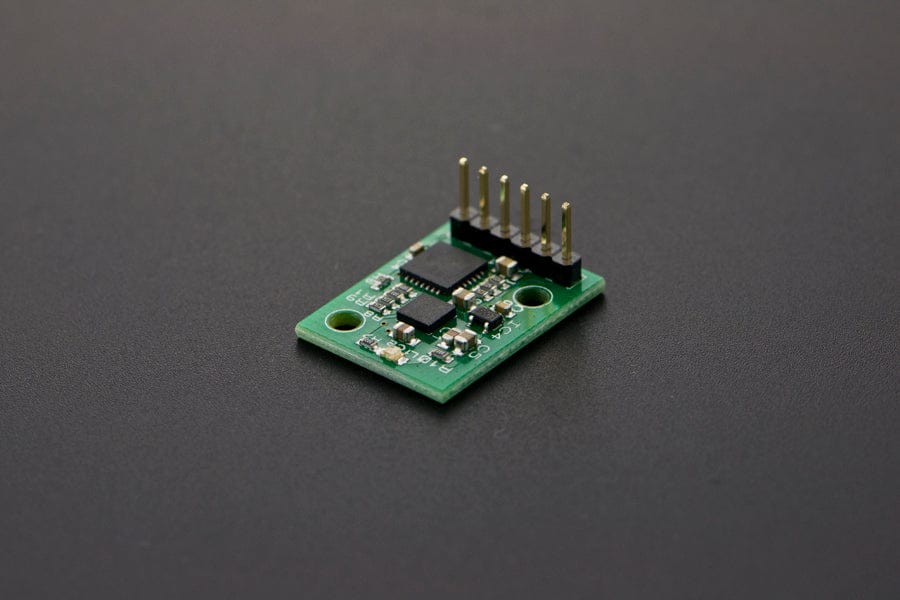

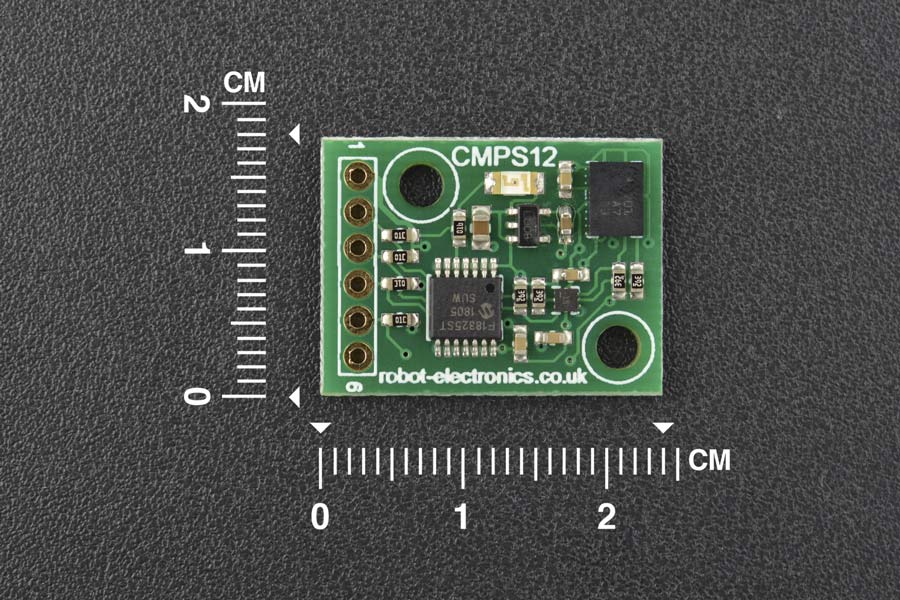

Tilt Compensated Magnetic Compass (CMPS12)

The CMPS12 is our 4th generation tilt-compensated compass. Employing a 3-axis magnetometer, a 3-axis gyro and a 3-axis accelerometer. At the core of the module are the superb BNO055 running algorithms to remove the errors caused by tilting of the PCB. Power supply requirements are flexible, you can feed between 3.3 - 5v and the module draws a nominal 18mA of current. A choice of serial or I2C interfaces can be used for communication.

Overview of outputs

• Heading, 16 bit: 2 outputs, one calculated by Bosch and one by us
• Heading, 8 bit: 0-255 scaled for simpler requirements
• Pitch: +/- 0-90° or +/- 0-180°
• Roll: +/- 0-90°
• Temperature: current temperature of the BNO055 in °c
• Raw sensor outputs: 3 x 16-bit integers for each of the Magnetometer, accelerometer and gyro

Mode Selection

Serial or I2C mode is easily selected with the state of the mode pin. Note the CMPS12 looks at the mode selection pin at power-up only.

• Powered by the Bosch BNO055
• Resolution: 0.1 Degree / Accuracy: 1%
• Signal levels: 3.3v, 5v tolerant
• I2C mode: up to 400khz
• Serial mode: 9600, 19200, 38400 baud

• Power: 3.3v-5v 18mA Typ.
• Resolution: 0.1 Degree
• Accuracy: Better than 1%
• Signal levels: 3.3v, 5v tolerant
• I2C mode: up to 400khz
• Serial mode: 9600, 19200, 38400 baud
• Heading, 16 bit: 2 outputs, one calculated by Bosch and one by us
• Heading, 8 bit: 0-255 scaled for simpler requirements
• Pitch: +/- 0-90° or +/- 0-180°
• Roll: +/- 0-90°
• Temperature: current temperature of the BNO055 in °c
• Raw sensor outputs: 3 x 16-bit integers for each of the Magnetometer, accelerometer and gyro

• Full Technical Datasheet
• 3D Printed Tower

• 1x Tilt Compensated Magnetic Compass (CMPS12)
