CO2 Dock for micro:bit

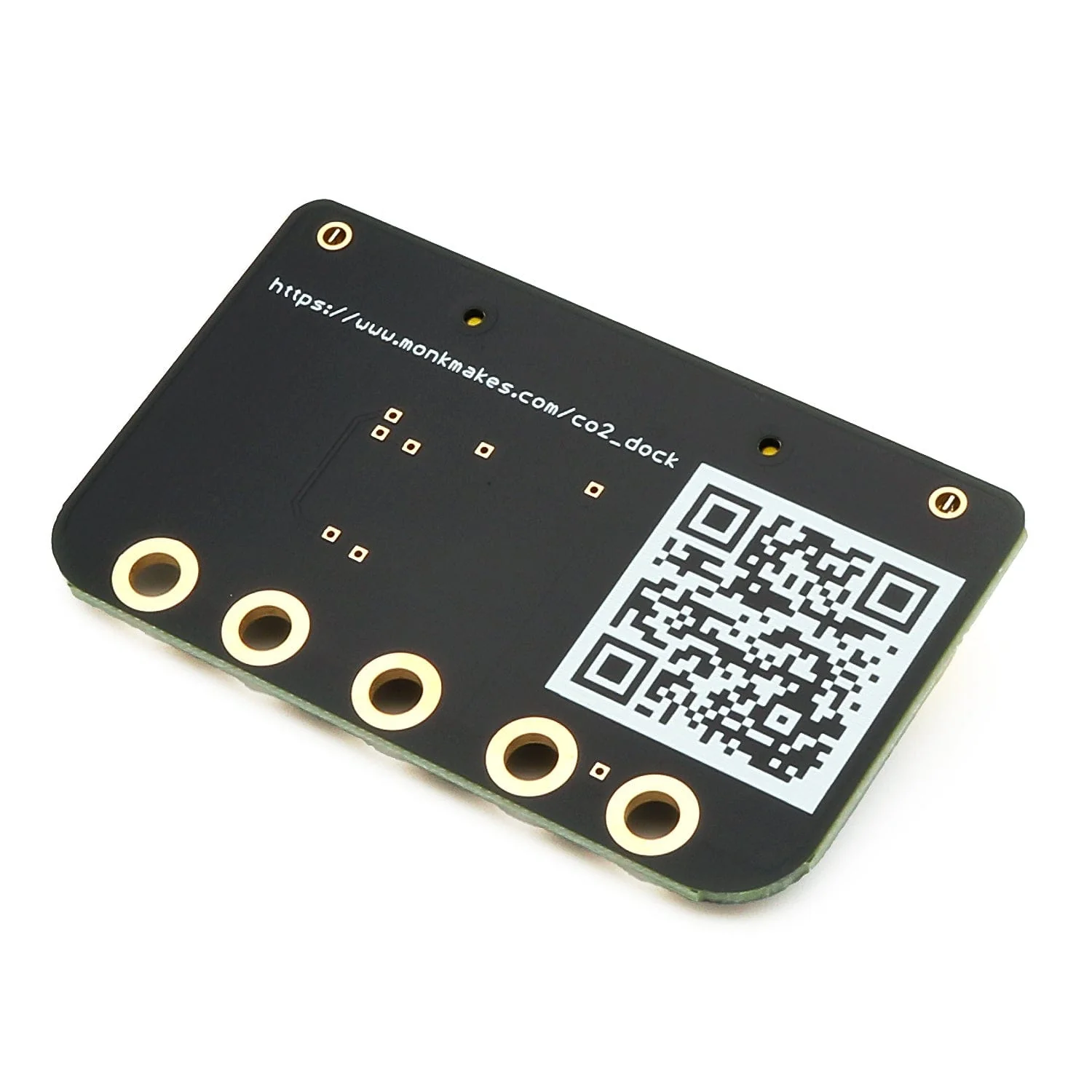

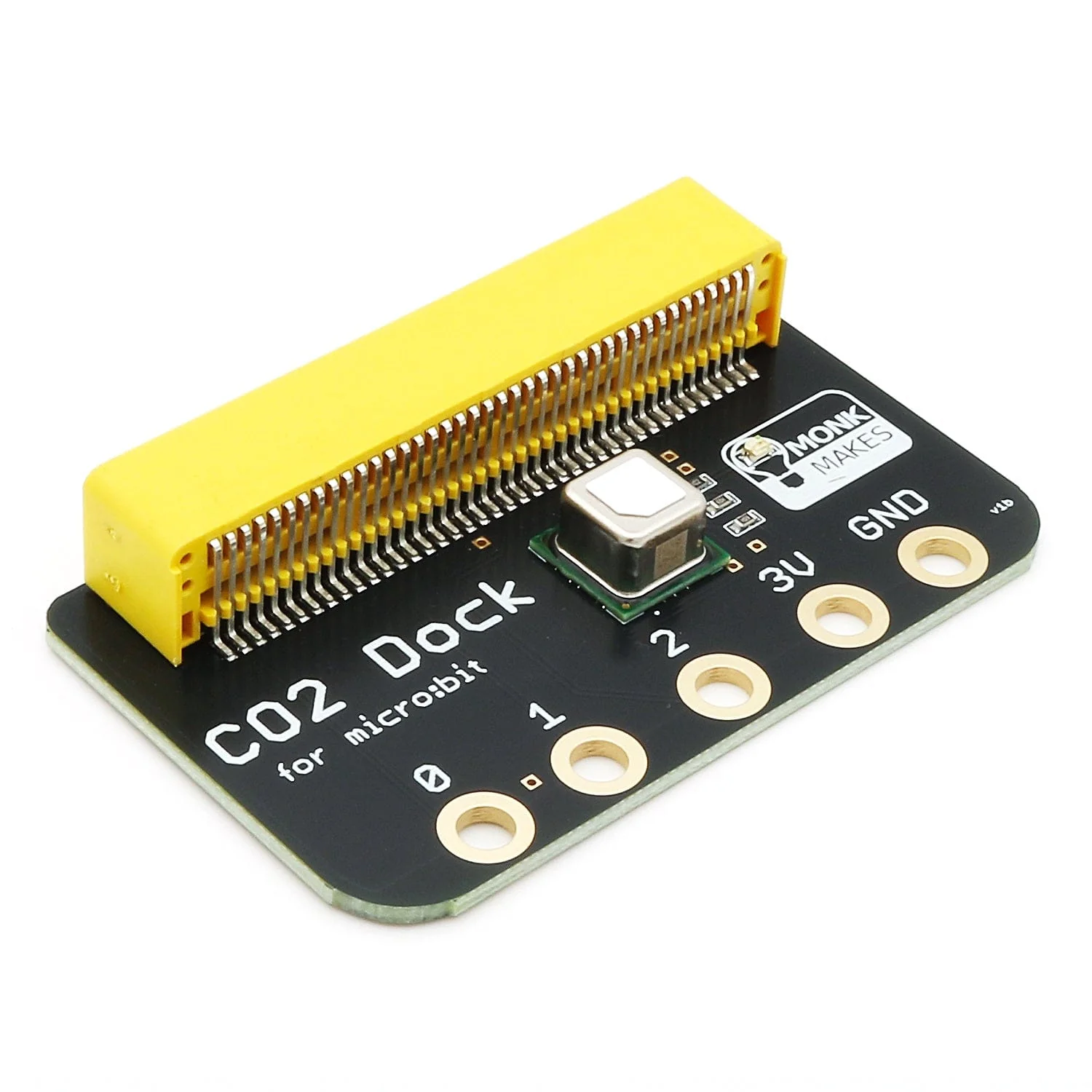

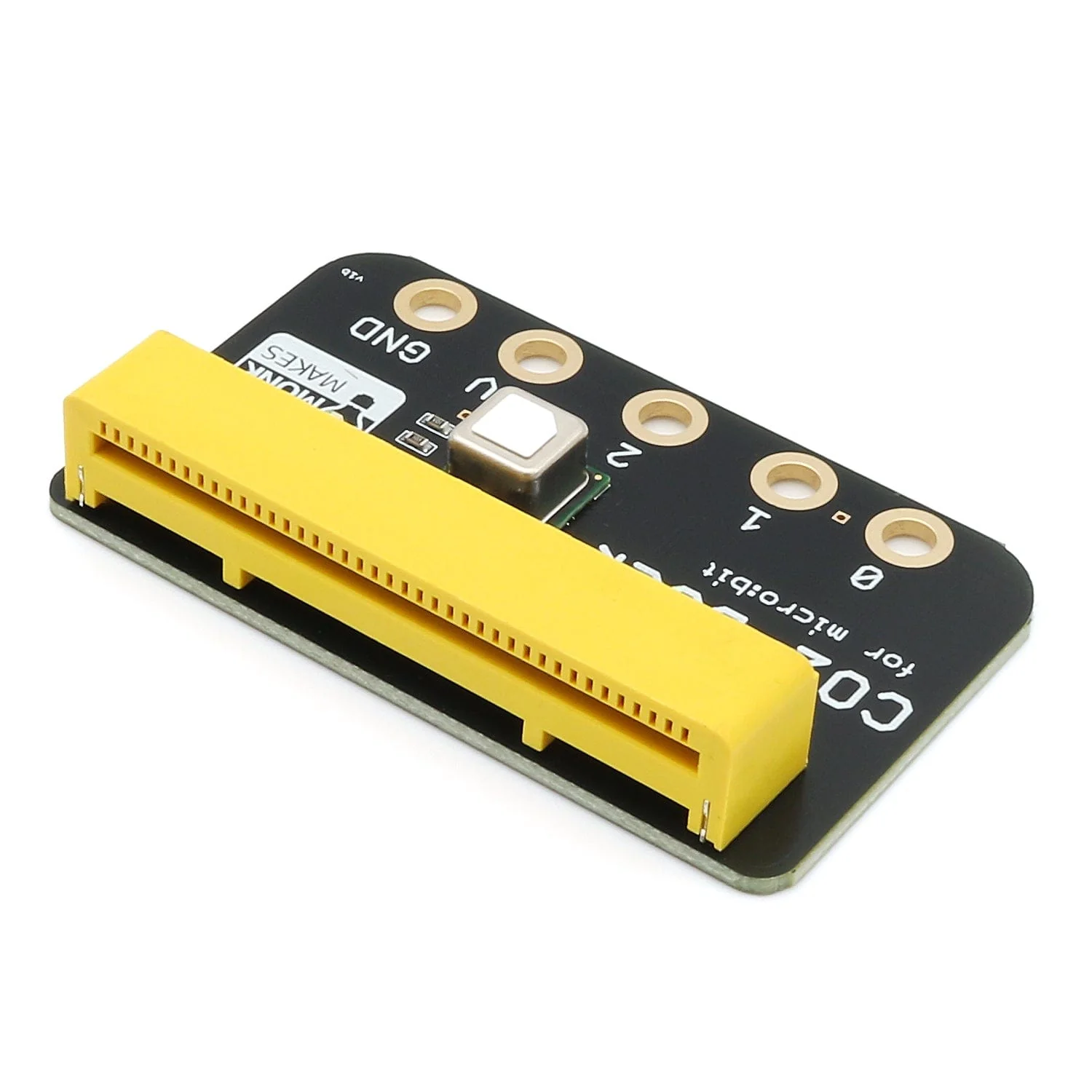

The MonkMakes CO2 Dock is a true CO2 sensor, combined with temperature and relative humidity sensors, designed for use with the BBC micro:bit, connecting to the micro:bit's edge connector.

The CO2 dock uses a SCD41 CO2 sensor which can measure CO2 0-5000ppm, along with temperature and relative humidity measurement. It's also a low power device, powered directly from your micro:bit.

A booklet comes with the CO2 Dock, which includes five experiments complete with code in MakeCode blocks.

The board will work with micro:bit V1 and V2 boards.

Please note: whilst this product shares many of the same features as the MonkMakes CO2 Mini Kit for micro:bit, it is based on a completely different sensor and is not a direct replacement for use in the Living Space project (amendments will need to be made to the teacher's notes).

Features

• CO2 sensor for micro:bit
• SCD41 CO2 Sensor - CO2 0-5000ppm
• Temperature sensing: -10°C to +60°C
• Relative humidity measurement: 0-100%
• MakeCode library to simplify programming
• LED power indicator
• I2C interface
• Low power -- power directly from your micro:bit
• Compatible with micro:bit V1 and V2

Resources

• Instructions
• Microsoft MakeCode
• Datasheet

Package Contents

• 1x CO2 Dock for micro:bit

micro:bit board not included
