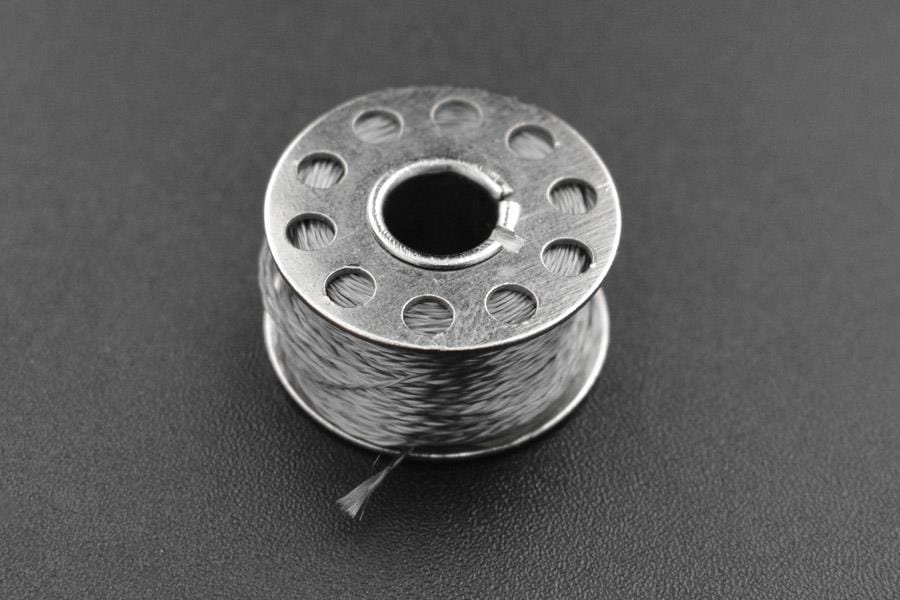

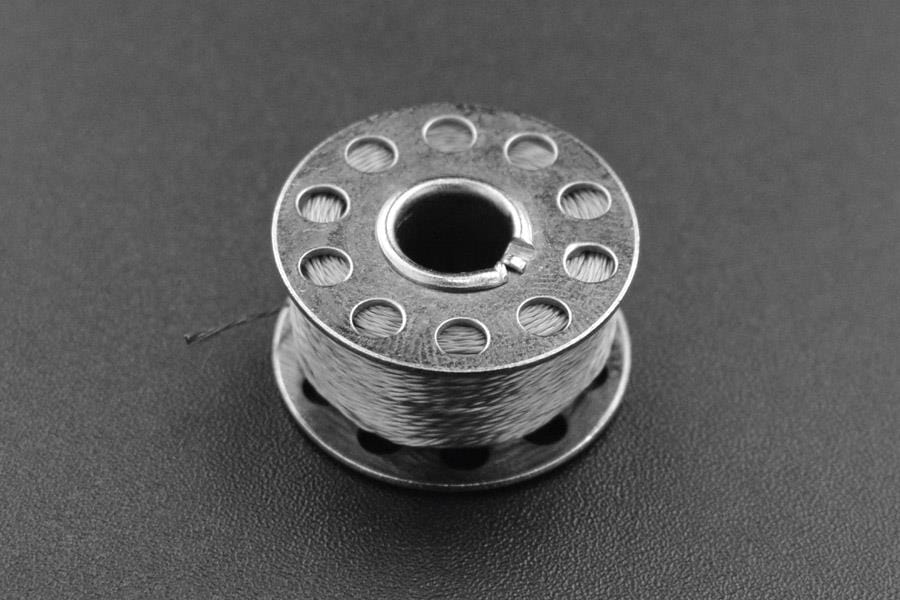

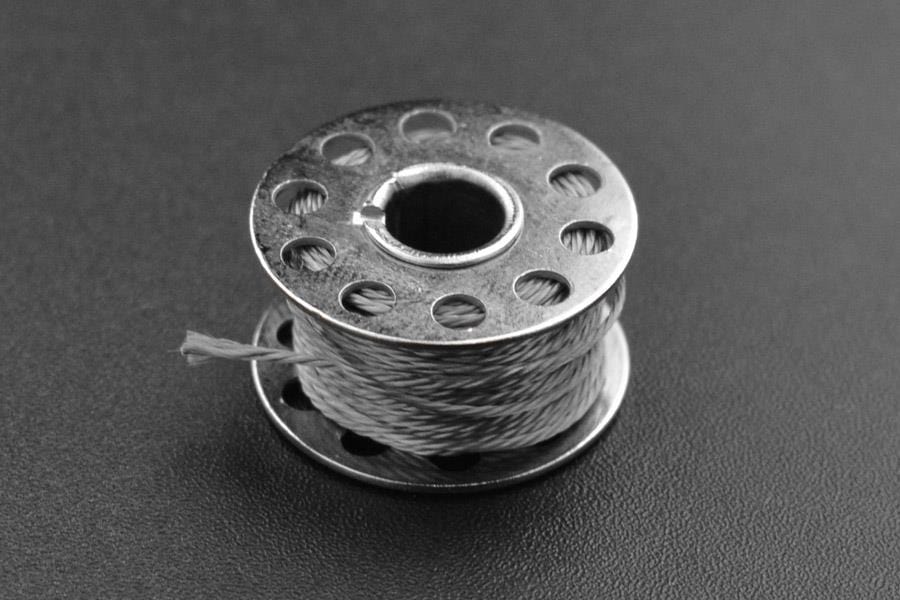

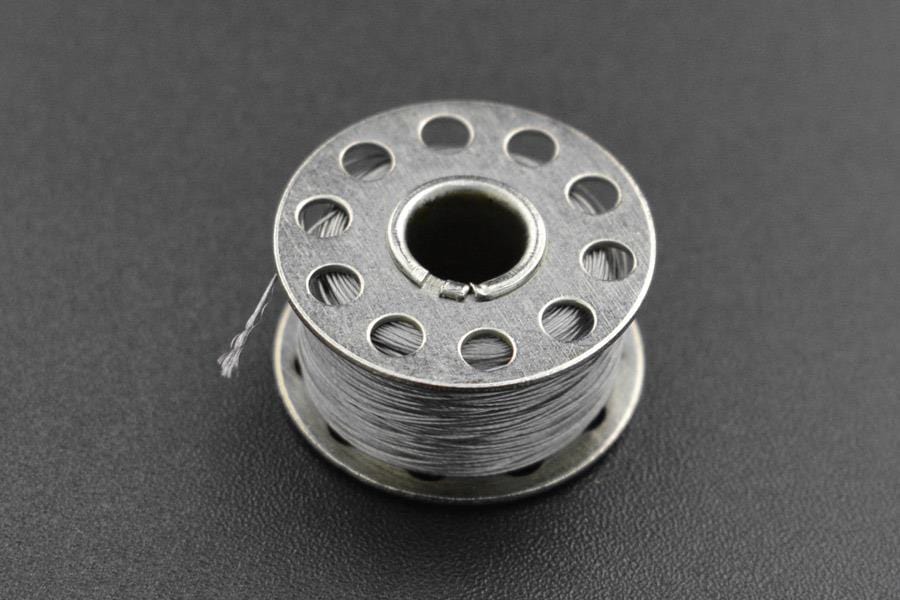

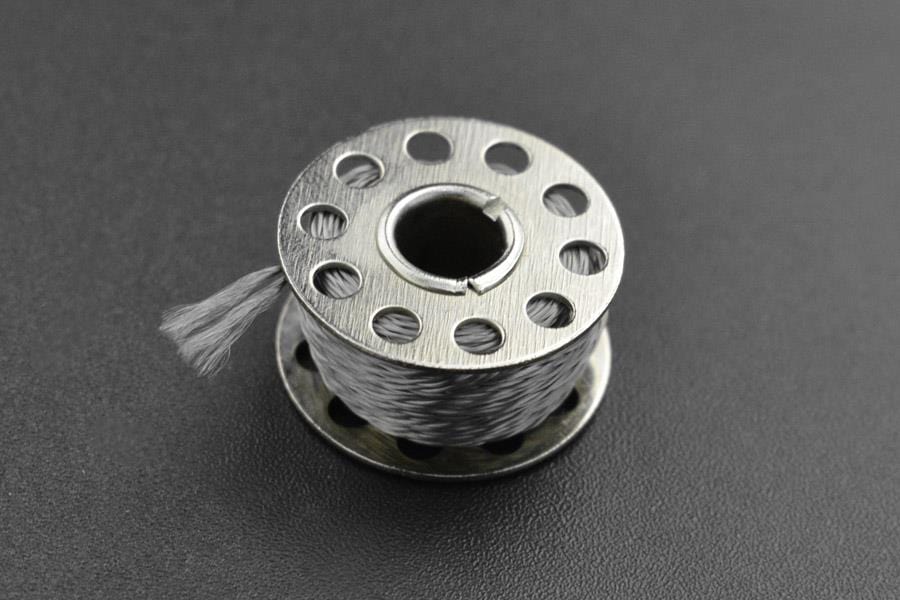

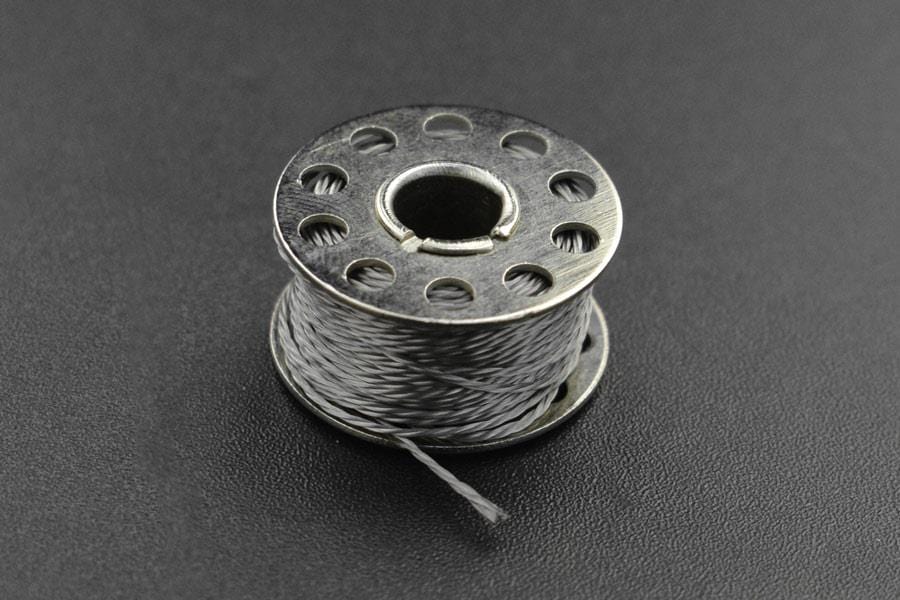

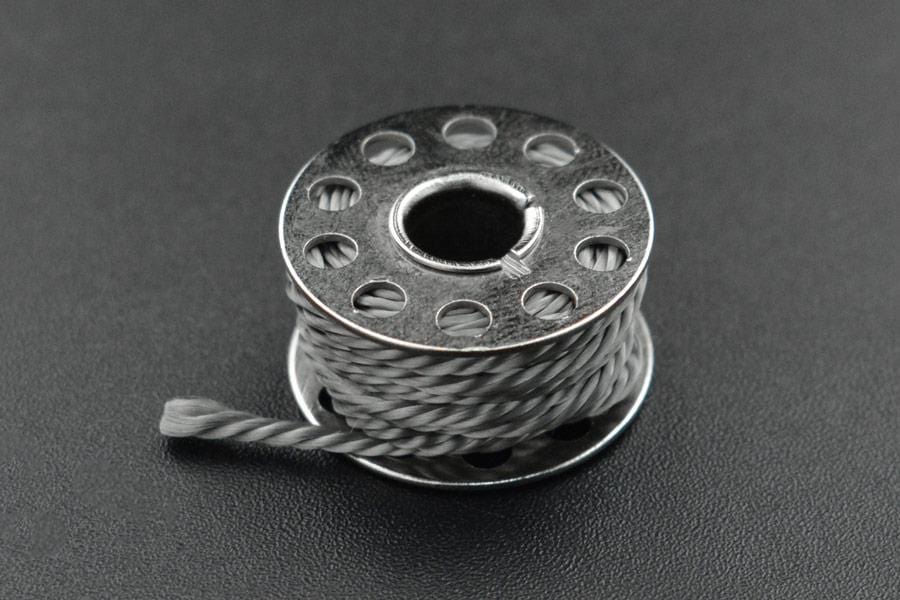

Conductive Stainless Thread

This is a smooth stainless steel fibre conductive sewing thread available with various resistance ratings, diameters and lengths. The reels feature low resistance, good thermal conductivity, a high melting point and high temperature resistance.

The diameter of the wire varies between the reel options - the lower the resistance, the thicker the thread. It can be used for making touchscreen gloves, anti-static clothing, wearable electronic equipment, cosplay items, anti-static brushes, driving LEDs and other small current electronic components.

Note: the thinner the wire, the more resistance it offers. The smaller the resistance value, the thicker the thread, so the length of each roll of these models differs (see table below).

Features

• Low resistance and stable resistivity
• High-temperature resistance 650°C, melting point 1350°C
• Safe to wash, reusable

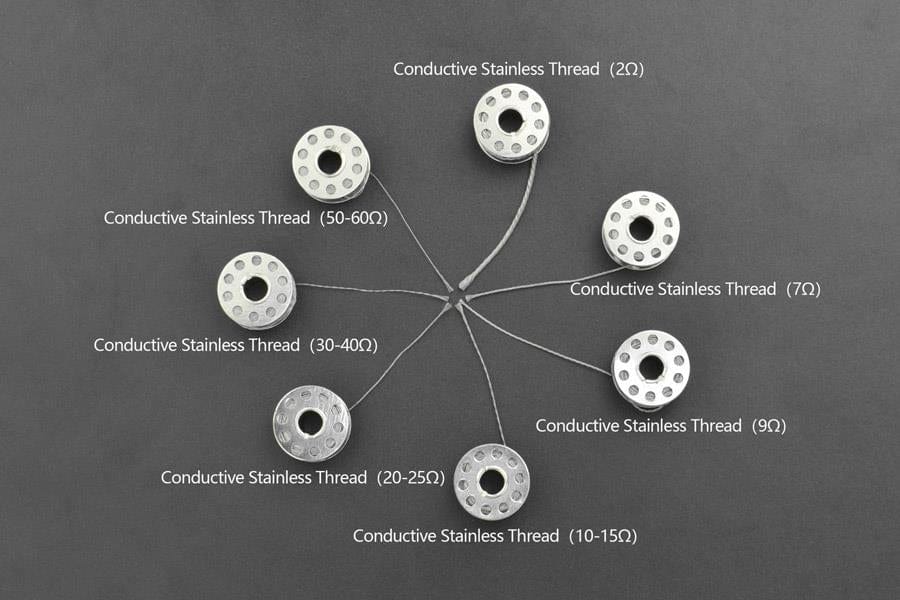

Thread Selection Guide

Resistance	Diameter	Length
30-40Ω	0.27-0.3mm	20-27m
20-25Ω	0.33mm	13-18m
10-15Ω	0.42mm	9-11m
7Ω	0.5mm	5m
2Ω	0.96mm	1m
