5V DC/DC Regulator [Discontinued]

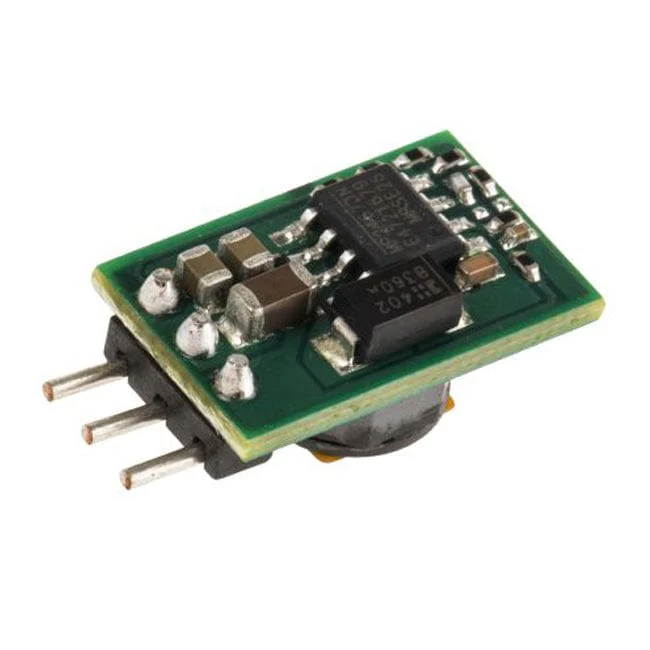

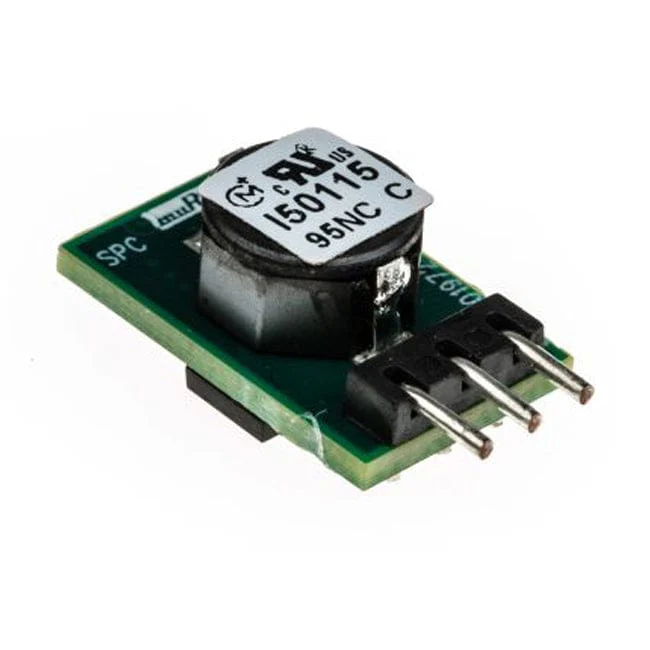

This is a 5V DC/DC regulator, specifically a Murata OKI-78SR-5/1.5-W36H-C!

They're highly efficient ~90%, and provide 5V @ 1.5A (7.5W) from a 7V to 36V input.

1.5A is ample for a Raspberry Pi Zero, but if using this with a Pi 3 or Pi 4 you'll need to keep a close eye on current consumption (and potentially take measures to reduce current usage).

It's deal if you need to produce 5V from a higher voltage power source for your project, and unlike noisy UBECs, this regulator provides < 75 mV peak-to-peak ripple.

We also stock similar 3.3V and 12V regulators.

Features

• 7 - 36V Input
• 5V @ 1.5A Output (7.5W)
• < 75 mV peak-to-peak ripple
• Vertical mount, small footprint package
• “No heat sink” direct replacement for 3-terminal 78xx-series linear regulators
• High efficiency (~90%) with no external components
• Short circuit protection
• Outstanding thermal derating performance
• UL/EN/IEC 60950-1, 2nd Edition safety approvals

Resources

Download the datasheet here
